Power & Energy Meter for Telecom Tower RMS

Monitor the electrical parameters of AC and DC distribution system of Telecom Tower in real time, provide online monitoring and energy consumption analysis of Cell Tower operation status, improve the efficiency of cell tower operation and maintenance control, and reduce the operation cost of cell tower.

Solution

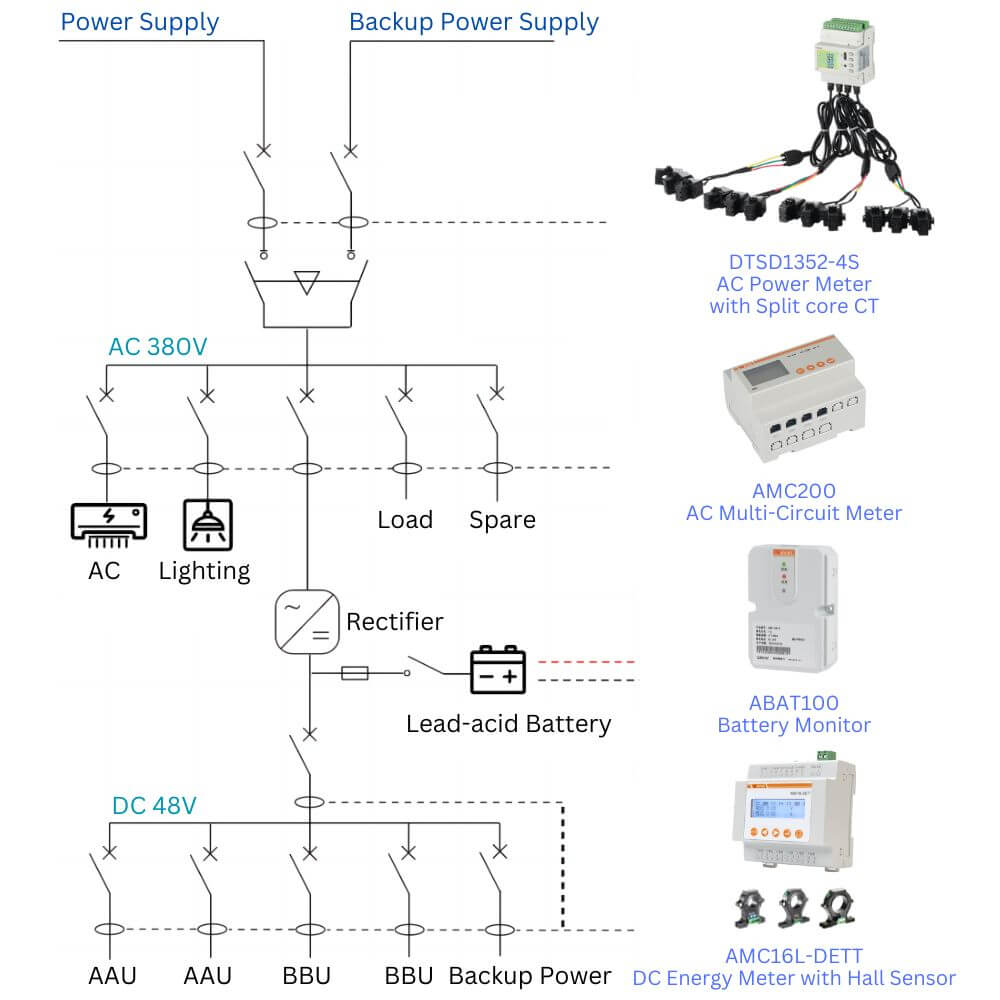

What's the Solution for Telecom Tower Remote Monitoring?

Auxiliary Power

What's the Auxiliary Power of Telecom Tower RMS Energy Meter?

  • DC 12V
  • DC 24V
  • DC 48V
  • AC 85-265V

Multi Channels

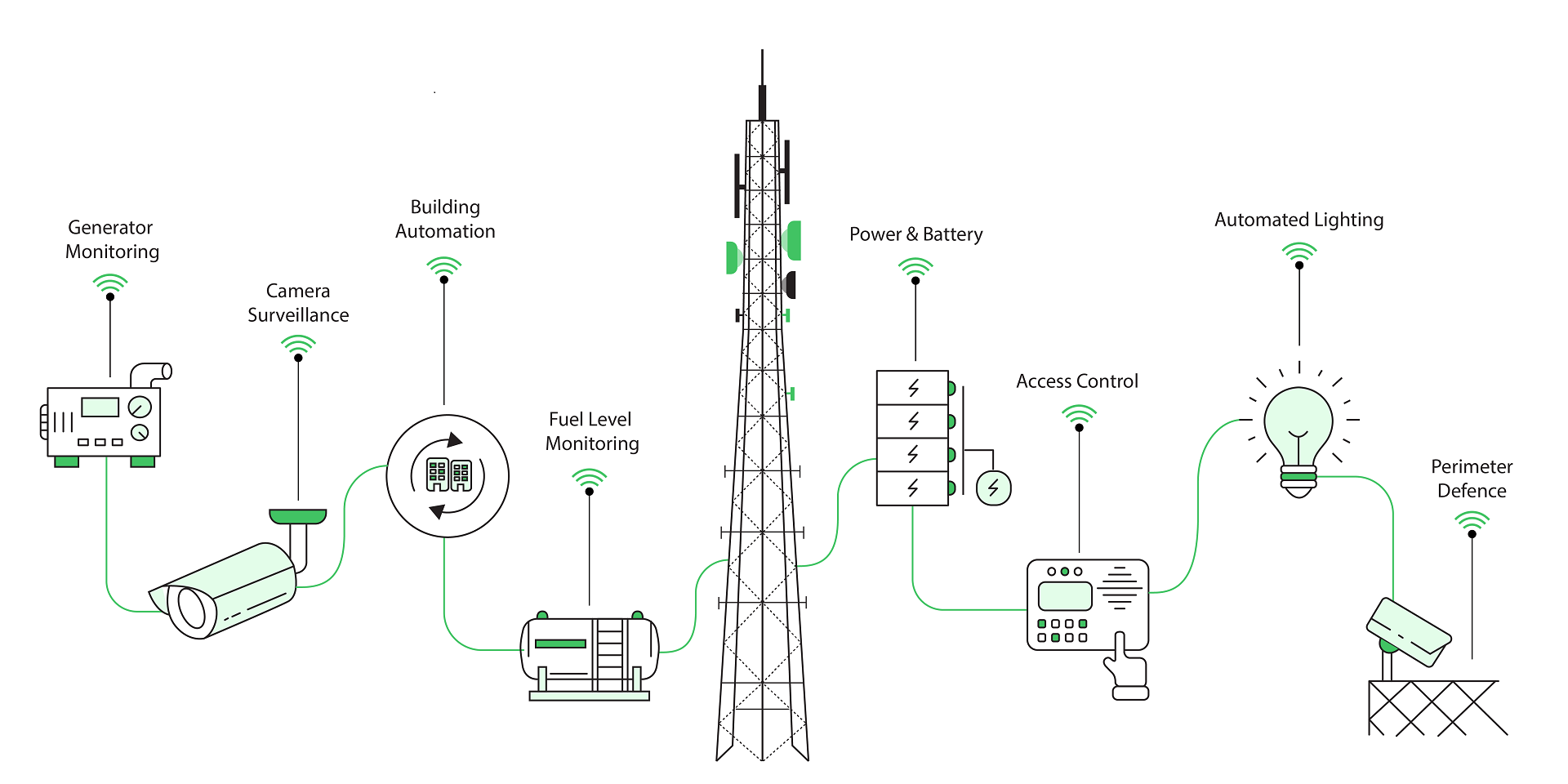

What's the Highlight of Telecom Tower Remote Monitoring Solution?

  1. AC :4, 6, 8 Channels
  2. DC :6, 12 Channels
  3. Current Sensor & Hall Sensor & Rogowski input

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

If you have more detailed requirements, Please go to the relevant product page to submit the form.

Customers

Who are Acrel's RMS customers?

On-site Photo

Related Products

DTSD1352-4S AC Power Meter with 4 Circuits

Certificate:

Feature:
  • -DC48V & DC12V Auxi. Power Supply
  • Split-core CT & Rogowski Coil with RJ12
  • 4*Three-phase or 12*Single-phase
  • RS485 Modbus-RTU
  • Ethernet Modbut-TCP

ADL400 AC Three-phase Power Meter

Feature:
  • 3P3L & 3P4L
  • Direct load 3*10(80)A
  • via CT 3*1(6)A
  • Cost-effective

AMC16L-DETT DC Energy Meter with 6 Circuits

Feature:
  • -48V DC Auxi. Power Supply
  • 6 DC channels
  • Power for Hall Sensor

AMC16-DETT DC Energy Meter with 6 Circuits

Feature:
  • -48V DC Auxi. Power Supply
  • 6 DC channels
  • Power for Hall Sensor

ADW300 DC24V Auxi. Power RS485 Modbus-RTU AC Power Meter

Standard:

2014/30/EU

EN IEC 61000

IEC 62052

IEC 62053

Certificate:

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

Feature:
  • Wireless
  • 4 Tariffs
  • Temperature
  • Leakage Current

ADL200N-CT Single-phase Power Meter & CT with 1P Size

Feature:
  • U, I, P, Q, S, PF, F
  • Single phase
  • with 80A, 120A, 200A, 300A CT
  • response ≤ 100ms
  • Modbus-RTU RS485

ADL400N-CT Three-phase Power Meter & CT with 100ms Quick Response

Feature:
  • U, I, P, Q, S, PF, F
  • 3P4L 3P3L 1P3L
  • response ≤ 100ms
  • Modbus-RTU RS485

AMC200L-12DE DC Power Meter with 12 Circuits RJ12

Feature:
  • Working -48V DC
  • Auxi. Power Supply DC-40V~-60V
  • Modbus-RTU RS485, 4G
  • 12 channels of DC
  • Hall Sensor
  • RJ12 interface
  • Active 2DI + Passive 4DI + 2DO
  • 4 NTC Temperature
  • 1 Temperature &Humidity

AMC200L-4/8E3 AC Power Meter with 4 or 8 Circuits RJ12

Feature:
  • full power parameter measurement
  • Modbus-RTU RS485
  • 4 or 8 channels of Three-phase
  • 12 or 24 channels of Single-phase
  • Current Sensor RJ12
  • 6DI + 2DO
  • 4 NTC Temperature
  • 1 Temperature &Humidity

AMC300L-6E AC Panel Power Meter with 6 Circuits

Feature:
  • Monitor: Grid, Generator, Air Conditioner, Lighting, etc
  • Active 2DI + Passive 4DI + 2DO
  • Up to 4 channels of Three-phase
  • or 12 channels of Single-phase
  • 2 NTC Temperature

AMC300L-4E AC Panel Power Meter with 4 Circuits

Feature:
  • Monitor: Grid, Generator, Air Conditioner, Lighting, etc
  • Active 2DI + Passive 4DI + 2DO
  • Up to 4 channels of Three-phase
  • or 12 channels of Single-phase
