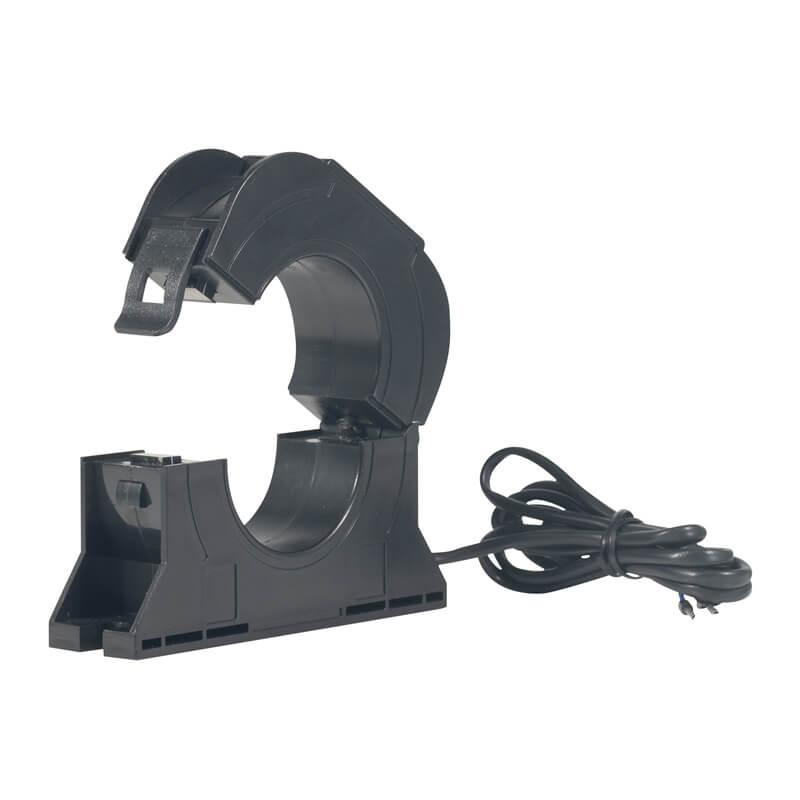

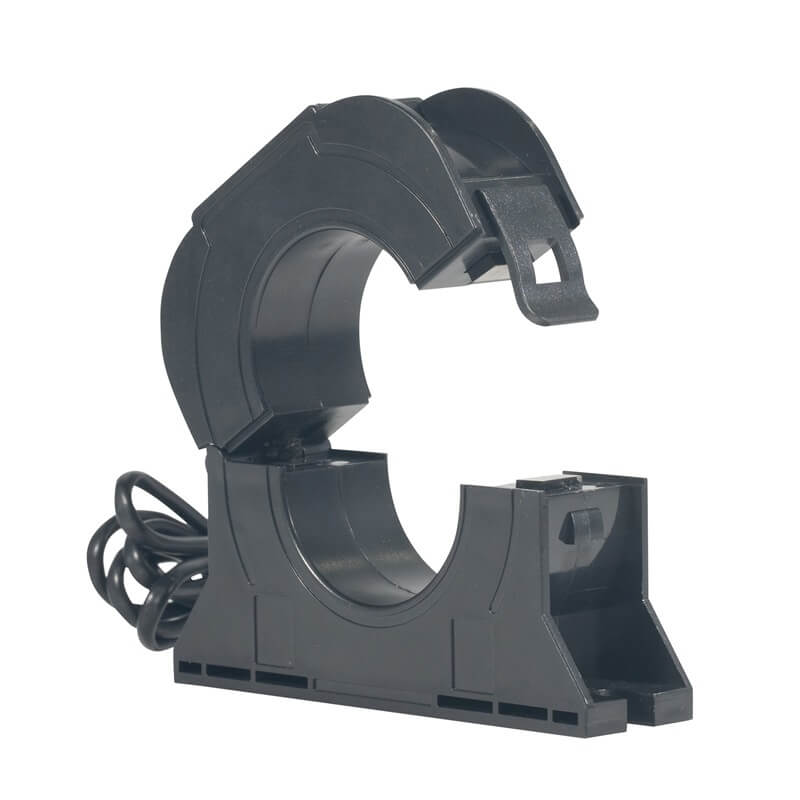

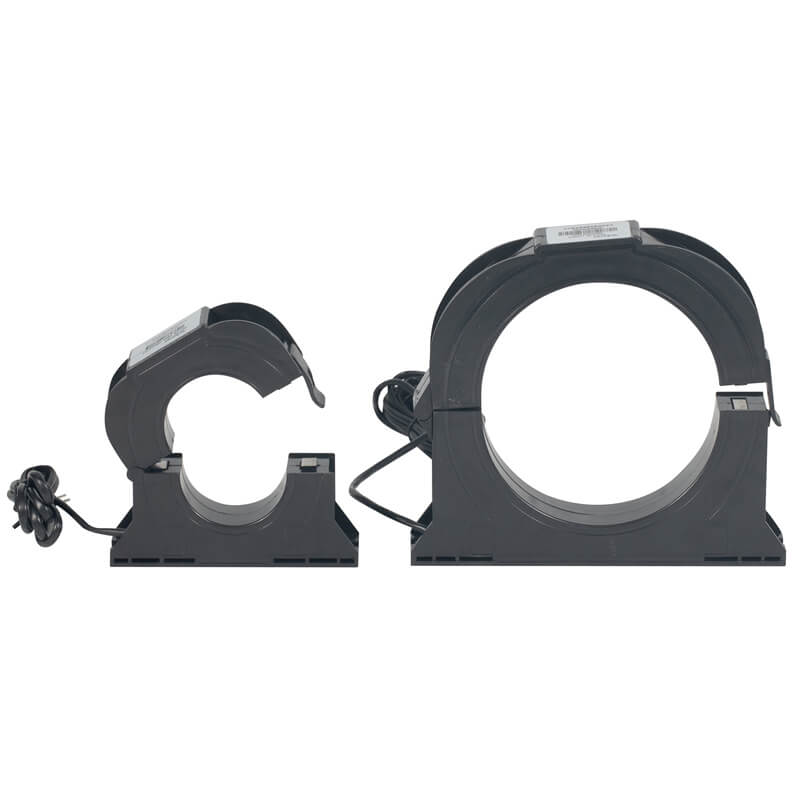

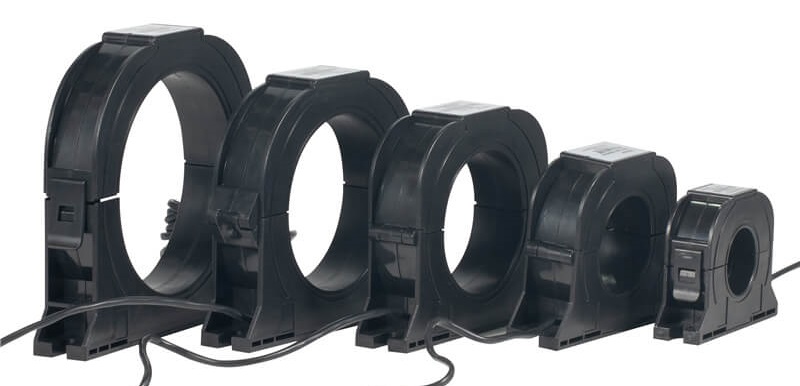

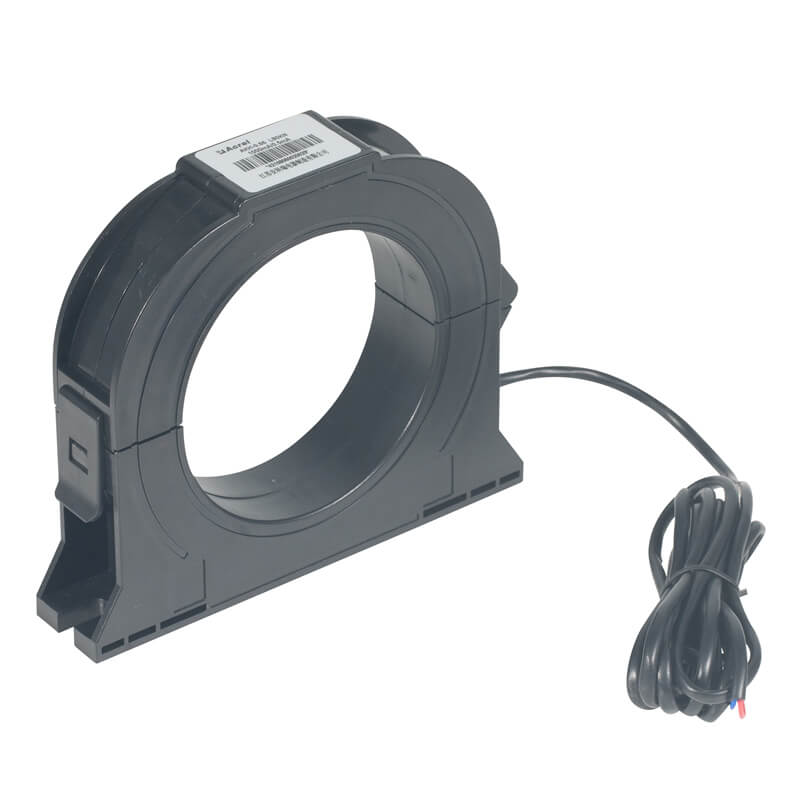

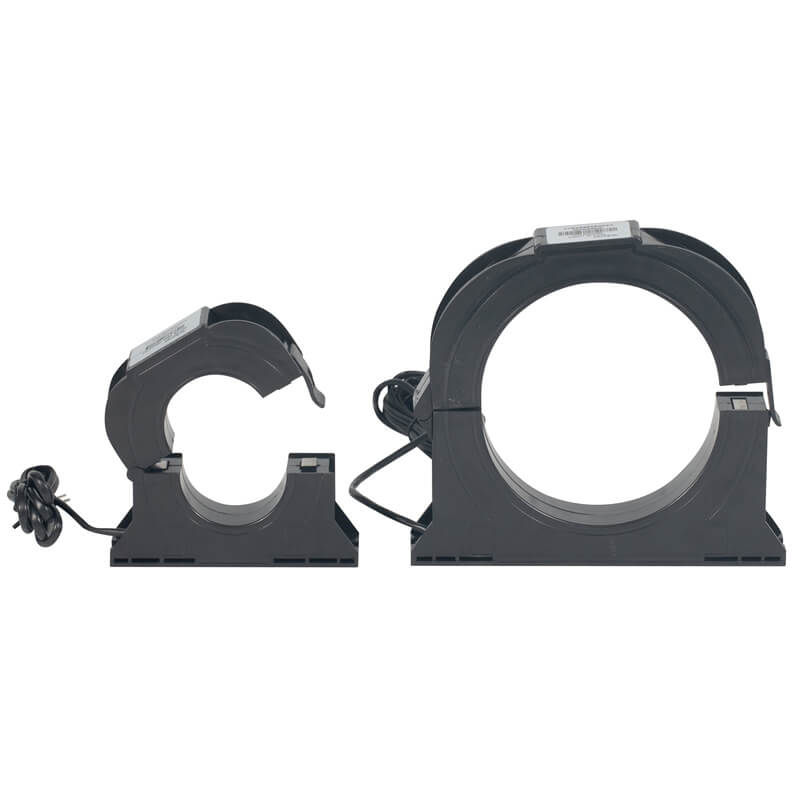

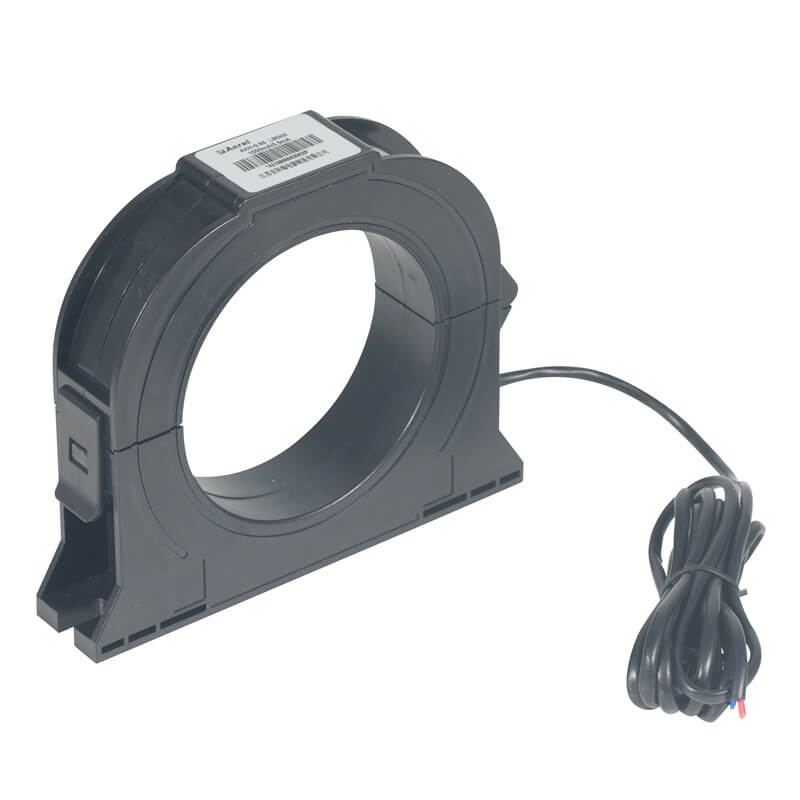

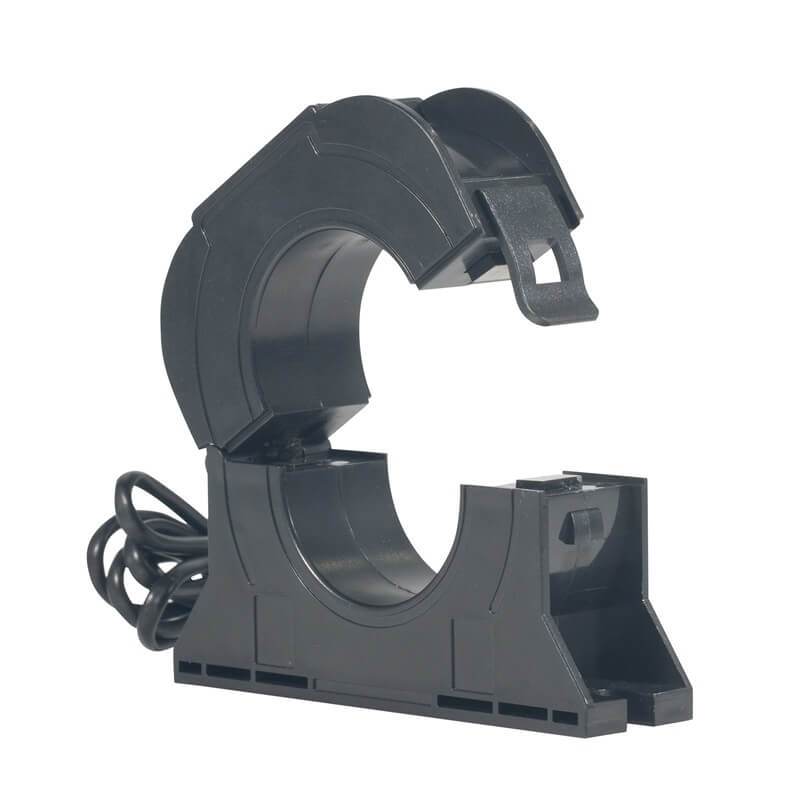

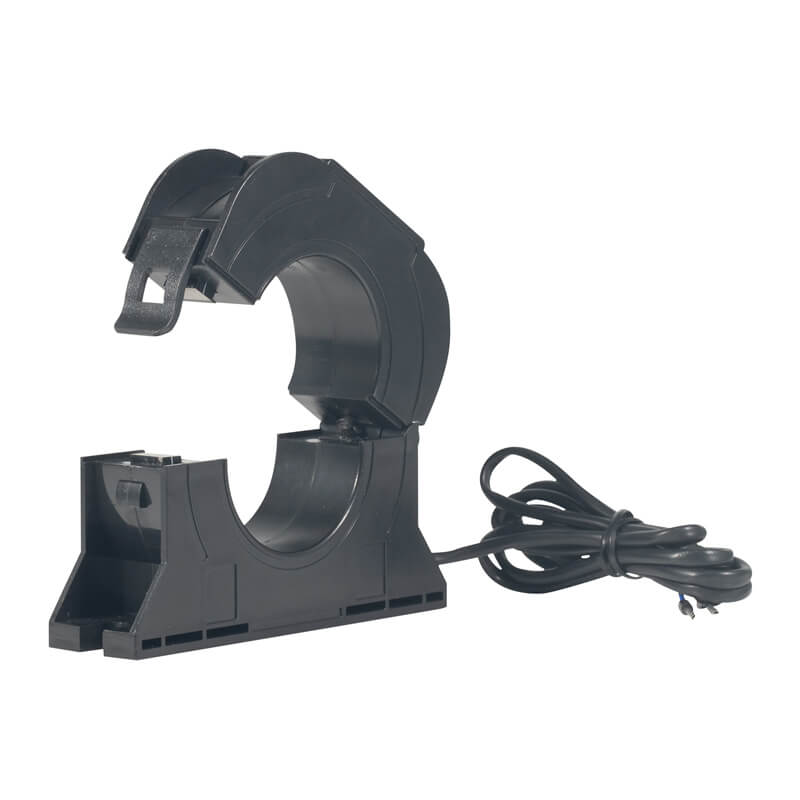

Split-type Residual Current Transformer

AKH0.66-LKN

  • Flame Retardant
  • Temp Resistance
  • Silicon Steel Core
  • IEC 61869
Chat Online Leave Message

Highlight

What’s the Function of Residual Current Transformer?

 Monitor

  • Residual Current

Overload

  • 10 times

Secondary

  • 0.5mA

Application

  • Electrical fire, Motor protection

Specification

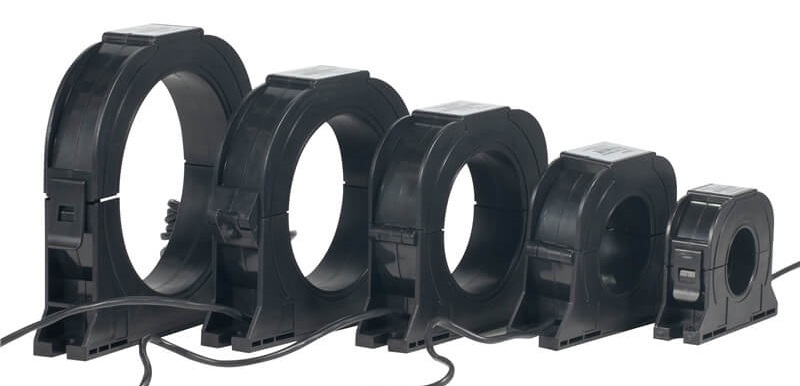

What’s the Specification of Acrel AKH0.66-LKN series Split-type Residual Current Transformer?

Specification AKH0.66-LKN
Inner Size Φ30 ~ 100 (±1) mm
Rated Current 10-400 A
Primary 1000mA
Secondary 0.5mA

Parameter

What’s the Parameter of Residual Current Transformer?

Standard IEC/EN 61869-1, IEC/EN 61869-2
Accuracy 3.0 class
Rated Voltage AC 0.66 KV
Rated Frequency 50-60Hz, 400Hz
Continuous Overload 120% ln
Max Overload 10 times
Burden 100 Ω
Protection Level IP30
Temperature -30℃~55℃
Altitude ≤3000 m
Humidity ≤90%
Withstand 3000V/1min 50Hz

Installation

How to Install the Residual Current Transformer?
