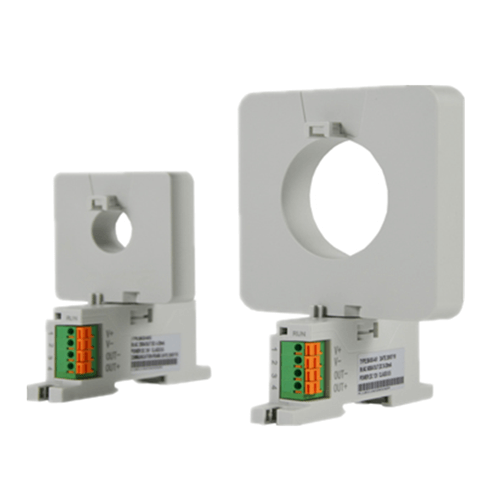

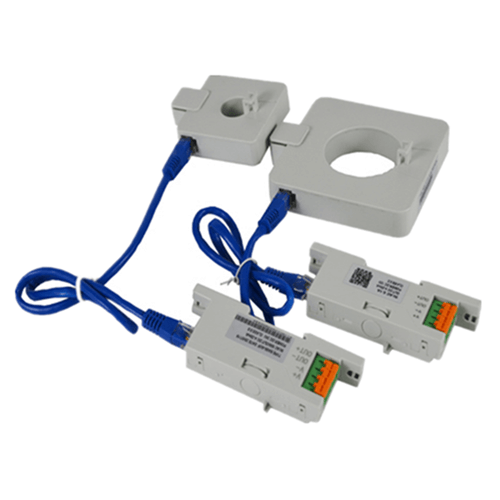

Split type DC1-5V Current Transducer

BA(II)1-5V

  • Communication RS485 Modbus-RTU
  • Overload≤120%
  • Precision 0.5 class
  • Frequency 25-800Hz
Chat Online Leave Message

Highlight

What’s the Function of the Current Transducer?

Theory

  • Electromagnetic Induction

 Input

  • AC 0-600A

Output

  • 1-5V
  • 0-5V

Application

  • Automation field

Specification

What’s the Specification of Acrel BA(II) series Split type DC1-5V Current Transducer?

Specification BA(II)20-AI/V BA(II)50-AI/V
Inner Size Φ20 mm Φ50 mm
Input Current AC 0-(0.5~200)A AC 0-(60~600)A
Output Signal 1-5V, 0-5V

Parameter

What’s the Parameter of the Current Transducer?

Accuracy 0.5%
Response time Average Value ≤ 400ms,  True RMS ≤ 100ms
Auxiliary Power DC12V(10-15V); DC24V(18-30V)
Load Resistance Current Output ≤ 500Ω，Voltage Output ≥ 1KΩ
Insulation Resistance >100MΩ
Withstand AC2000V/1 min, 50Hz
Operation Temperature -10℃ ~ +55℃
Temperature Drift Coefficient ≤ 400ppm/℃
Altitude ≤ 2000m
Humidity ≤ 93% RH
Installation Din-rail 35mm

Installation

How to Install the Current Transducer?

Why choose Acrel?

  • 2003 Established
  • SZ.300286 Listed Company
  • 1200+ People
  • 25000+㎡ Plant
  • Factory Direct-sale

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

If you have more detailed requirements, Please go to the relevant product page to submit the form.

FAQ

Got a Question? Get your Answer

What are the Main Advantages of Acrel?

We have our own Factory and R&D Center

What are the Difference between Acrel and other Brands?

Rich product series: Cloud Platform, Gateway, Protection Device, Power Meter, Transformer

What Certificates does the Company have?

CNAS, ISO14001, ISO27001, ISO9001

What Certificates do the Products have?

CE, IEC, MID, UL, EAC, ROHS, REACH

How Expensive is Acrel Products?

Competitive Price with High Quality

How long is the product Warranty Period?

2 Years

What is the MOQ?

Purchasing according to your needs, no MOQ limit

How long is the Lead Time?

Sample takes 3 days; Bulk purchase takes 1 month
