Highlight
What’s the Function of Split Core Current Transformer?
Easy to install
Split-core Open design
Primary
20-5000A
Secondary
5A
1A
Application
Reconstruction Project
Specification

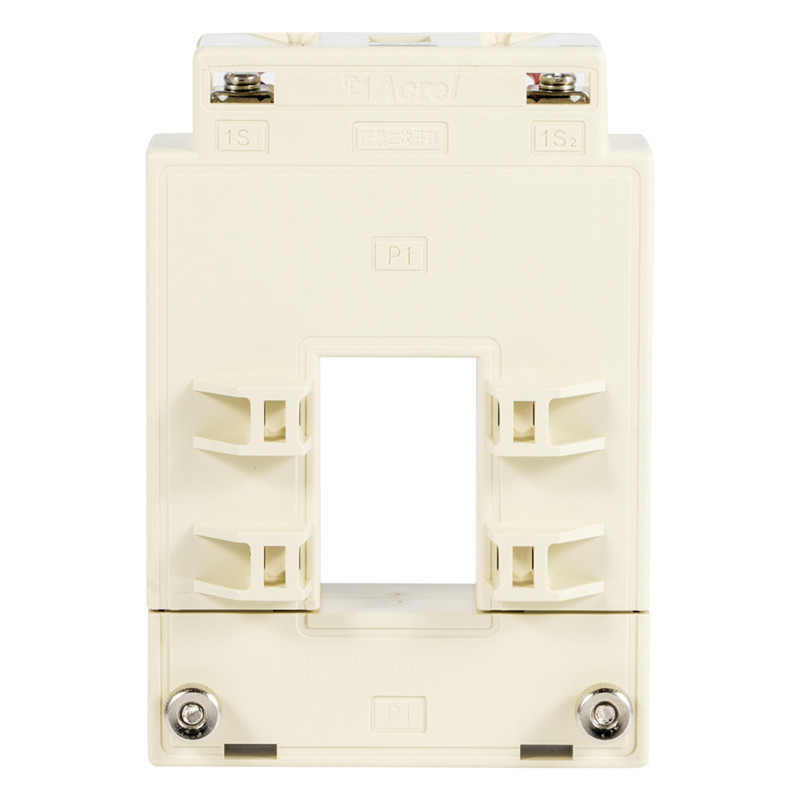

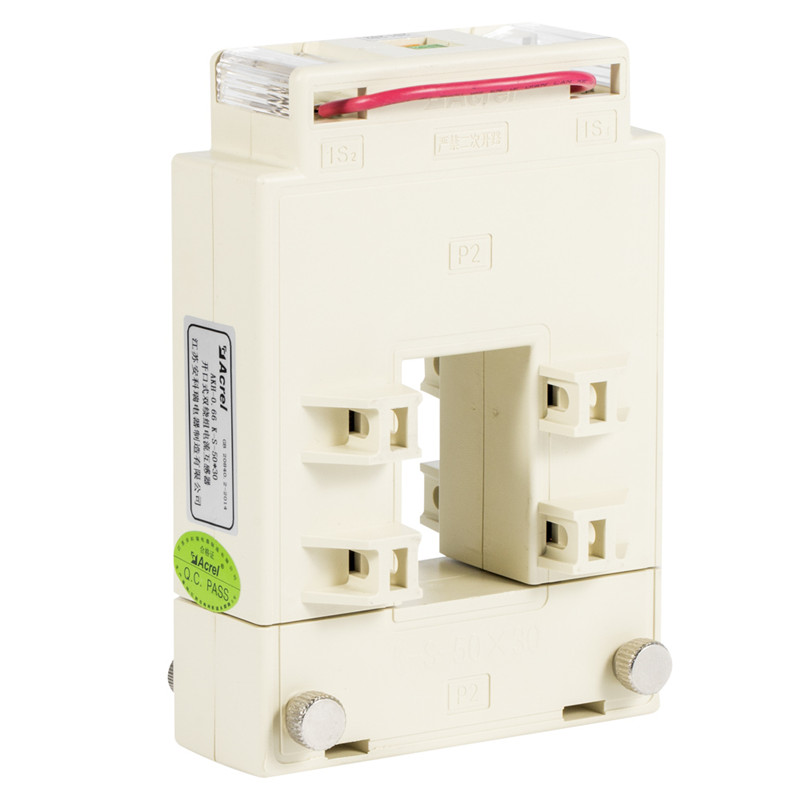

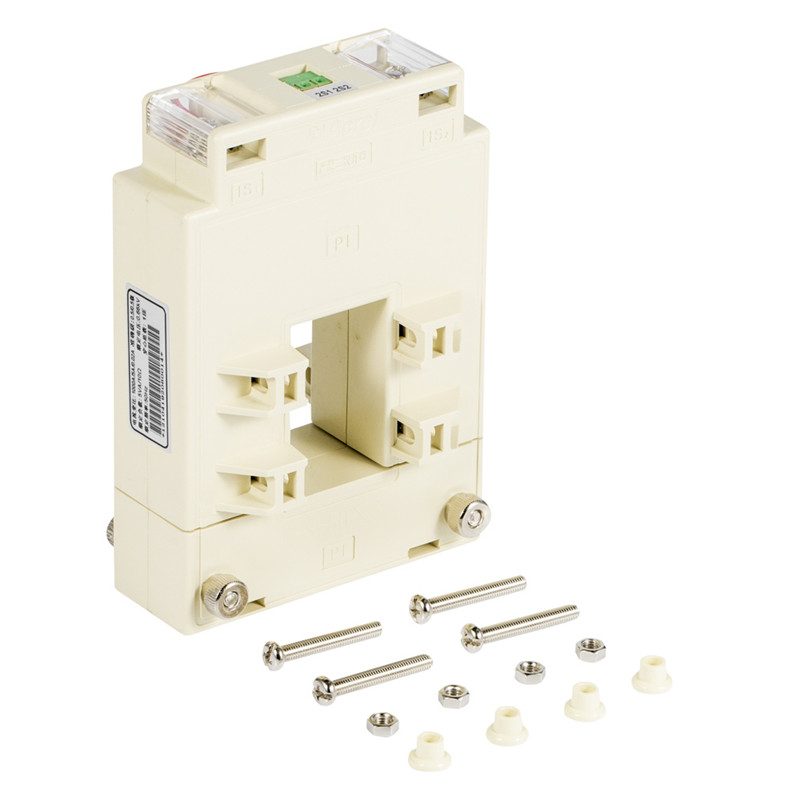

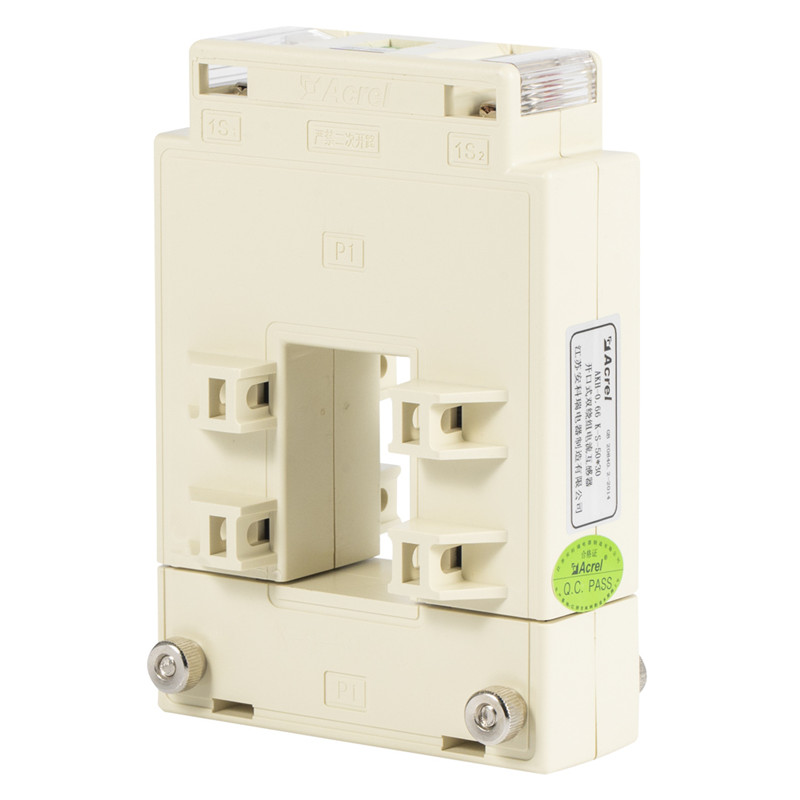

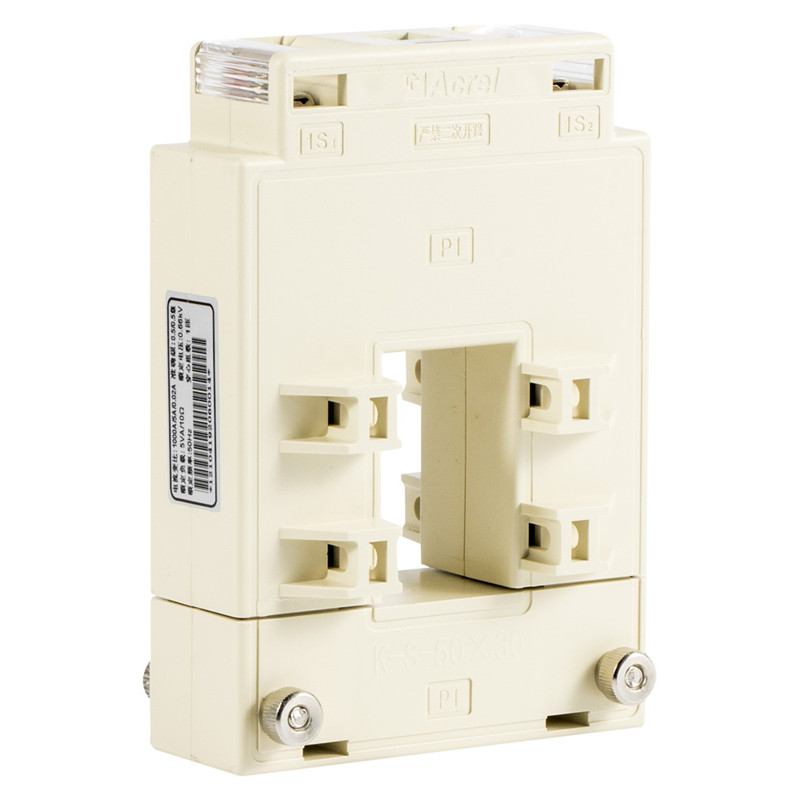

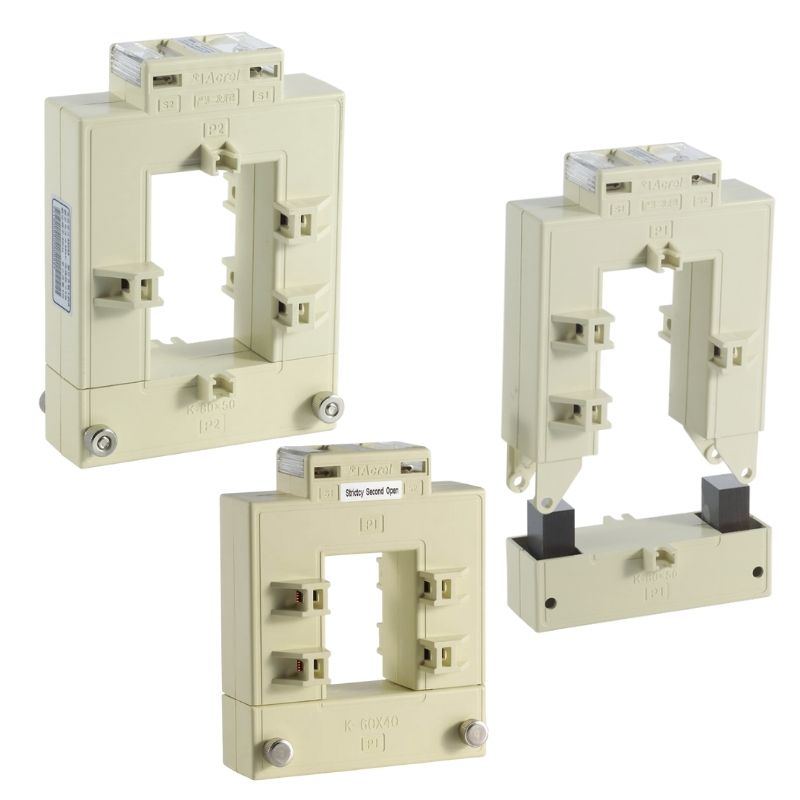

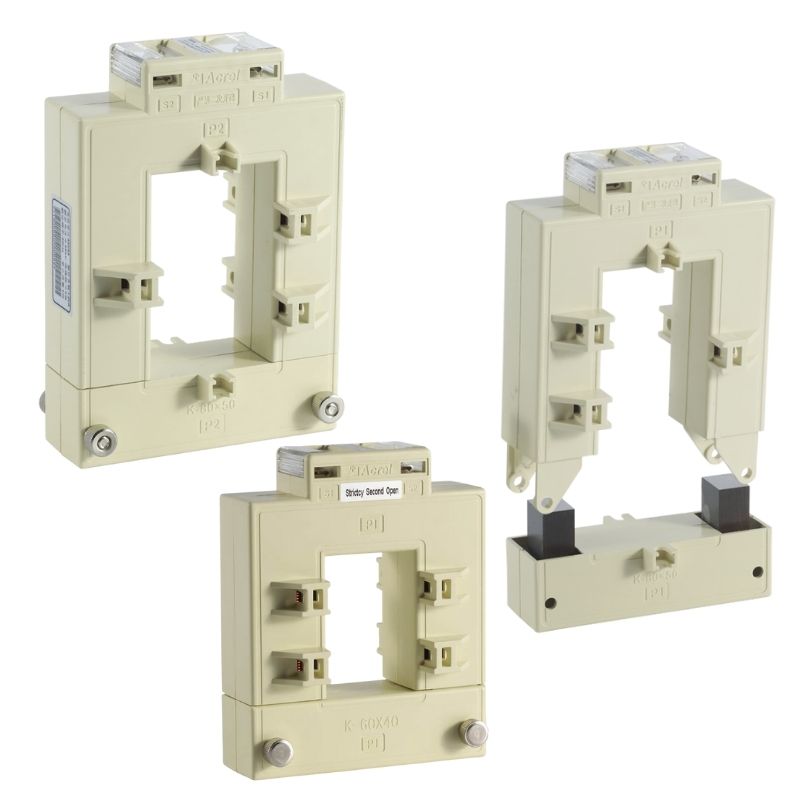

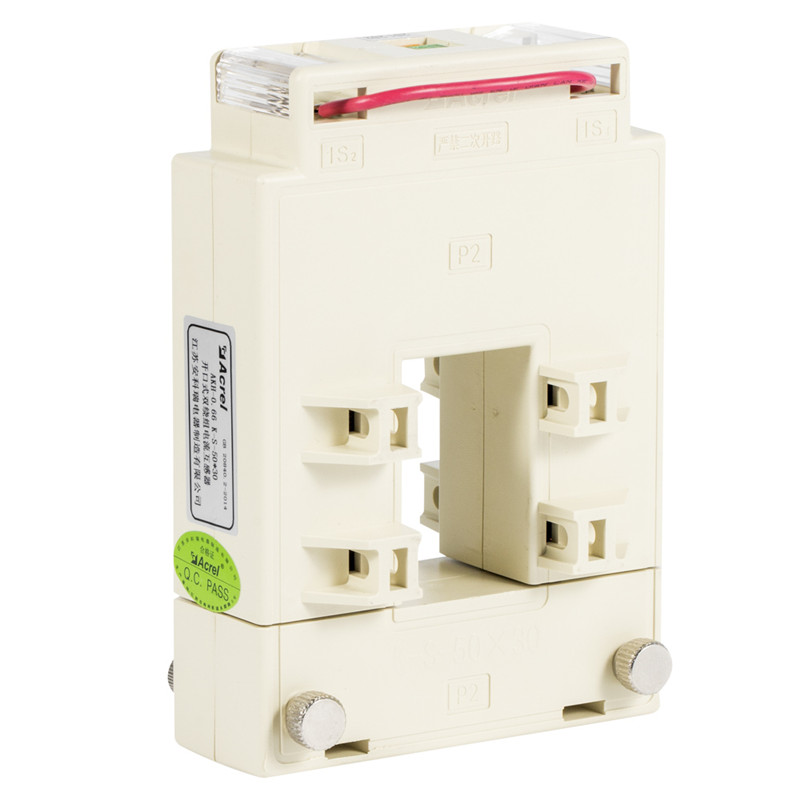

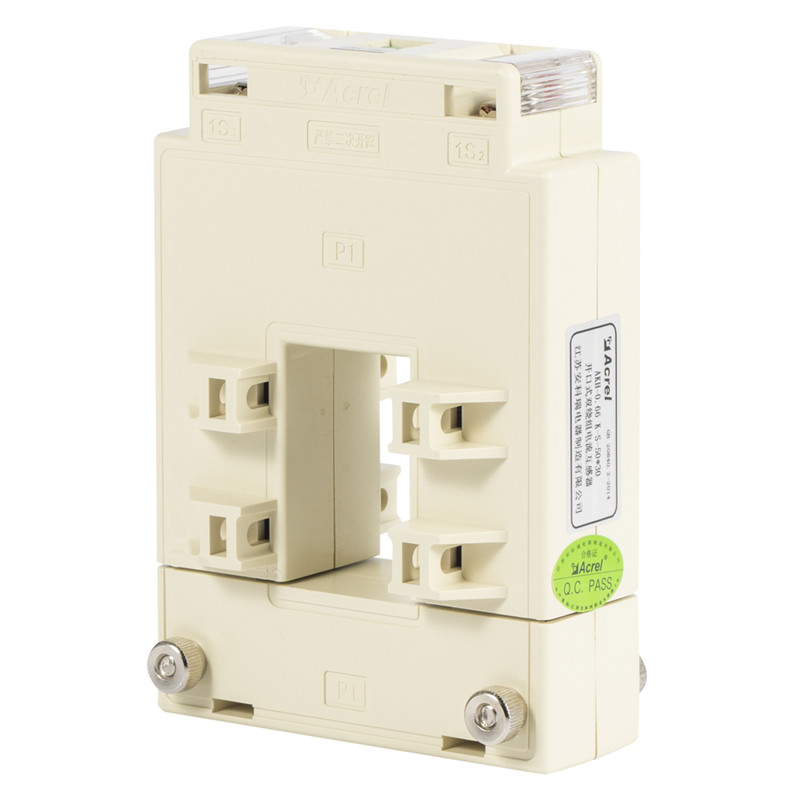

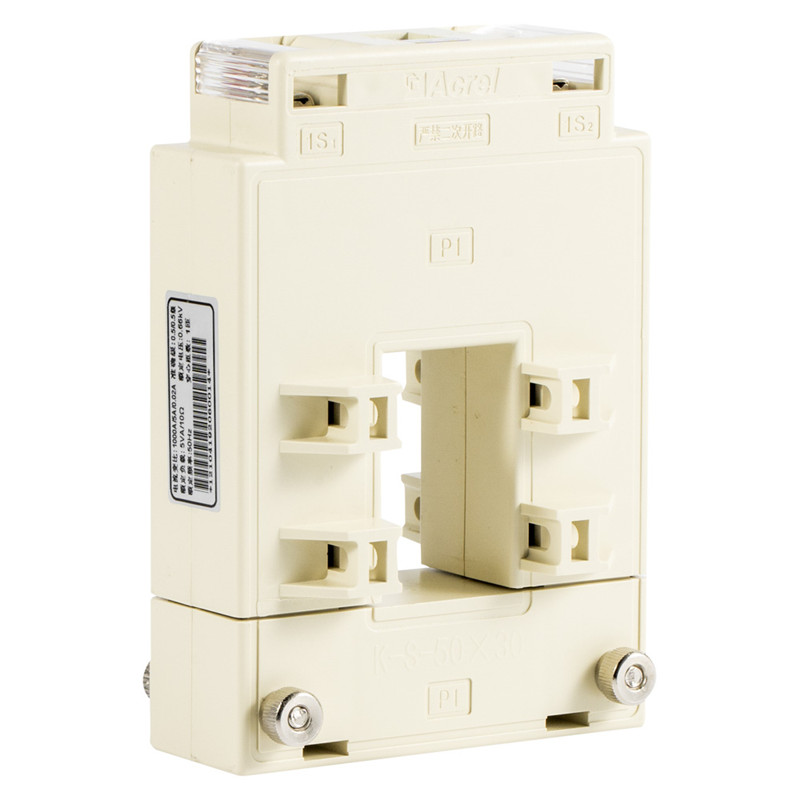

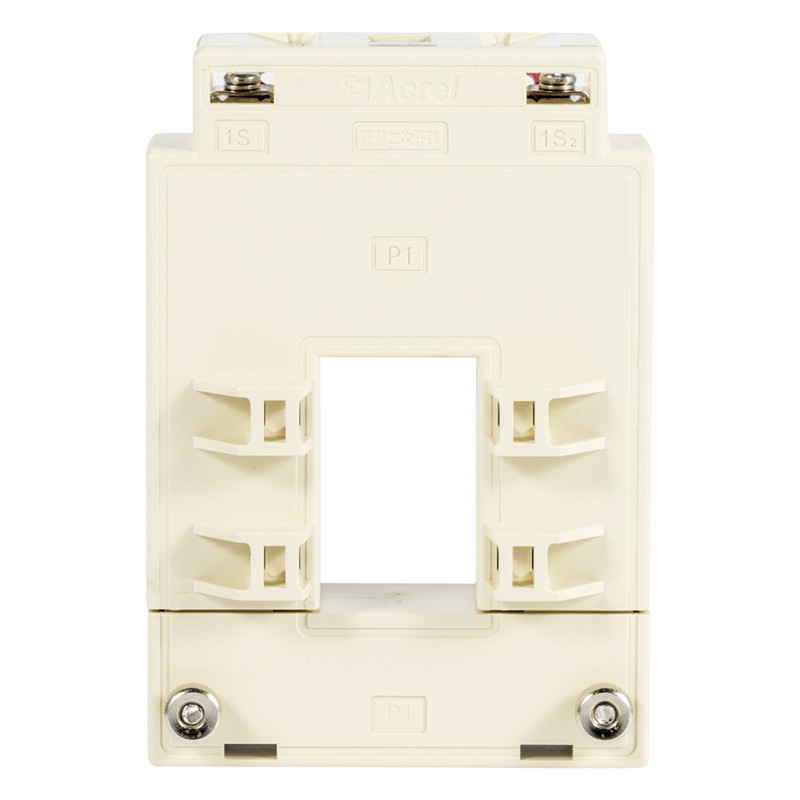

What’s the Specification of Acrel AKH0.66-K series Split Core Current Transformer for Busbar?
Specification
AKH0.66-K
Inner Size
22*32mm ~ 82*202 mm
Input Current
20-5000 A
Output Signal
1A, 5A
Parameter
What’s the Parameter of Split Core Current Transformer?
Standard
IEC/EN 61869-1, IEC/EN 61869-2
Accuracy
0.2, 0.5, 1.0 class
Rated Voltage
AC 0.66 KV
Rated Frequency
50-60Hz, 400Hz
Continuous Overload
120% ln
Burden
0-30 VA
Protection Level
IP30
Temperature
-30℃~55℃
Altitude
≤3000 m
Humidity
≤90%
Withstand
3000V/1min 50Hz
Installation

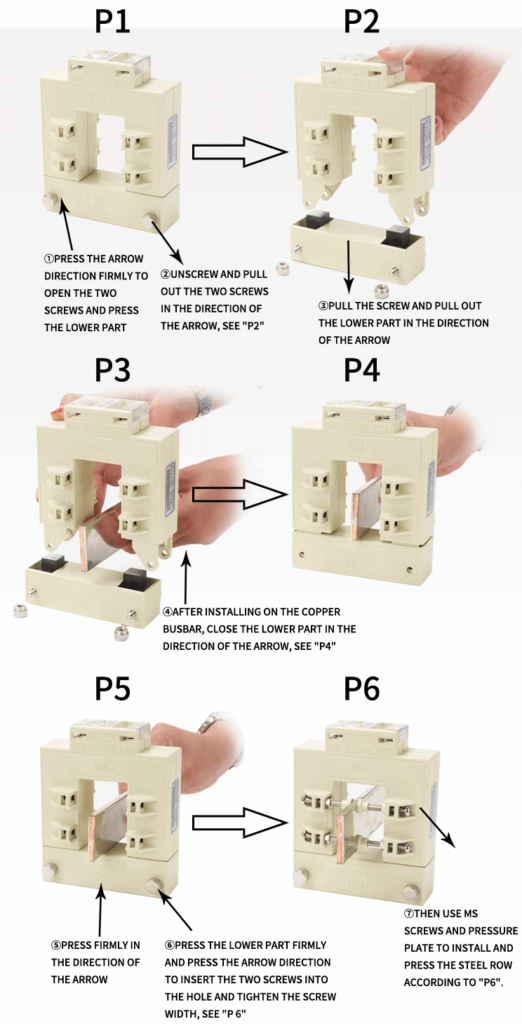

How toInstall the Split Core Current Transformer?
Why choose Acrel?
2003 Established
SZ.300286 Listed Company
1200+ People
25000+㎡ Plant
Factory Direct-sale
