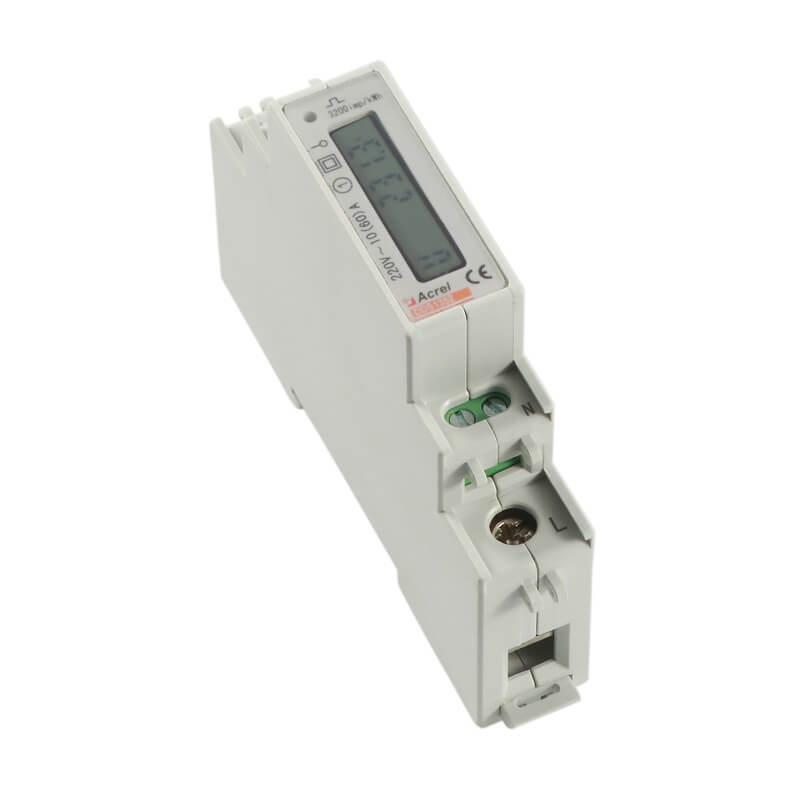

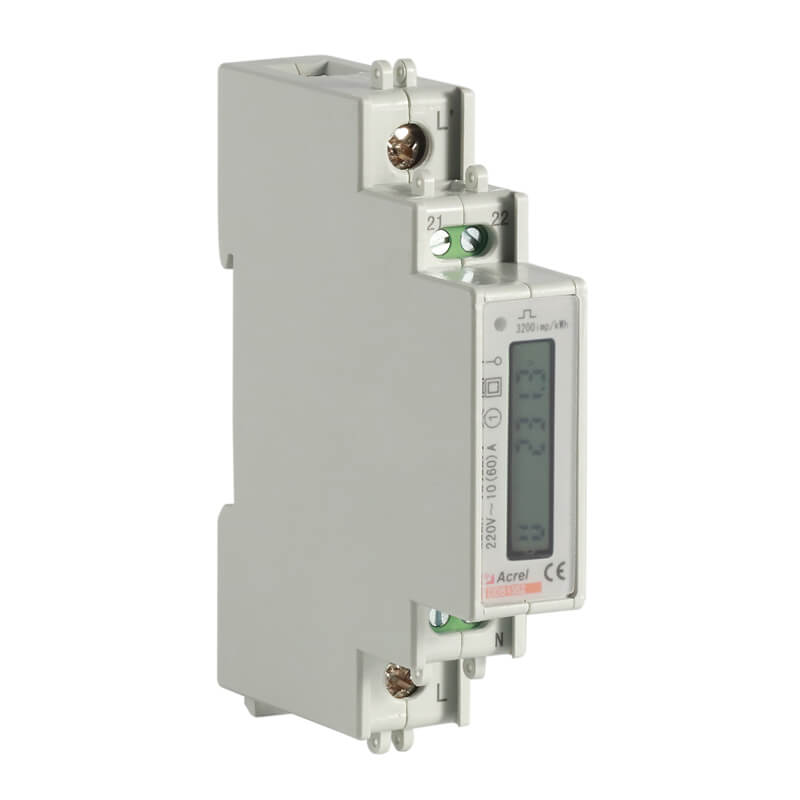

What’s the Function of Acrel ADL10-E series Smallest Dinrail KWH Meter?
What’s the Specification of Acrel ADL10-E series Smallest Dinrail KWH Meter??

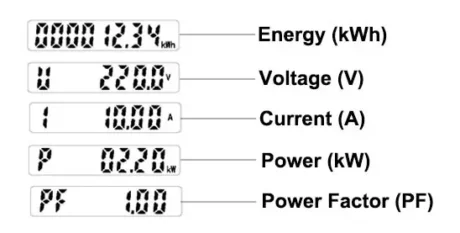

| Diverse Electricity Parameters Measurement
● U (Voltage) ● I (Current) ● P (Power) ● Q (Reactive power) ● S (Apparent power) ● PF (Power factor) ● kWh (Kilowatt-hours) ● kVarh (Kilovar-hours) |
|

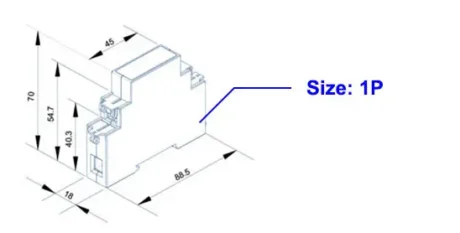

| Small Compact Size
● Dimension (L*W*H): 18mm*88mm*70mm |
|

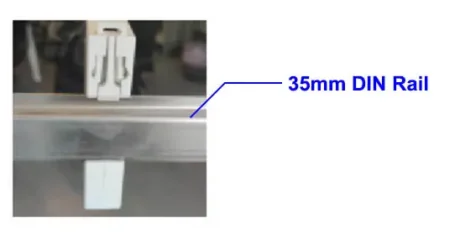

| DIN Rail Installation
● 35mm standard DIN rail |
|

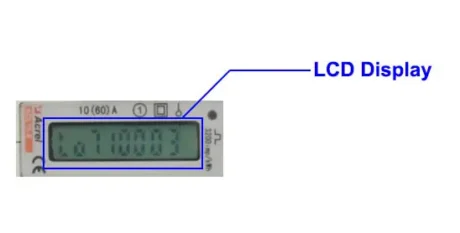

| LCD Display
● 8 digits |
|
Show More
What’s the Parameter of Acrel ADL10-E series Smallest Dinrail KWH Meter?
| Function | Function description | Function provides |
| Measurement of kWh | Single-phase active kWh (positive and negative) | ■ |
| Measurement of electrical parameters | Voltage, Current, Active power, Reactive power, Apparent power, Power factor, and Frequency | ■ |
| LCD Display | 8 bits section LCD display | ■ |
| Communication | Communication interface: RS485, Communication protocol: MODBUS-RTU | □C |
( ■： means standard; □： means optional)
| Input voltage | Reference voltage | AC220V |
| Reference frequency | 50Hz | |
| Power consumption | <10VA | |
| Input current | Basic current | 10A |
| Maximum current | 60A | |
| Starting current | 0.004Ib | |
| Consumption | <4VA (Maximum current) | |
| Measurement performance | Accuracy of measuring | 1 Class |
| Range of measuring | 000000.00~999999.99kWh | |
| Communication | Interface | RS485(A+、B-) |
| Connection mode | Shielded twisted pair conductors | |
| Protocol | MODBUS-RTU |
| Outline (Length × Width × Height) | 18mm×96 mm×70mm |
| Range of temperature | Working temperature | -25℃~55℃ |
| Storing temperature | -40℃~70℃ | |
| Relative humidity | ≤95%(No condensation) | |
| Altitude | <2000m | |
Show More
How does Acrel ADL10-E series Smallest Dinrail KWH Meter work?
