Single-phase Multi-Circuit Meter

ADF400L-D

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

  • Modular Design
  • Max 36 Channels of Single-phase
  • High Accuracy 0.5s Class
  • Communication RS485, CE

Feedback

What Do Our Customers Say?

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Function of Acrel ADF400L series Single-phase Multi-Circuit Meter?

Monitor

  • Electrical Parameters;
  • U I P Q S PF etc.

 Tariff

  • 1~4 kinds of Tariffs
  • Peak
  • Standard
  • Off-peak

Modular

  • one modular with 3 channels of Single-phase;
  • Current Input Directly 10(80)A

Extendible

  • 12 modules at most;
  • Dinrail installation
  • Connected IoT Solution

Specification

What’s the Specification of Acrel ADF400L series Multi-Circuit Meter?

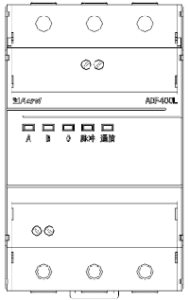

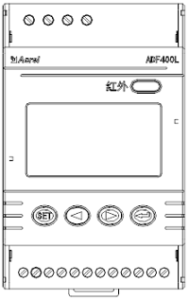

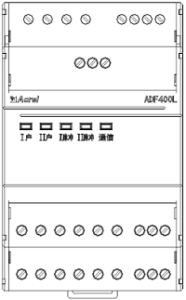

Drawing
Modules Main body Current Input Directly Slave Current Input via CT Slave
Specification ADF400L-D ADF400L-S ADF400L-H
Voltage 220V 380V 380V
Current 10(80)A 3*10(80)A 3*1(6)A
Max. Circuits 36 channels of Single-phase 12 channels of Three-phase 12 channels of Three-phase
Max. Modules 12 modules 12 modules 6 modules

Parameter

What’s the Parameter of Acrel ADF400L series Single-phase Multi-Circuit Meter?

Parameter Description&Value
Auxiliary

Power Supply

Voltage 220V AC
Power Consumption ≤10W
 Input

Voltage

Rated Voltage 220V AC
Frequency 50Hz
Input

Current

Rated Current Max 80A Load Current
Starting Current 1‰ Ib (Class 0.5S)
Accuracy Measurement Class 0.5
Clock ≤0.5s/d


Pulse

Pulse Output 1 Active Energy Pulse for each 3-phase Sub Module
Pulse Width 80ms±20ms
Pulse Constant 6400imp/kWh (3-phase)
Communication RS485 MODBUS-RTU
Infrared For Prepaid Card Scanning
Ethernet MODBUS-TCP
Environment Operating Temperature -20℃~+60℃
Storage Temperature -30℃~+70℃
Humidity ≤95% (No condensation)
Altitude <2000m

Installation

How to Install the Acrel ADF400L series Single-phase Multi-Circuit Meter?

Main Body Sub Module (Direct Connect)
Direction Connect (1-phase&3-phase)

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

If you have more detailed requirements, Please go to the relevant product page to submit the form.

Why Choose Acrel?

  • 2003 Established
  • SZ.300286 Listed Company
  • 1200+ People
  • 25000+㎡ Plant
  • Factory Direct-sale

FAQ

Got a Question? Get your Answer

What are the Main Advantages of Acrel?

We have our own Factory and R&D Center

What are the Difference between Acrel and other Brands?

Rich product series: Cloud Platform, Gateway, Protection Device, Power Meter, Transformer

What Certificates does the Company have?

CNAS, ISO14001, ISO27001, ISO9001

What Certificates do the Products have?

CE, IEC, MID, UL, EAC, ROHS, REACH

How Expensive is Acrel Products?

Competitive Price with High Quality

How long is the product Warranty Period?

2 Years

What is the MOQ?

Purchasing according to your needs, no MOQ limit

How long is the Lead Time?

Sample takes 3 days; Bulk purchase takes 1 month
