ARTU100
DI / DO
AI / AO
CE Ethernet Modbus-TCP
RS485 Modbus-RTU
What Do Our Customers Say?
My first contact with ACREL was through Mrs. Feeling Chang. He was extremely friendly, approachable and very helpful. It will be the beginning of a long partnership between Bikoelectronics and Acrel.
Vanessa
Portugal
“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "
Arnold
Philippines
Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.
Tuan
Vietnam

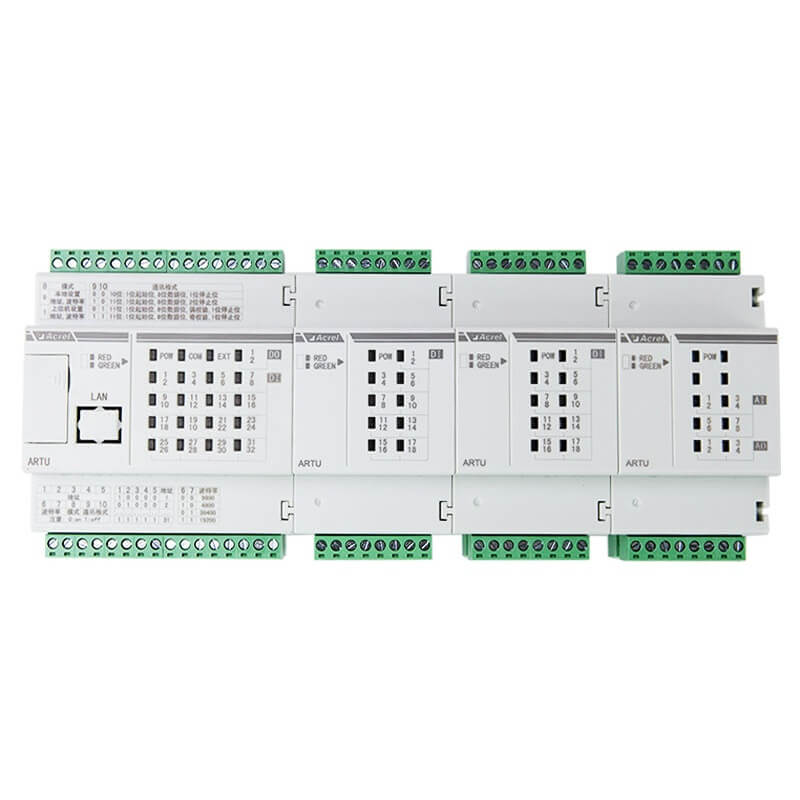

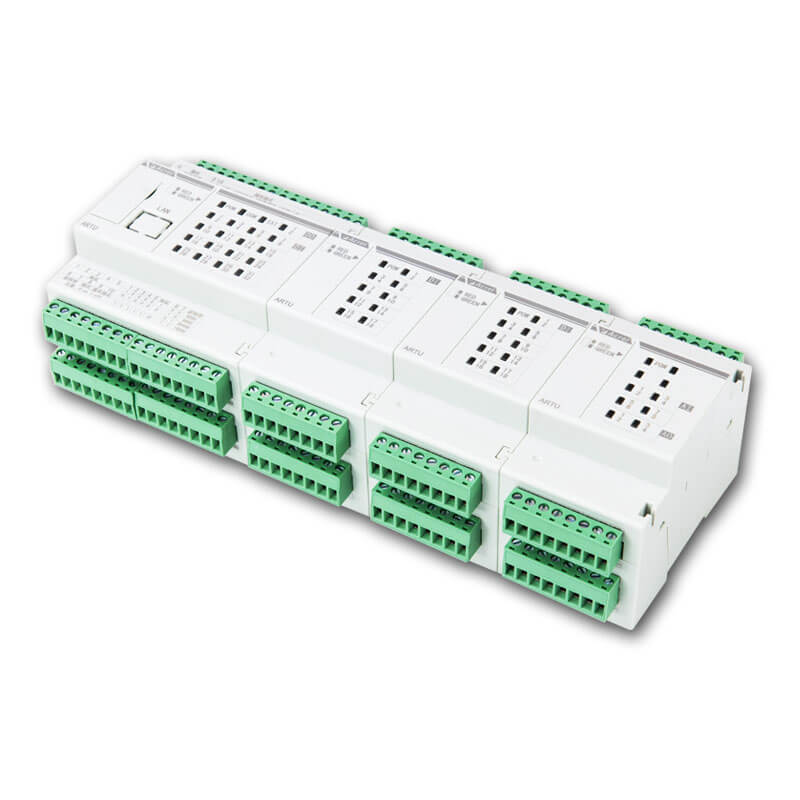

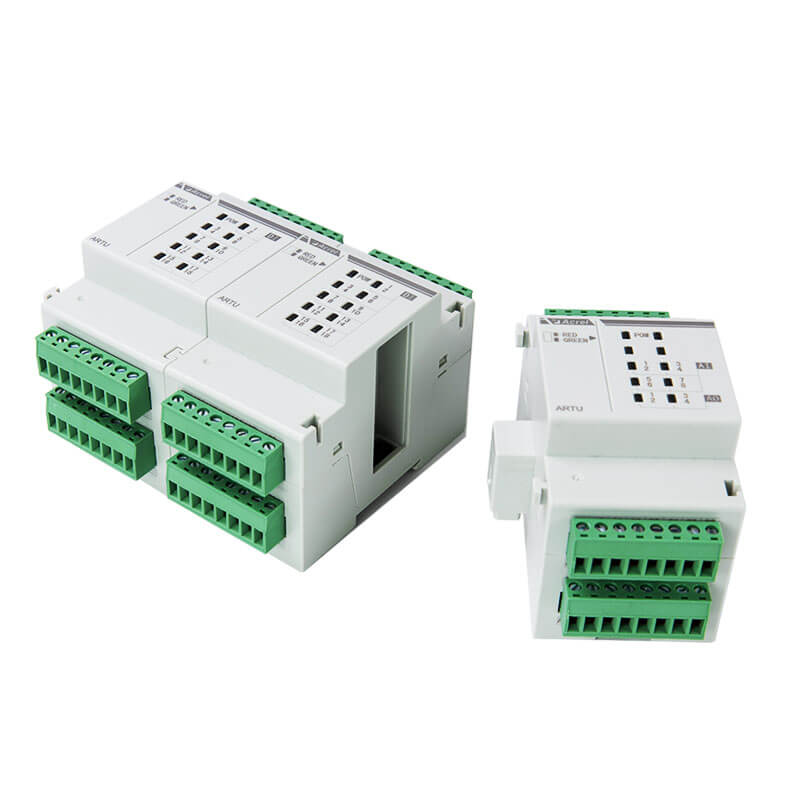

What’s the Function of Acrel ARTU Series Remote I/O Integration Modules?
The ARTU series of remote terminal units are high performance intelligent distribution components, which are applied in intelligent distribution, industrial automation and other fields, the ARTU100 series of remote terminal units can provide switch input, switch output, analog input and analog output, and can transmit the collected signals to the background through RS485 serial ports, RJ45 Ethernetinter faces, and 2G, Lora and 4G wireless communication.

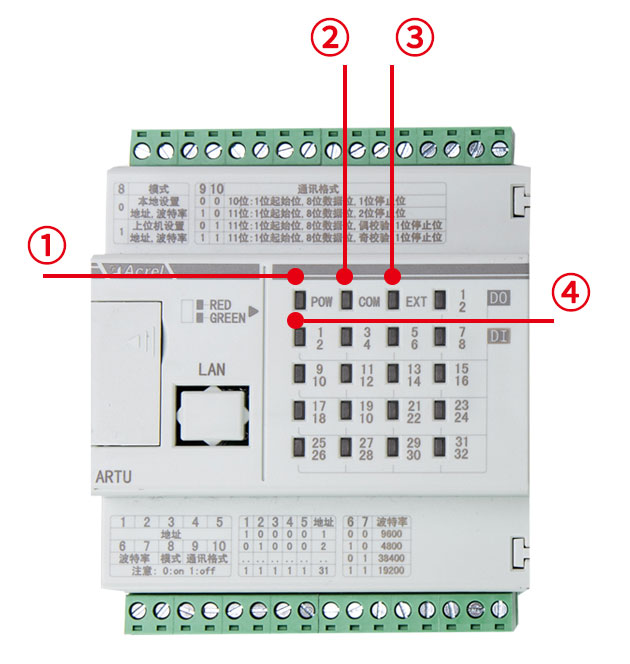

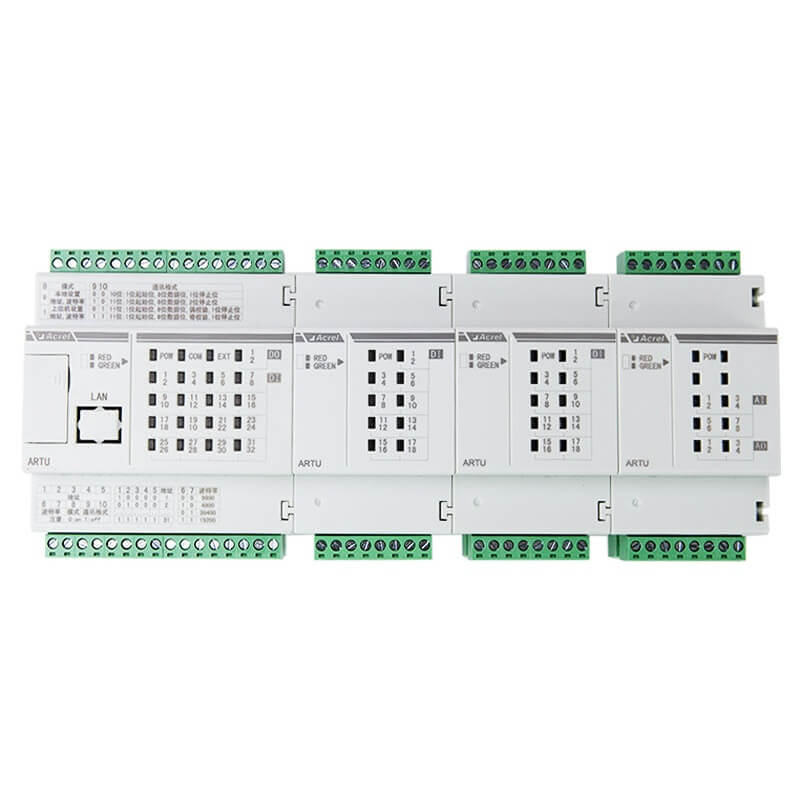

① POW: Power light
② COM: Communication lights
③ EXT: Module communication light
④ Number of channels(Odd numbers are red lights,
even numbers are green lights)
What’s the Specification of Acrel ARTU Series Remote I/O Integration Modules?
Subject
| Power supply | AC/DC 85-265V or DC48V | ||
| Power consumption | ≤9W(excluding modules);≤15W(including modules, up to 3 modules) | ||
| Model | ARTU100-K32 | 32-channel Dl(active/passive,optional) | |
| ARTU100-K16 | 16-channel Dl(active/passive,optional) | ||
| ARTU100-KJ8 | 8-channel DI(active/passive,optional);
8-channel DO,output mode:relay normally-open contact output,contact capacity:AC 250V/3A DC 30V/3A; |
||
| Communication | RS485 Interface; Modbus-RTU protocol;
Baud-rate 1200 ～ 38400bps |
||
| Others | Dial switch | 10 bits | |
| Indicator light | 20 indicator lights | ||
Module
| Model | CE | 1 path Ethernet | TCP/IP protocol;10M/100M self-adaptive |
| MKA18 | 18 Switch input | 18-channel DI (active AC 220V) | |
| MK18 | 18 Switch input | 18-channel DI (passive) | |
| MJ16 | 16 Switch output | 16-channel DO output mode: Relay normally-open contact output | |
| MA84 | 8 Analog input | 8-channel Al;0-5V,1-5V,4-20mA,0-20mA,optional | |
| 4 Analog output | 4-channel AO;0-5V,1-5V,4-20mA,0-20mA,optional | ||
| AWT100-2G | 2G communication terminal | ||
| AWT100-Lora | Lora communication terminal | ||
| AWT100-LW | LoRAWAN communication terminal | ||
| AWT100-4G | 4G communication terminal | ||
Remark: when expanding the module, an optional power module is also required
What’s the Parameter of Acrel ARTU Series Remote I/O Integration Modules?
| Security | Working withstand voltage | Power-frequency with stand voltage:
Shell and power supply,switch input, switch output,analog input,analog output, communication,AC2kV1min; AC2kV1min between power supply and switch output; AC1kV1min between analog input and analog output and between communication and switch input |
| Insulation resistance | Input and output end to housing > 100MΩ | |
| Electromagnetic compatibility | Level 3 | |
| Environment | Working temperature:-10℃~+55℃ | |
| Storage temperature:-40℃~+70℃ | ||
| Relative humidity:≤95% without condensation | ||
| Altitude:≤2000m | ||

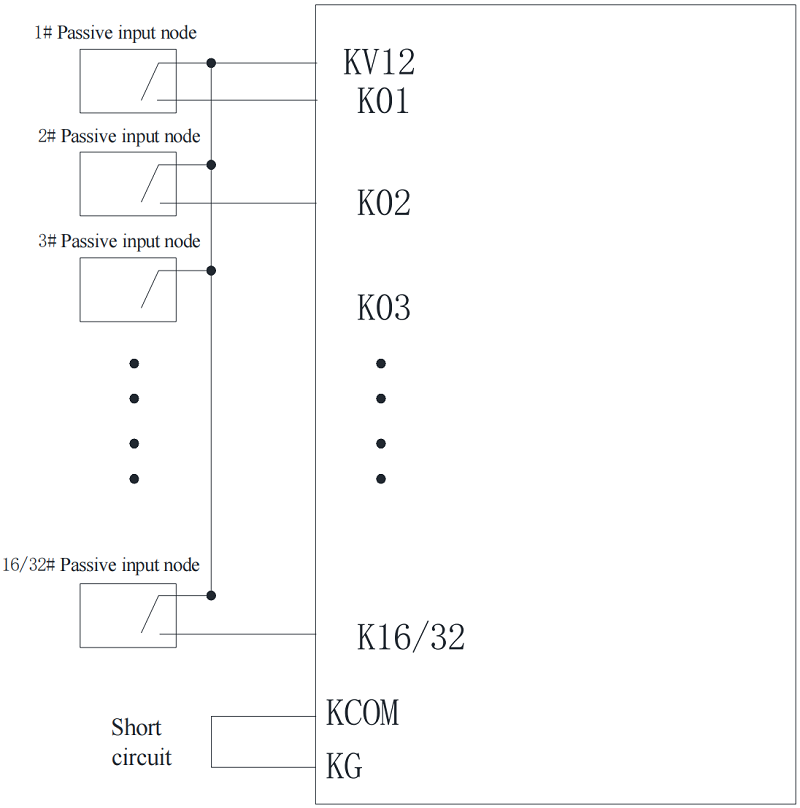

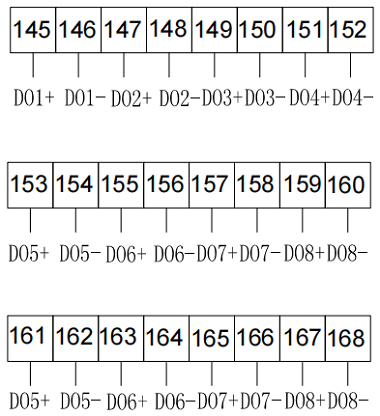

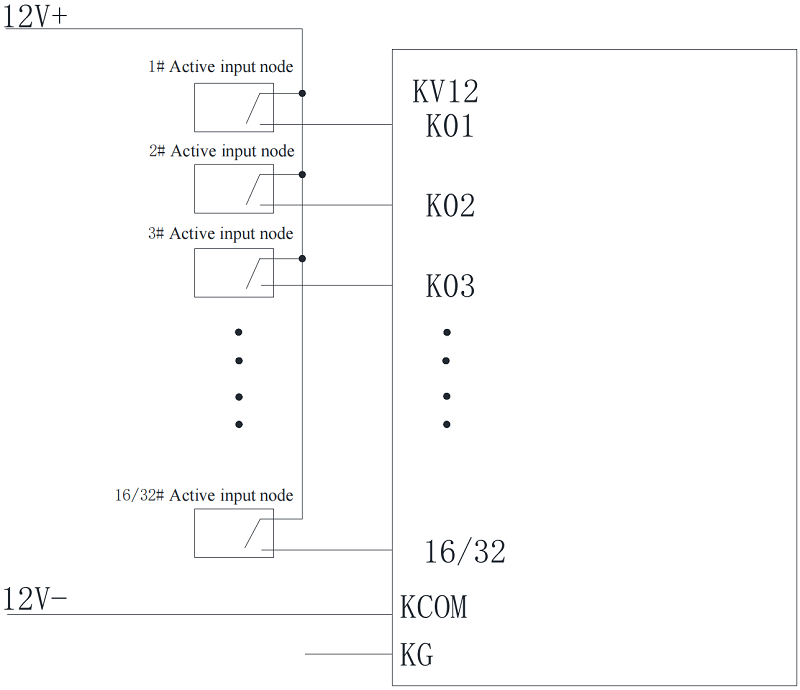

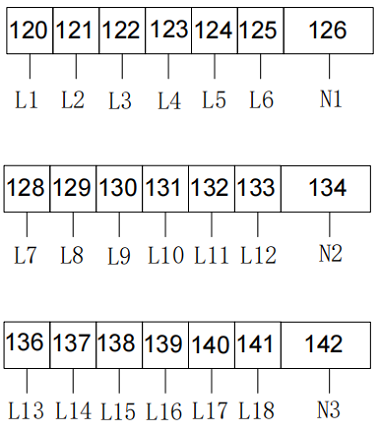

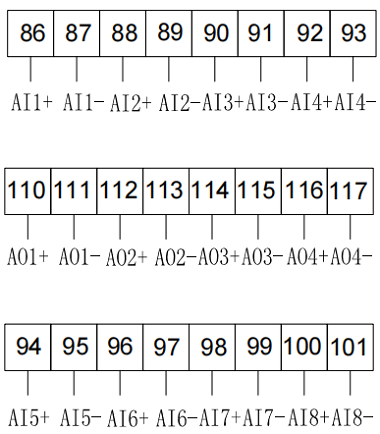

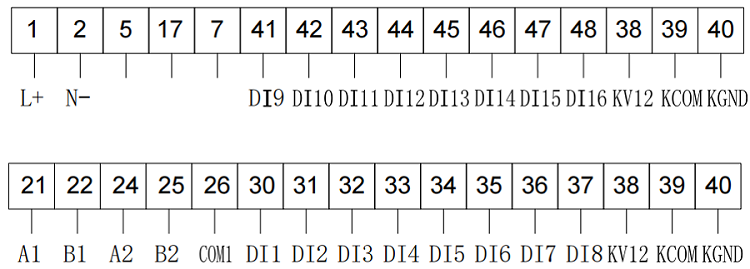

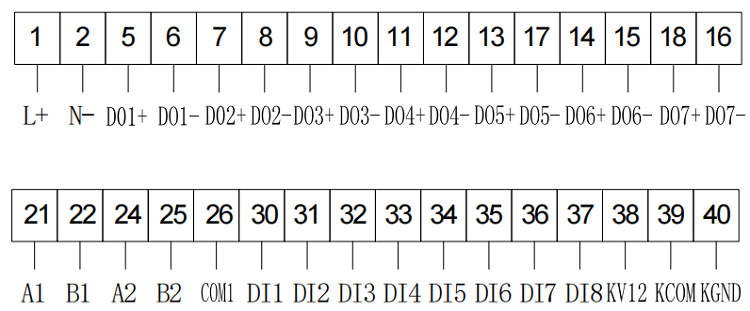

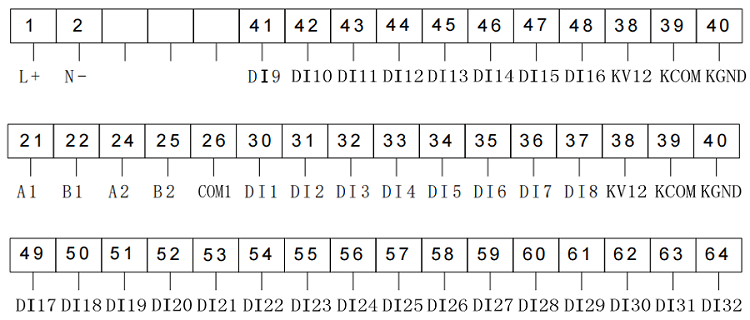

How to Wire Acrel ARTU Series Remote I/O Integration Modules?

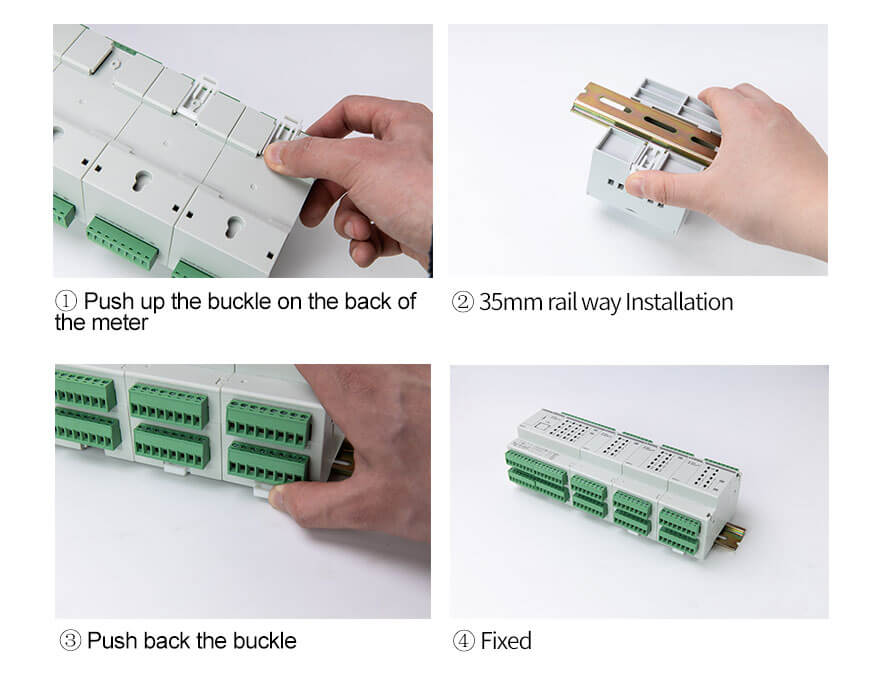

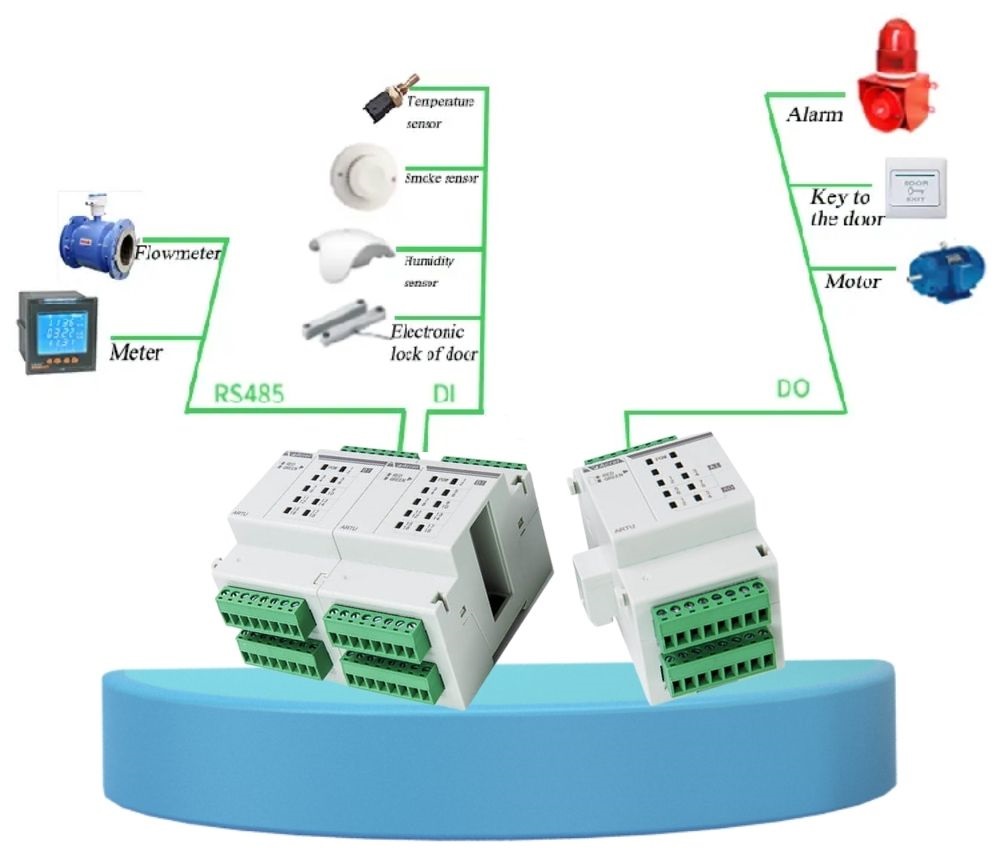

How to Connect Acrel ARTU Series Remote I/O Integration Modules?
