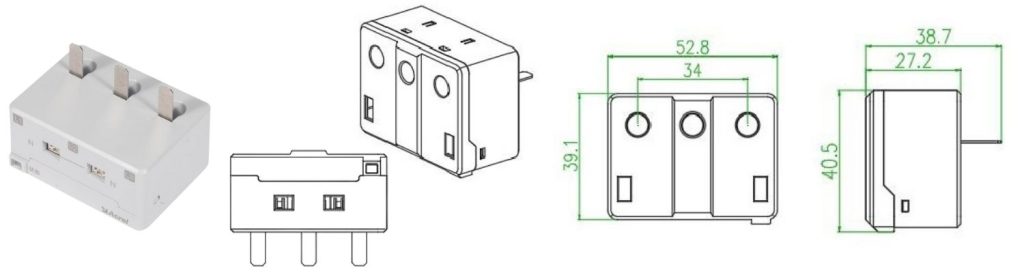

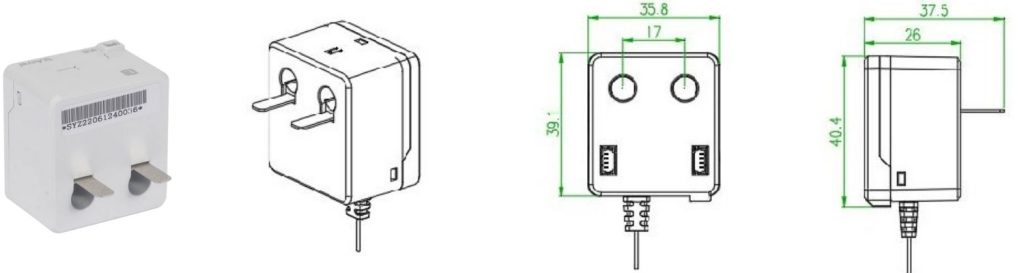

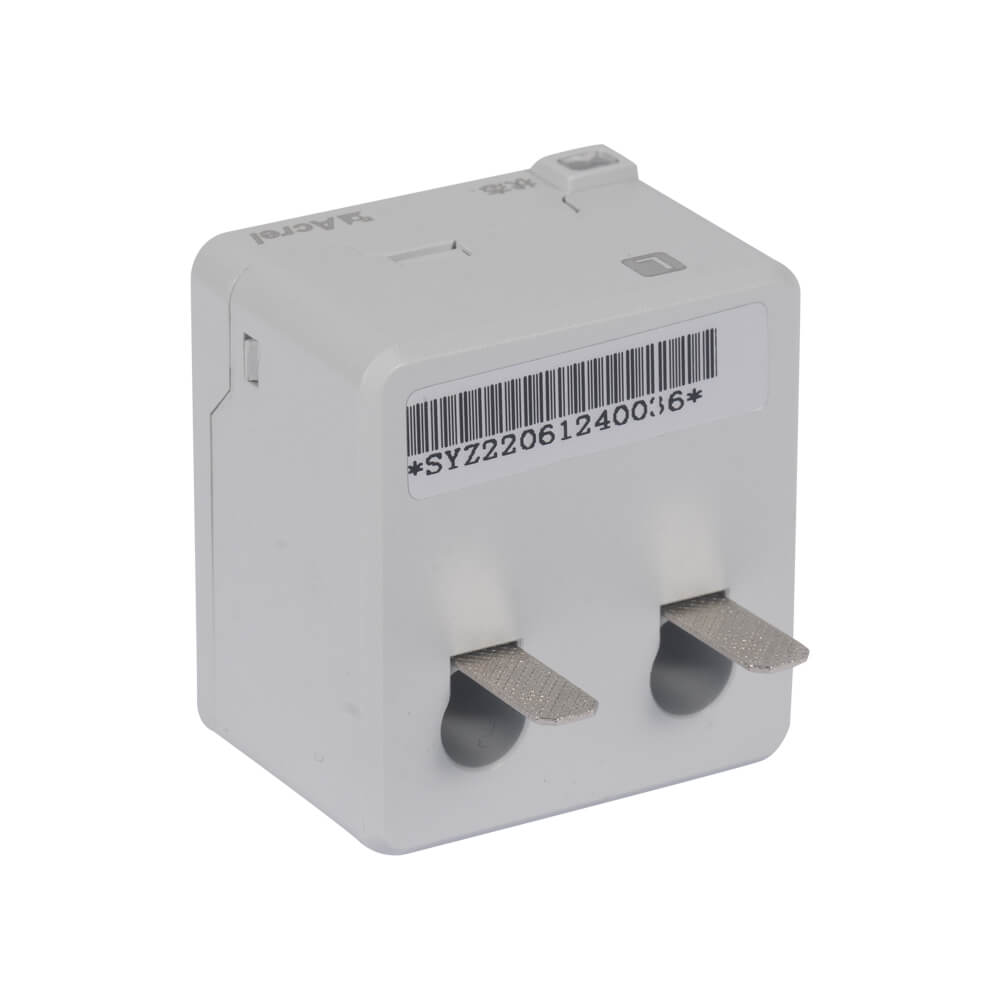

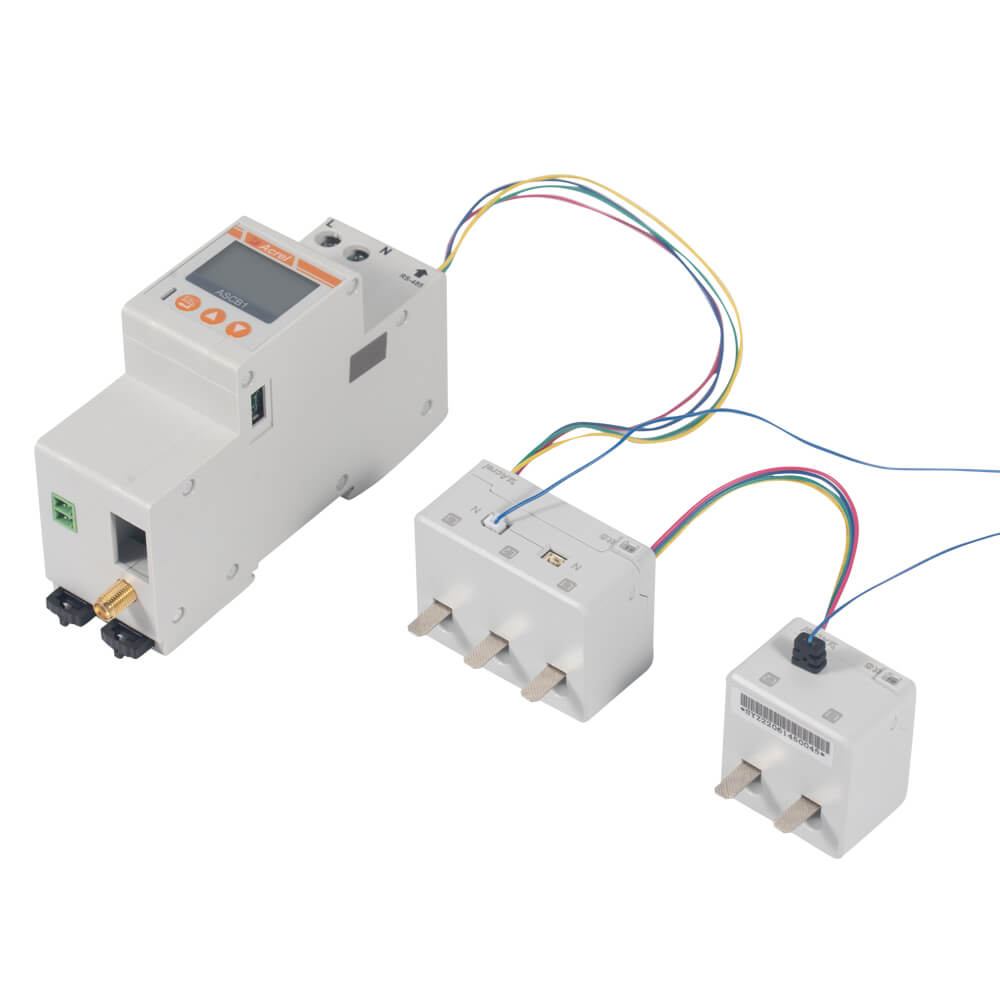

Direct Access

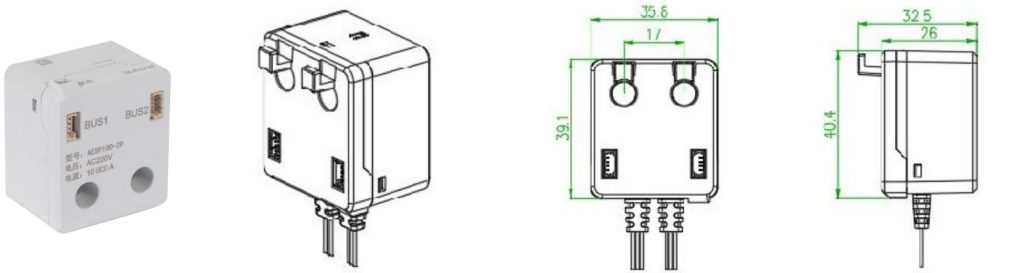

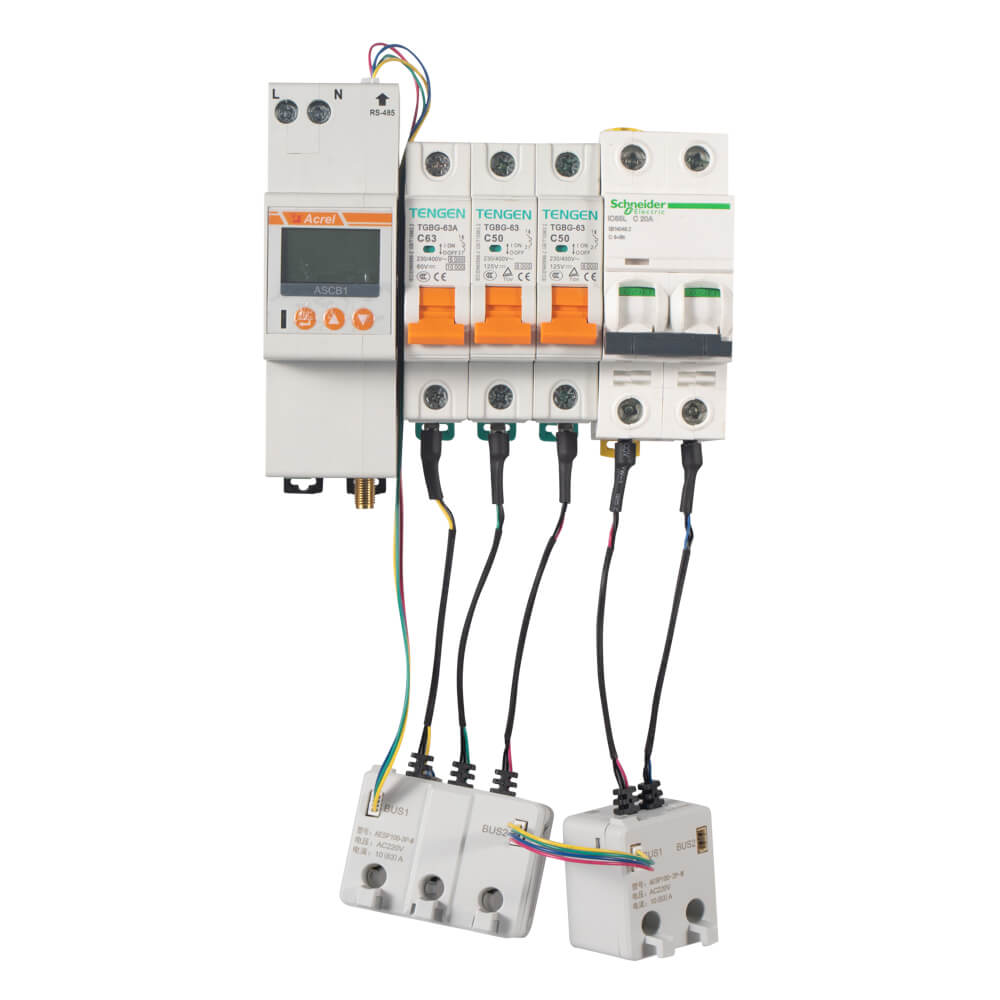

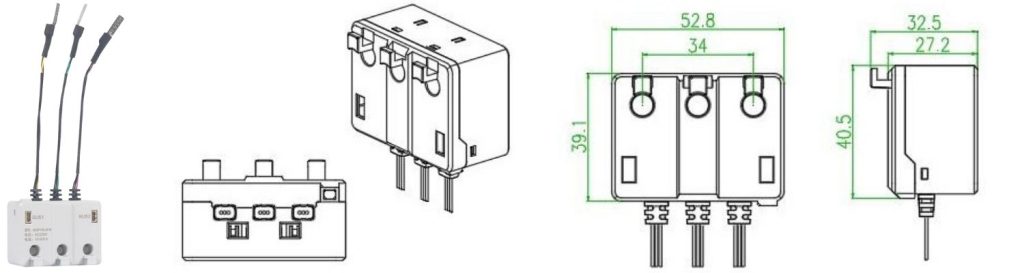

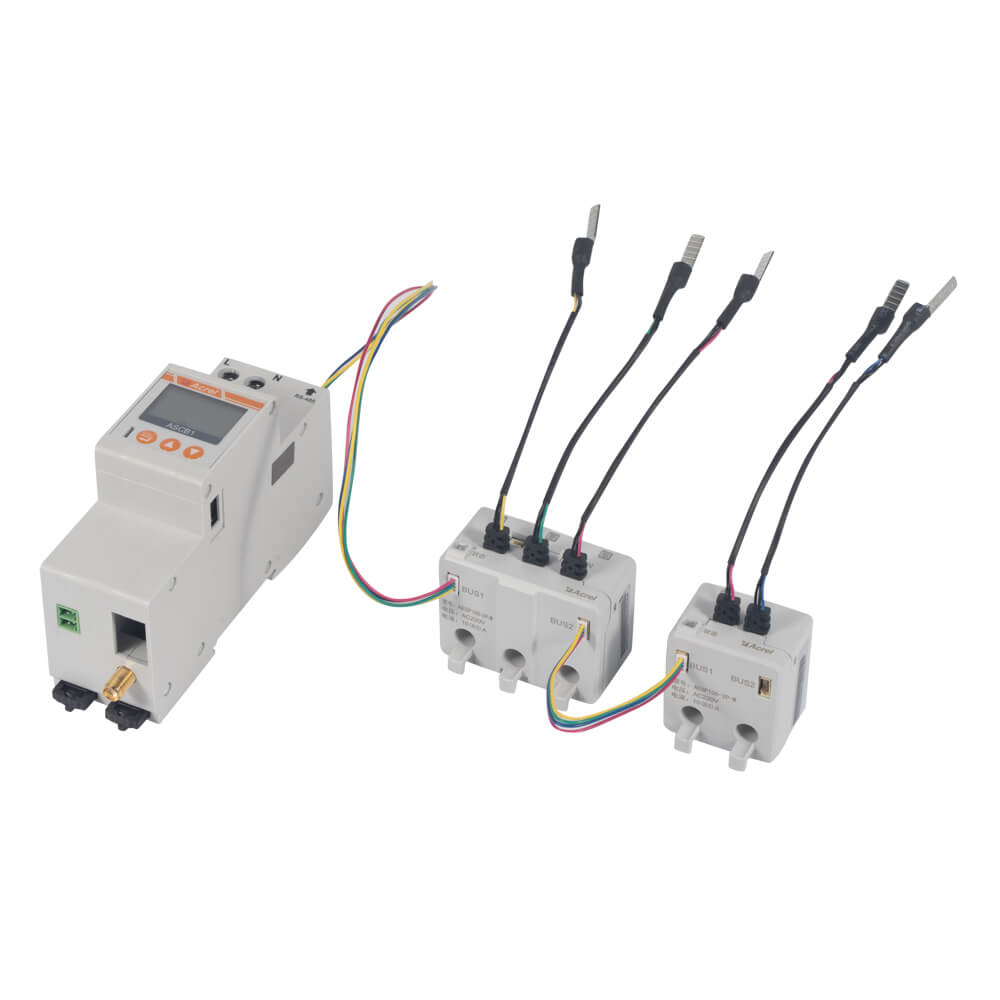

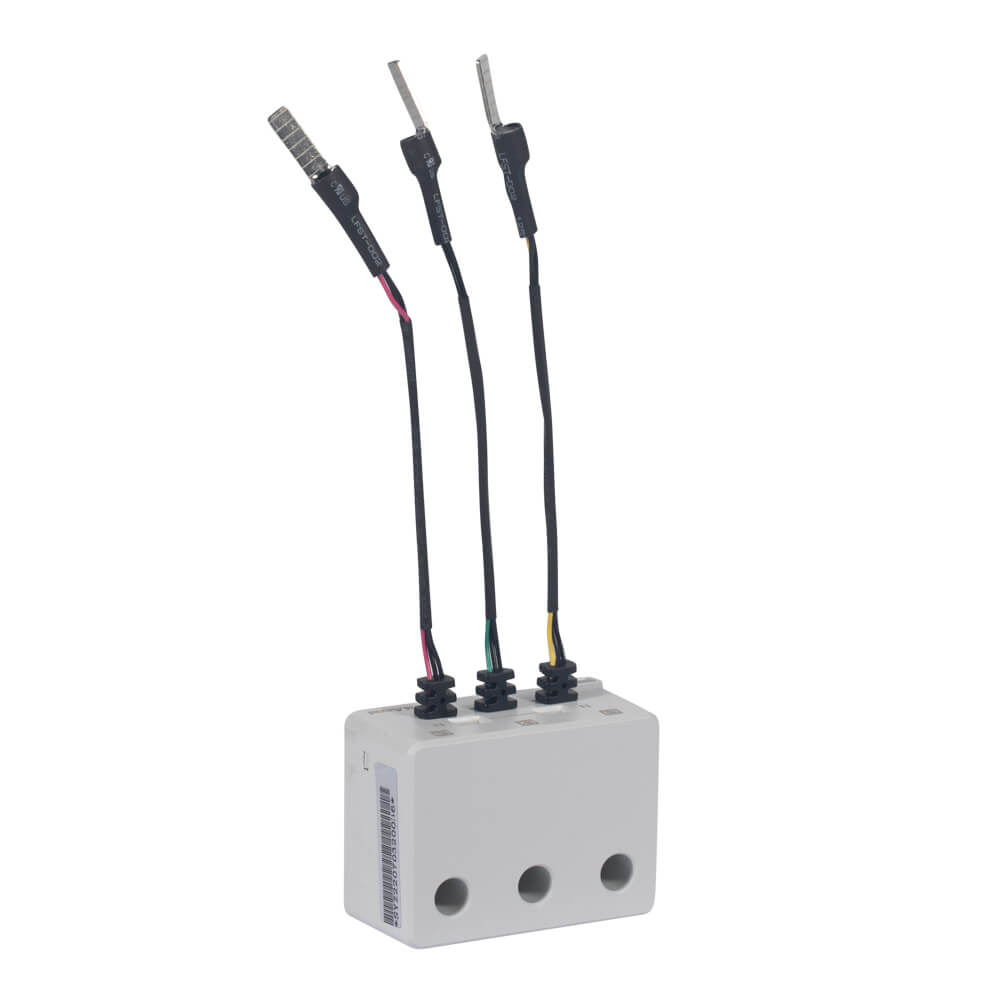

Lead Access

PowerTag is a cutting-edge solution from Electric that monitors energy consumption and provides real-time data analytics for greater energy efficiency and savings.

AESP100 series terminal multi-circuit intelligent power online monitoring device is applied to low-voltage terminal power distribution network in the fields of industrial, commercial, civil buildings and infrastructure in indoor buildings and similar places.
This device is used with a circuit breaker to monitor the key electrical factors of the power line in real time, such as voltage, current, power, temperature, energy consumption, etc., and has functions such as early warning and alarm, and energy metering and statistics.
This series of products is suitable for low-voltage power grid systems with single-phase, double live wire, three-phase three-wire, three-phase four-wire neutral point directly grounded (TT).

Highlight

What’s the Highlight of Acrel AESP PowerTag for Circuit Monitoring?

Application

Cell Tower
EV Charger Station
Smart Building
Smart Street Lighting
Smart Factory
Smart Apartment

Communication

RS485 Modbus-RTU
Ethernet CE
4G
WIFI

Alarm

Over & Low Voltage
Over Current
Over Load
Over Temperature

Measure

Voltage, Current
Active Power, Reactive Power
Power Factor
Frequency
Active Energy, Reactive Energy
Temperature

Application

What's the Application of Acrel AESP PowerTag for Circuit Monitoring?

Manufacturing

PowerTag’s energy

monitoring system is an

ideal solution for

manufacturing plants,

allowing businesses to

optimize their energy

usage and reduce their

overall energy costs.

Data Centers

PowerTag’s real-time data

analytics help data centers

optimize their energy

usage, reduce waste, and

improve overall efficiency,

enabling businesses to

save money and reduce

their carbon footprint.

Schools and Universities

PowerTag is an ideal

solution for schools and

universities, helping them

manage their energy

consumption and reduce

energy waste, enabling

them to save on energy

costs and promote

sustainability on campus.

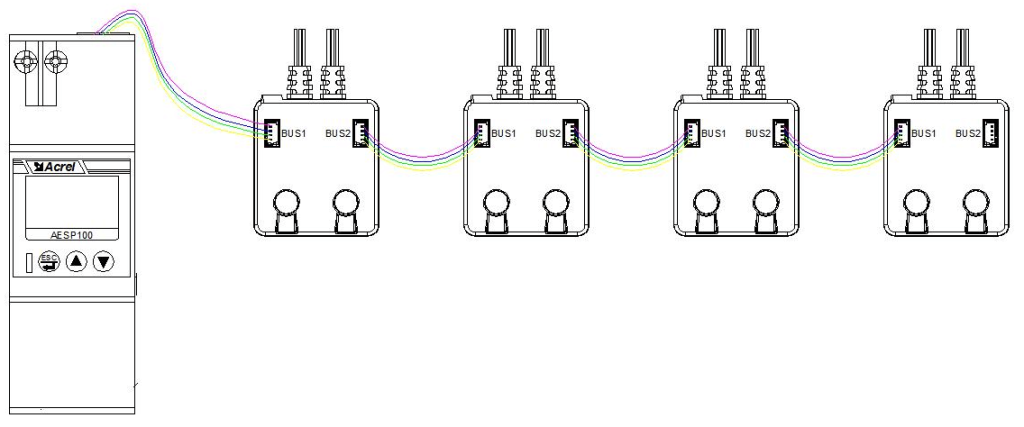

Network

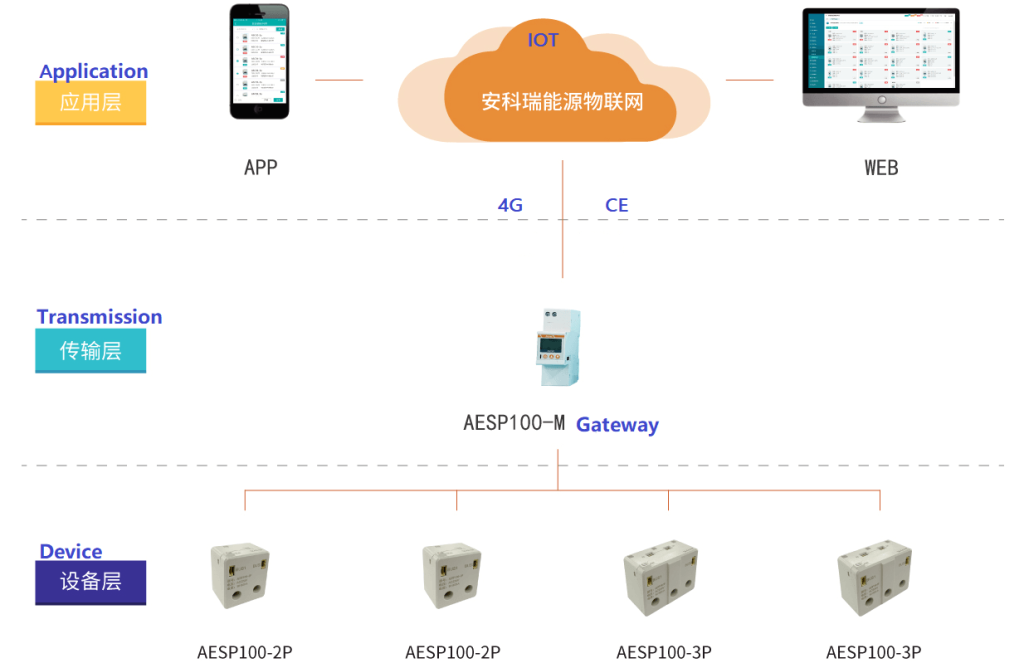

How does Acrel AESP PowerTag for Circuit Monitoring work?

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

Function

What's the Function of Acrel AESP PowerTag for Circuit Monitoring?

Real-time DataTracking

PowerTag utilizes advanced sensing technology to track energy usage and provide real-time data analytics for facilities and plants.

Cost Optimization

PowerTag helps identify energy spikes and inefficiencies, enabling businesses to optimize their costs and reduce energy waste.

Responsive Energy Management

PowerTag has a quick response time and integrates with Acrel IoT architecture, providing instant alerts for any potential issues or threats to energy consumption.

Centralized Management

The PowerTag system is centralized and scalable, with the ability to manage multiple facilities and energy data from a single location, streamlining the energy management process.

Feature

What's the Feature of Acrel AESP PowerTag for Circuit Monitoring?

Accuracy

PowerTag’s digital power measurement

technology provides highly accurate energy

consumption data at the circuit level.

Compatibility

PowerTag is compatible with a variety of

communication protocols, including Modbus, and EtherNet/IP

Easy Installation

The PowerTag system can be easily installed

without disrupting operations or requiring

extensive wiring

Benefit

What's the Benefit of Acrel AESP PowerTag for Circuit Monitoring?

Cost Savings

PowerTag’s energy management system enables

businesses to reduce their energy costs and

optimize energy usage, significantly reducing

operational costs and generating significant savings.

Sustainability

PowerTag helps businesses optimize their energy

usage, reduce waste, and increase their

sustainability, contributing to a cleaner and more

efficient future

Real-time Monitoring

PowerTag’s real-time data analytics provide

businesses with instant insight into their energy

consumption and usage, enabling them to identify

trends and optimize their energy usage in real-time.

GreaterEfficiency

PowerTag’s energy management system helps

businesses improve their overall operational

efficiency by identifying energy inefficiencies and

providing actionable insights for reducing energy

waste.

Specification

What’s the Specification of Acrel AESP PowerTag for Circuit Monitoring?

Item	Specification	Communication		Poles	Function

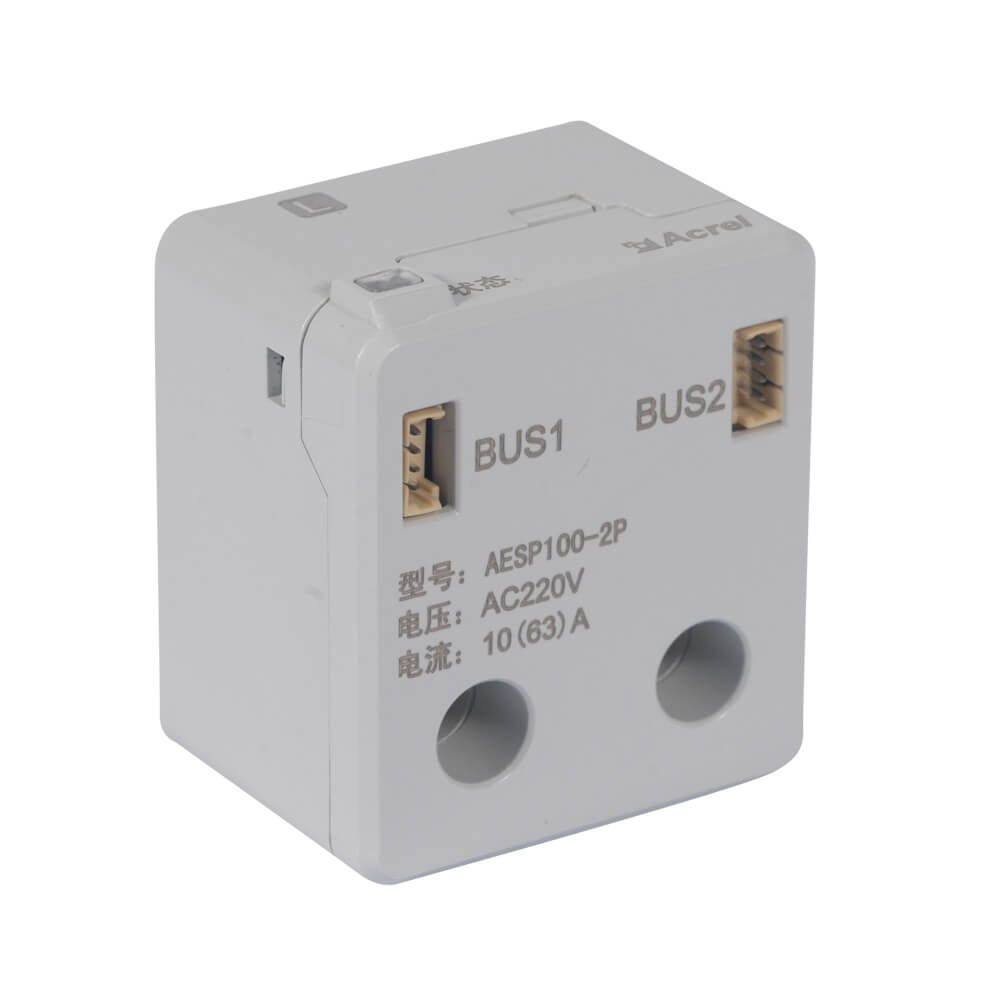

Powertag	AESP100-2P	RS485 MODBUS-RTU		2	Real-time monitoring of parameters such as voltage, current, power, electric energy and temperature; with various alarm functions such as overvoltage, undervoltage, overload, overcurrent, and overtemperature

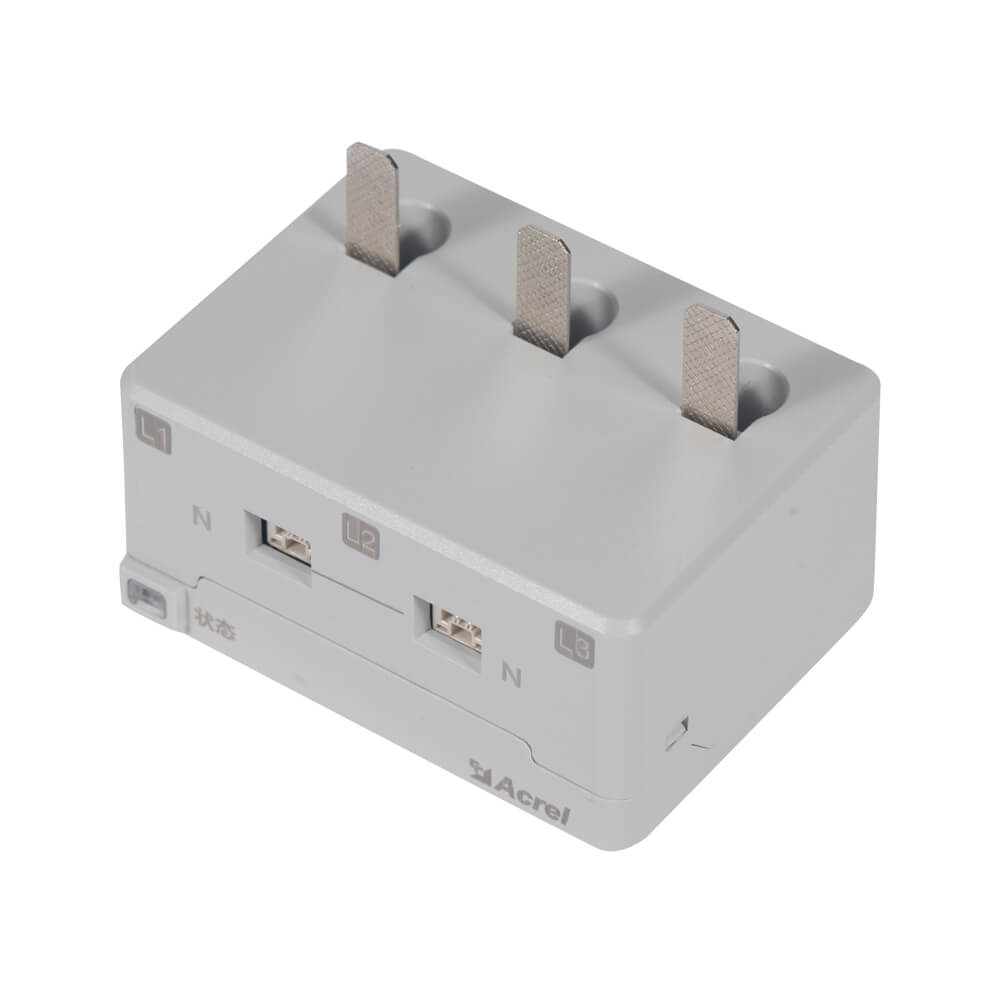

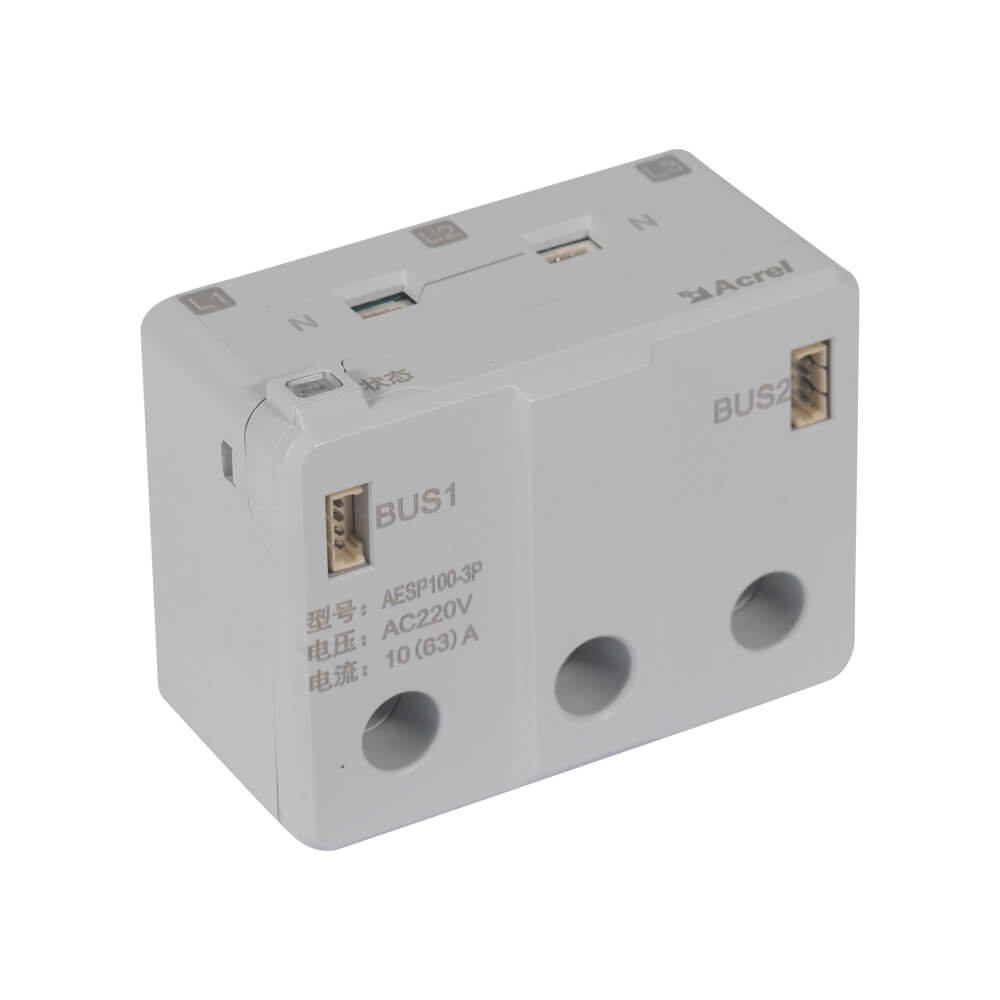

	AESP100-3P			3

Item	Specification	Coomunication		Circuits	Function
		Uplink	Downlink
Gateway	AESP100-M-CE	CE	RS485 MODBUS-RTU	16	View real-time data of each circuit: voltage, current, power, energy, temperature and leakage; View the status of each circuit: fault, alarm and opening and closing; Parameter setting and control of each loop; Event record; Din rail installation, LCD display
	AESP100-M-4G	4G

Parameter

What’s the Parameter of Acrel AESP PowerTag Wireless Energy Sensor?

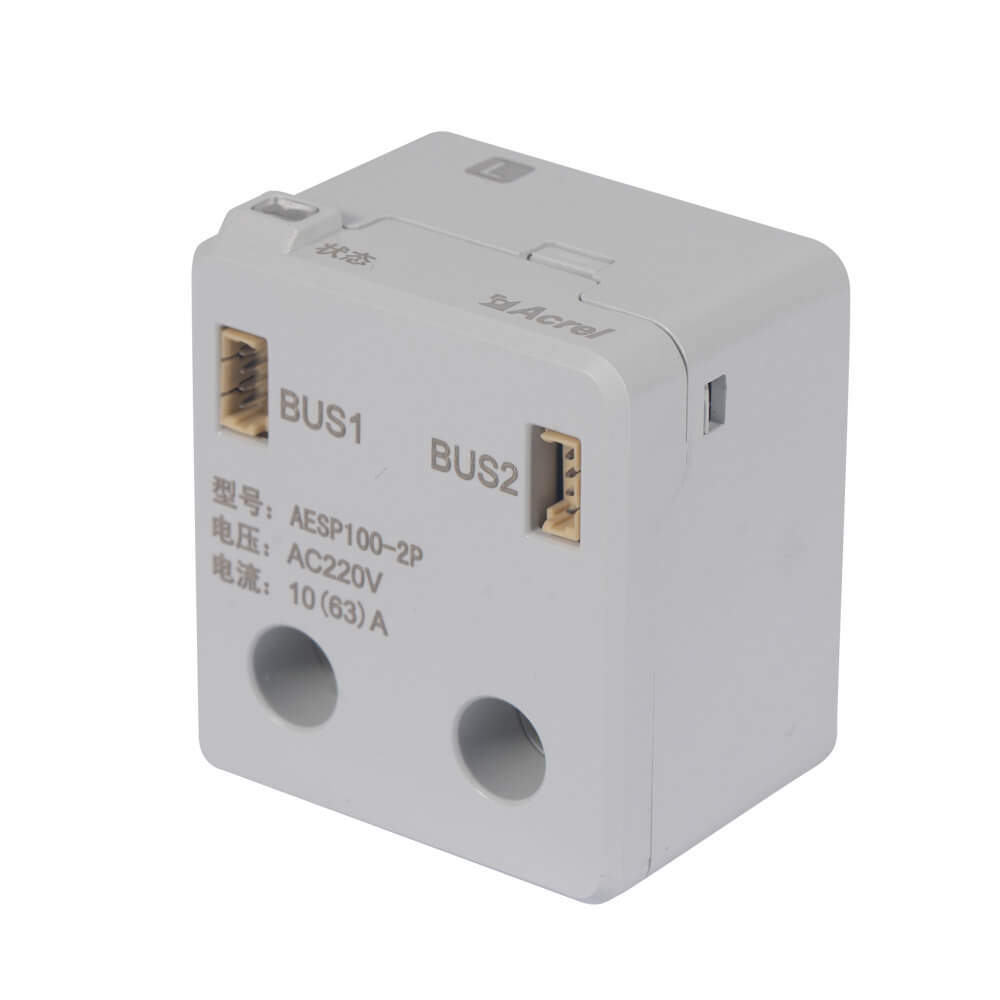

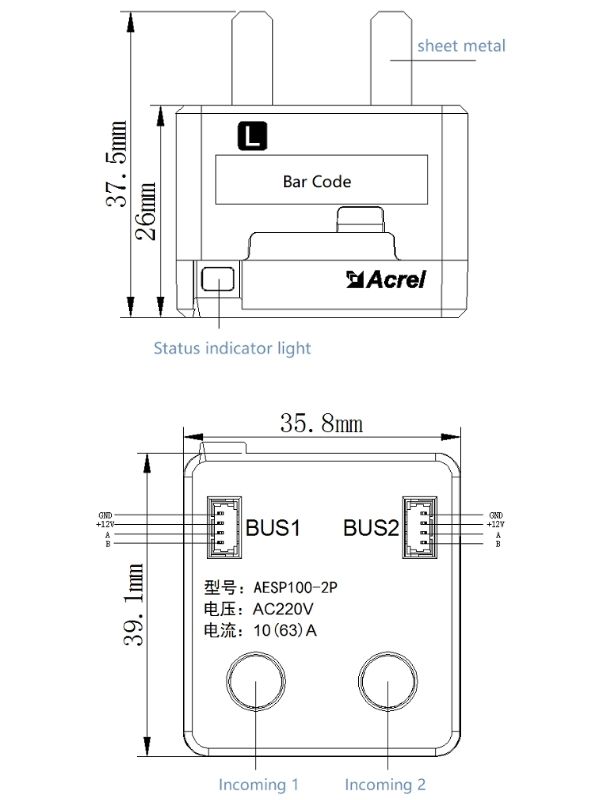

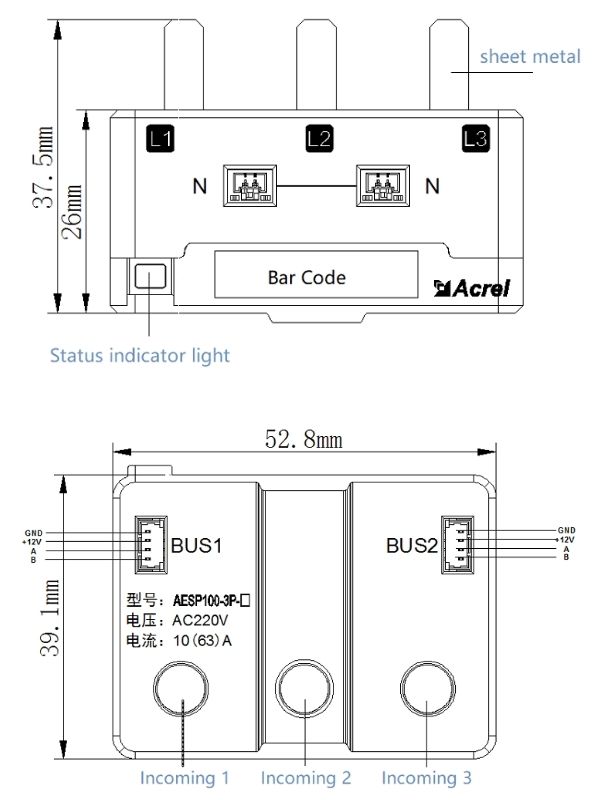

Type		AESP100-2P	AESP100-3P
Poles		2P	3P
Aperture		6.6mm
Number of loops		1 or 2 single-phase circuits	1 three-phase circuit or 3 single-phase circuits
Rated voltage		AC 220V
Rated current		10(63)A
Alarm Function	Over-current	Default 100% rated current warning, 110% rated current warning, adjustable threshold
	Over-load	Default 100% rated power warning, 110% rated power alarm, adjustable threshold
	Over-voltage	Default 110% rated voltage warning, 120% rated voltagewarning, adjustable threshold
	Under-voltage	Default 90% rated voltage warning, 80% rated voltage alarm, adjustable threshold
	Overt-emperature	Default 80℃ early warning,100℃ alarm, adjustable threshold
Protection class		IP30
Altitude requirements		2000m
ambient temperature		-10℃~55℃, 24h average temperature not higher than 40℃
Environmental requirements		No explosion hazard, no conductive dust, no enough to corrode metal and damage insulation,no significant vibration
Relative humidity		At +40°C, the relative humidity of the air is 50%, and it can have a higher relative humidity at lower temperatures
Storage temperature		-20℃-70℃

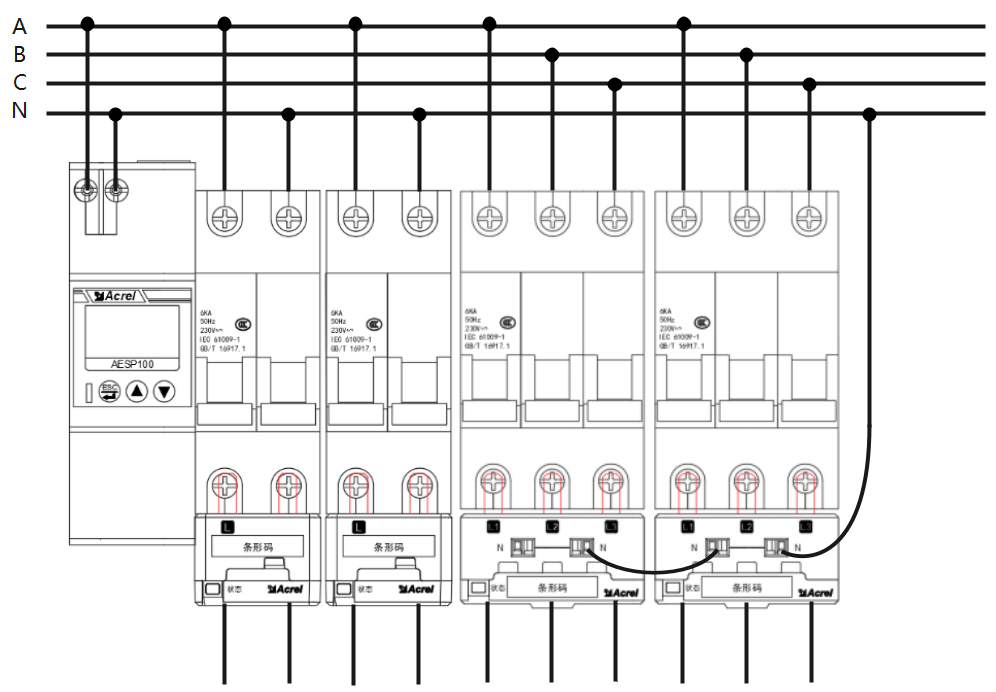

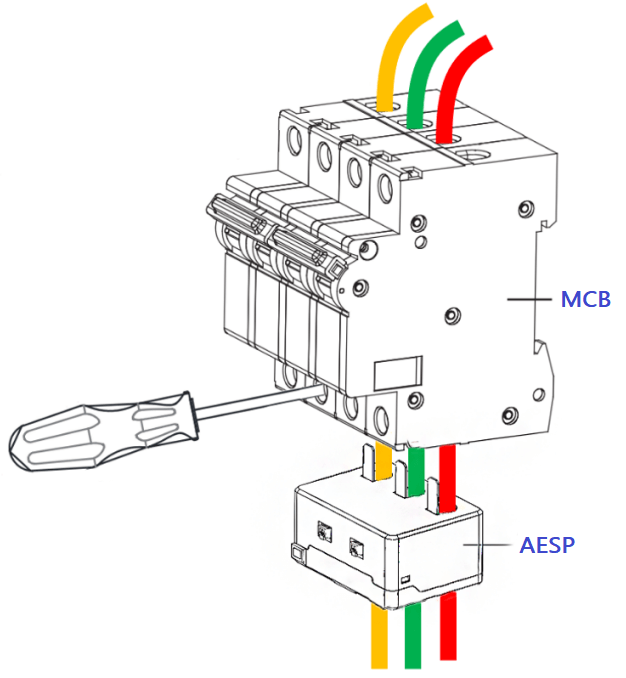

Installation method		Direct installation or lead wire installation with circuit breaker

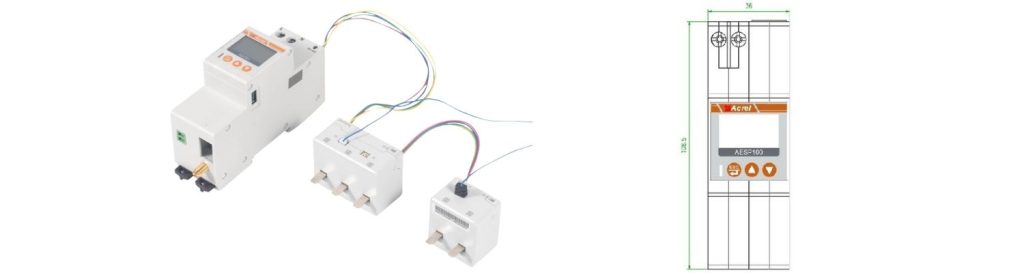

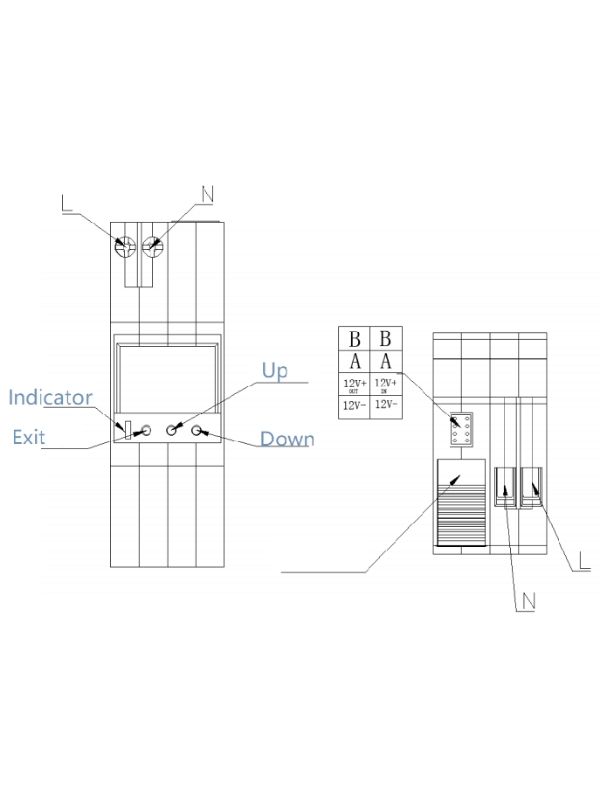

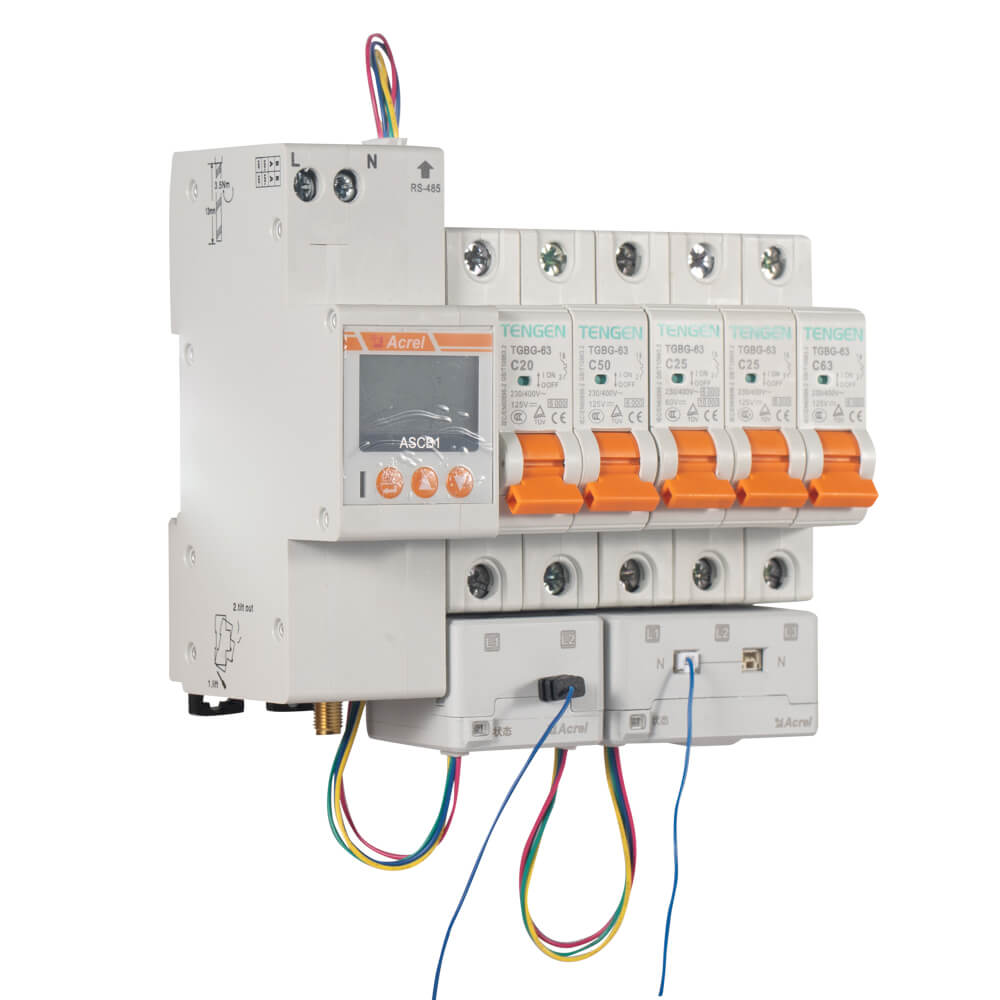

What’s the Parameter of Acrel AESP Power Tag Gateway?

Type	AESP100-M-4G	AESP100-M-CE
Power supply	AC 220V
Power consumption	≤30W
Communication	4G	Ethernet
Display	LCD display
Record	Alarm, fault and action records up to 20 records each
Protocol	Modbus、MQTT
Altitude requirements	2000m
Ambient temperature	-10℃-45℃,24h average temperature not higher than 35℃
Environmental requirements	No explosion hazard, no conductive dust, no enough to corrode metal and damage insulation, no significant vibration
Relative humidity	At +40°C, the relative humidity of the air is 50%, and it can have a higher relative humidity at lower temperatures
Storage temperature	-20℃-70℃
Protection class	IP20
Installation method	Standard 35mm Din rail installation
