Power & Energy Meter for Telecom Tower RMS

Highlight

What’s the Highlight of Acrel Power & Energy Meter for Telecom Tower RMS?

Sensor

Current Sensor
Rogowski
100mV, 333mV
RJ12 Interface

Circuits

AC: 4, 6, 8 Channels
DC: 6, 12 Channels

Power Supply

AC 85-265V
DC 85-265V
DC 48V, 24V, 12V

Communication

Protocol: Modbus-RTU & Modbus-TCP
Interface: RS485 & Ethernet

Function

What’s the Function of Acrel Acrel Power & Energy Meter for Telecom Tower RMS?

Real-Time Monitoring

Voltage - Va, Vb, Vc
Current - la, Ib, lc
Active Power - Pa, Pb, Pc, ∑P
Reactive Power - Qa, Qb, Qc, ∑Q
Apparent Power - Sa, Sb, Sc, ∑S
Power Factor - PFa, PFb, PFc, ∑PF
Active Energy - each phase kWh, total kWh
Reactive Energy - each phase kvarh, total kvarh

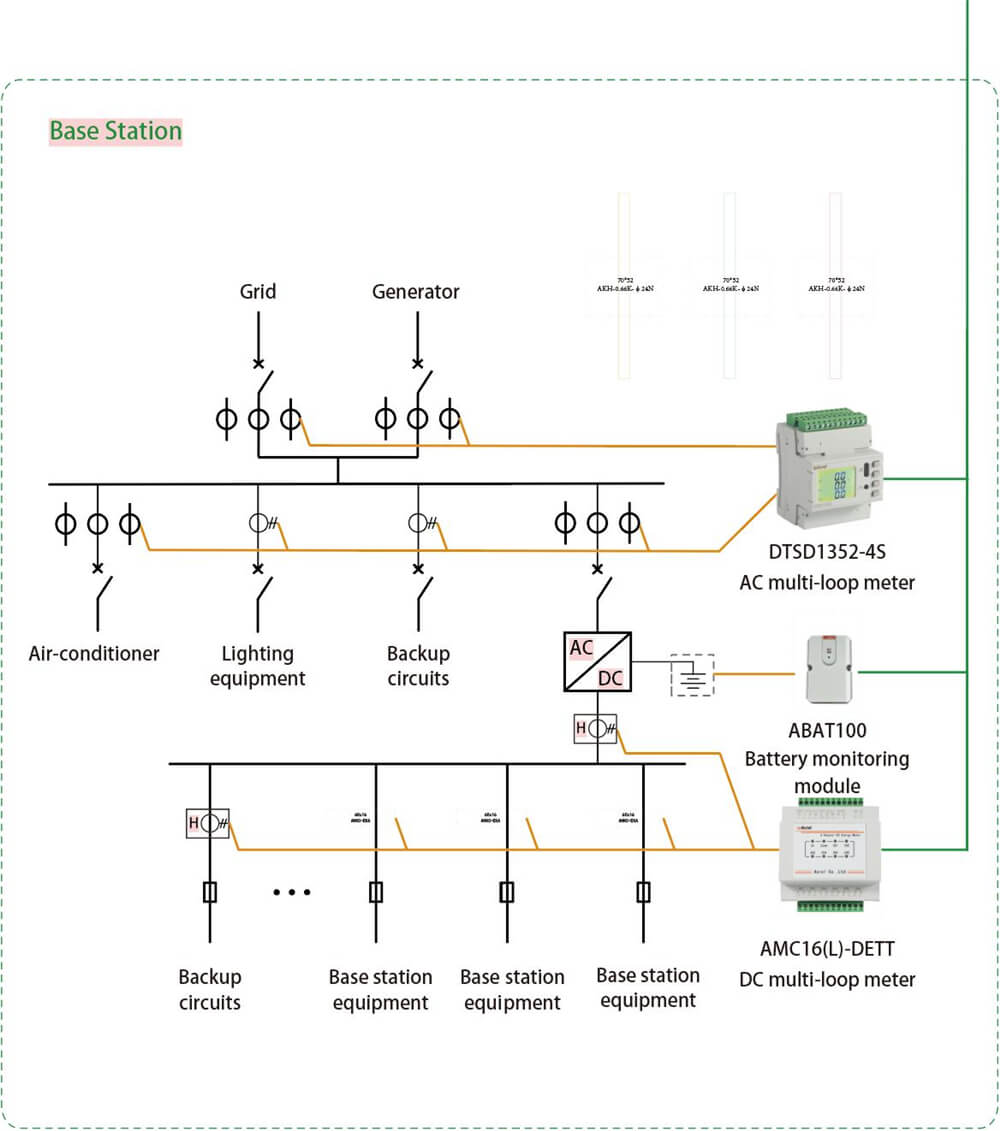

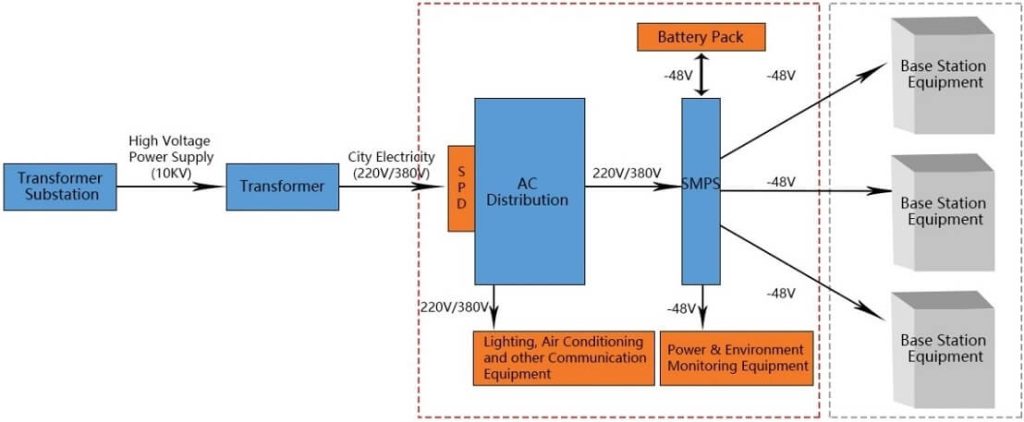

For Telecommunication Tower Projects, it is necessary to measure and monitor electrical parameters and energy.
In DC side, such as base station Communication device, Battery and other devices working under -48V power supply.
In AC side, such as State Grid, Diesel, Air Conditioner, Lighting, Power Supply and so on.
The data need to be real-time uploaded by Modbus-RTU RS485.
Multi Circuit Power Meter enables separate energy bills for each tenant, resolves SLA disputes, reduces manpower costs and gives management visibility into tower performance.

Solution

What’s the Solution of Acrel Acrel RS485 & Ethernet Power & Energy Meter for Telecom Tower RMS?

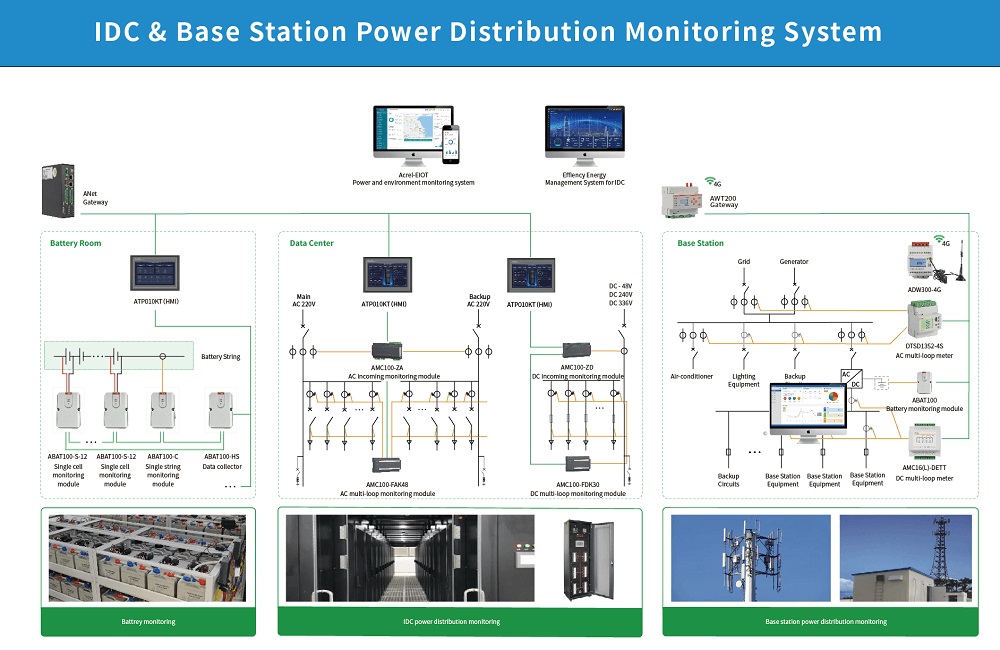

Monitor the electrical parameters of AC and DC distribution system of Telecom Tower in real time,
provide online monitoring and energy consumption analysis of Cell Tower Grid, Generator, Tenants, Soalr, Battery,
with Modbus-RTU RS485, Mobus-TCP Ethernet Communication,
improve the efficiency of cell tower operation and maintenance control,
and reduce the operation cost of cell tower.

Customers

Acrel Power & Energy Meter has been widely used for
Telecom Tower Projects in Middle East, Europe, Asia, Africa, etc
TowerCo: IHS Tower, Edgepoint Infrastructure, Helios Tower, TASC Tower, American Tower, etc
Telecom Operators: Vodafone, Orange, China Mobile, China Telecom, China Unicom, etc

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

Products

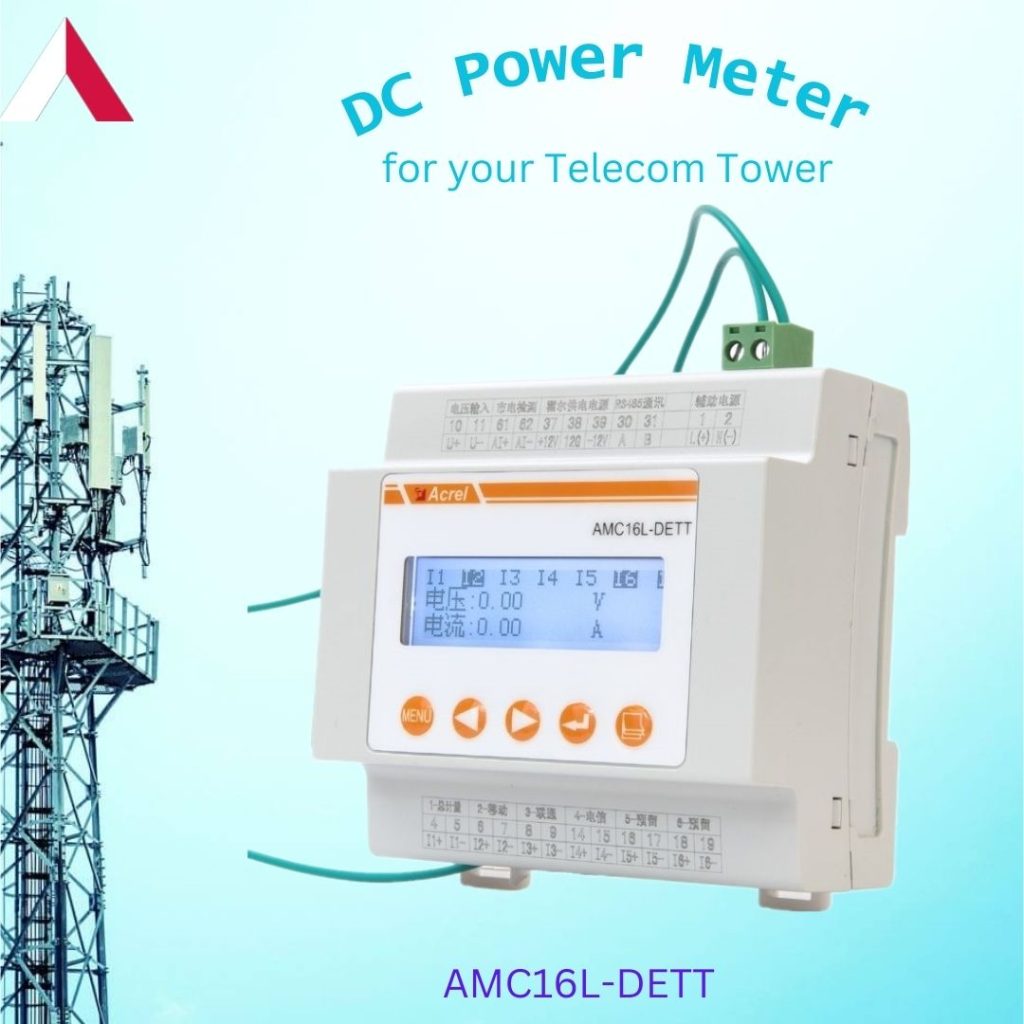

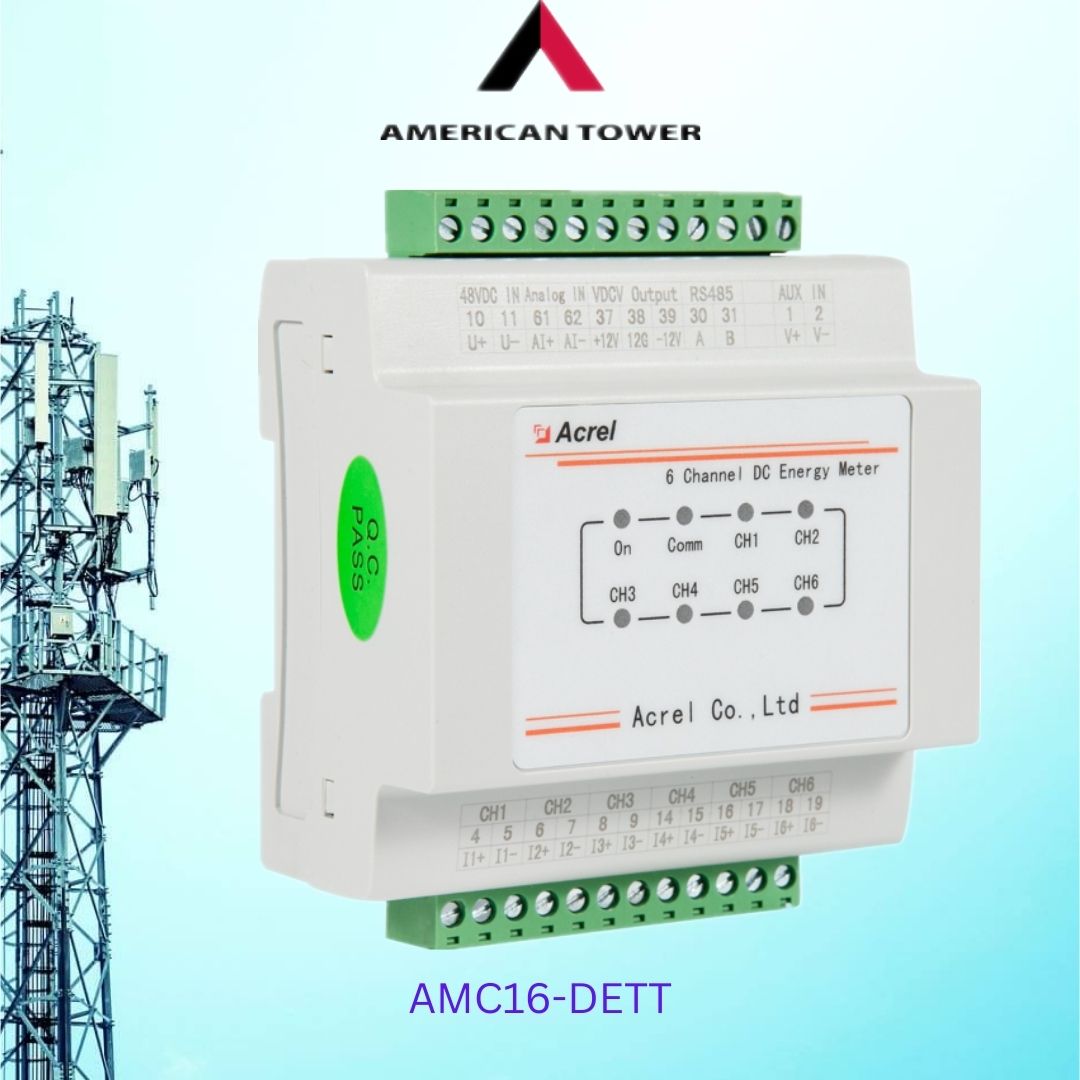

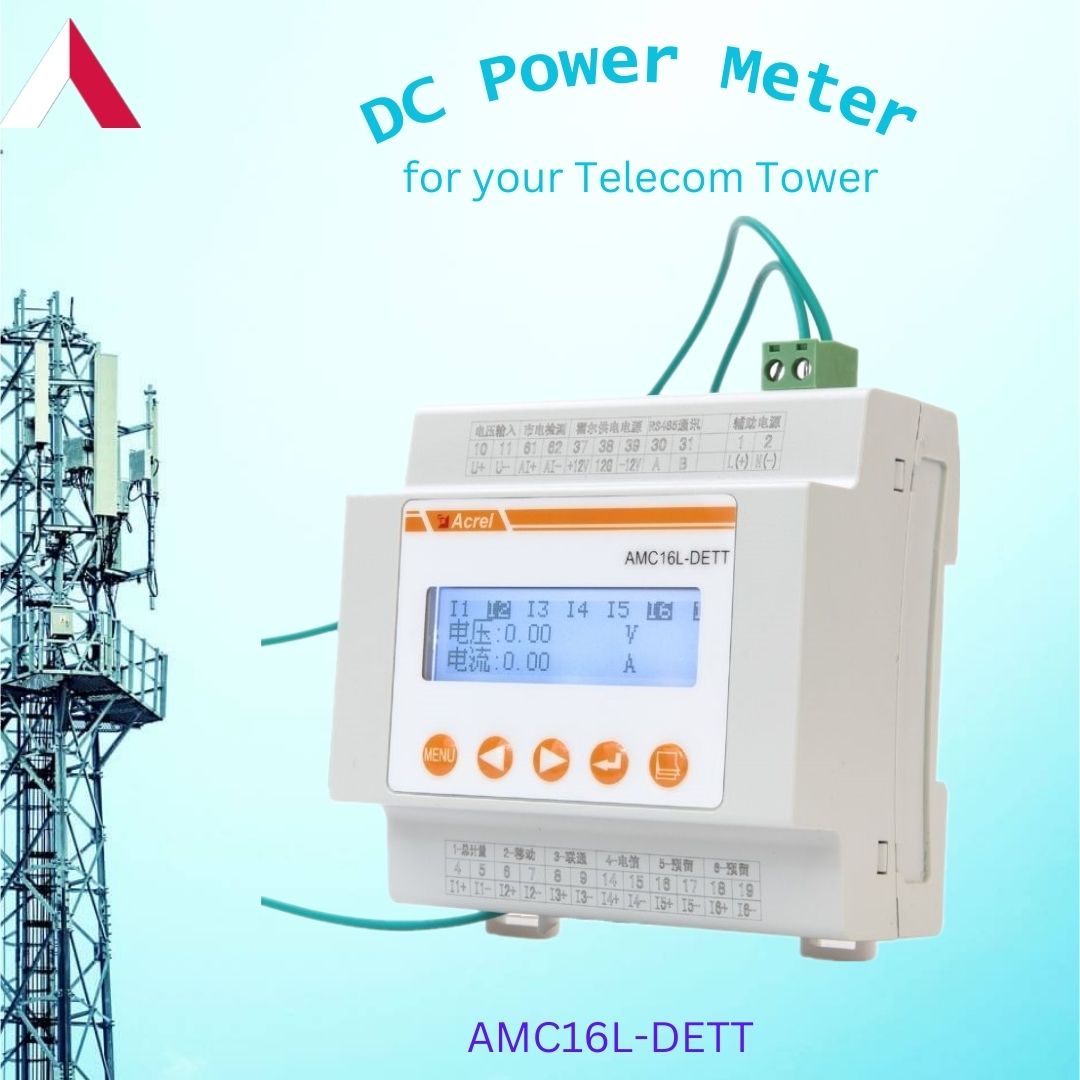

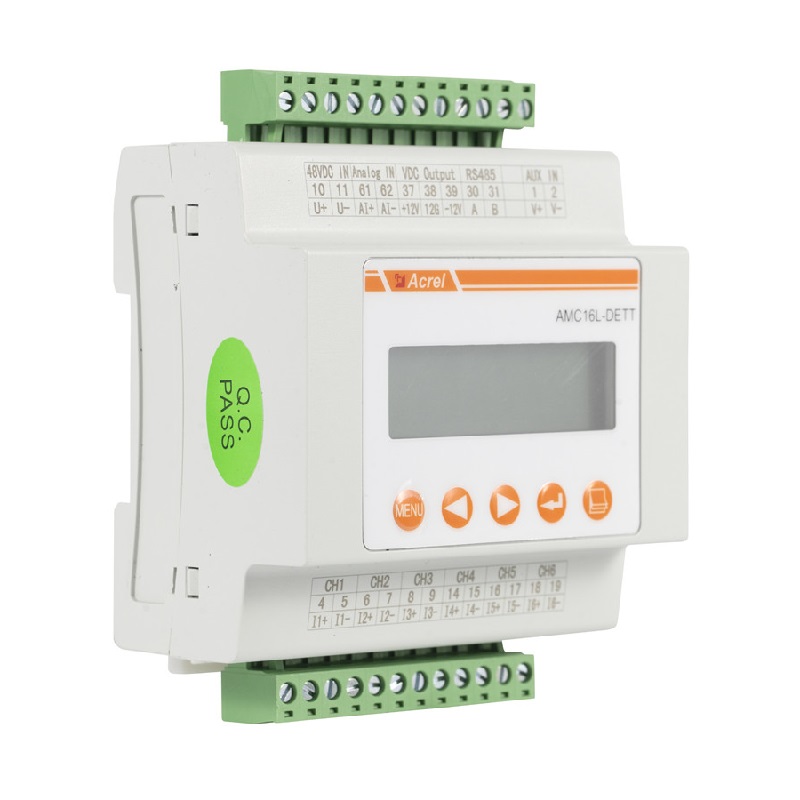

① DC System
② -48V Auxiliary Power Supply
③ 6 channels of DC Current
④ Hall Sensor
⑤ with & without LCD
⑥ Modbus-RTU RS485

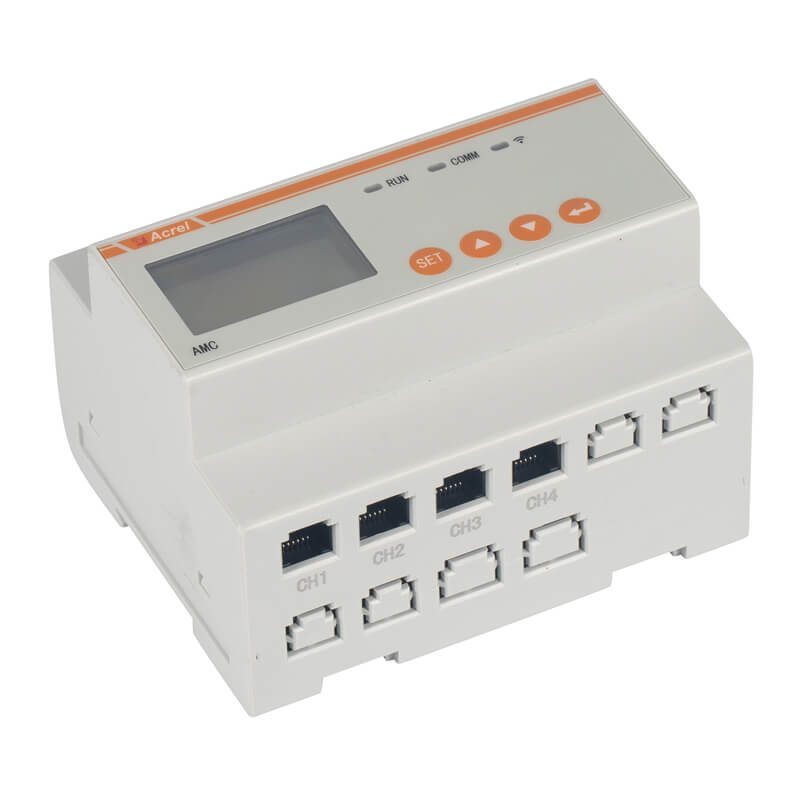

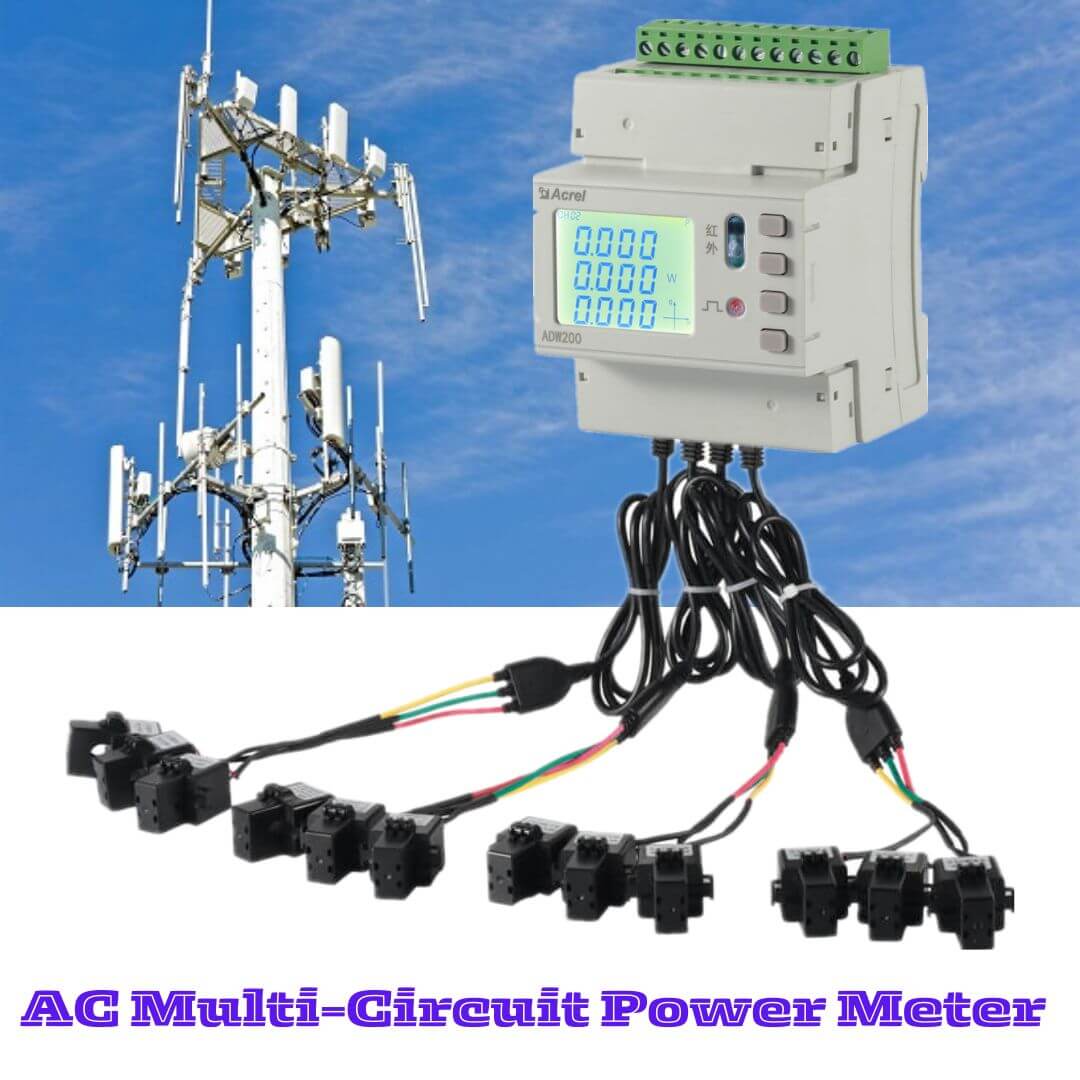

① AC System
② 4*Three-phase or 12*Single-phase
③ DC48V & 12V Auxi. Power Supply
④ Sensor: Split-core CT & Rogowski Coil
⑤ 100 / 333 mA & mV
⑥ RS485 Modbus-RTU
⑦ Ethernet Modbut-TCP
⑧ RJ12 Interface

① AC System
② 1 channel of Three phase
③ Auxi. Power Supply:
DC 12 24 48V
AC/DC 85-265V, 110-415V
④ with & without LCD
⑤ Modbus-RTU RS485

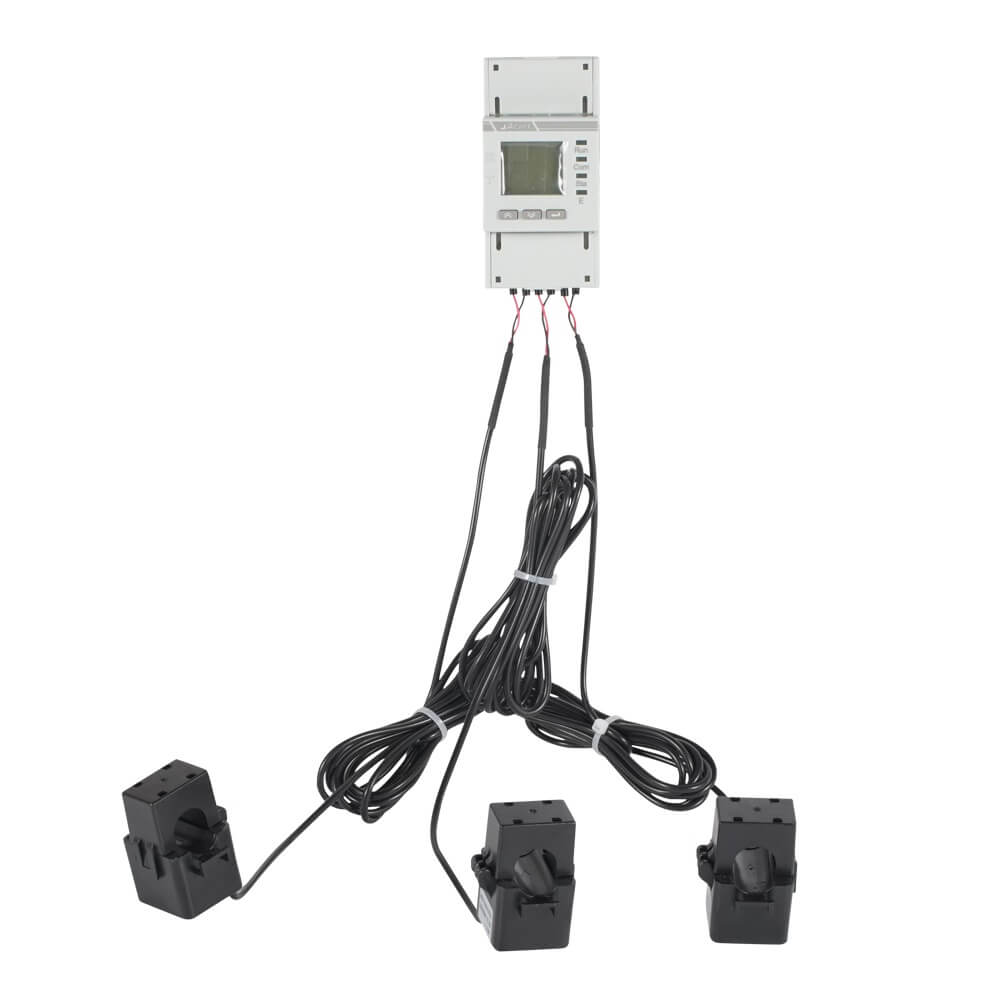

① AC System
② Three phase
③ CT 3*1(6)A
④ Direct 3*10(80)A
⑤ MID
⑥ Modbus-RTU RS485

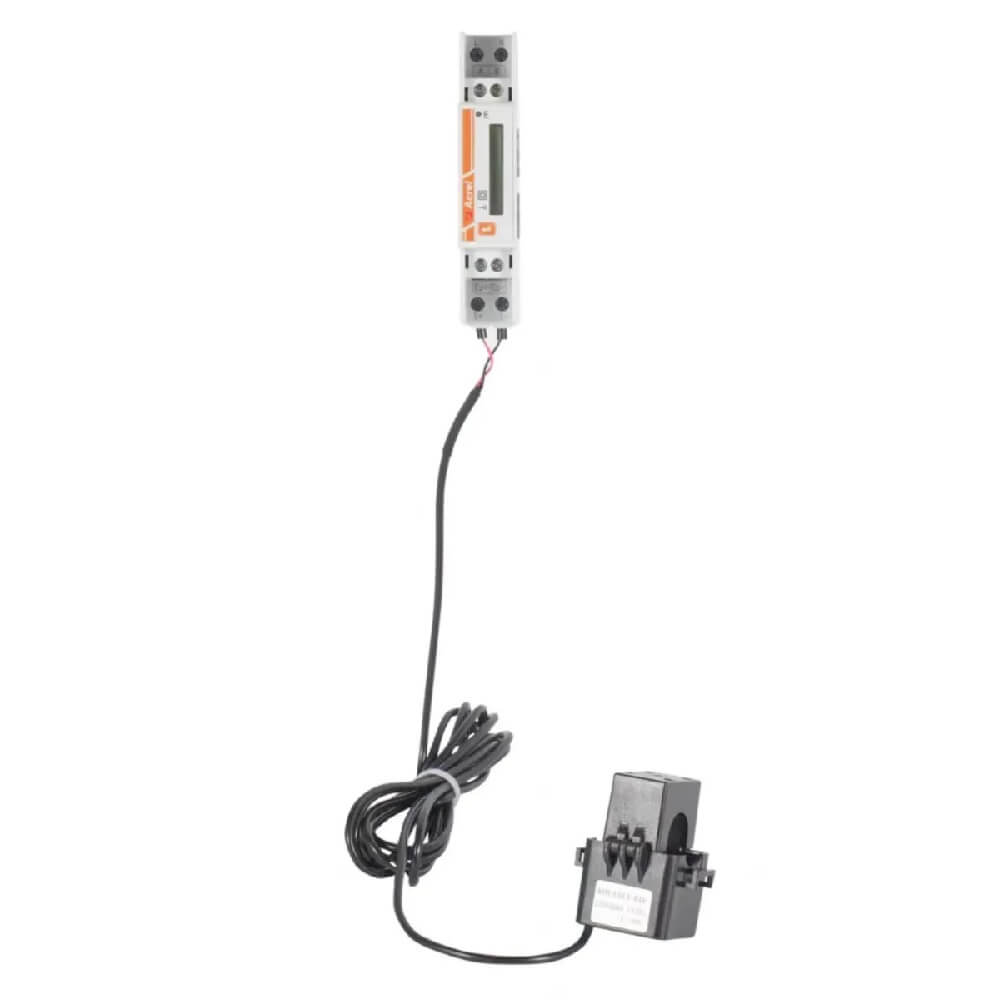

① AC System
② Single Phase
③ 80A, 120A, 200A, 300A CT
④ Response ≤ 100ms
⑤ Modbus-RTU RS485

① AC System
② 3P4L 3P3L 1P3L
③ 80A, 120A, 200A, 300A CT
④ Response ≤ 100ms
⑤ Modbus-RTU RS485

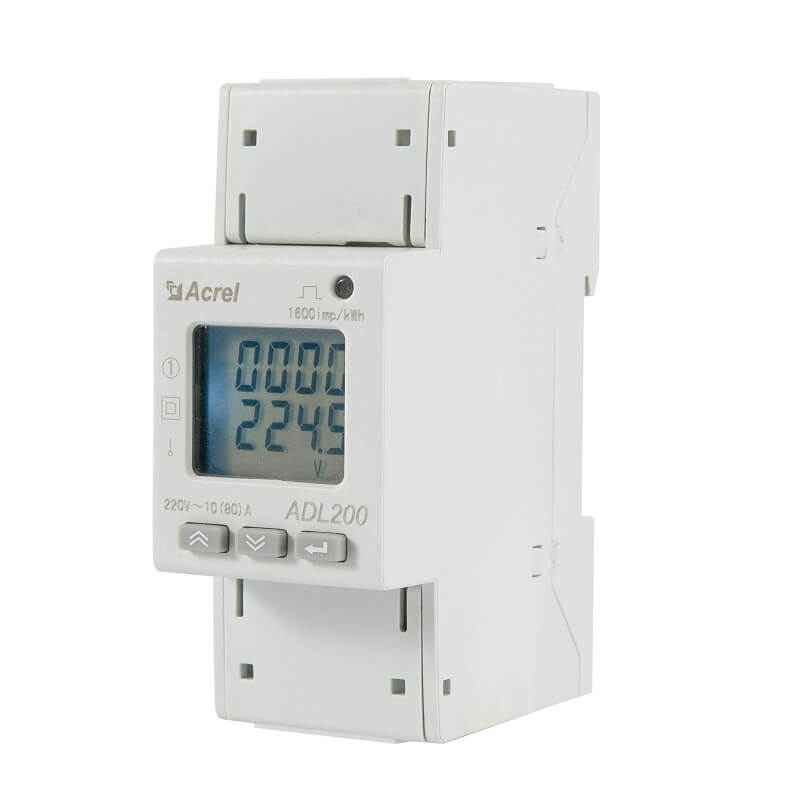

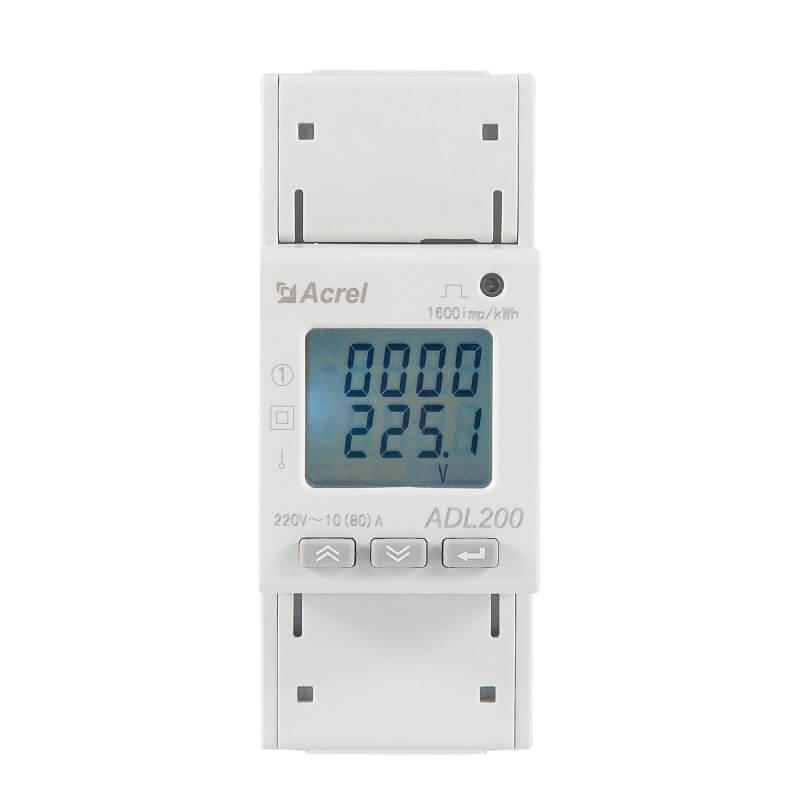

① AC System
② Single phase
③ 10(100)A
④ MID
⑤ Modbus-RTU RS485

① AC & DC System
② 4 & 8 Channels of AC
③ 12 Channels of DC
④ RJ12 Current Sensor or Hall Sensor
⑤ 4 NTC Temperature
⑥ 1 Temperature & Humidity
⑦ DI/DO
⑧ Modbus-RTU RS485

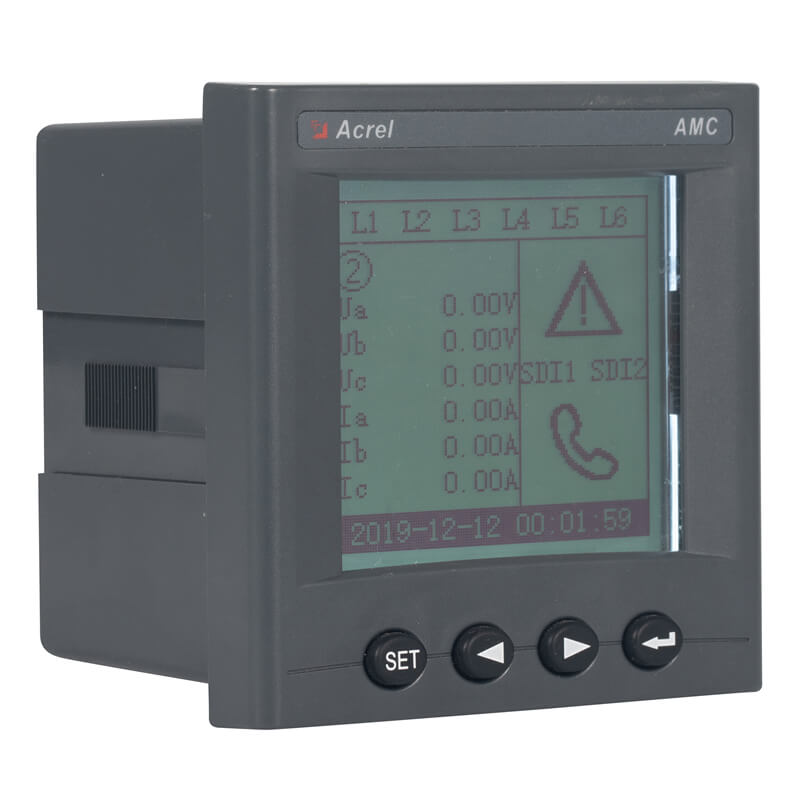

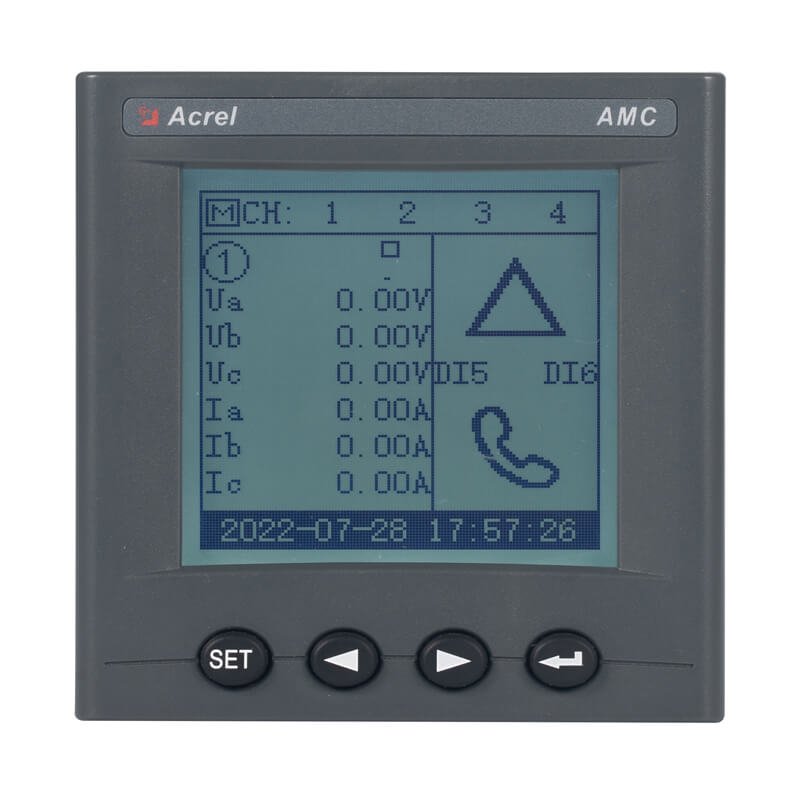

① AC System
② 4 & 6 Channels of AC
③ Active 2DI + Passive 4DI + 2DO
④ 2 NTC Temperature
⑤ Modbus-RTU RS485
⑥ Auxi. Power Supply:
AC/DC 85-265V

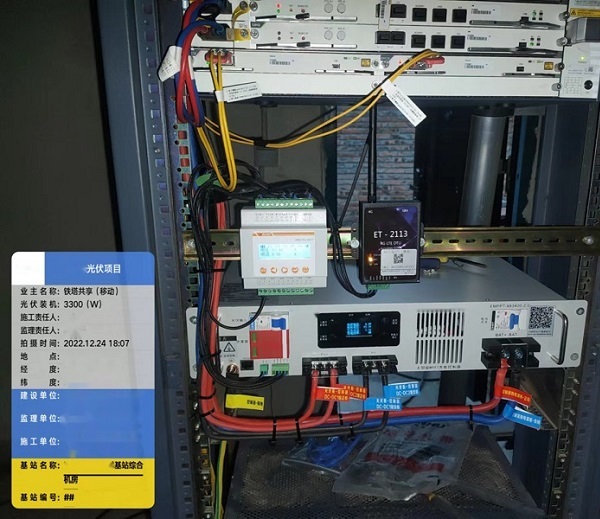

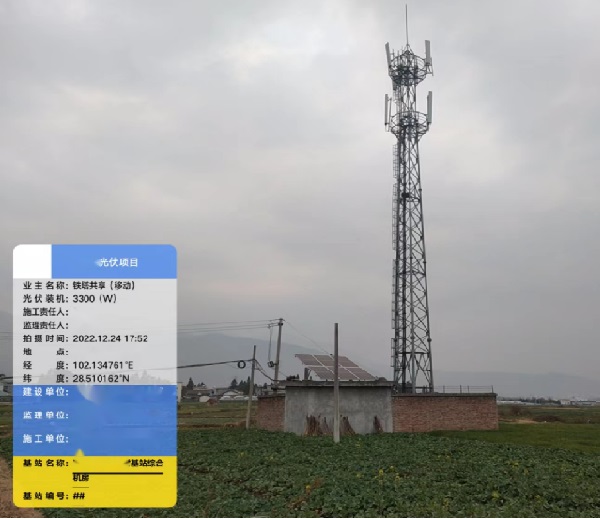

Onsite Photo

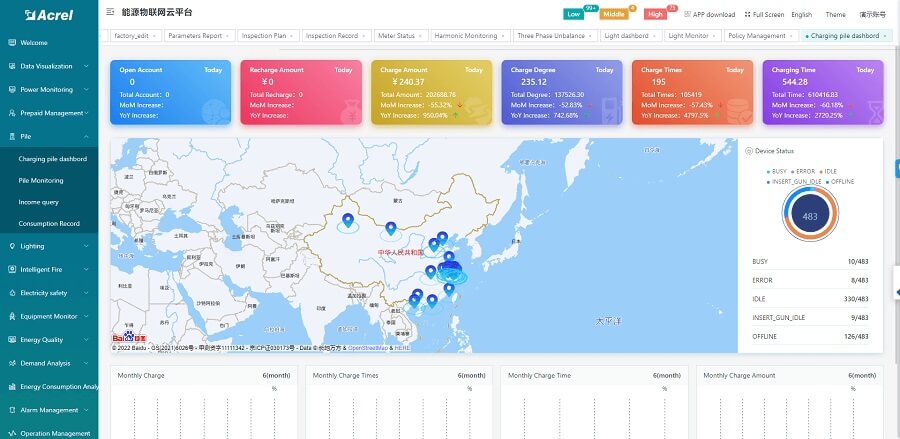

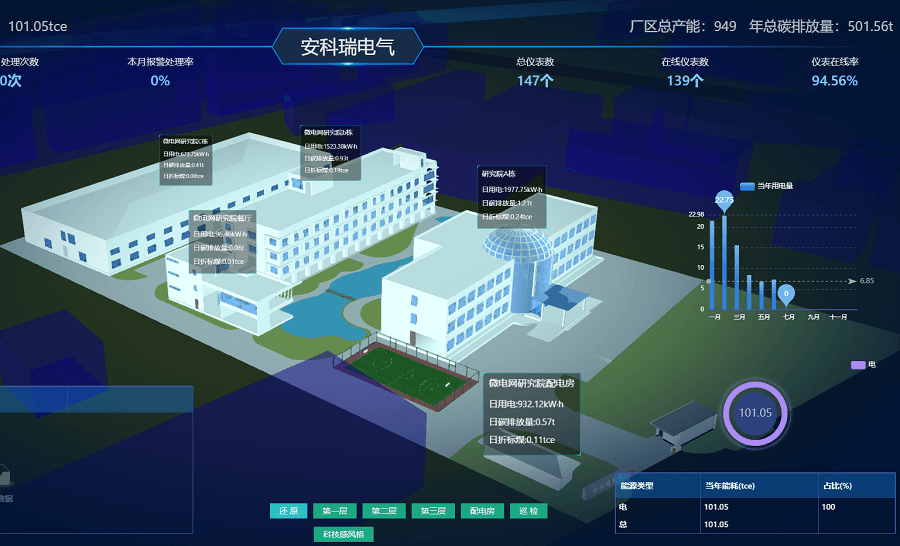

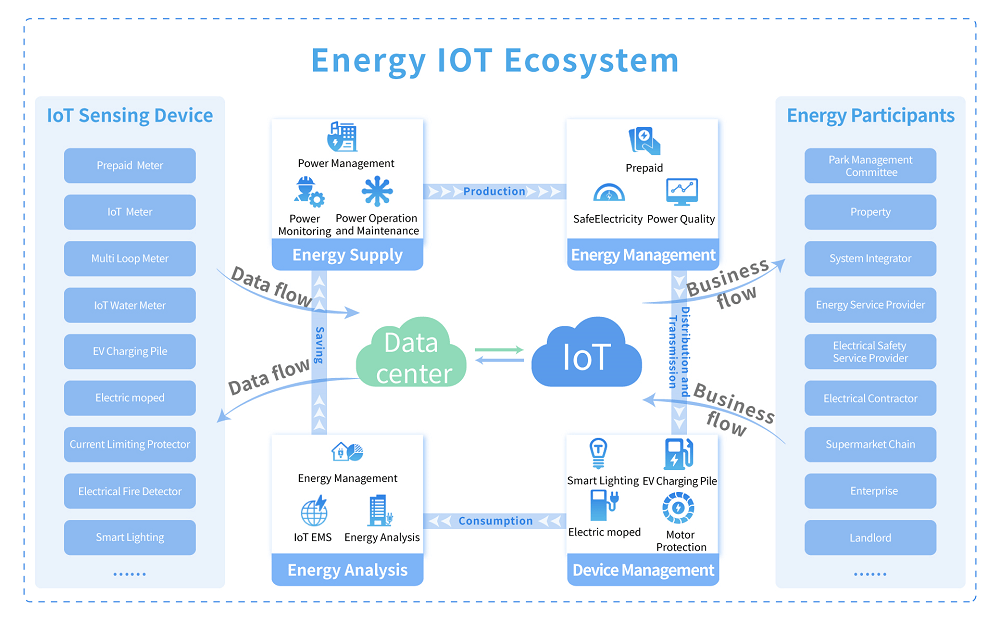

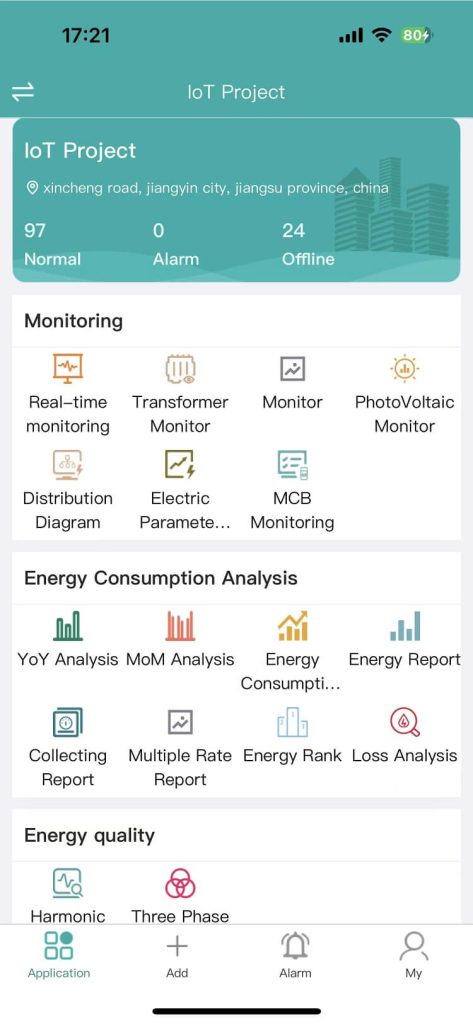

Acrel EMS Energy Management System

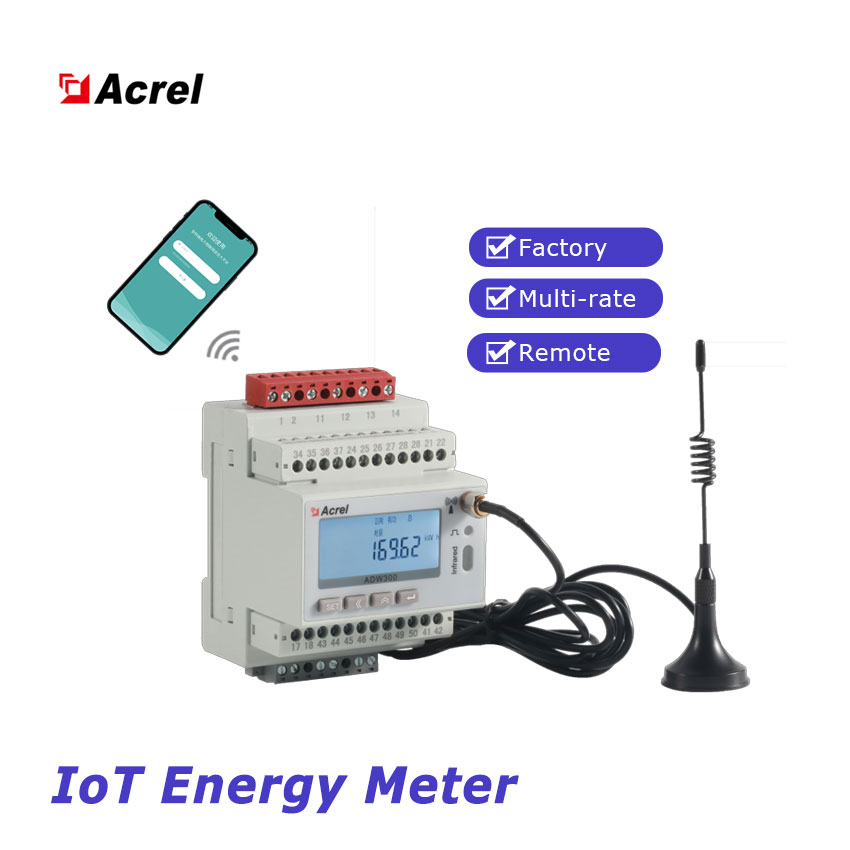

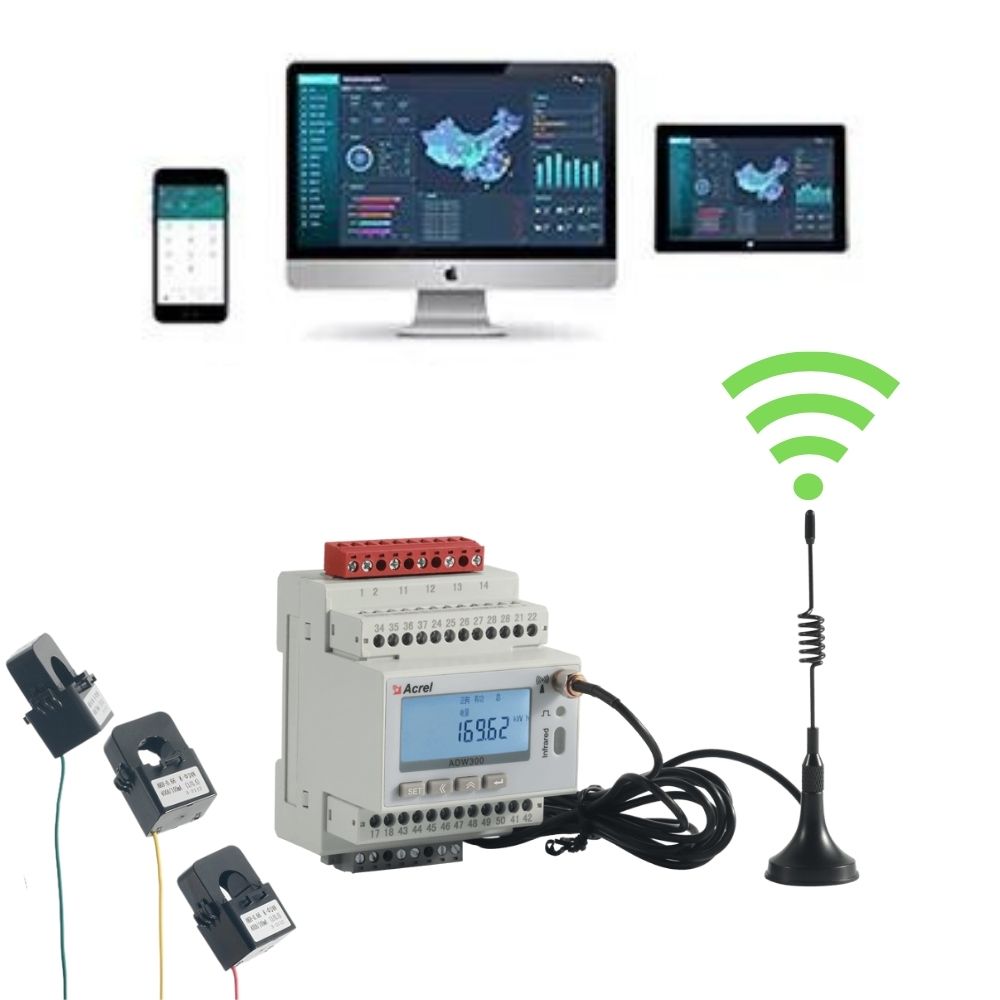

IoT based Wireless AC Energy & Power Meter
Phase: Single-phase, Three-phase
Communication: WIFI, 4G, LORA, LORAWAN; RS485
Real-time monitoring full Electricity Parameters for Remote Control and Monitoring
Function: Power Monitoring, Energy Quality, Demand Analysis, Operation Management, Alarm

Send us your detailed Requirements, We will open a 3-months Free trial account for you
