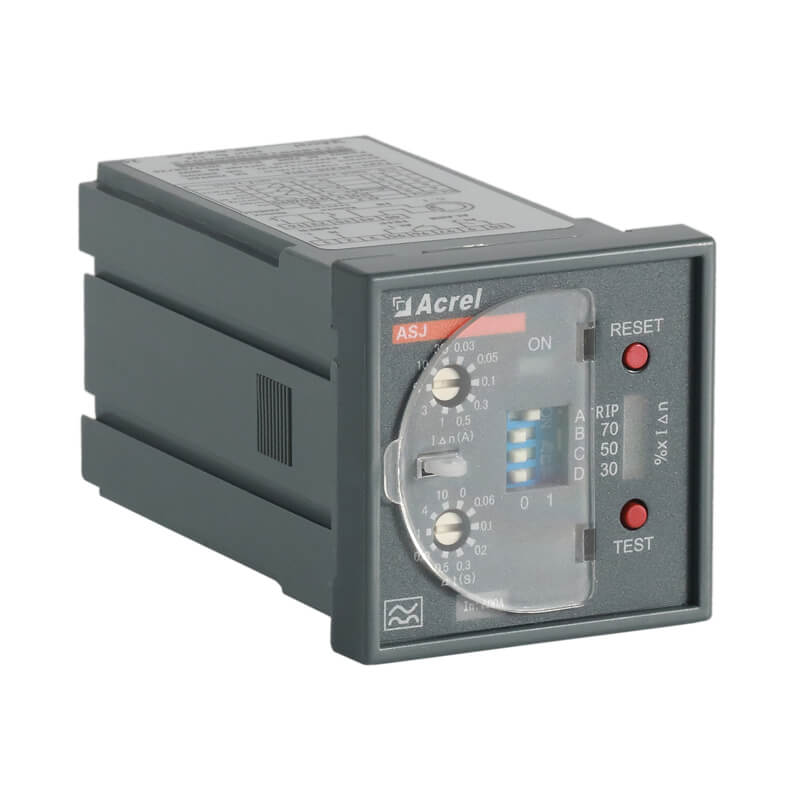

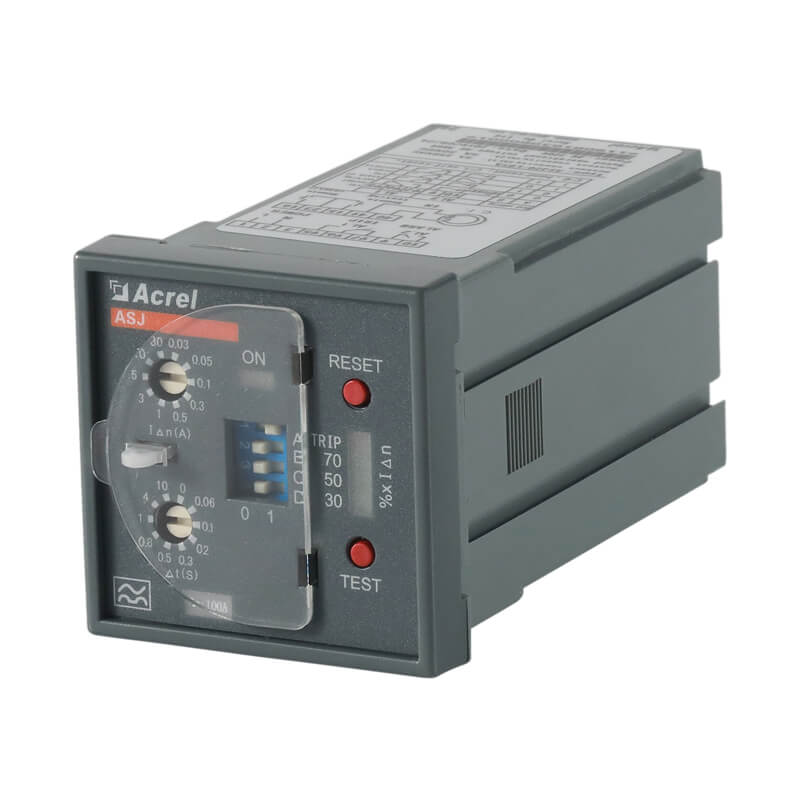

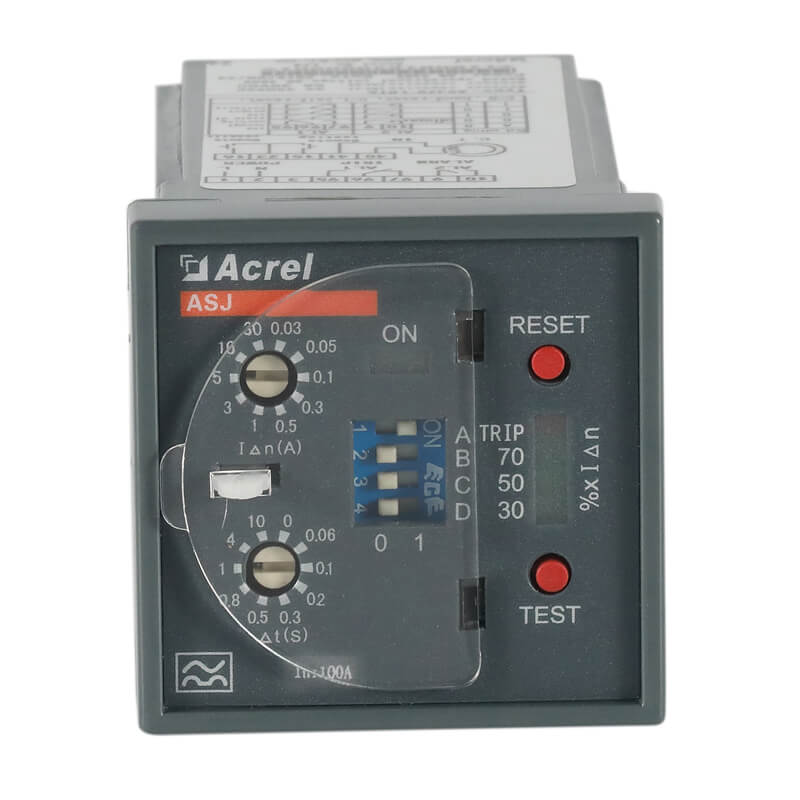

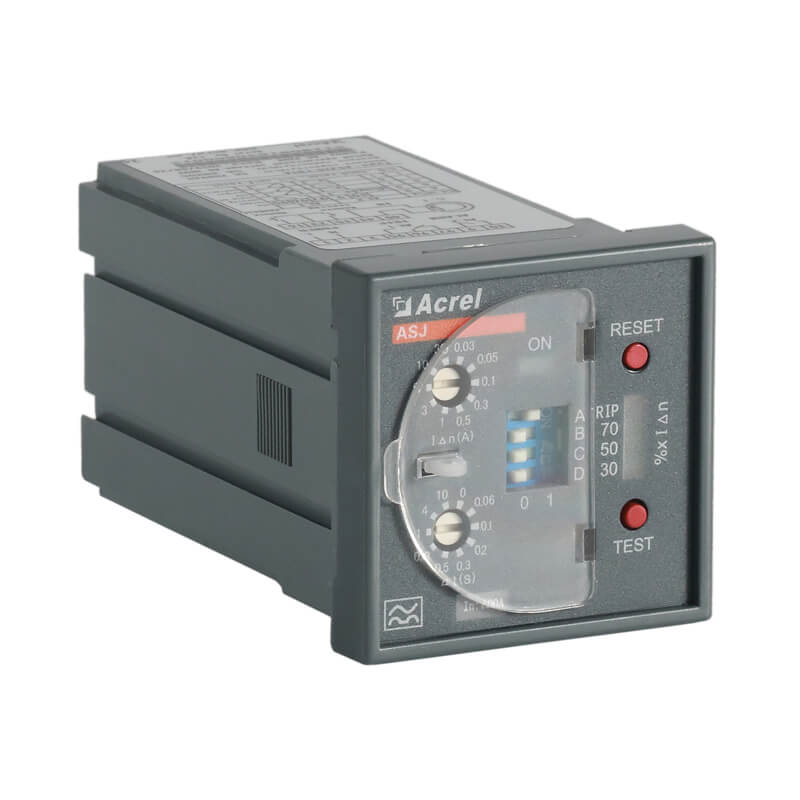

ASJ20-LD1A
TT & TN
AC 400V 50HZ
RCM
Modbus
What Do Our Customers Say?
“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "
Arnold
Philippines
Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.
Tuan
Vietnam

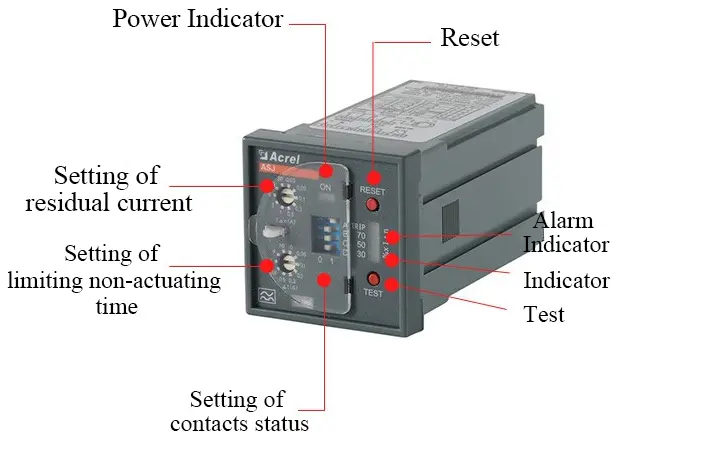

What’s the Function of Acrel ASJ Series Panel Residual Current Monitors?
What’s the Parameter of Acrel ASJ Series Panel Residual Current Monitors?
| Technical Parameter | Value | |
| Input | Rated residual operated current l△n |
0.03,0.05,0.1,0.3,0.5,1,3,5,10,30(A) |
| Limitation non- driving time |
0,0.06,0.1,0.2,0.3,0.5,0.8,1,4,10(S) | |
| Rated non-action residual current |
50%l△n | |
| Frequency | 50Hz±5Hz | |
| Tripping accuracy | -20%～-10%l△n | |
| Output | Output mode | 1 normal changeover contact |
| Contact capacity | AL1:8A250VAC 5A30VDC
AL2:6A250VAC 5A30VDC |
|
| Reset mode | Local,remote,automatic | |
| Auxiiary power supply |
Voltage range | AC/DC85~270V |
| Power consumption | ≤5W | |
| Power frequency withstand voltage |
The effective value of alternating current between the power supply, input and output: 2kV/1min |
|
| Enviroment | Temperature | operation:-20℃~+55℃ storage:-30℃~+70℃ |
| Humidity | ≤95%RH(no condensation) | |
| Height above
sea level |
≤2000m | |
Show More

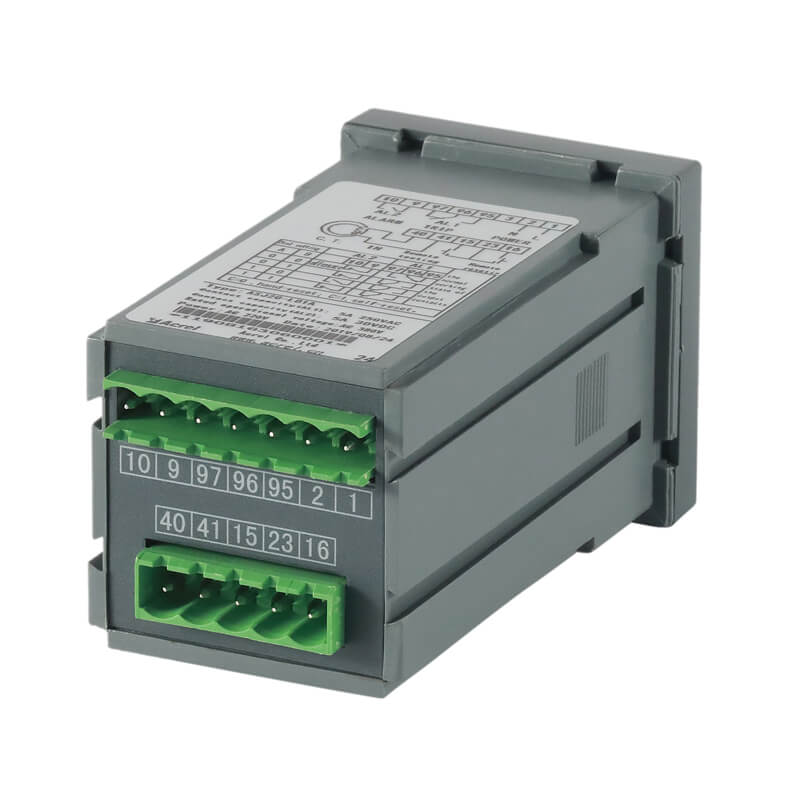

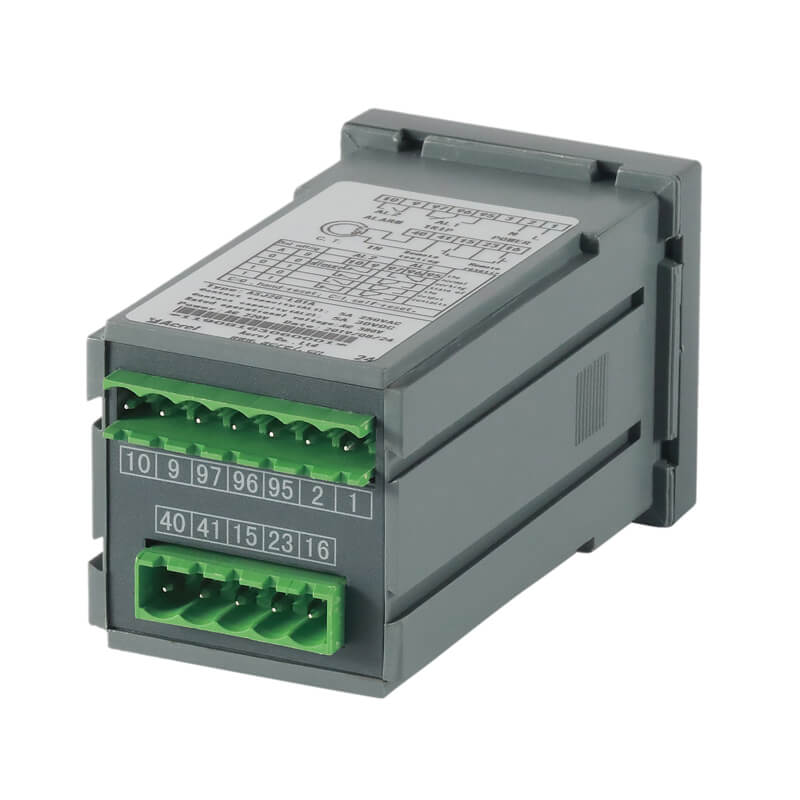

How to Connect Acrel ASJ Series Panel Residual Current Monitors?
