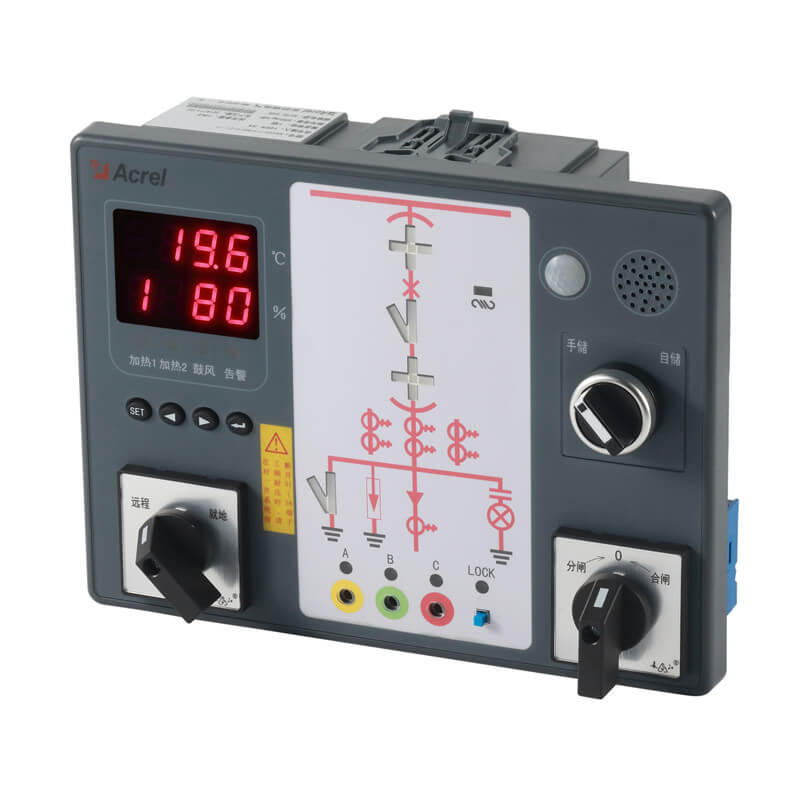

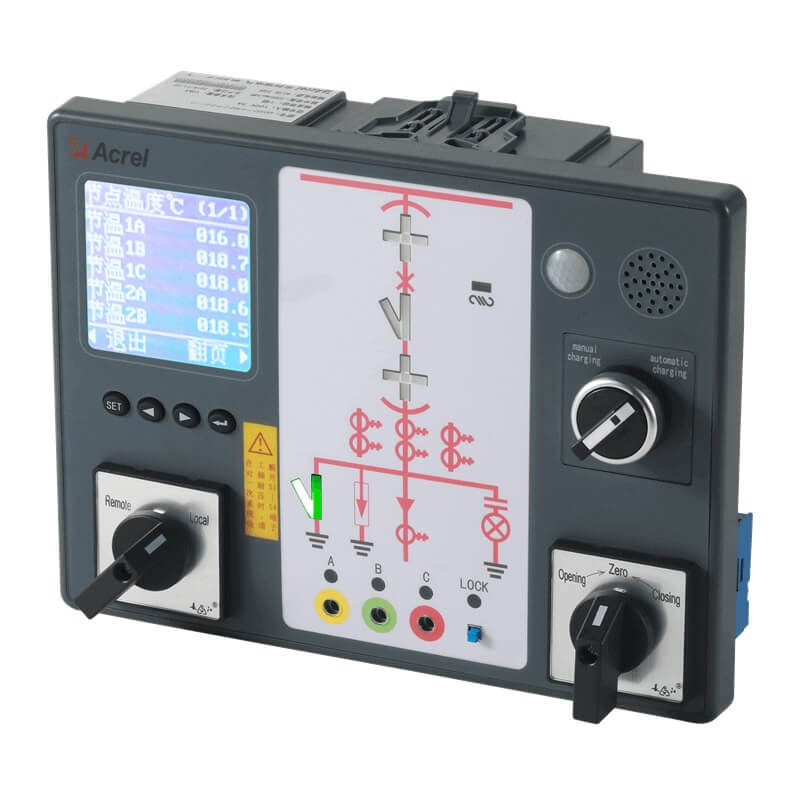

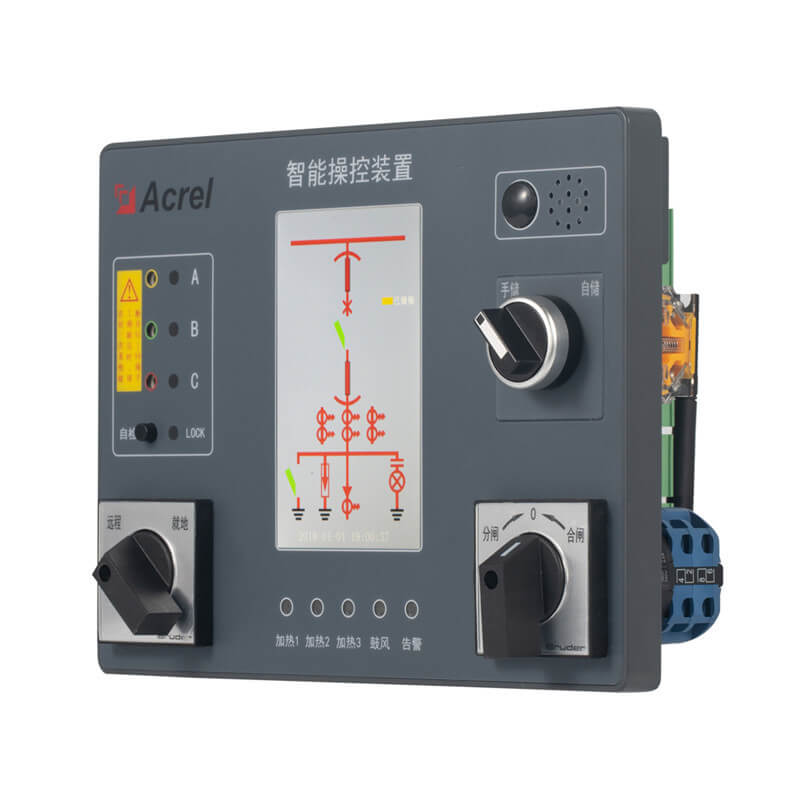

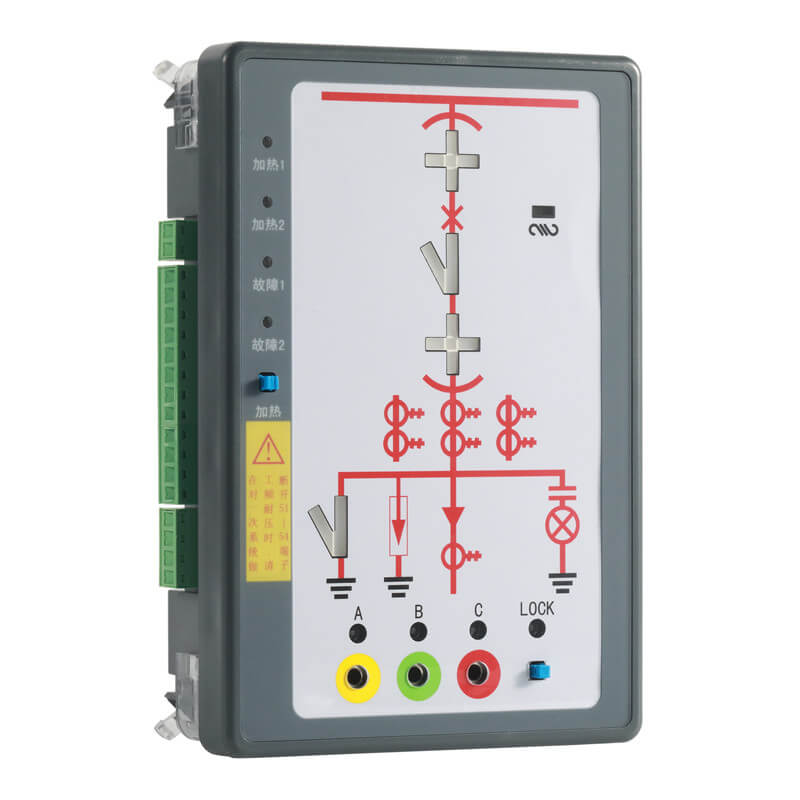

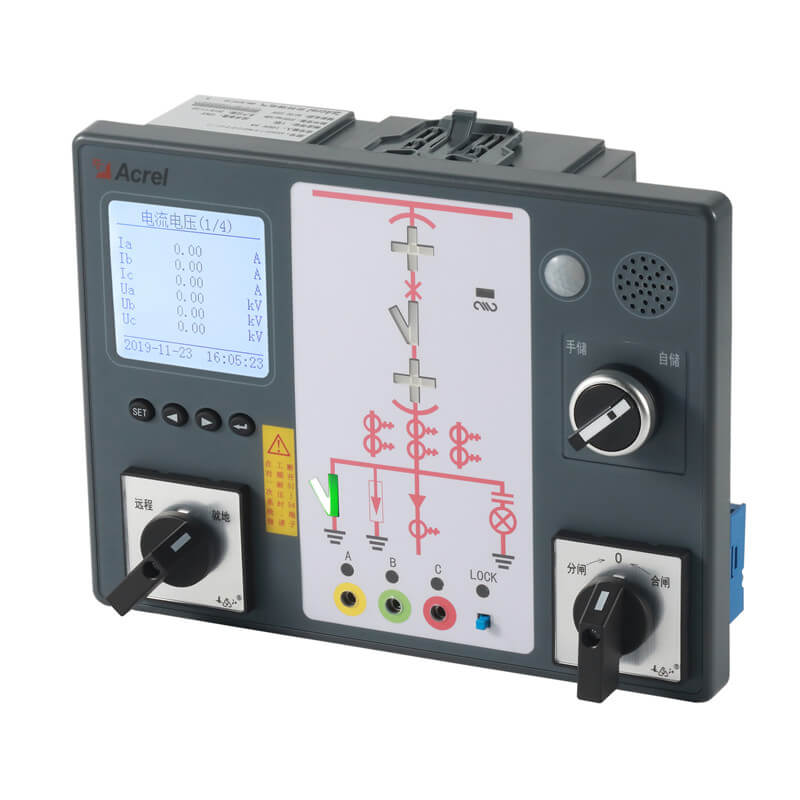

What’s the Function of Acrel ASD Series Switchgear Controller?
What’s the Parameter of Acrel ASD Series Switchgear Controller?
| Item |
|
|
|
|
|
||
| ASD100L | ASD100G | ASD200 | ASD320 | ASD300 | ASD500 | ||
| Rated input | Wiring method | —— | —— | —— | —— | 3P3L or 3P4L | |
| Voltage | —— | —— | —— | —— | 100V | ||
| Current | —— | —— | —— | —— | 5A | ||
| Frequency | —— | —— | —— | —— | 50Hz | ||
| Accuracy rating | Current、Voltage | —— | —— | —— | —— | 0.5 class | |
| Active Power | —— | —— | —— | —— | 0.5class | ||
| Reactive Power | —— | —— | —— | —— | |||
| Energy | —— | —— | —— | —— | 0.5 class | ||
| Tripping and Closing circuit control voltage | —— | —— | 1 class | ||||
| Environment Temperature | —— | ±1℃ | |||||
| Relative Humidity | —— | ±5% | |||||
| Device Working Power | AC 85~265V，DC 100~300V | ||||||
| Power Consumption | Auxiliary Power | ≤5VA | ≤5VA | ≤6VA | ≤8VA | ||
| Communication | Protocol | —— | MODBUS-RTU | ||||
| Baud Rate(bps) | —— | 2400、4800、9600、19200 | |||||
| Wireless Temperature Measurement | Temperature measurement Range | —— | —— | —— | -50℃~+125℃ | ||
| Temperature measurement Accuracy | —— | —— | —— | ±1℃ | |||
| Sensor battery life | —— | —— | —— | ≥5 year | |||
| starting current | —— | —— | —— | ≥5A | |||
| Environmental requirement | Operating Temperature | -10℃~55℃ | |||||
| Relative Humidity | ≤95% | ||||||
| Mean Time Between Failures | ≥50000 Hours | ||||||
What’s the Function of Acrel ASD Series Switchgear Controller?
| Function | ASD100/ASD100G | ASD200 | ASD300 | ASD310 | ASD320 | |
| Cutout | 112mm×172mm | 220mm×165mm | ||||
| Primary circuit analog chart | Standard | |||||
| Live display and self-test/nuclear phase | Optional, need to order instructions | |||||
| Electromagnetic lockout outlet | Configuration 1 | Configuration 2 | Configuration 1 | |||
| Temp./humidity control | Standard 1 sensor, line length 4 meters | |||||
| TWO heating One blowing | TWO heating | TWO heating One blowing | ||||
| Forced heating | Standard | Standard | ||||
| Heating circuit Fault alarm | Standard | None | ||||
| Voice prompts | None | Standard | ||||
| Sensing probe for the human body | None | Standard | ||||
| Operating knob | None | Optional | ||||
| Beaker frequency shows | None | Standard | ||||
| Wireless temperature measurement | None | None | Optional | None | Optional | |
| Measure and display of power parameter | None | None | Standard | None | ||
| Communication port | None | Standard | ||||
