Multi Circuit Power Meter for Telecom Tower Data Center Building

Highlight

What’s the Highlight of Acrel Multi Circuit Power Meter for Telecom Tower Data Center Building?

Function

Telecom Tower
Data Center
Residential Building
Commercial Building

Circuits

Up to 12 channels of Single-phase
or 4 channels of Three-phase
Current Sensor: 100mV, 333mV
Rogowski: 100mV
RJ12 Interface

Power Supply

AC 85-265V
DC 85-265V
-48V DC
12V DC

Communication

Protocol: Modbus-RTU & Modbus-TCP
Interface: RS485 & Ethernet
Expandable 4G, WIFI, LORA Wireless communication module

Function

Multi Circuit Power Meter enables separate energy bills for each tenant, resolves SLA disputes, reduces manpower costs and gives management visibility into Telecom Tower & Data Center & Residential Building & Commercial Building performance

Real-Time Monitoring

Voltage- Va, Vb, Vc
Current- la, Ib, lc
Active power - Pa, Pb, Pc, ∑P
Reactive power - Qa, Qb, Qc, ∑Q
Apparent power - Sa, Sb, Sc, ∑S
Power Factor- PFa, PFb, PFc, ∑PF
Active energy - each phase kWh, total kWh
Reactive energy - each phase kvarh, total kvarh

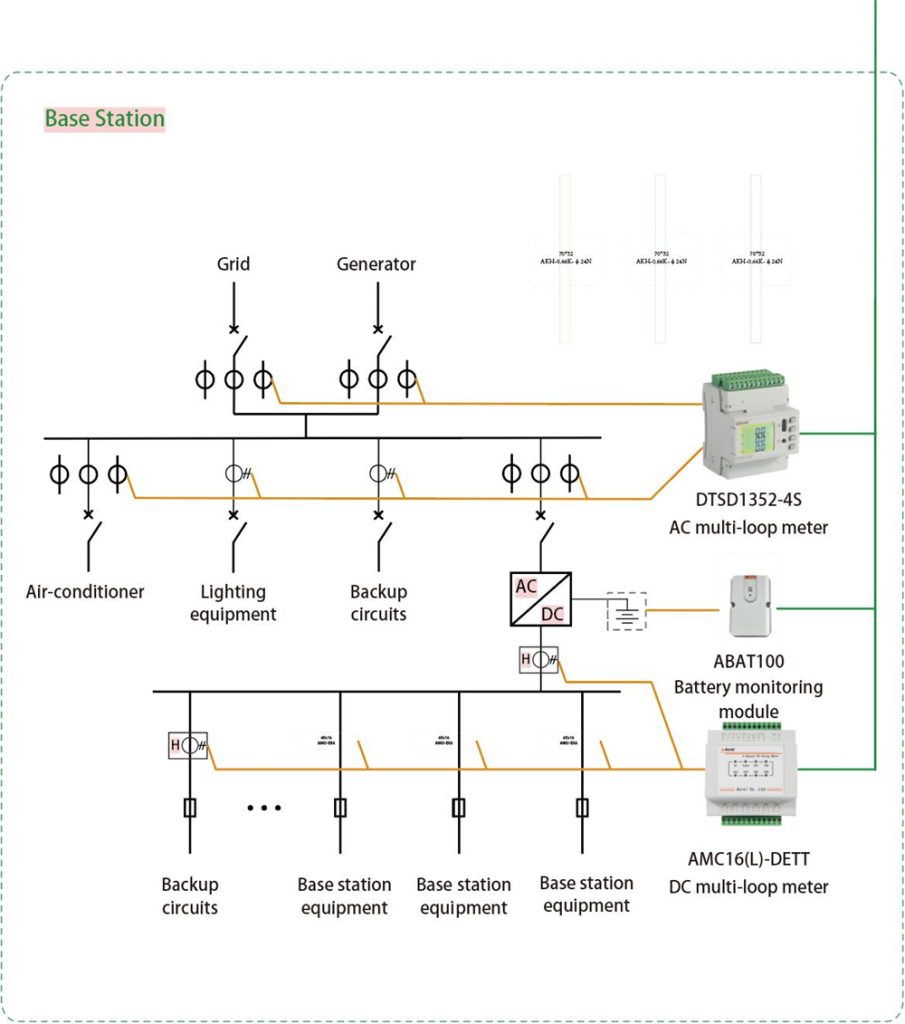

Telecom Tower

AMC16(L)-DETT

DC Energy Meter
6 CH of DC Current
Hall Sensor or Shunt

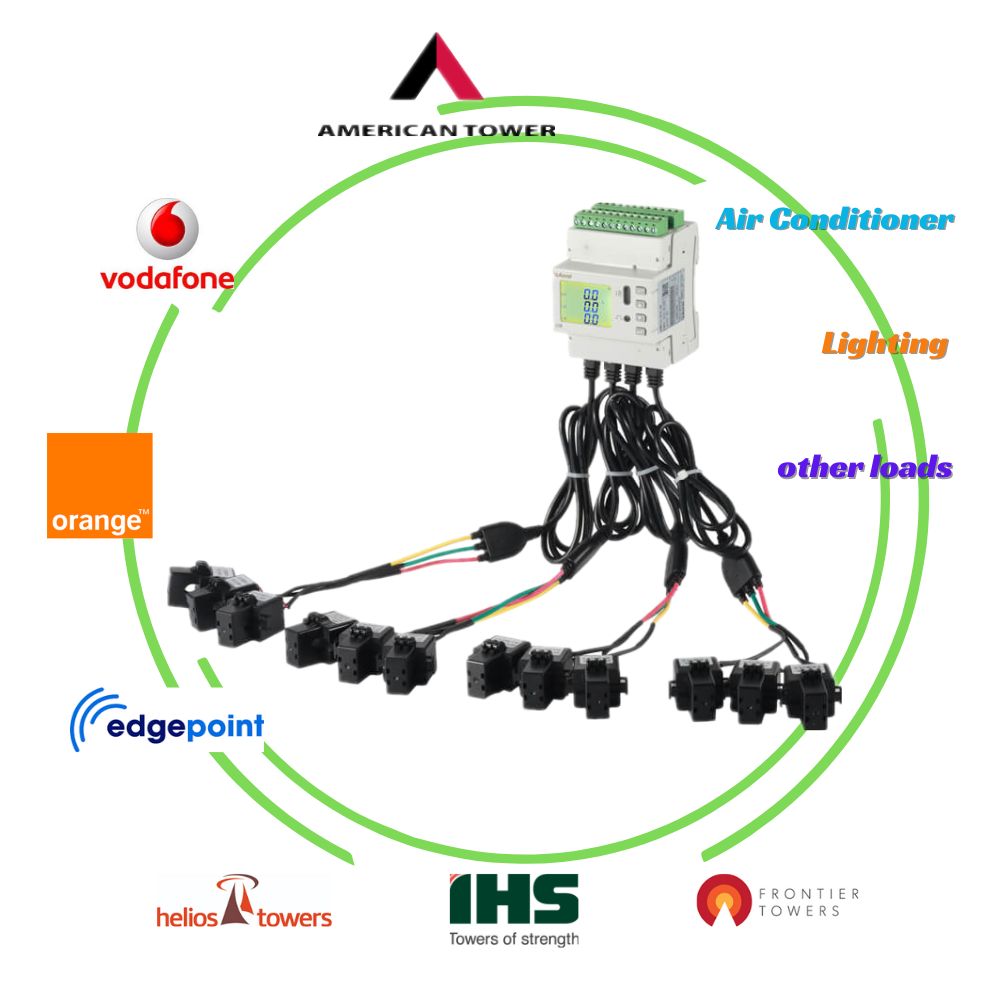

DTSD1352-4S

AC Power Meter
4 CH of Three phase
12 CH of Single phase
Split core Current Sensor with RJ12 interface

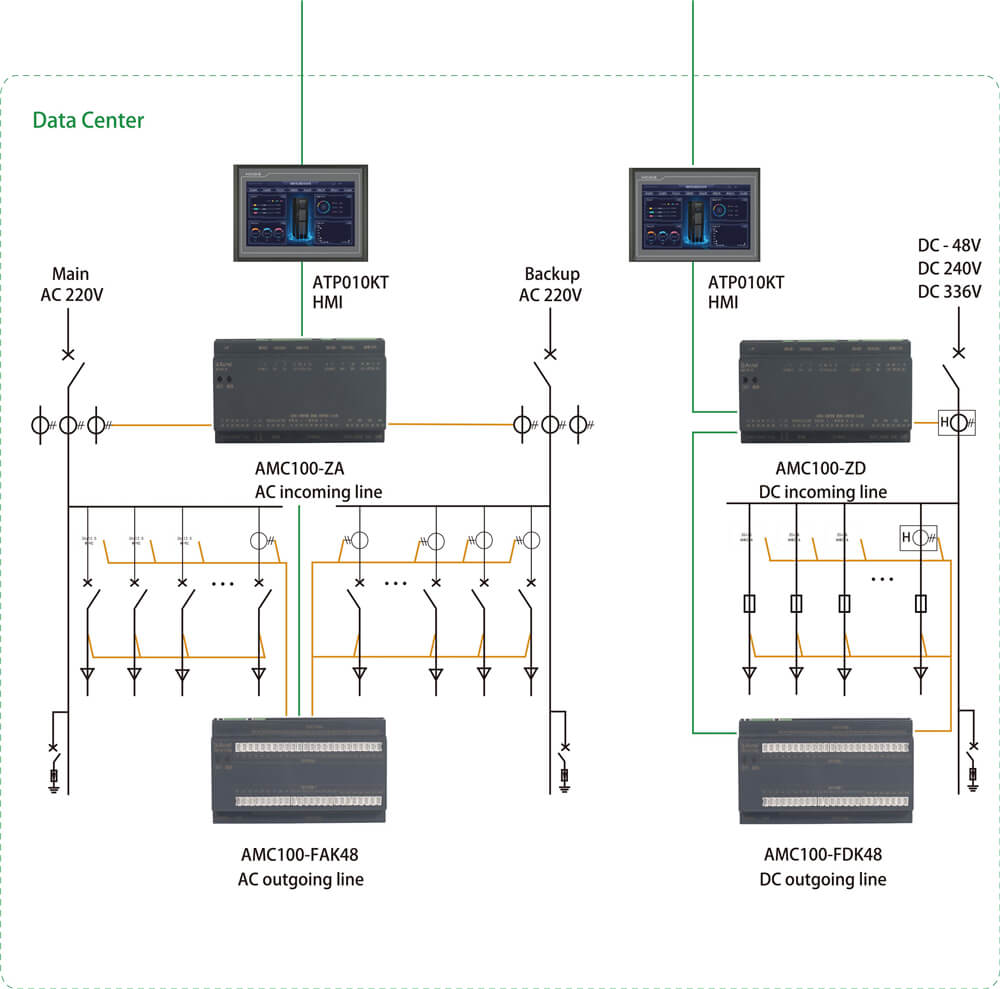

Data Center

AMC100-Z

DC System
DC -48V/240V/336V
AC System
AC 220V

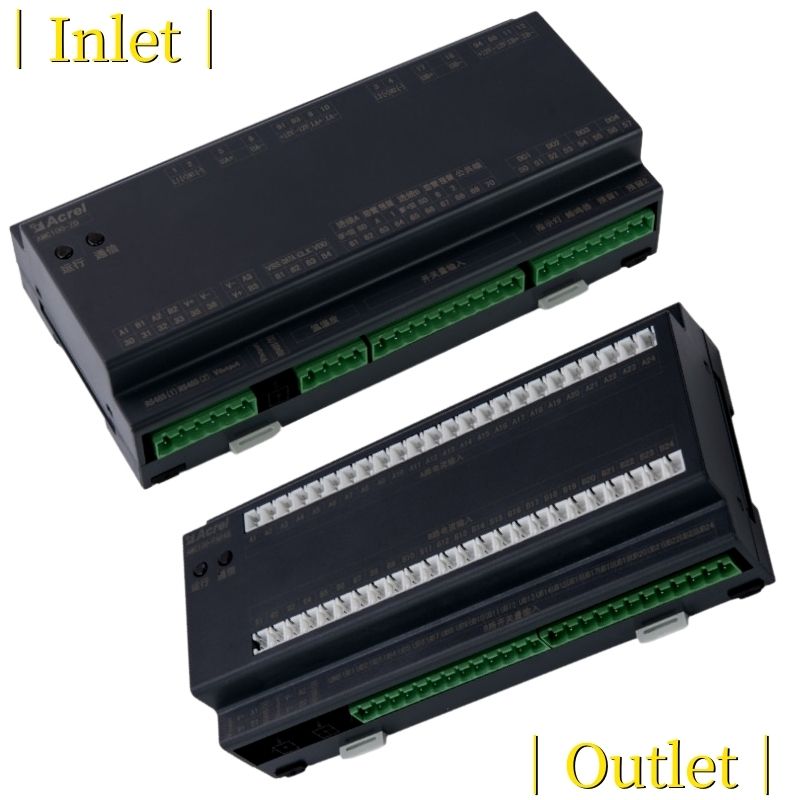

AMC100-Z

Incoming 4 CH
Outgoing 192 CH

Residential & Commercial Building

ADF400L

Modular Design

Single phase: 36 CH
Three phase: 12 CH

Input: Directly or via CT

ADW210

Single phase: 12 CH
Three phase: 4 CH

Input: Directly or via CT
