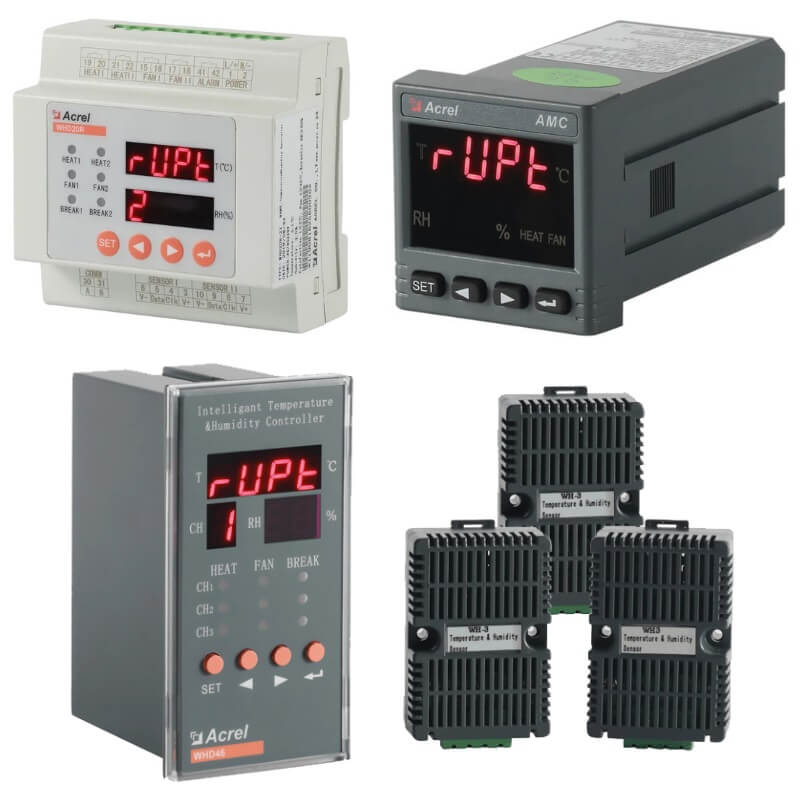

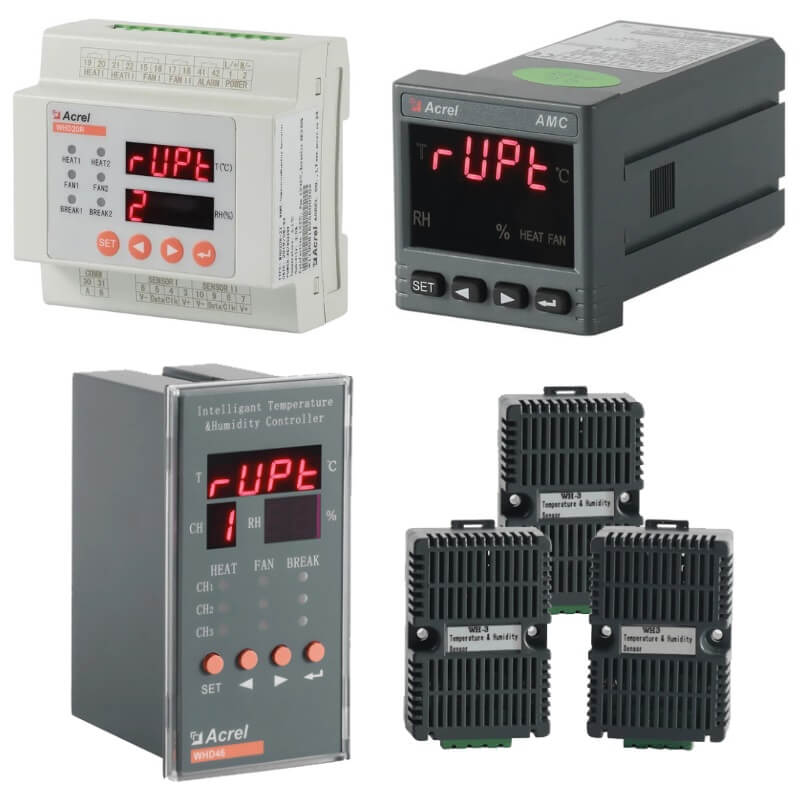

What’s the Function of Acrel WHD Series Multi Channels Temperature & Humidity Controller?
What’s the Specification of Acrel WHD Series Multi Channels Temperature & Humidity Controller?
| Specification | Channels of
Temperature & Humidity |
PCS of Sensors | Installation | Dimension |
|

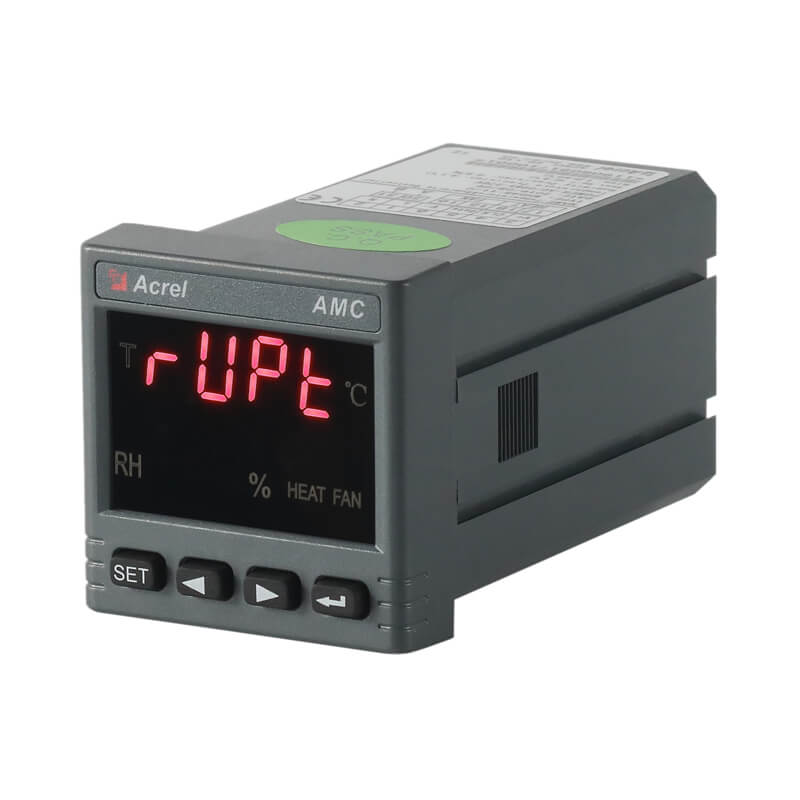

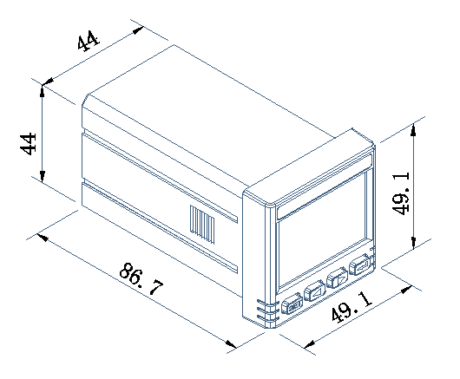

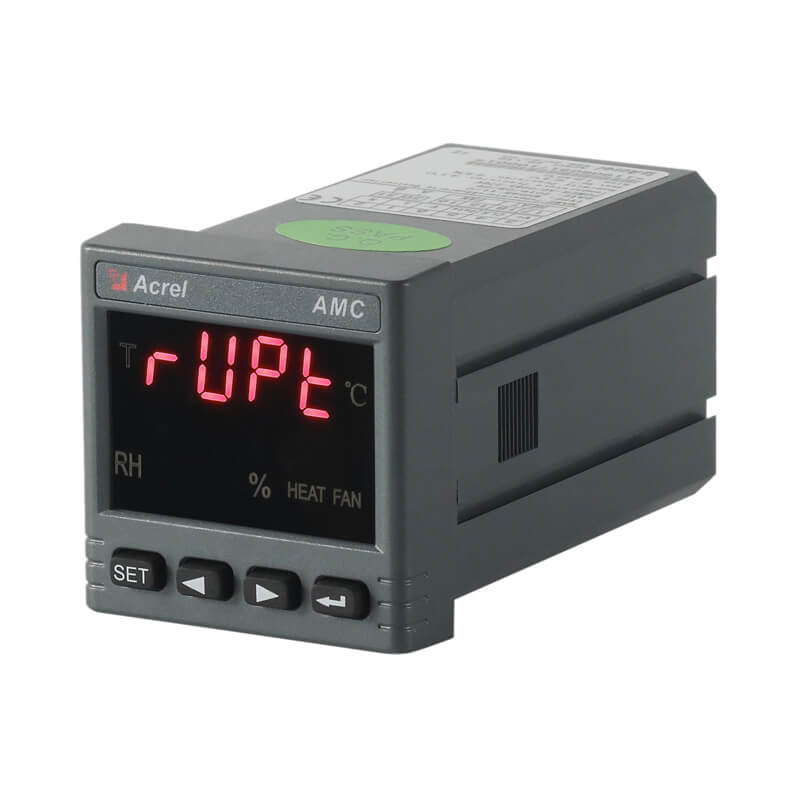

WHD48-11 |
1 | 1 | Embedded cutout：
45x45mm |
|
|

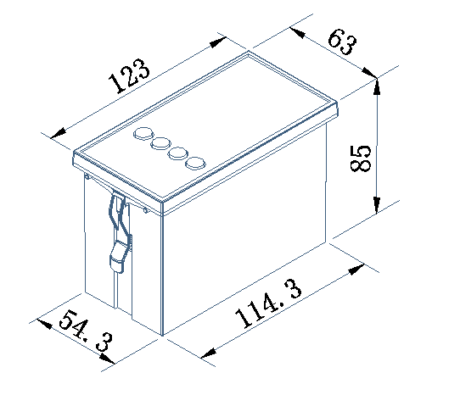

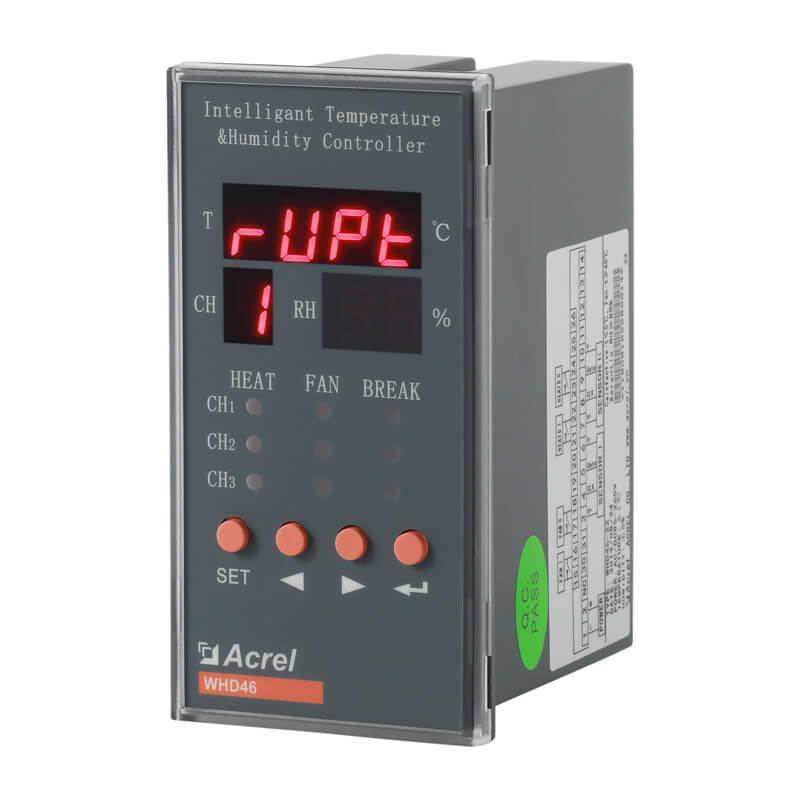

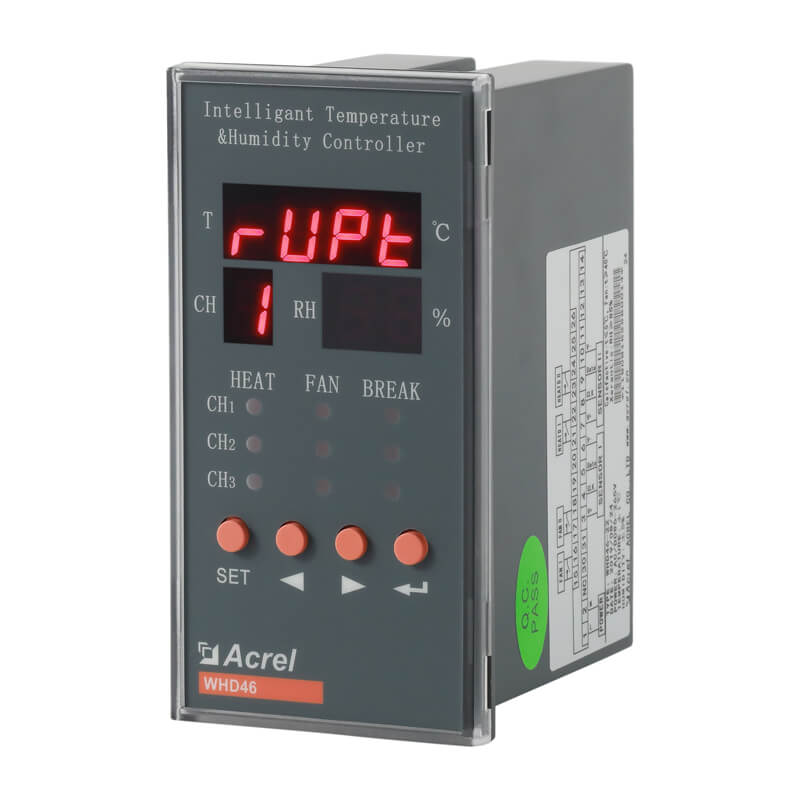

WHD46-11
|
1 | 1 |
Embedded cutout： 116x56mm |
|
| WHD46-22 | 2 | 2 | ||
| WHD46-33 | 3 | 3 | ||
|

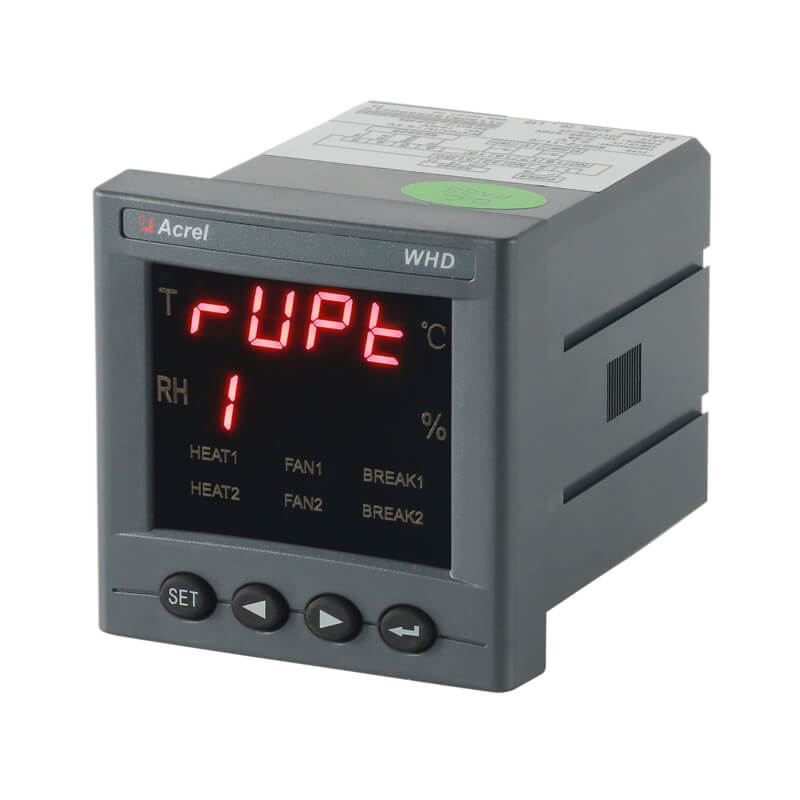

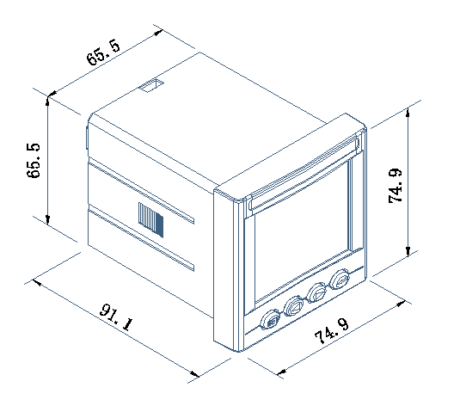

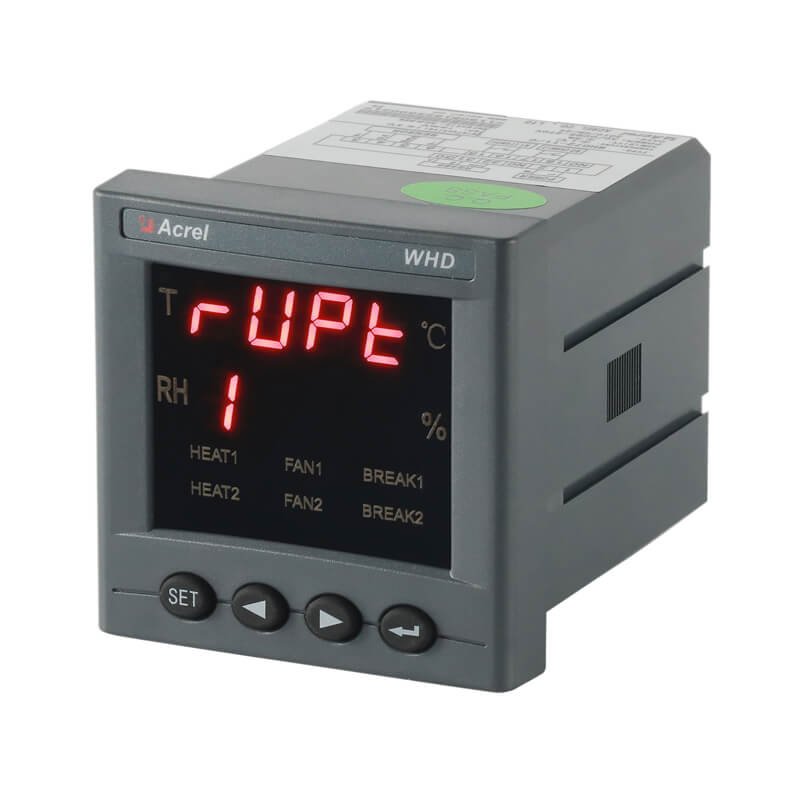

WHD72-11 |
1 | 1 |
Embedded cutout： 67x67mm |
|
|
WHD72-22 |
2 | 2 | ||
|

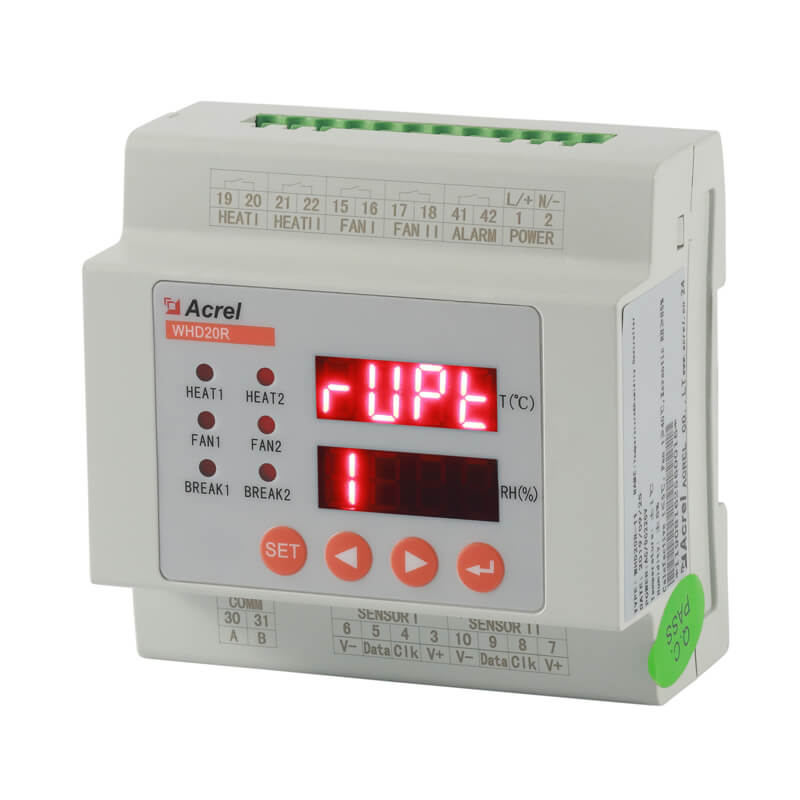

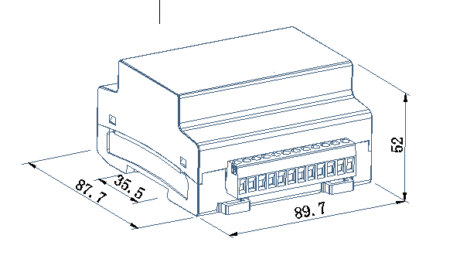

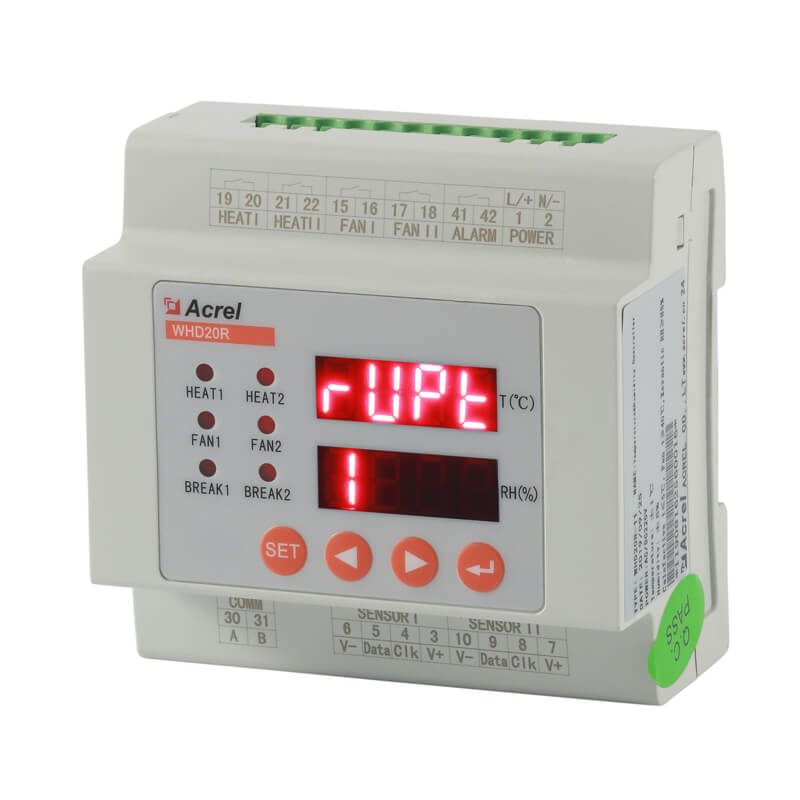

WHD20R-11 |
1 | 1 |
Dinrail：35mm |
|
|
WHD20R-22 |
2 | 2 | ||

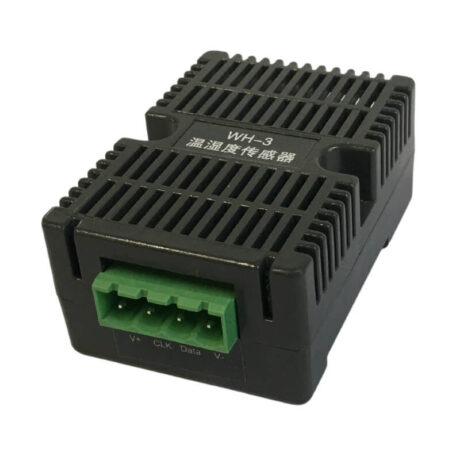

| WH-3 | RS485, Modbus-RTU |  |
What’s the Parameter of Acrel WHD Series Multi Channels Temperature & Humidity Controller?
| Technical Parameter | Value | |
| Set range of
controlling parameters |
Heating for Temperature rising | -40℃~40℃ |
| Blowing for temperature decreasing |
0℃~99.9℃ | |
| Humidity control | 20%RH～90%RH | |
| Contact Capacity | 5A/AC250V | |
| Communication | RS485(Modbus-RTU) | |
| Auxiliary power supply | Working range | AC85~265V,DC100~350V |
| Consumption | Basic power consumption(≤0.8w)+ Relay power consumption(each channel≤0.7w) |
|
| Insulation resistance | ≥100MQ | |
| Environment | Temperature | -20℃~+60C |
| Humidity | ≤95%RH(No condensation) | |
| Altitude | ≤2000 m | |
| Measuring range | Temperature | -40.0℃~99.9℃ |
| Humidity | 0%RH～99%RH | |
| Precision | Temperature | ±1℃ |
| Humidity | ±5%RH | |

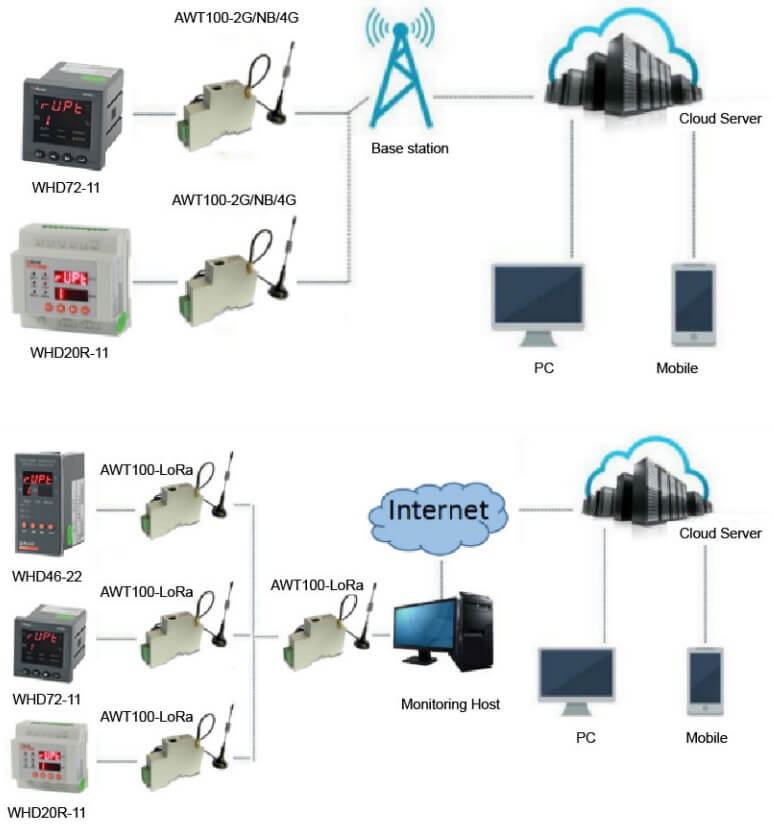

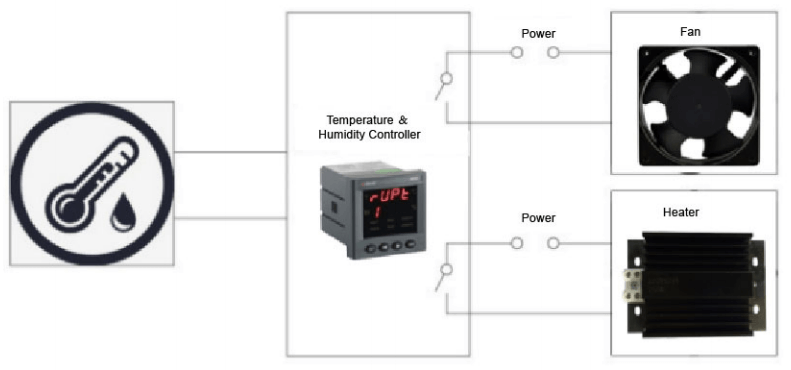

How does the Acrel WHD Series Multi Channels Temperature & Humidity Controller Work?

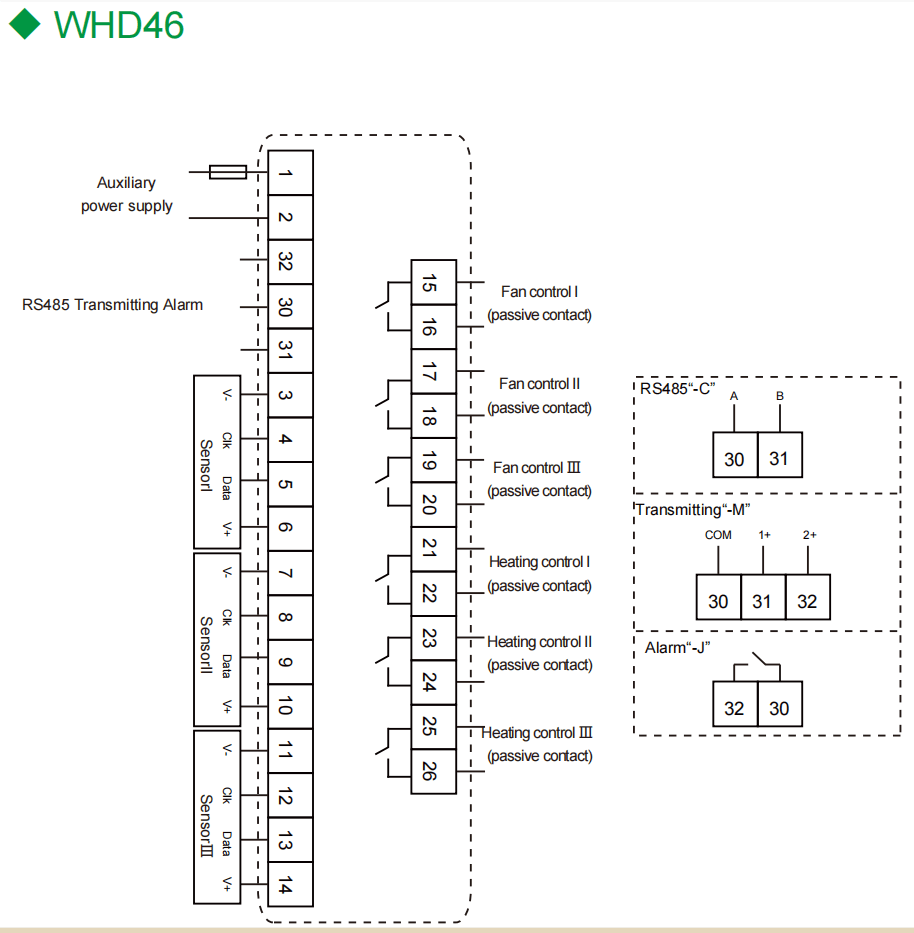

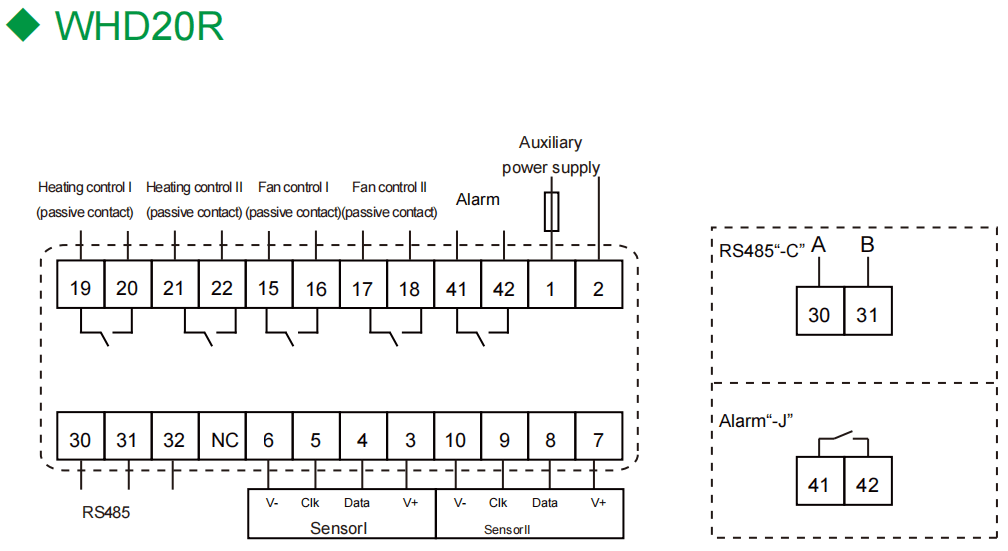

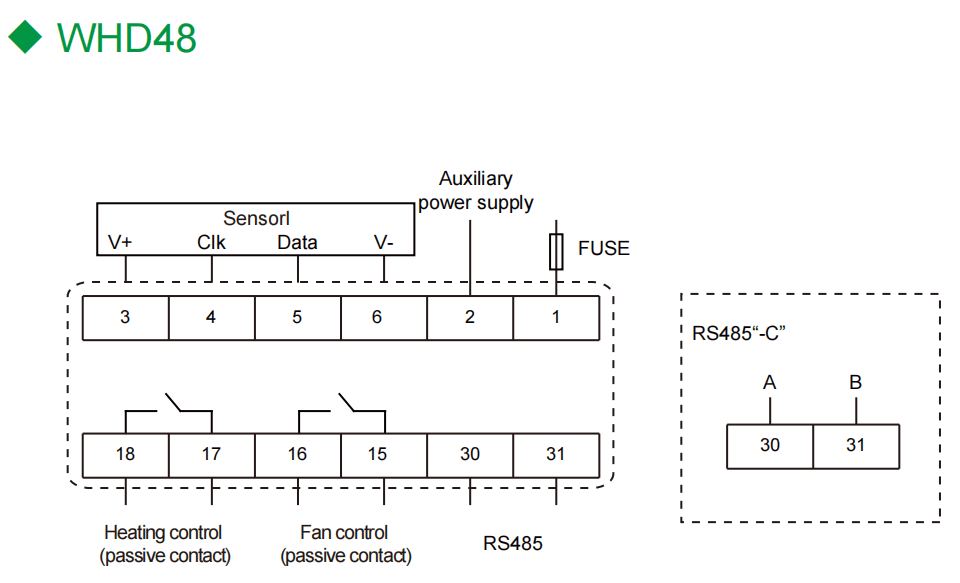

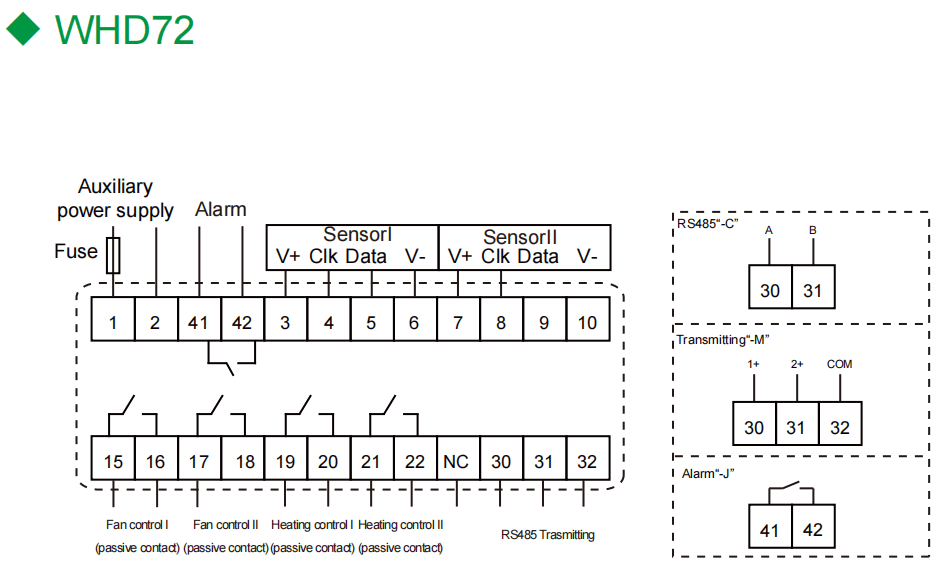

How to wire Acrel WHD Series Multi Channels Temperature & Humidity Controller?
