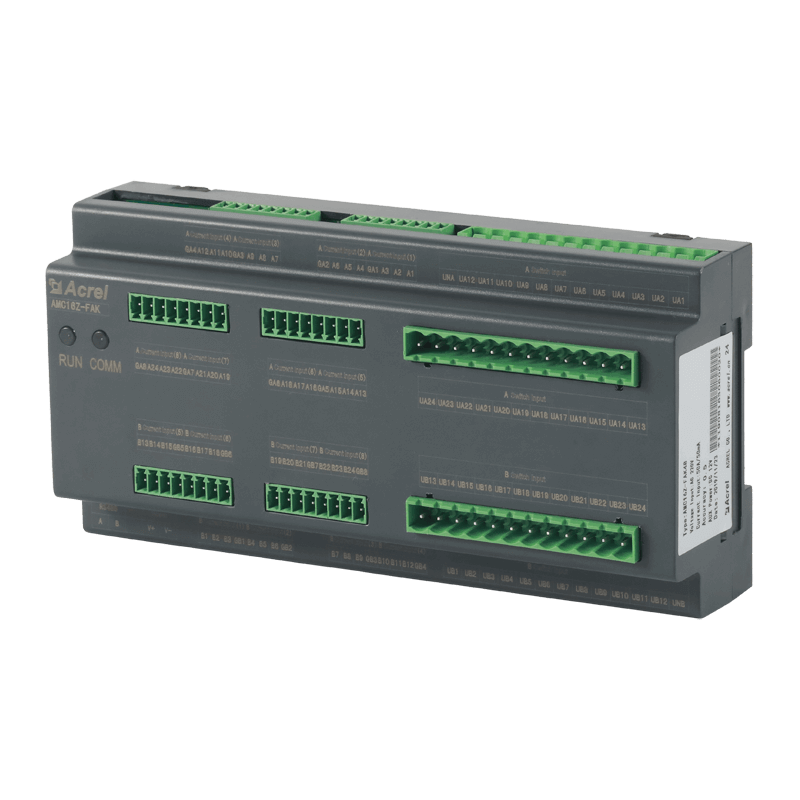

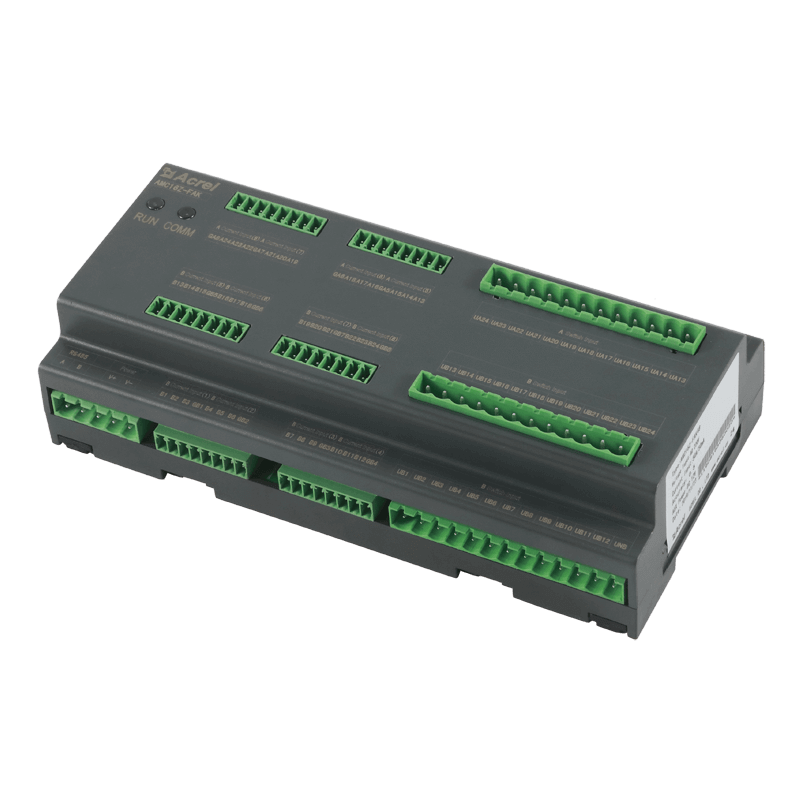

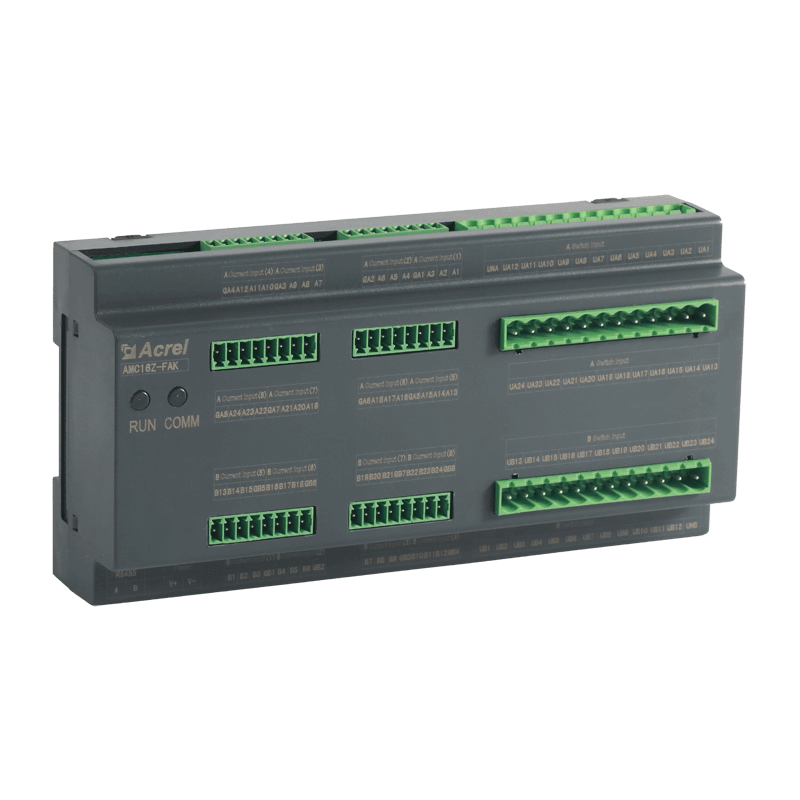

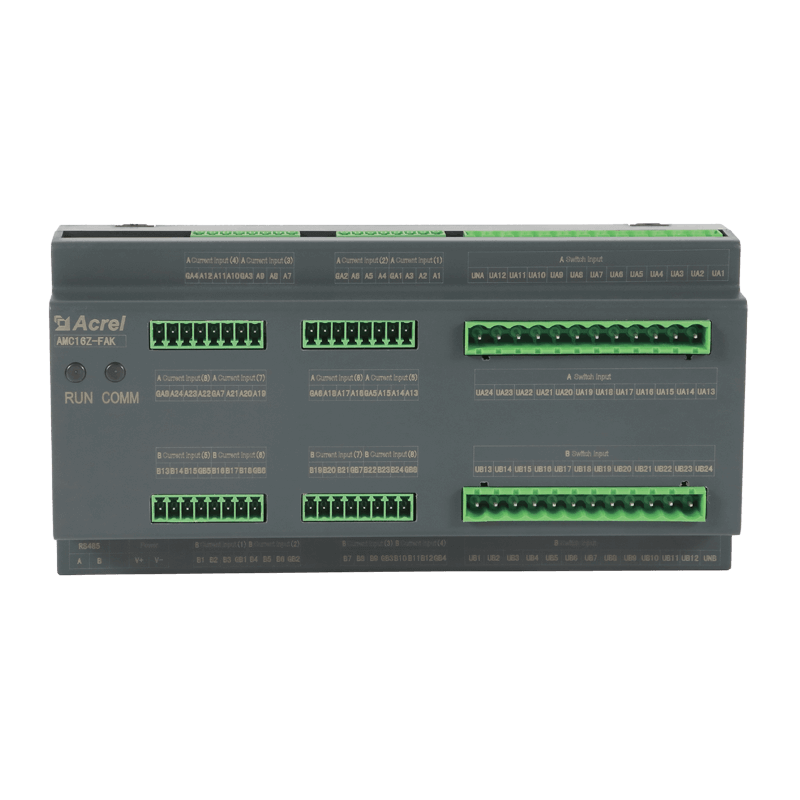

Multi Channels Electricity Meter for Outlet Circuit in IDC

AMC16Z-FAK

  • Measure Electricity
  • Switch State
  • 24 or 48 channels
  • Modbus-RTU RS485

Feedback

What Do Our Customers Say?

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

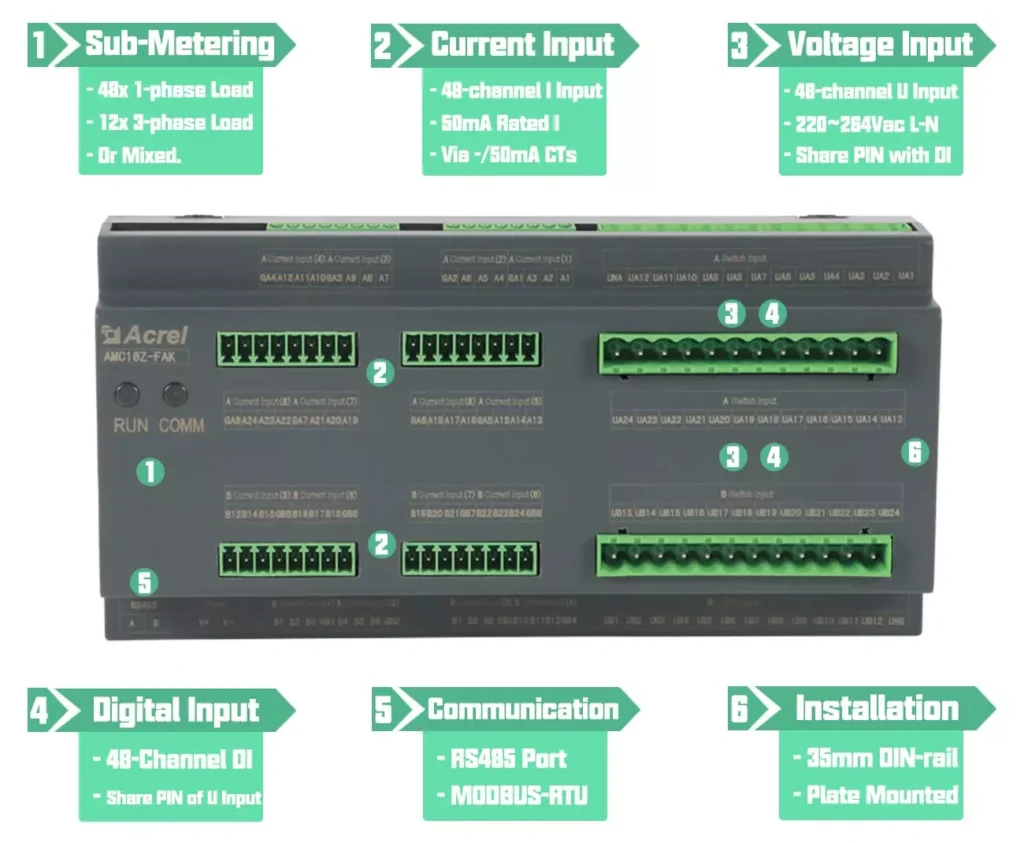

Highlight

What’s the Function of Acrel AMC16Z-FAK series Multi Channels Electricity Meter for Outlet Circuit in IDC?

Measure

  • Voltage, Current
  • Frequency
  • Active Power, Reactive Power
  • Power Factor and etc

Monitor

  • AC Outgoing Branch Circuits
  • Multi-metering
  • For Data Center

Circuit

  • 1-phase & 3-phase
  • 24 or 48 channels

 Communication

  • Protocol: Modbus-RTU
  • Interface: RS485

Specification

What’s the Specification of Acrel AMC16Z-FAK series Multi Channels Electricity Meter for Outlet Circuit in IDC?

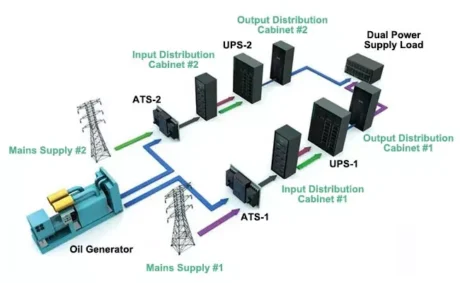

Dual AC Outgoing Circuits Monitoring

● A+B Dual-side independent AC Circuits Monitoring

● Full Electrical Parameters Monitoring

● Outgoing Branch Circuits Multi-metering

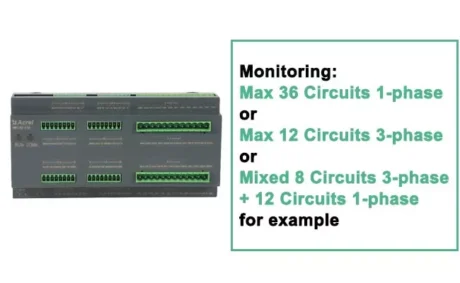

 Multiple Branch Circuits Metering

● Both 1-phase&3-phase Metering

● Max 36 circuits 1-phase

● Max 12 circuits 3-phase

● Mixed 8 circuits 3-phase and 12 circuits 1-phase for example

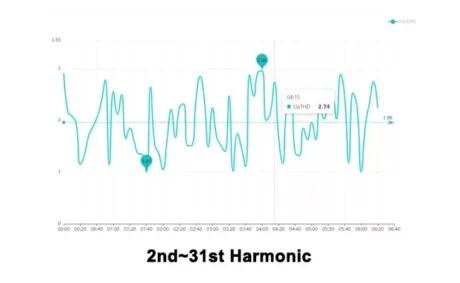

 Power Quality Analysis

● 2nd~31st Harmonic

● Total Harmonic

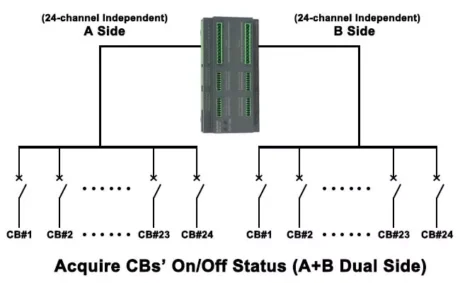

 Switch On/Off Status Detection

● A+B Dual Side

● 48-channel of DI (Digital Input)

Parameter

What’s the Parameter of Acrel AMC16Z-FAK series Multi Channels Electricity Meter for Outlet Circuit in IDC?

  1. Function Overview
Function Description
Measurement

(Common)

Three-phase AC kWh, kVarh, Active Power, Reactive Power, Current, Voltage, Power Factor, Apparent Power, Frequency, Zero ground voltage, neutral line current
Measurement

(Power Quality)

total harmonic content (THD), 2-63 harmonics, current, and voltage unbalance degree, current K coefficient (KF), voltage crest coefficient (CF), telephone waveform factor (THFF), peak voltage, voltage, and current sequence quantity
Temp.&Humidity

Monitoring

Temperature Monitoring Range: -40℃~+99℃

Humidity Monitoring Range: 20%~90%

Leakage Current 2-channel Leakage Current Measurement
Accuracy Electrical Parameter Metering Accuracy: Voltage/current level 0.2, active power/electric energy level 0.5, reactive power/electric energy level 1



Temperature Metering Accuracy: ±1℃;  Temperature Metering Accuracy: ±5%

Communication RS485 Interface (MODBUS-RTU protocol)
DO

(Switch Output)

2-channel DO (Digital Output); 3A 250VAC/3A 30VDC
DI

(Switch Input)

6-channel DI (Digital Input); dry contact



  1. Main Parameters
Parameter Description&Value
Voltage

Input

Rated Voltage 3×220~264Vac L-N
Reference Frequency 45~65Hz
Current

Input

Rated Current 3×1(6)A AC (via CTs)
Power

Supply

Source from Voltage Input (Voltage signal input for both measurement and power supply)

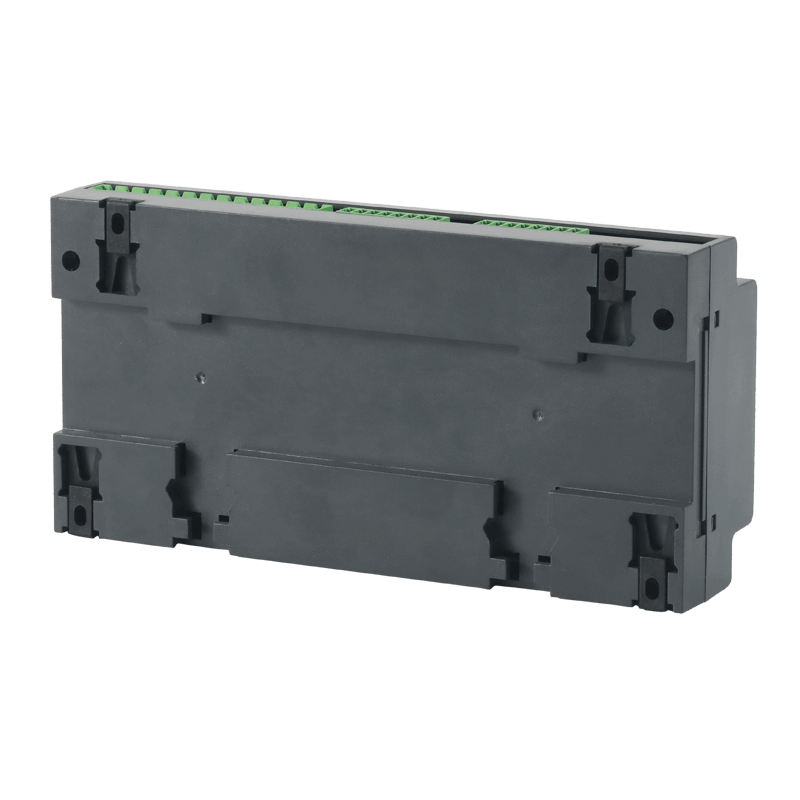

Installation DIN-rail 35mm standard DIN-rail Installation
Phase

Wiring

3P4W 3-phase 4-wire
Safety Insulation All terminals and the insulation resistance between the conductive pieces not less than 100MΩ
Withstand voltage A-way voltage and current signal, B-way voltage and current signal,  switch output and other ports should meet AC2kV 1min in pairs, the switch input and other ports should meet ac0.5kv 1mim, leakage current should be less than 2mA, no breakdown or flashover



  1. Environment
Condition Description&Value
Temperature Operating Temperature: -20℃~+55℃;  Storage Temperature: -40°C ~+70°C
Humidity ≤95%RH, no condensation, without corrosive gas
Altitude ≤ 2000m

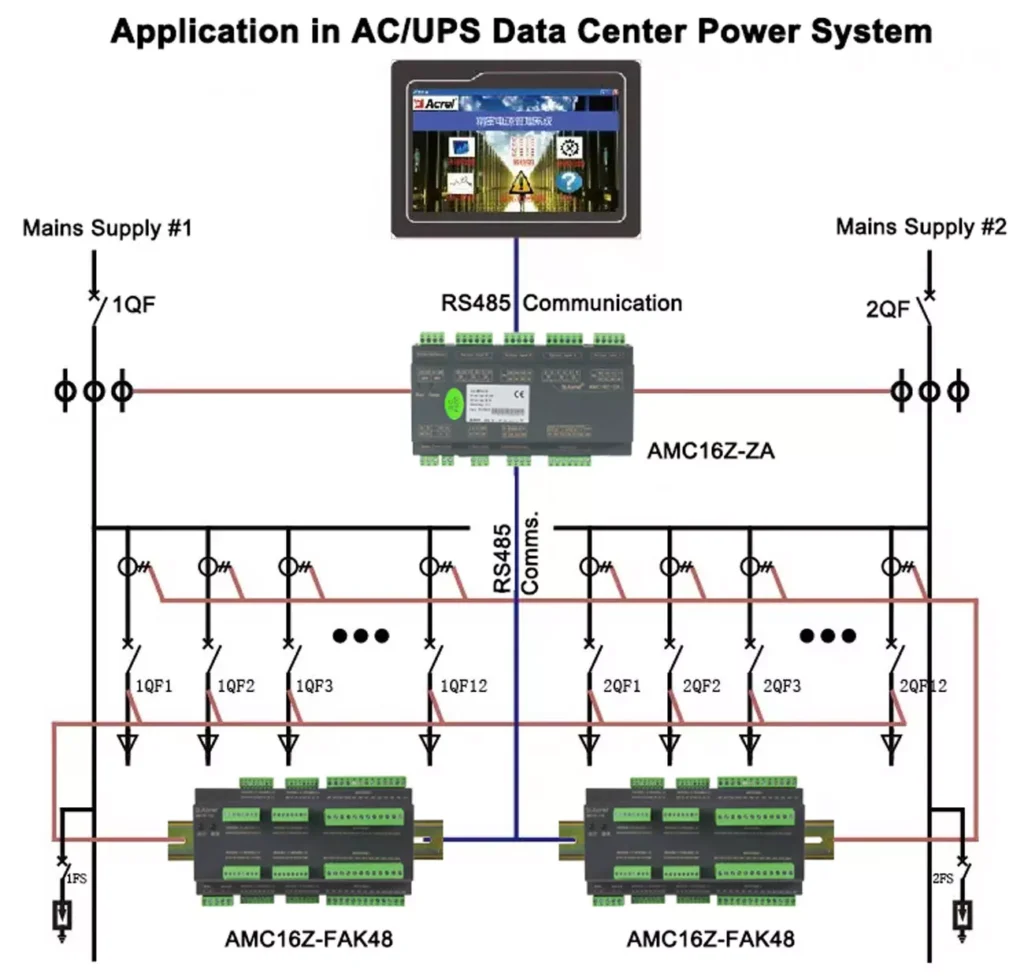

Network

How does Acrel AMC16Z-FAK series Multi Channels Electricity Meter for Outlet Circuit work?

Installation

How to Connect the Acrel AMC16Z-FAK series Multi Channels Electricity Meter for Outlet Circuit in IDC??

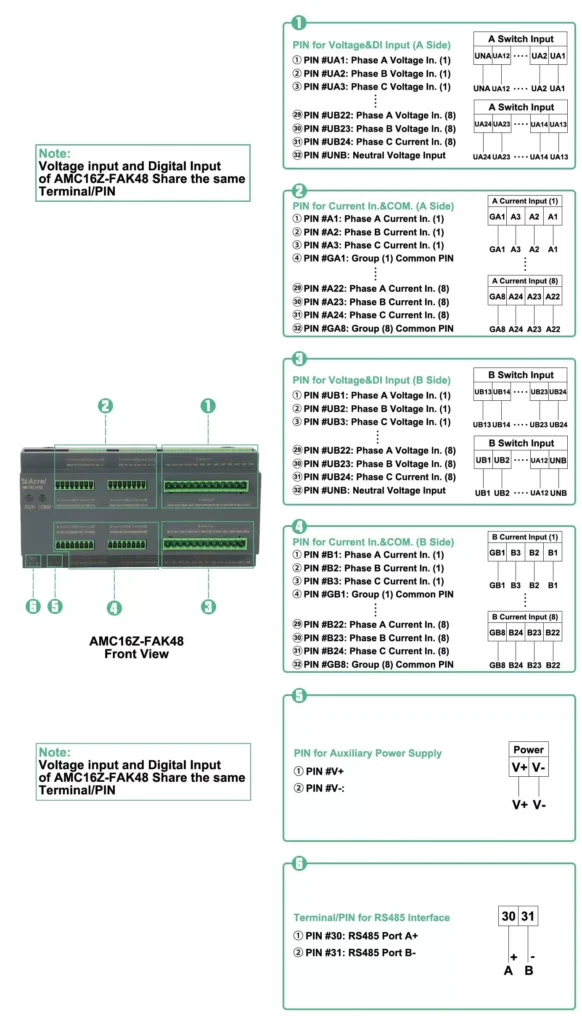

AMC16Z-FAK PIN Terminal

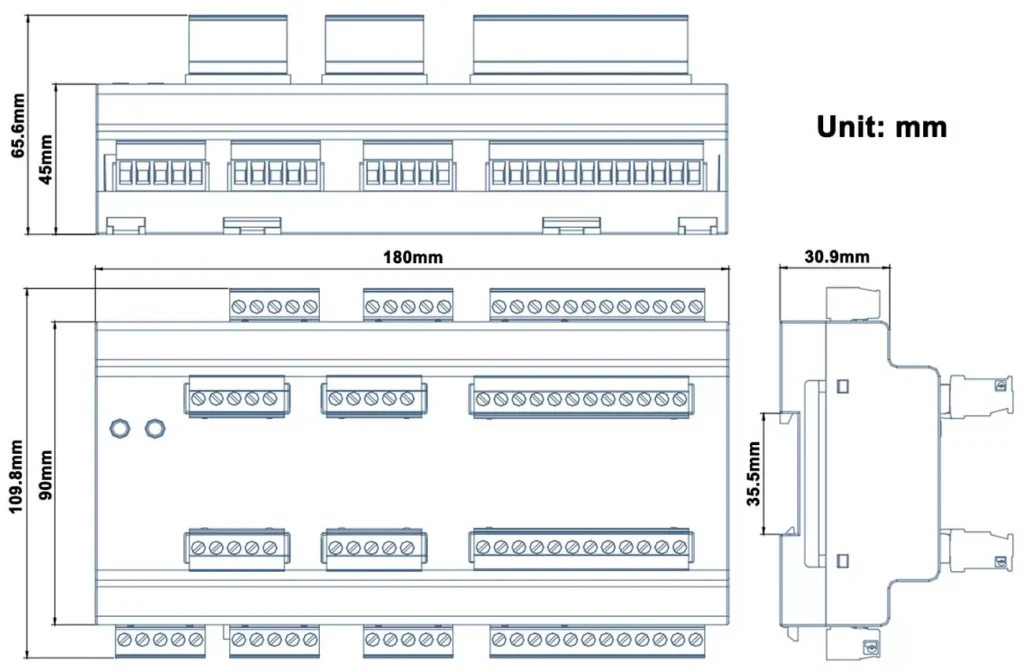

AMC16Z-FAK Dimension

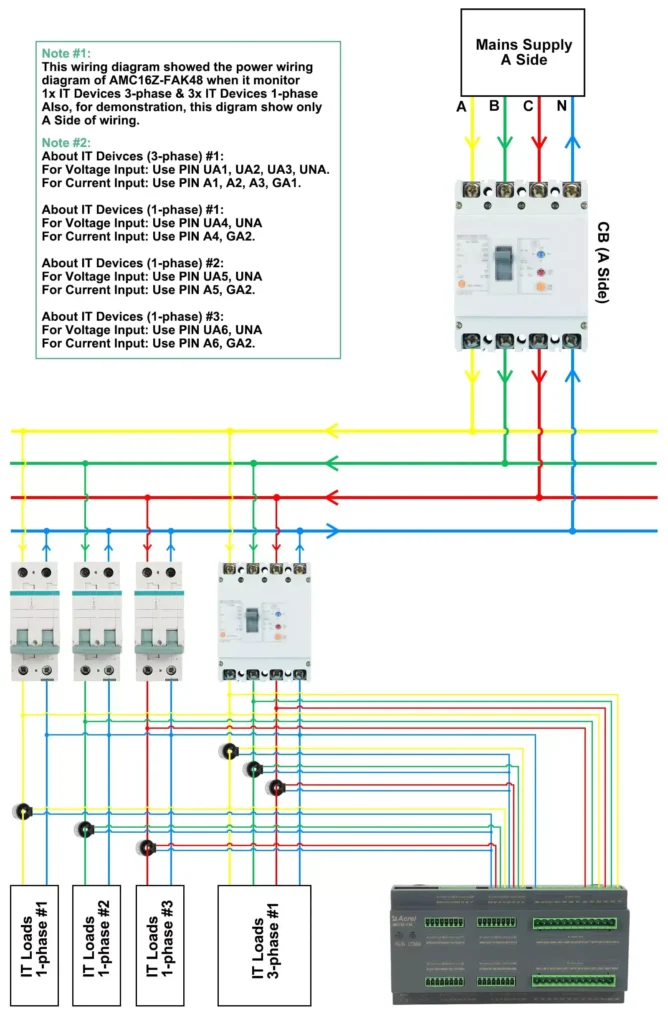

AMC16Z-FAK Wiring
