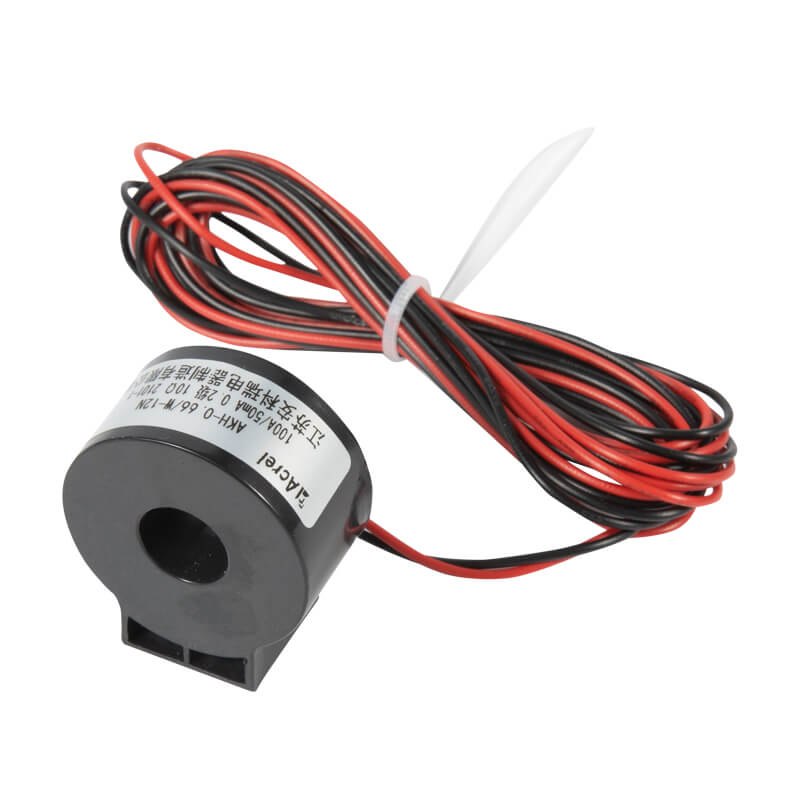

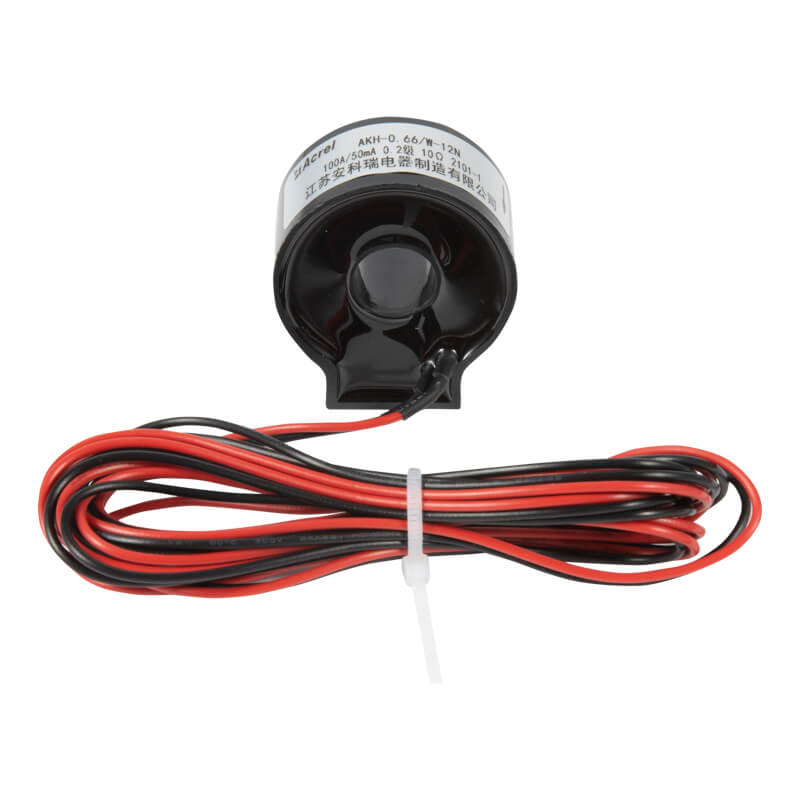

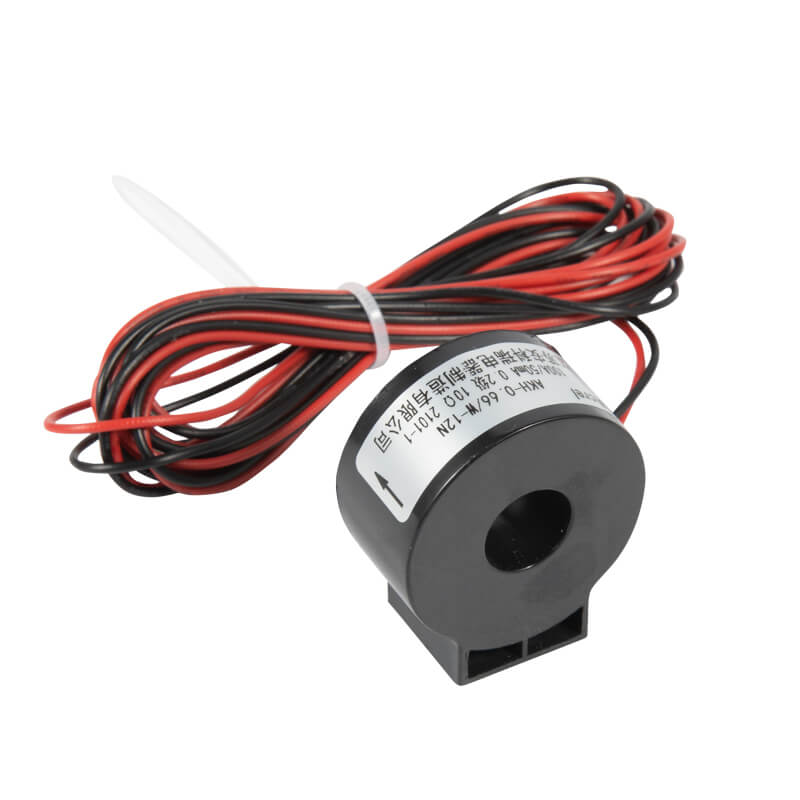

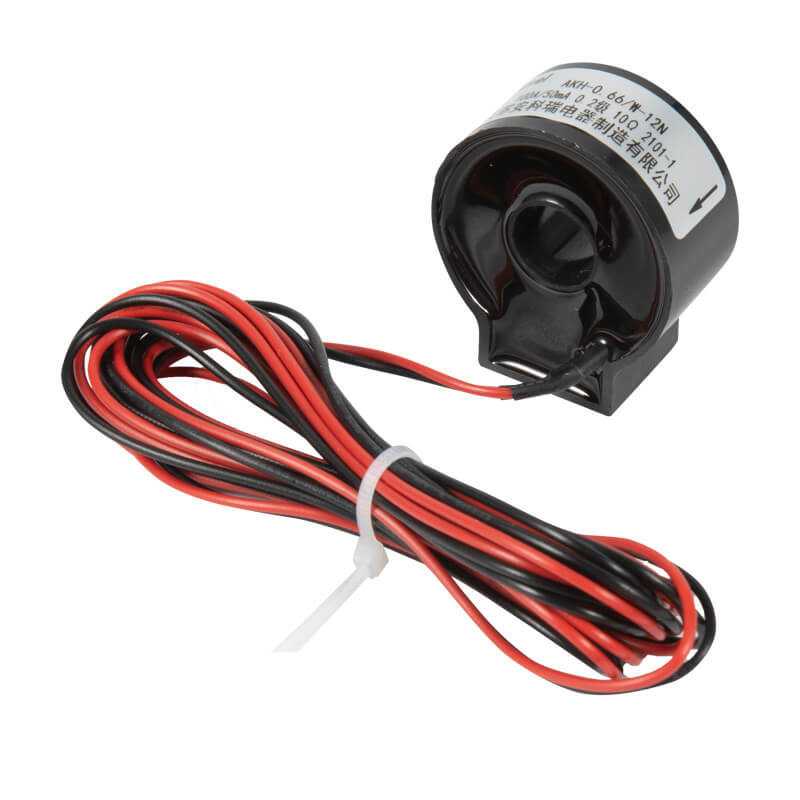

Micro Current Transformer

AKH0.66-WN

  • Flame Retardant
  • Temp Resistance
  • Small size
  • IEC 61869
Chat Online Leave Message

Highlight

What’s the Function of Micro-Current Transformer?

 Installation

  • Save space

Primary

  • 50-100A

Secondary

  • 20mA
  • 50mA

Application

  • Data Center

Specification

What’s the Specification of Acrel AKH0.66-WN series Micro Current Transformer?

Specification AKH0.66-W-9N AKH0.66-W-12N
Inner Size Φ9 mm Φ12 mm
Input Current 50 A 100 A
Output Signal 20mA, 50mA 50mA

Parameter

What’s the Parameter of Micro-Current Transformer?

Standard IEC/EN 61869-1, IEC/EN 61869-2
Accuracy 0.2 class
Rated Voltage AC 0.66 KV
Rated Frequency 50-60Hz
Continuous Overload 120% ln
Burden 10 Ω
Protection Level IP30
Temperature -30℃~55℃
Altitude ≤3000 m
Humidity ≤90%
Withstand 3000V/1min 50Hz

Why choose Acrel?

  • 2003 Established
  • SZ.300286 Listed Company
  • 1200+ People
  • 25000+㎡ Plant
  • Factory Direct-sale

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

If you have more detailed requirements, Please go to the relevant product page to submit the form.

FAQ

Got a Question? Get your Answer

What are the Main Advantages of Acrel?

We have our own Factory and R&D Center

What are the Difference between Acrel and other Brands?

Rich product series: Cloud Platform, Gateway, Protection Device, Power Meter, Transformer

What Certificates does the Company have?

CNAS, ISO14001, ISO27001, ISO9001

What Certificates do the Products have?

CE, IEC, MID, UL, EAC, ROHS, REACH

How Expensive is Acrel Products?

Competitive Price with High Quality

How long is the product Warranty Period?

2 Years

What is the MOQ?

Purchasing according to your needs, no MOQ limit

How long is the Lead Time?

Sample takes 3 days; Bulk purchase takes 1 month
