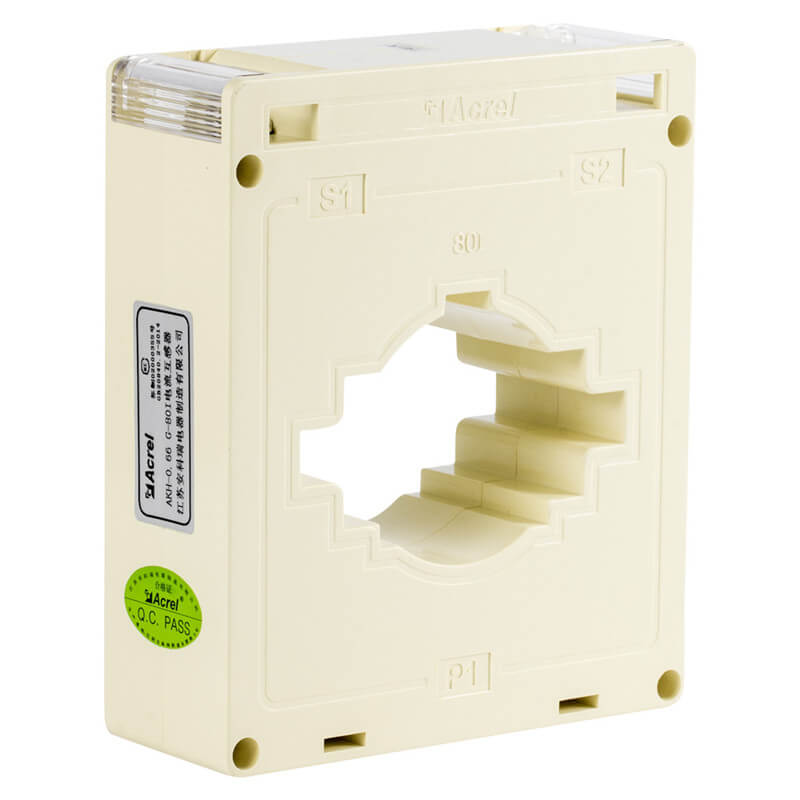

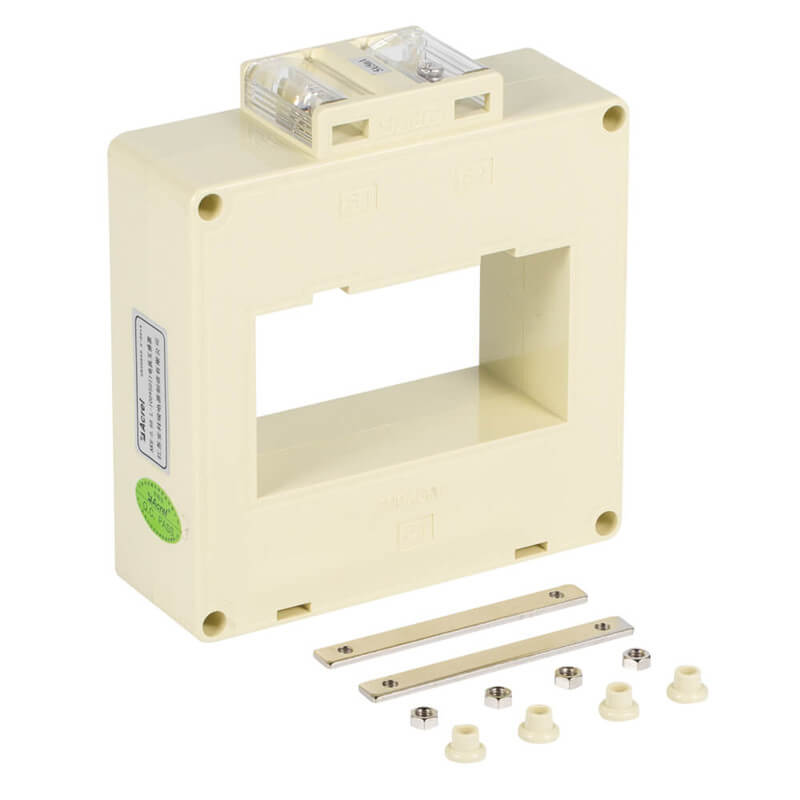

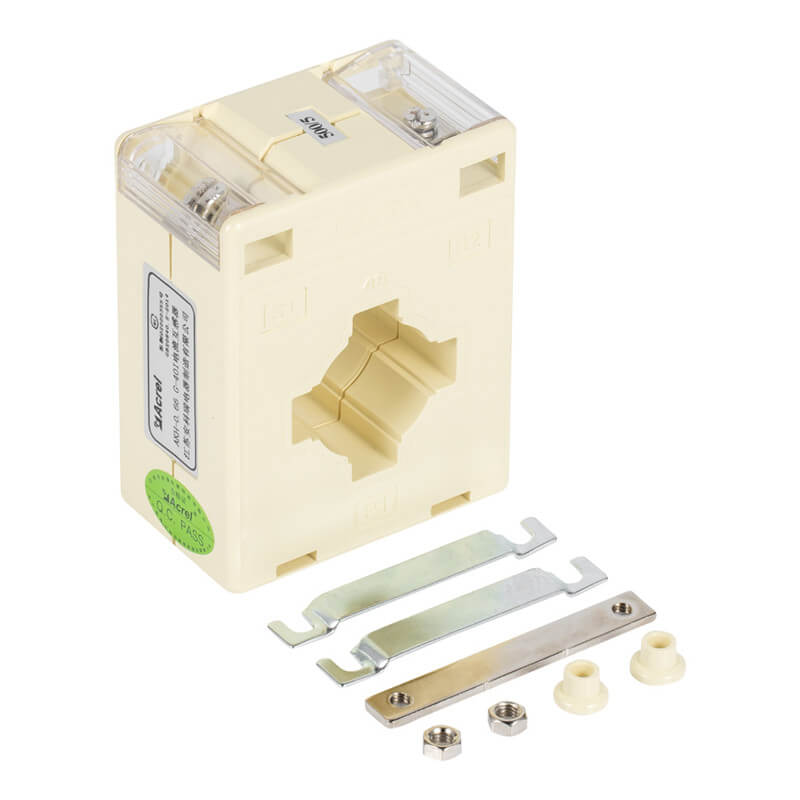

AKH0.66-I,II,III
Flame Retardant
Temp Resistance
Silicon Steel Core
IEC 61869
What Do Our Customers Say?
“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "
Arnold
Philippines
Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.
Tuan
Vietnam
What’s the Function of Measuring Current Transformers?

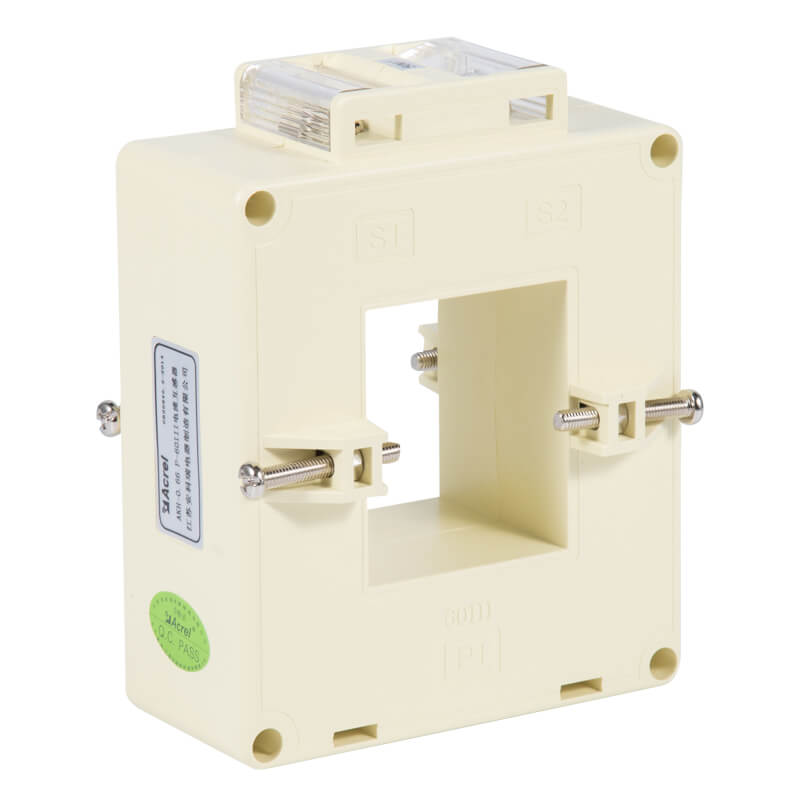

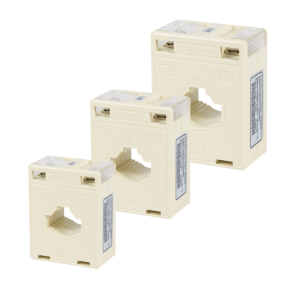

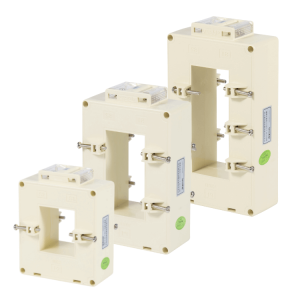

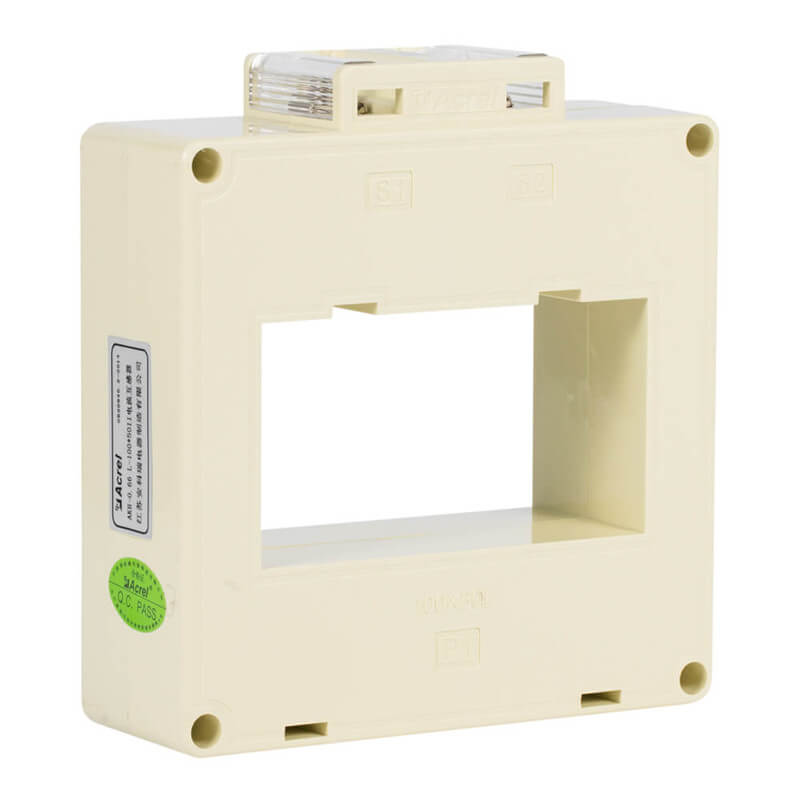

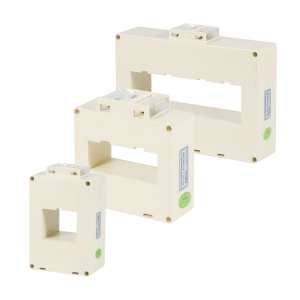

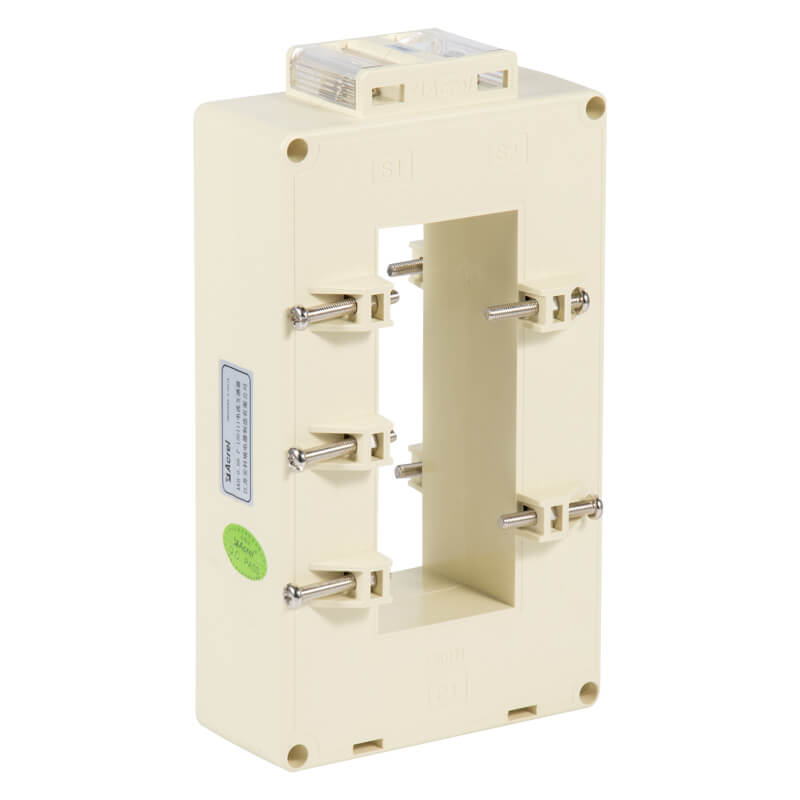

What’s the Specification of Acrel AKH0.66-I,II,III series Measuring Current Transformer?
| Photo |  |
 |
 |
| Specification | AKH0.66-I | AKH0.66-II | AKH0.66-III |
| Max. Inner Size | Φ50(±1) mm | 265*103(±1) mm | 52*132(±1) mm |
| Measure Current | 15-3000 A | 100-6300 A | 200-5000 A |
What’s the Parameter of Measuring the Current Transformer?
| Standard | IEC/EN 61869-1, IEC/EN 61869-2 |
| Accuracy | 0.2, 0.5, 1.0 class |
| Rated Voltage | AC 0.66 KV |
| Rated Frequency | 50-60Hz, 400Hz |
| Continuous Overload | 120% ln |
| Burden | 0-30 VA |
| Protection Level | IP30 |
| Temperature | -30℃~55℃ |
| Altitude | ≤3000 m |
| Humidity | ≤90% |
| Withstand | 3000V/1min 50Hz |

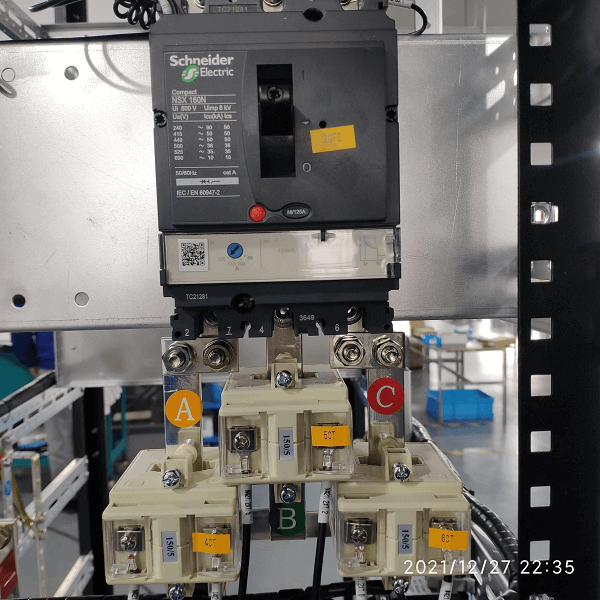

How to Install the Measuring Current Transformer?
 |
 |
 |
 |
| Type A | Type B | Type C | Type D |
 |
|||

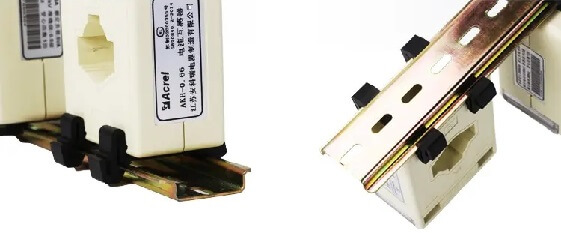

| Type E | |||
