Leakage Current Sensor

BA-L

  • Consumption≤1W
  • Overload≤135%
  • Precision 0.5 class
  • Safety IEC688:1992
Chat Online Leave Message

Highlight

What’s the Function of the Current Transducer?

Theory

  • Electromagnetic Induction

 Input

  • AC 0-1A

Output

  • 4-20mA
  • 0-20mA
  • 1-5V
  • 0-5V

Application

  • Automation field

Specification

What’s the Specification of Acrel BA series Leakage Current Sensor?

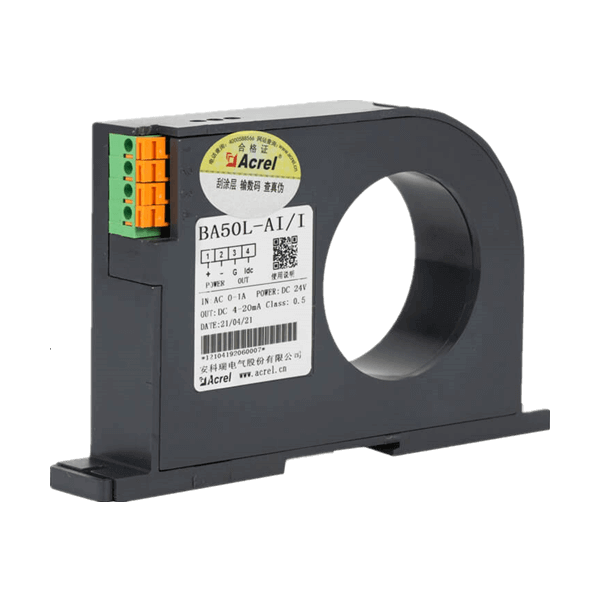

Specification BA50L-AI/I(V)
Inner Size Φ50 mm
Input Current AC 0-(0.1-1)A
Output Signal 4-20mA, 0-20mA; 1-5V, 0-5V

Parameter

What’s the Parameter of the Leakage Current Sensor?

Accuracy 0.5%
Response time Average Value ≤ 350ms,  True RMS ≤ 100ms
Auxiliary Power DC12V(10-15V); DC24V(18-30V);AC220V
Load Resistance Current Output ≤ 500Ω，Voltage Output ≥ 1KΩ
Withstand AC2000V
Operation Temperature -10℃ ~ +55℃
Temperature Drift Coefficient ≤ 200ppm/℃
Altitude ≤ 2500m
Humidity ≤ 90% RH
Installation Din-rail 35mm

Installation

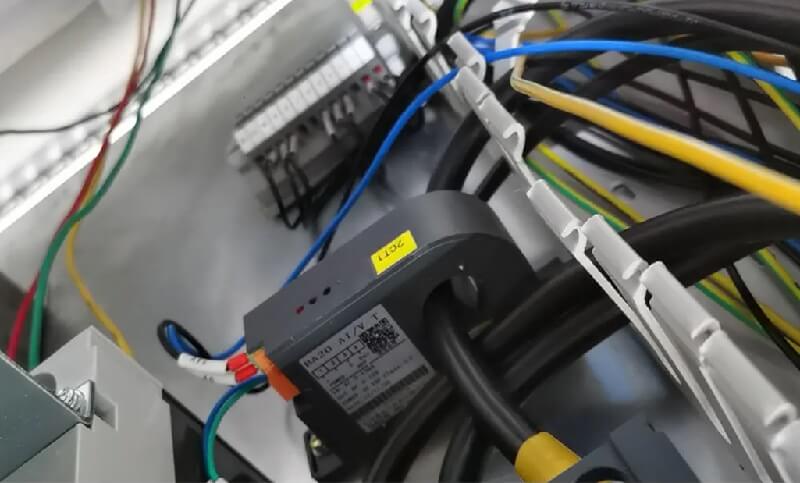

How to Install the Leakage Current Sensor?

Why choose us ?

  • 2003 Established
  • SZ.300286 Listed Company
  • 1200+ People
  • 25000+㎡ Plant
  • Factory Direct-sale

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

If you have more detailed requirements, Please go to the relevant product page to submit the form.

FAQ

Got a Question? Get your Answer

What are the Main Advantages of Acrel?

We have our own Factory and R&D Center

What are the Difference between Acrel and other Brands?

Rich product series: Cloud Platform, Gateway, Protection Device, Power Meter, Transformer

What Certificates does the Company have?

CNAS, ISO14001, ISO27001, ISO9001

What Certificates do the Products have?

CE, IEC, MID, UL, EAC, ROHS, REACH

How Expensive is Acrel Products?

Competitive Price with High Quality

How long is the product Warranty Period?

2 Years

What is the MOQ?

Purchasing according to your needs, no MOQ limit

How long is the Lead Time?

Sample takes 3 days; Bulk purchase takes 1 month
