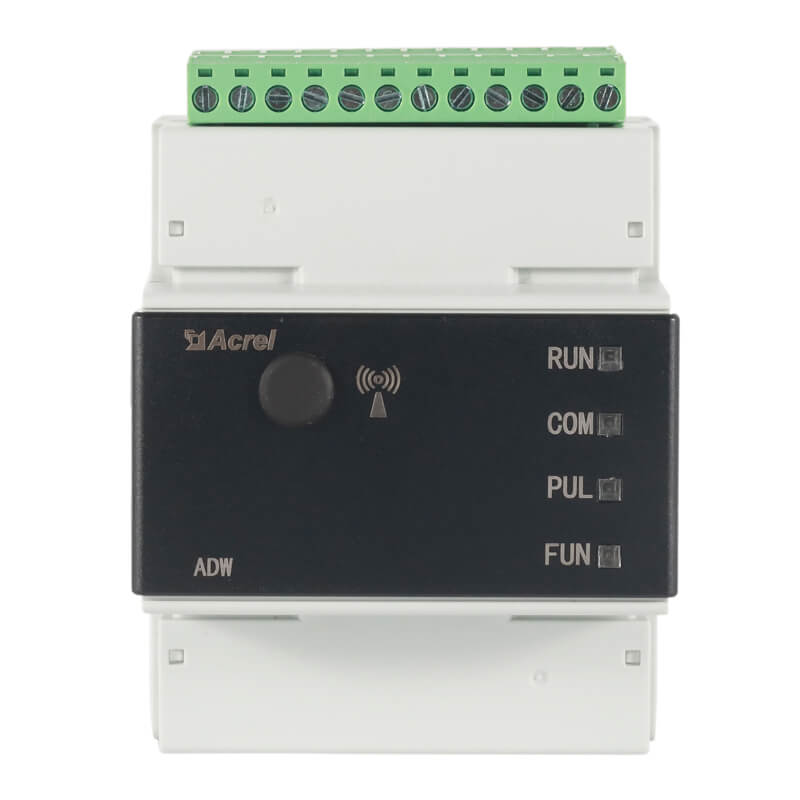

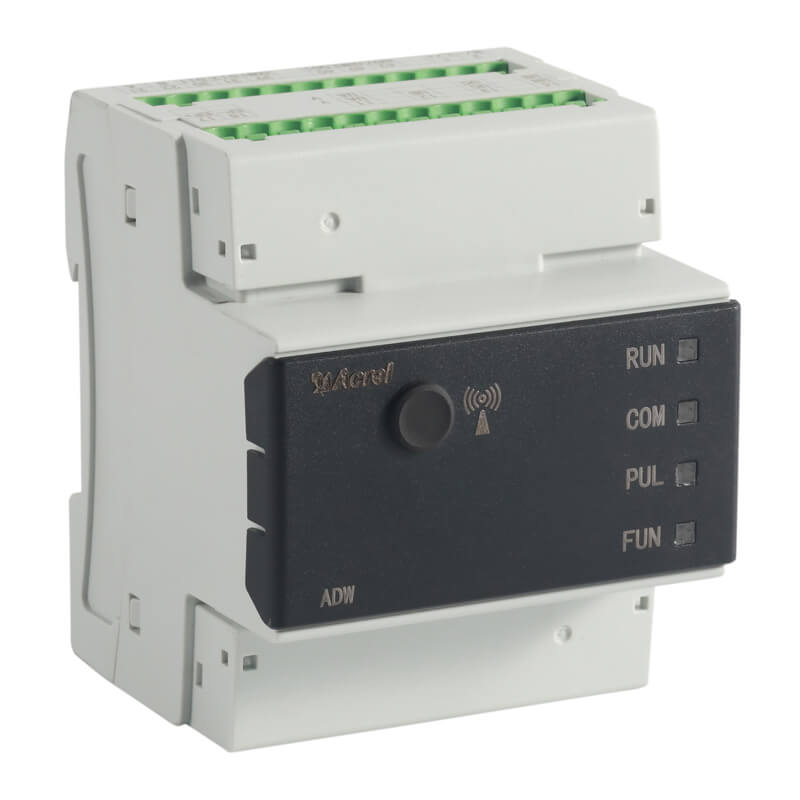

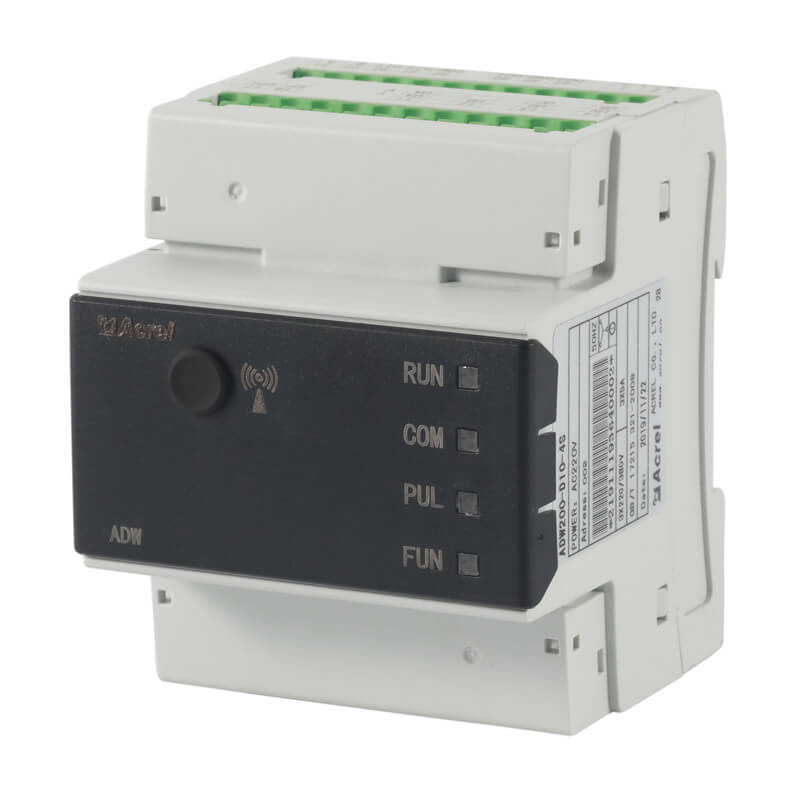

ADW200
Standard Lead Time:
Sample: 2 days
Bulk: 1 month

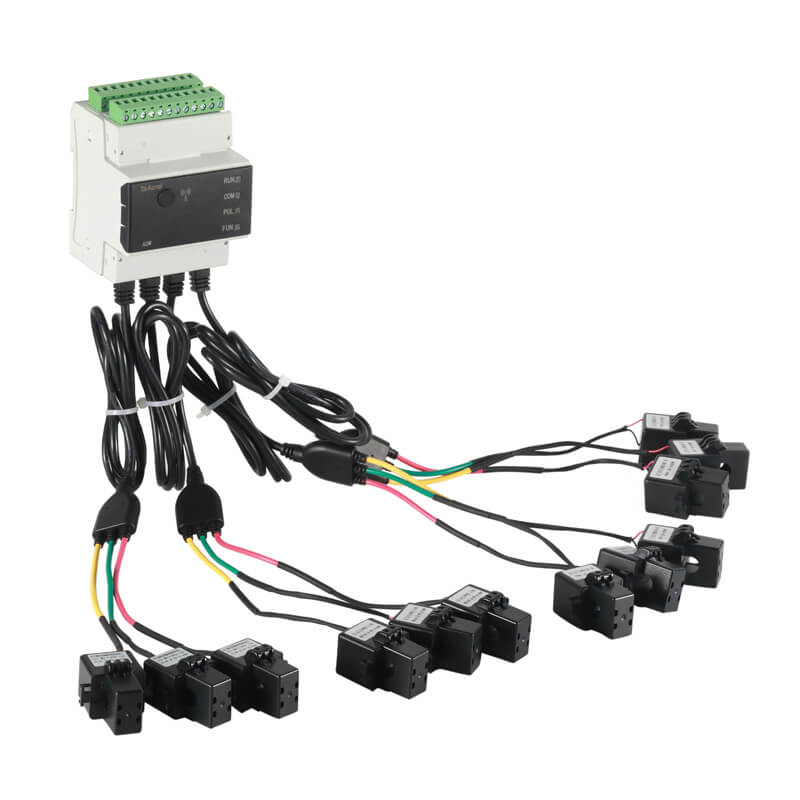

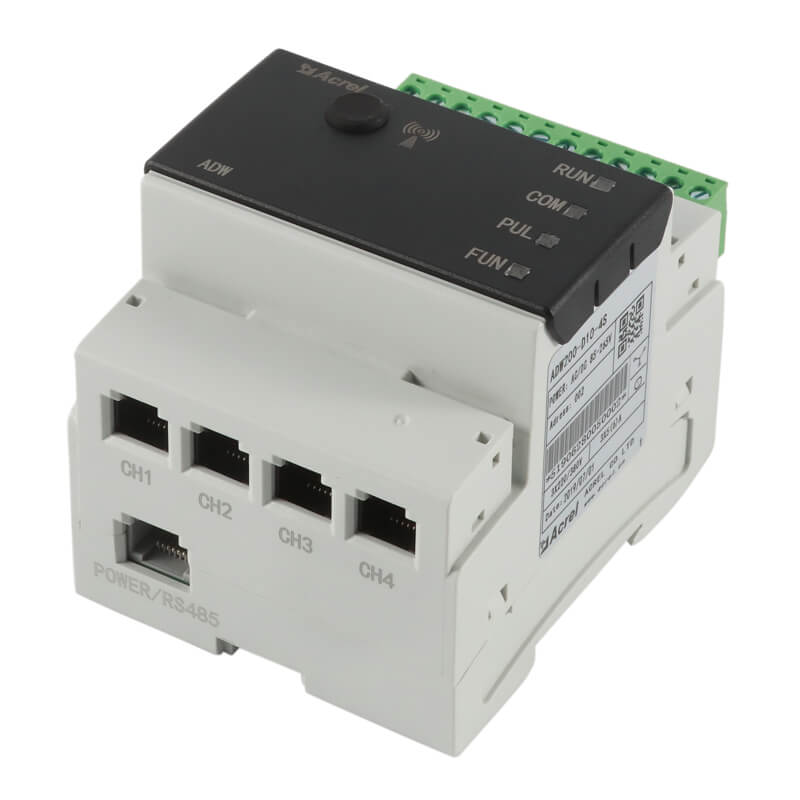

Split-core Current Transformer with RJ12 Interface
4 Channels of Three-phase
Communication RS485 Modbus-RTU
Optional Function: 12DI/4DO, 12 Temperature, 4 Leakage Current
What Do Our Customers Say?
“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "
Arnold
Philippines
Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.
Tuan
Vietnam
What’s the Function of Four Circuit Three-phase Meter?
What’s the Specification of Acrel ADW200 series Four Circuit Three-phase Meter?
| Photo |  |
 |
 |
| Specification | ADW200 (without display) | ADW210 (LCD display) | ADW220 (LORA) |
| Optional Modular |  |
 |
 |
| Optional Function | MK
12DI / 4DO |
MTL
12 channels Temperature |
AWT100
Wireless Communication 4G WIFI LORA LORAWAN |
What’s the Parameter of Four Circuit Three-phase Meter?
| Parameters | Description | |
| Input |
Voltage |
AC 3×220V/380V |
| Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s |
||
| Power consumption:≤ 0.5VA | ||
|
Current |
AC 5A、100A、400A、600A;(external open-type CT) | |
| Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s |
||
| Power consumption:≤ 0.5VA | ||
| Frequency | 45～65Hz | |
| Measuring
Accuracy |
Voltage&Current | Class 0.5 |
| Active Power | Class 1 | |
| Reactive Power | Class 2 | |
| Frequency | 0.05Hz | |
| 2~31st harmonic | ± 1% | |
| Auxiliary Power | AC/DC 85～265V; Consumption≤10VA; | |
| EMC | Better than grade 3 | |
| Safety | Withstand Voltage | ＞AC 2000V/1min |
| Insulation Resistance | ＞100MΩ | |
| Environment | Working Temperature | -20℃~+60℃ |
| Storage Temperature | -40℃~+70℃ | |
| Humidity | ≤95% (No condensation) | |
| Altitude | ≤2500m | |
Paired Current Transformer
| Paired CT | Primary Current | Secondary Current | Aperture(Hole size) | Accuracy Class |
| AKH-0.66/K-φ10N | 5A | 1.25mA | 10mm | Class 0.5 |
| AKH-0.66/K-φ16N | 100A | 20mA | 16mm | Class 0.5 |
| AKH-0.66/K-φ24N | 400A | 100mA | 24mm | Class 0.5 |
| AKH-0.66/K-φ36N | 600A | 100mA | 36mm | Class 0.5 |
| AKH-0.66-L-45
(for residual current) |
/ | / | / | Class 1 |
