DC Leakage Current Transmitter

AHLC

  • Wide Measuring Range
  • High Overload
  • Good Linearity
  • Anti-interface
Chat Online Leave Message

Highlight

What’s the Function of DC Leakage Current Transmitter?

Theory

  • Hall Effect

 Input

  • DC10mA-2A

Output

  • 5V

Application

  • Measuring end for Solar and Wind energy

Specification

What’s the Specification of Acrel AHLC series DC Leakage Current Transmitter?

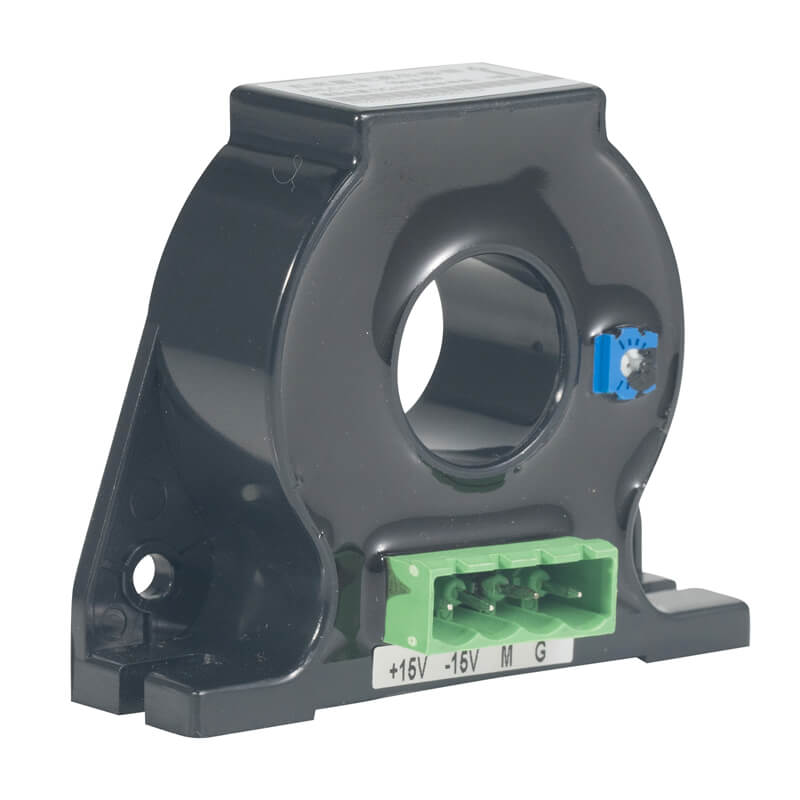

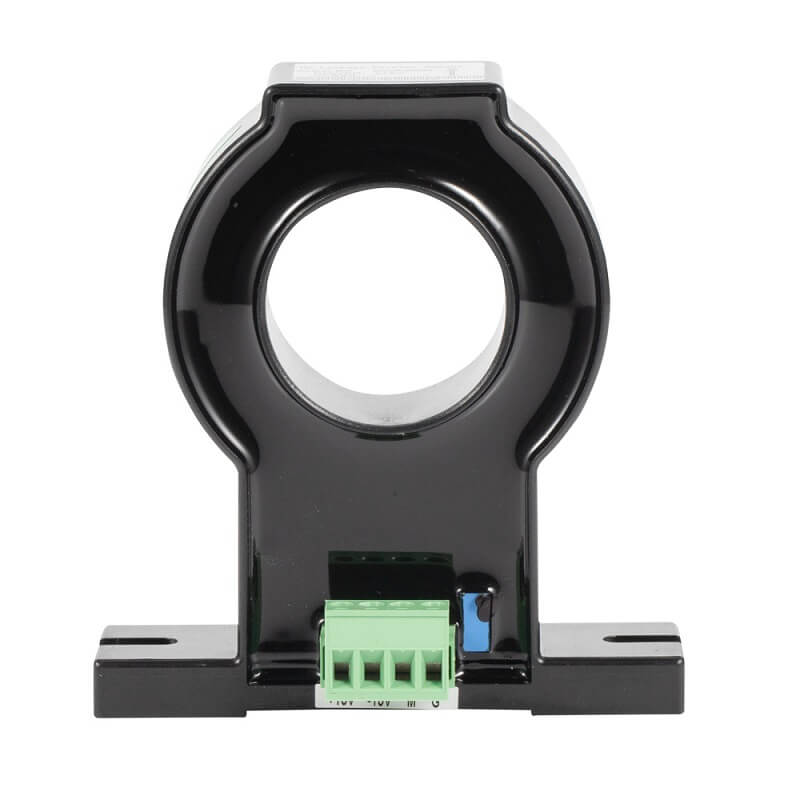

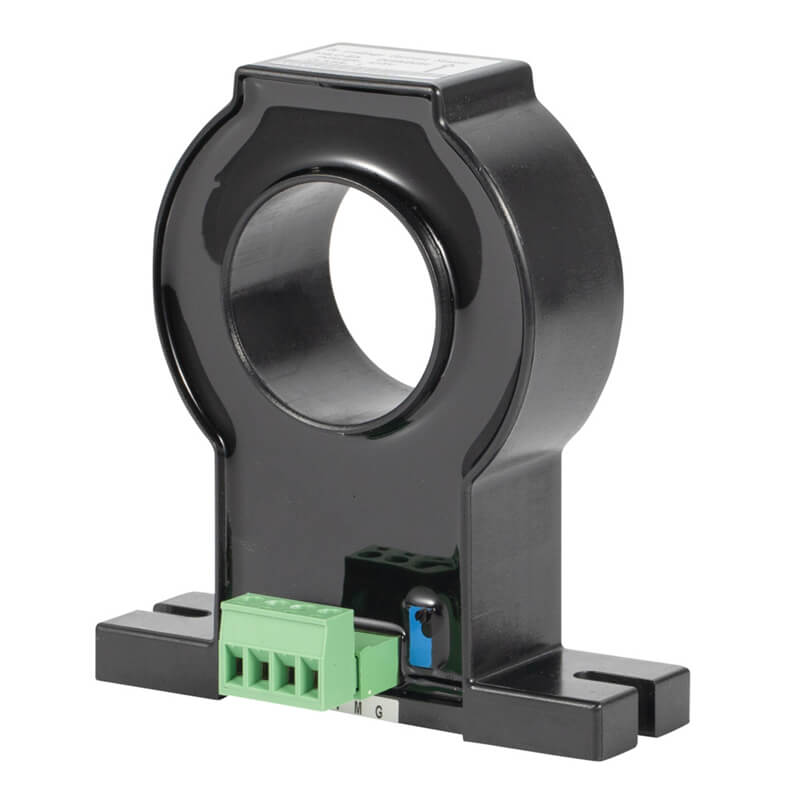

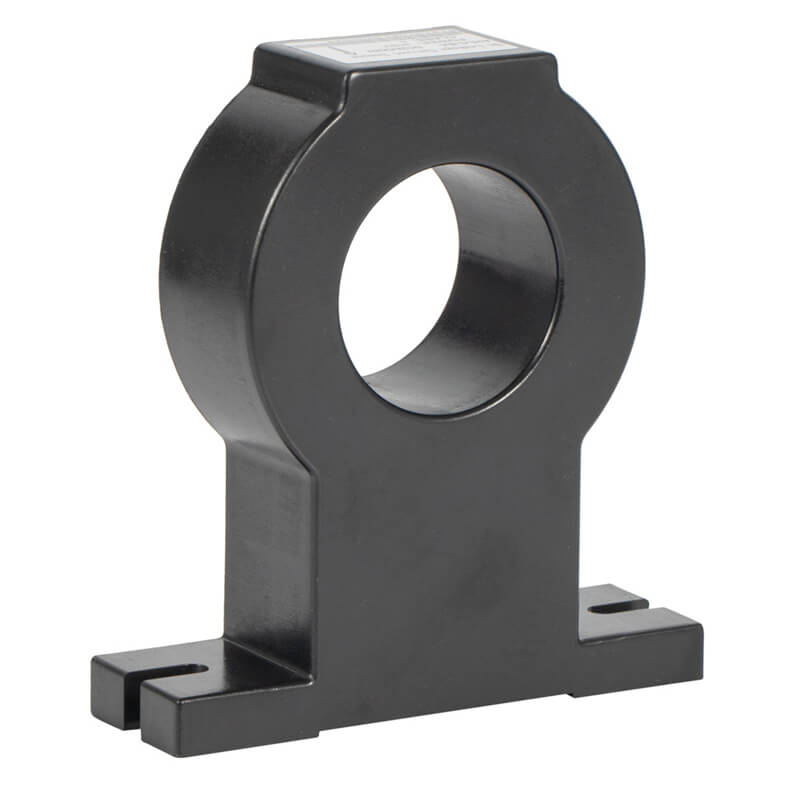

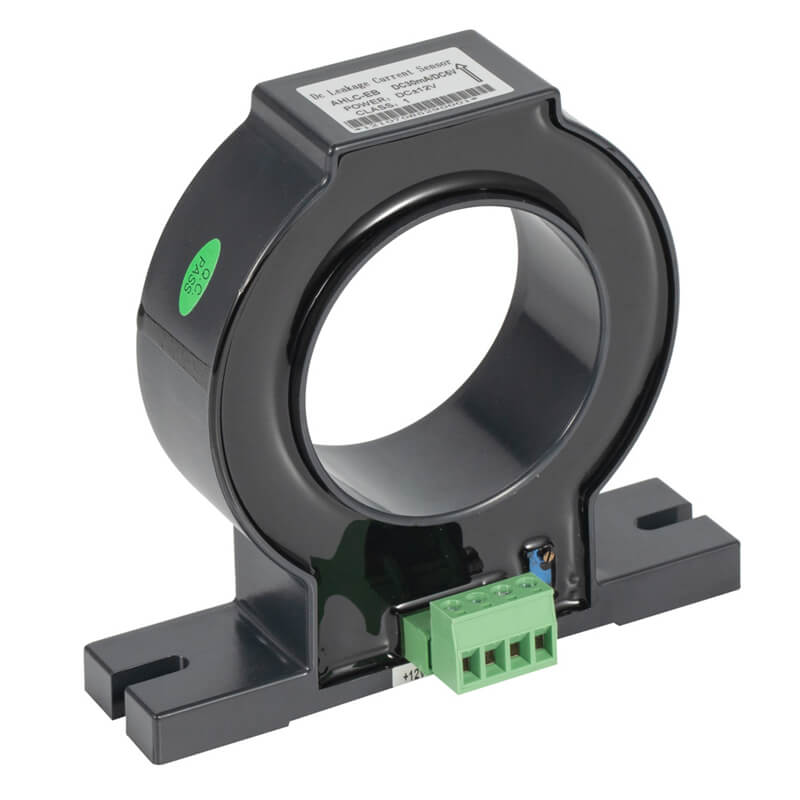

Specification AHLC-LTA AHLC-EA AHLC-EB
Inner Size Φ20 mm Φ40 mm Φ60 mm
Input Current DC 10mA-2A
Output Signal 5V
Auxiliary Power ±15V

Parameter

What’s the Parameter of DC Leakage Current Transmitter?

Accuracy 1.0 class
Linearity ≤0.2% FS
Bandwidth 0-20 KHz
Response Time ≤5 μs
Withstand AC3500V
Temperature -40℃~85℃
Altitude ≤2000 m
Humidity ≤95%

Why choose Acrel?

  • 2003 Established
  • SZ.300286 Listed Company
  • 1200+ People
  • 25000+㎡ Plant
  • Factory Direct-sale
