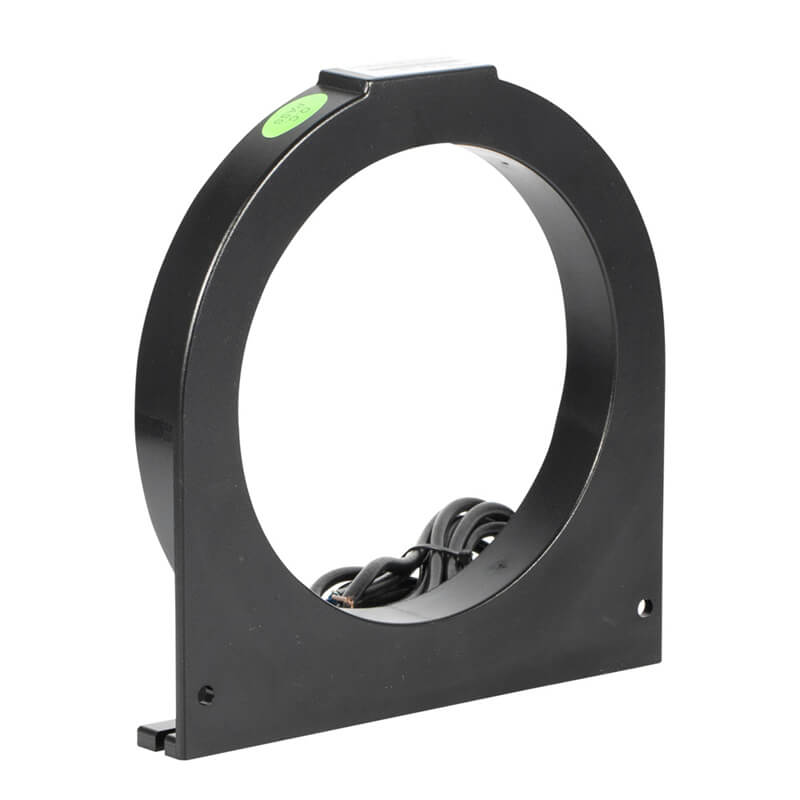

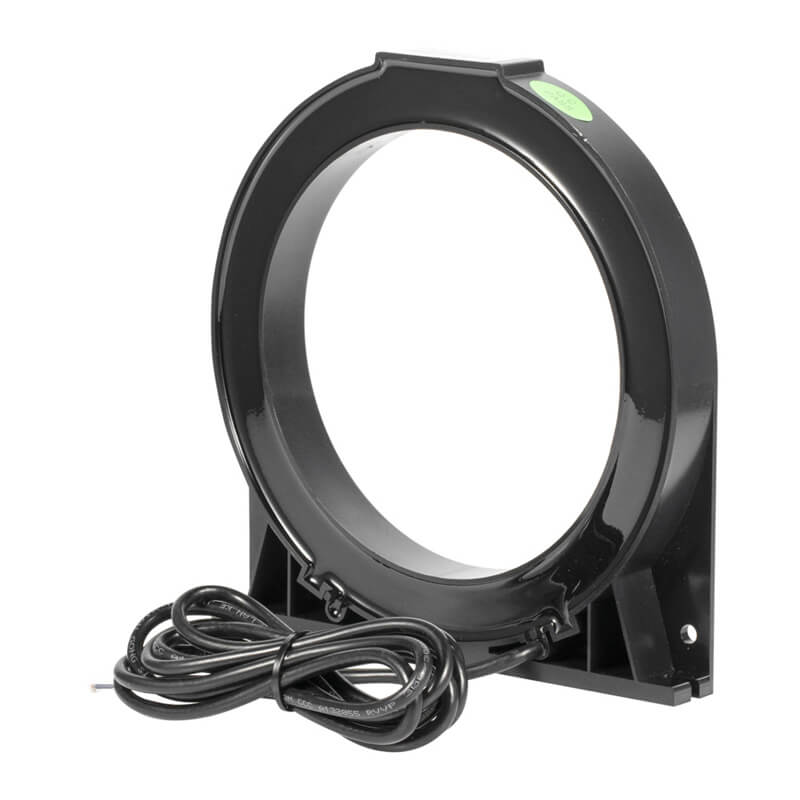

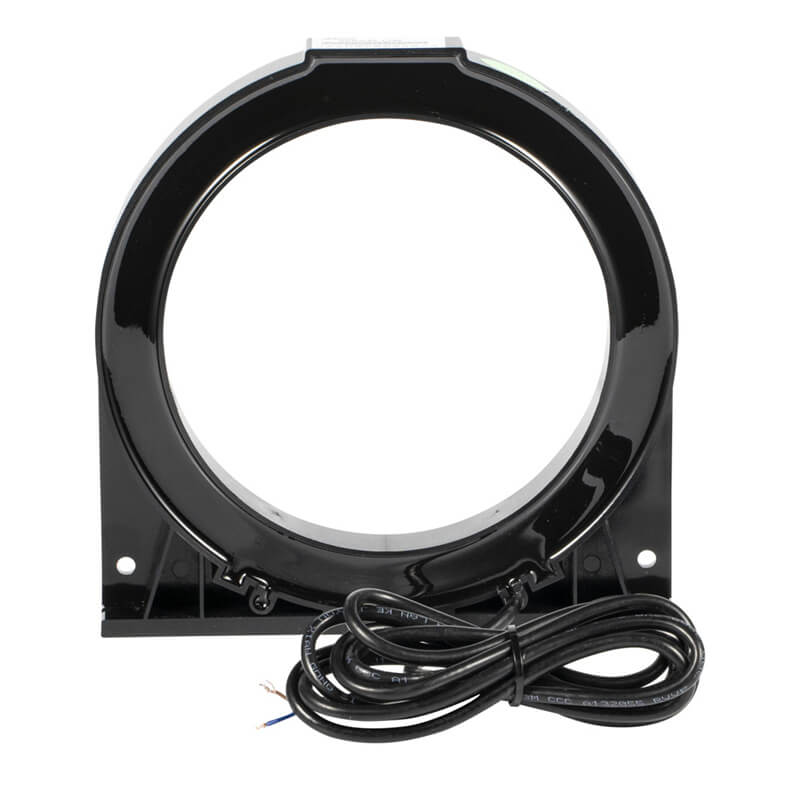

Closed-type Residual Current Transformer for Cable

AKH0.66-L

  • Flame Retardant
  • Temp Resistance
  • Silicon Steel Core
  • IEC 61869
Chat Online Leave Message

Highlight

What’s the Function of Residual Current Transformer?

 Monitor

  • Residual Current

Overload

  • 10 times

Secondary

  • 5mA
  • 2mA
  • 1mA

Application

  • Electrical fire, Motor protection

Specification

What’s the Specification of Acrel AKH0.66-L Closed-type Residual Current Transformer?

Specification AKH0.66-L-II AKH0.66-L-a*b AKH0.66-L-φ
Inner Size 82*52 ~ 265*104 (±2) mm 172*34 ~ 780*160 (±3) mm Φ20 ~ 200 (±3) mm
Rated Current 16-800 A 100-6300 A 200-5000 A
Primary 5A 5A 1A
Secondary 5mA 5mA, 2mA 1mA

Parameter

What’s the Parameter of Residual Current Transformer?

Standard IEC/EN 61869-1, IEC/EN 61869-2
Accuracy 1.0 class
Rated Voltage AC 0.66 KV
Rated Frequency 50-60Hz, 400Hz
Continuous Overload 120% ln
Max Overload 10 times
Burden 100 Ω
Protection Level IP30
Temperature -30℃~55℃
Altitude ≤3000 m
Humidity ≤90%
Withstand 3000V/1min 50Hz

Installation

How to Install the Residual Current Transformer?
