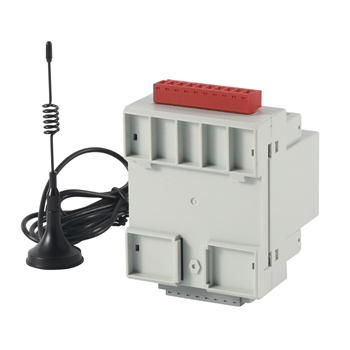

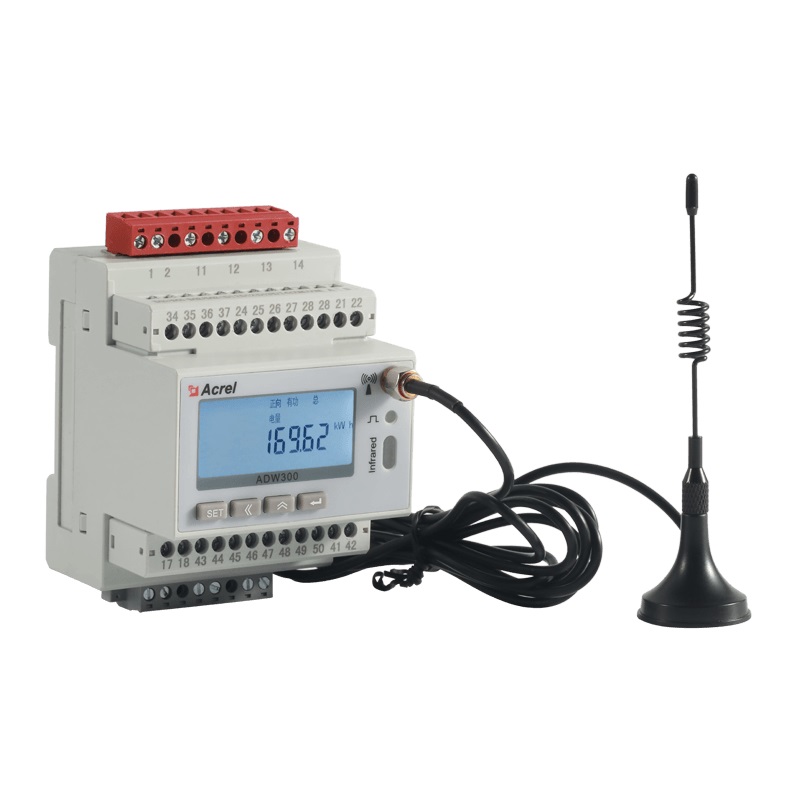

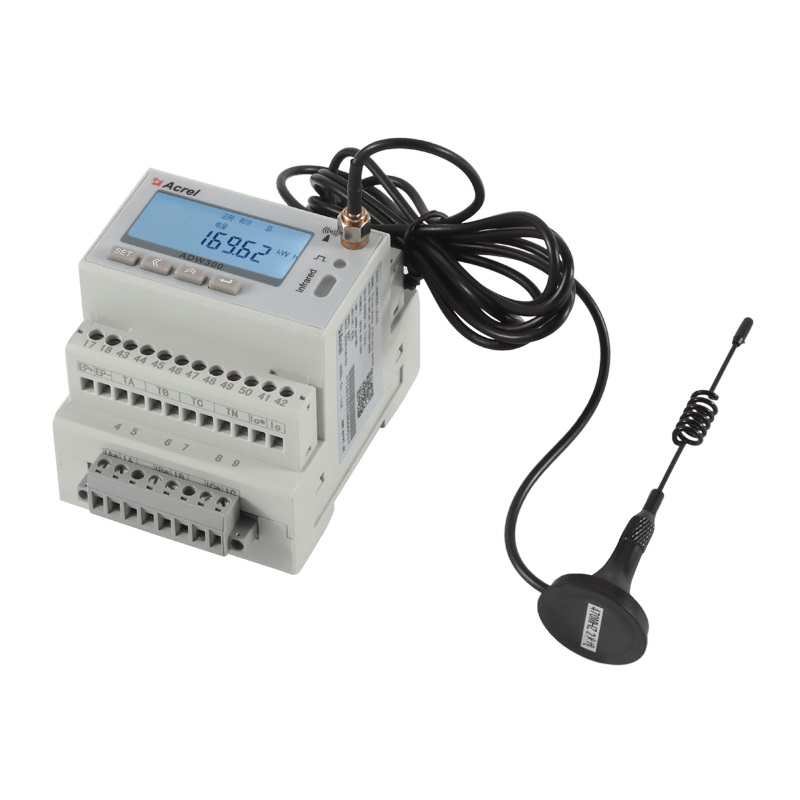

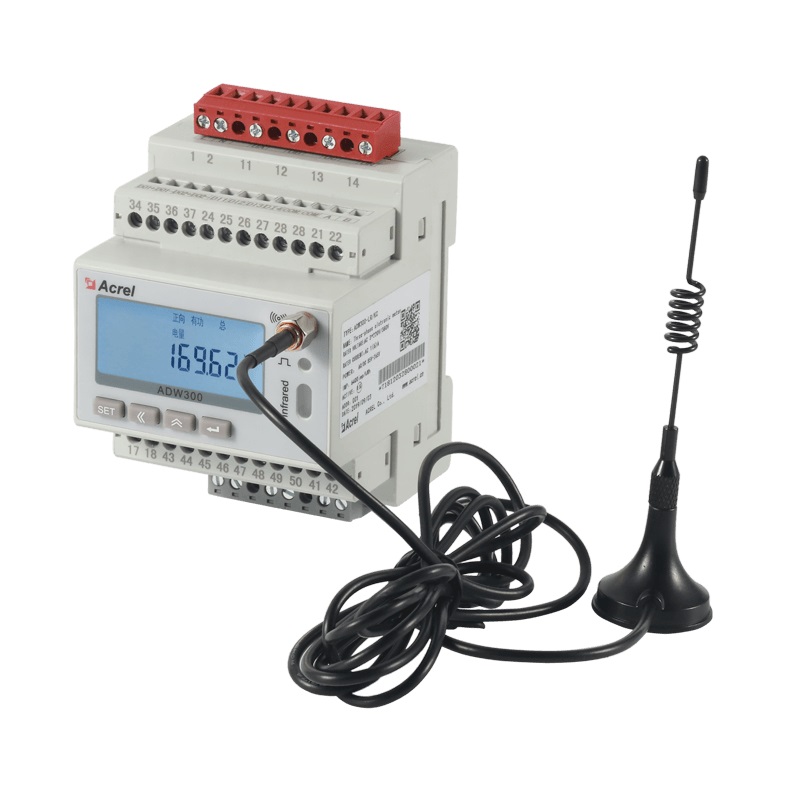

ADW300-DC24V
Standard Lead Time:
Sample: 2 days
Bulk: 1 month
4DI/2DO
4 Channels of Cable Temperature
1 Channel of Residual Current
Wireless 4G WIFI LORA LORAWAN
What Do Our Customers Say?
“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "
Arnold
Philippines
Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.
Tuan
Vietnam
What’s the Function of Acrel ADW300 Series DC24V RS485 Modbus-RTU Meter for Cell Tower?
What’s the Specification of Acrel ADW300 Series DC24V RS485 Modbus-RTU Meter for Cell Tower?
| Multiple Communication Methods
● 4G LTE ● NB-IoT ● WiFi (2.4GHz&5GHz) ● LoRa ● RS485 (MODBUS-RTU) ● Paired with IoT Energy Monitoring System |
|
| Power Quality Analysis
● Total Harmonic ● 2nd~31st Harmonic ● Voltage Unbalance ● Current Unbalance |
|
| Expanded Function
● 2-channel DO (Digital Ouput) ● 4-channel DI (Digital Input) ● 4-channel Cable Temperature Monitoring ● 1-channel Residual Current Measurement |
|
| Alarm Function
● Over/Under Current ● Over/Under Voltage ● Over/Under Power ● Phase Loss |
 |
What’s the Parameter of the Acrel ADW300 Series DC24V RS485 Modbus-RTU Meter for Cell Tower?
| Parameter | Description & Value | |
| Voltage
Input |
Rated Voltage | 3×380~456Vac L-L or 3×660~792Vac L-L (via direct connection)
3×100~120Vac L-L (via PTs) |
| Reference Frequency | 45~65Hz | |
| Power Consumption | ＜0.5VA (each Phase) | |
| Current
Input |
Rated Current | 3×1(6)A AC (via CTs) |
| Starting Current | 1% Ib (Class 0.5); 4% Ib(Class 1) | |
| Power Consumption | ＜1VA (each Phase) | |
| Phase
Wiring |
3P4W | 3-phase 4-wire |
| 3P3W | 3-phase 3-wire | |
| Auxiliary
Power Supply |
Voltage Range | 85~265Vac |
| Power Consumption | ＜2W | |
| Measurement
Performance |
Standard | IEC 62053-22:2003; IEC 62053-21:2003 |
| kWh Accuracy | Class 0.5S | |
| Pulse | Width of Pulse | 80±20ms |
| Pulse Constant | 6400imp/kWh; 400imp/kWh | |
How to Install the Acrel ADW300 Series DC24V RS485 Modbus-RTU Meter for Cell Tower?
 |
 |
| 3-phase 4-wire CT operated | 3-phase 3-wire CT operated |
