What’s the Highlight of Acrel AC & DC Energy Meter for EV Charger Station?
What’s the Specification of Acrel AC & DC Energy Meter for EV Charger Station?
System | Specification | Feature | Photo |
DC | DJSF1352 | 2 channels of DC Input | |
AC Three-phase | ADW300 | 4G WIFI | |
ADL400 | CE, MID, TUV, EAC | ||
AC Single-phase | ADL200 | ||
ADW310 | 4G WIFI | ||
ADL10 | Small size |

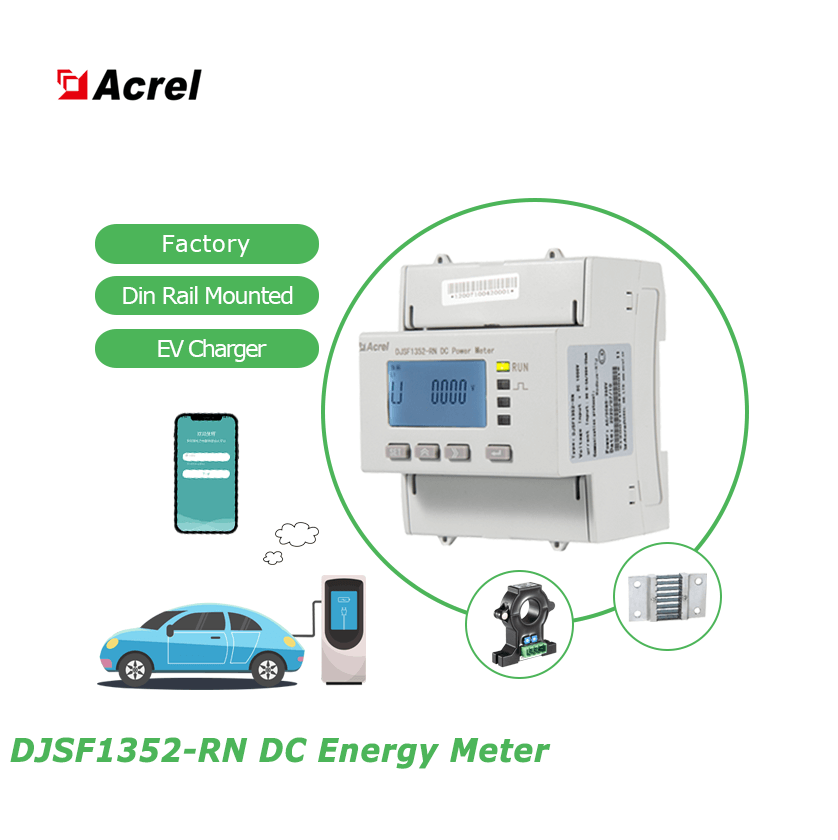

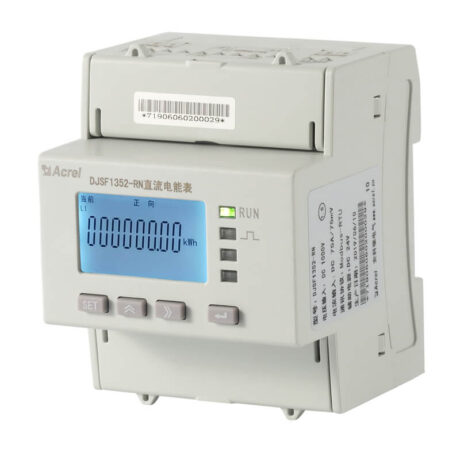

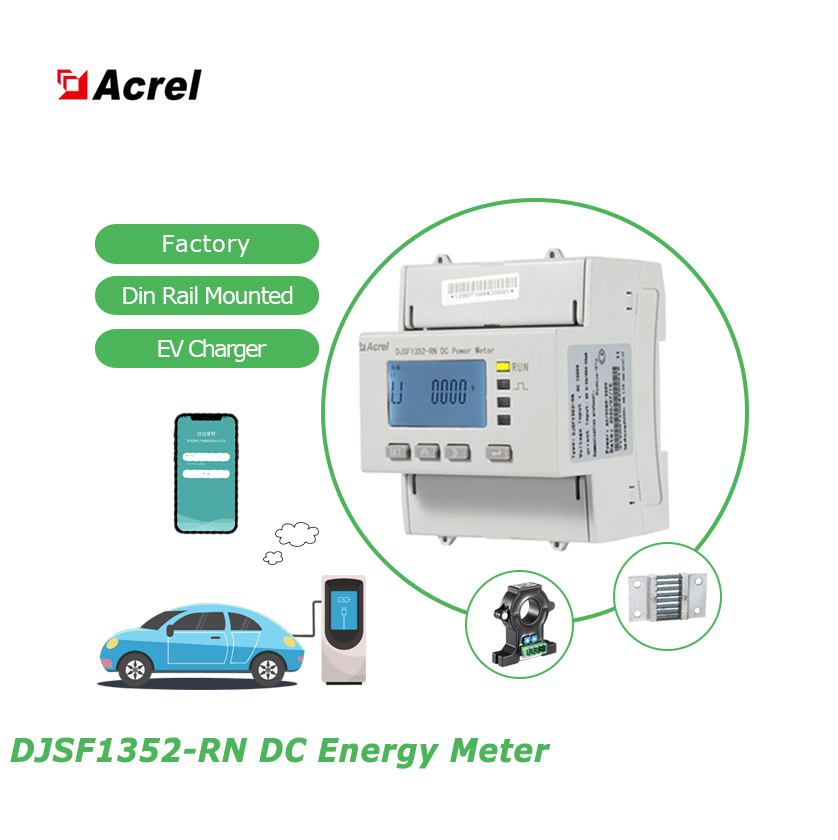

DJSF1352-RN
Dual Independent DC Circuits Monitoring
● For Twin EV Charger&Battery ● Voltage Input:DC 0~1000V ● Current Input (by Shunt): 0~75mV ● Current Input (by Hall Sensor): 0~5V, 0~10V, 0~20mA, 4~20mA |
|
Built-in Bipolar Power Source
● Power Supply for Hall Effect CT ● Range: DC -12V ~ DC +12V |
|
Optional Dual RS485 Communication
● Protocol: MODBUS-RTU ● 1 RS485 (standard) |
|
DO/DI Function
● 2 DO (2A/30V DC; 2A/250V AC) ● 2 DI (dry contact) |
if you would like to know more about this MQTT Energy Meter, kindly click the above Button to check details.
communication process
ps: Step 4 can skip if the configuration version is the same.
equipment to the platform
platform to the equipment

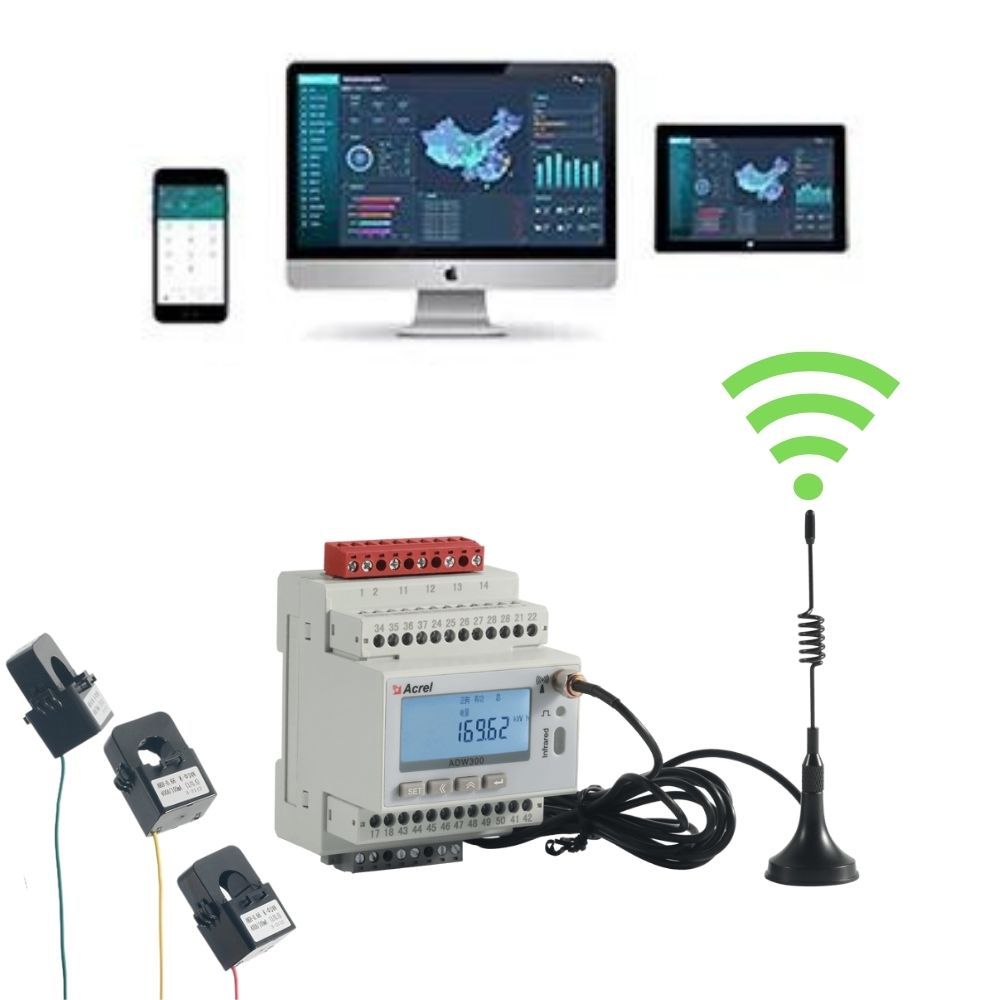

ADW300 - Three phase

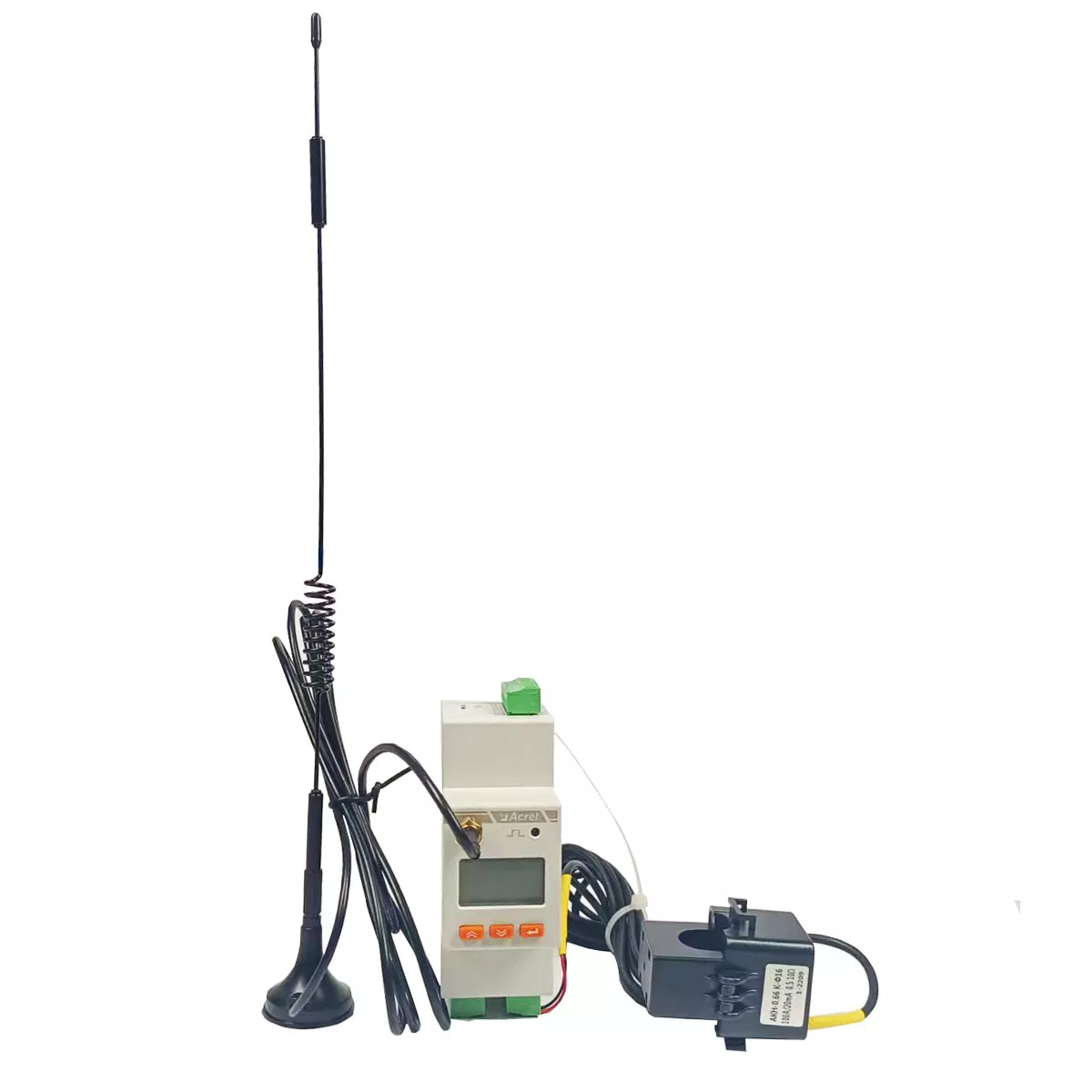

ADW310 - Single phase
Multiple Communication Methods
● 4G LTE ● NB-IoT ● WiFi (2.4GHz&5GHz) ● LoRa ● RS485 (MODBUS-RTU) ● Paired with IoT Energy Monitoring System |
|
Power Quality Analysis
● Total Harmonic ● 2nd~31st Harmonic ● Voltage Unbalance ● Current Unbalance |
|
Expanded Function
● 2-channel DO (Digital Ouput) ● 4-channel DI (Digital Input) ● 4-channel Cable Temperature Monitoring ● 1-channel Residual Current Measurement |
|
Alarm Function
● Over/Under Current ● Over/Under Voltage ● Over/Under Power ● Phase Loss |
ADL200 ADL400

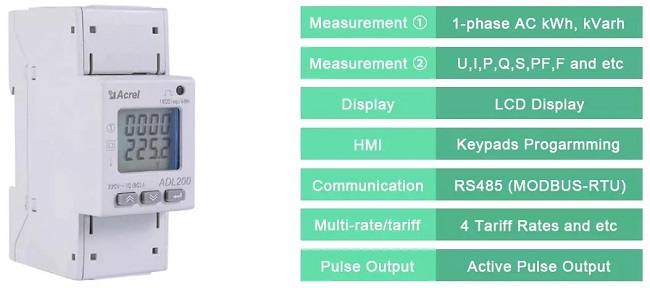

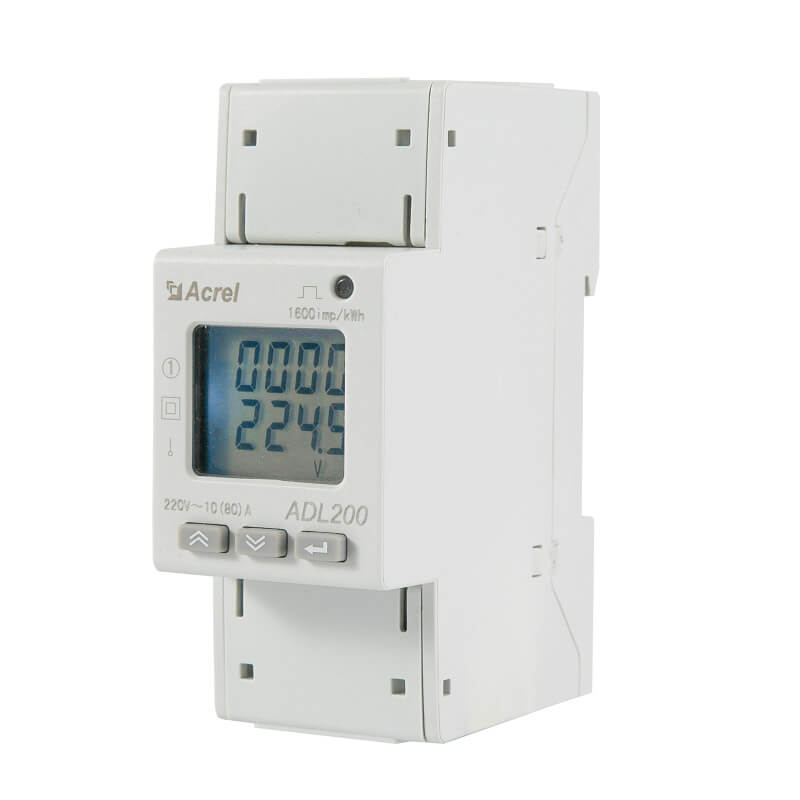

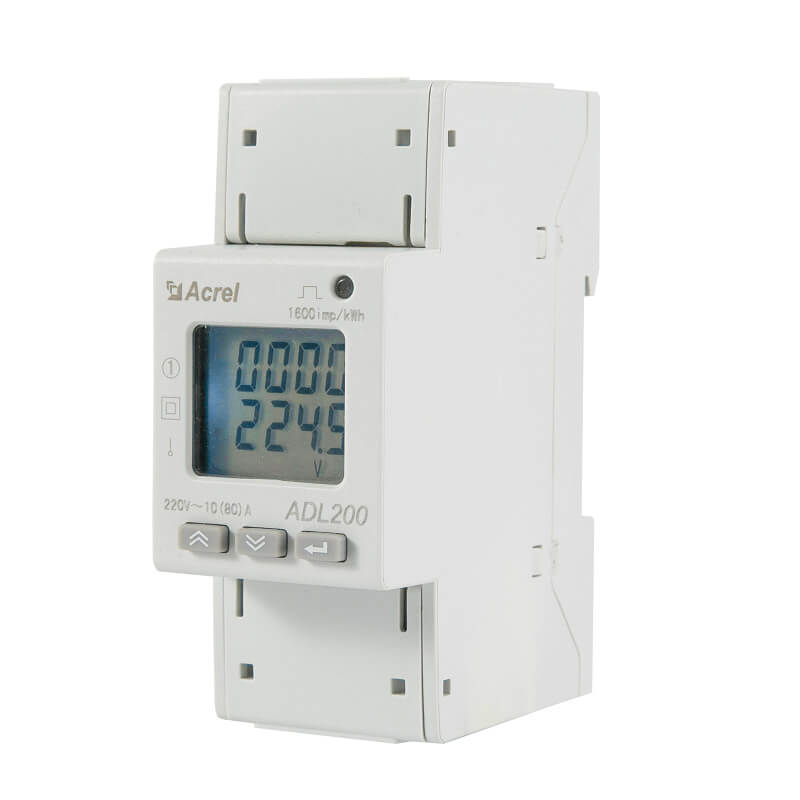

ADL200 Single-phase |

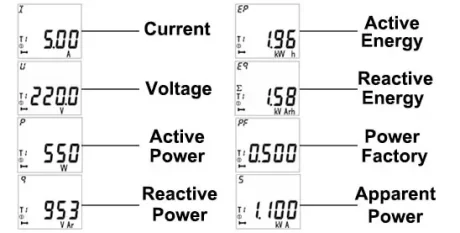

Diverse Electricity Parameters Measurement
● U (Voltage) ● I (Current) ● P (Power) ● Q (Reactive power) ● S (Apparent power) ● PF (Power factor) ● kWh (Kilowatt-hours) ● kVarh (Kilovar-hours) |
|

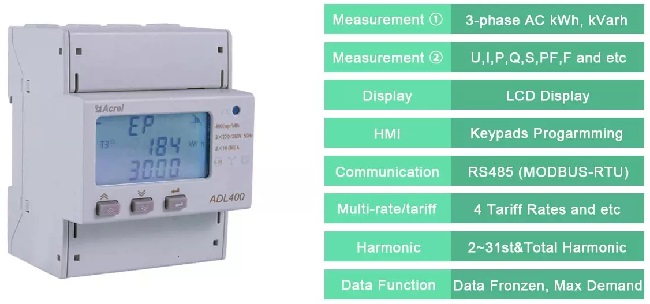

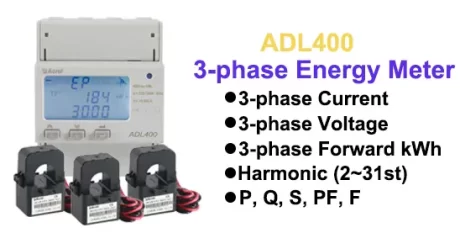

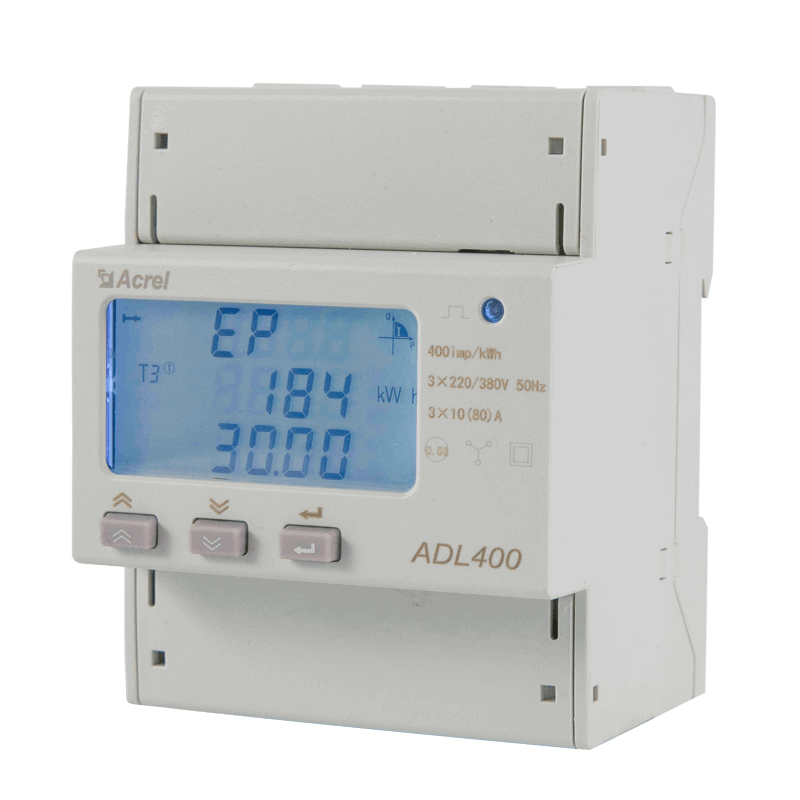

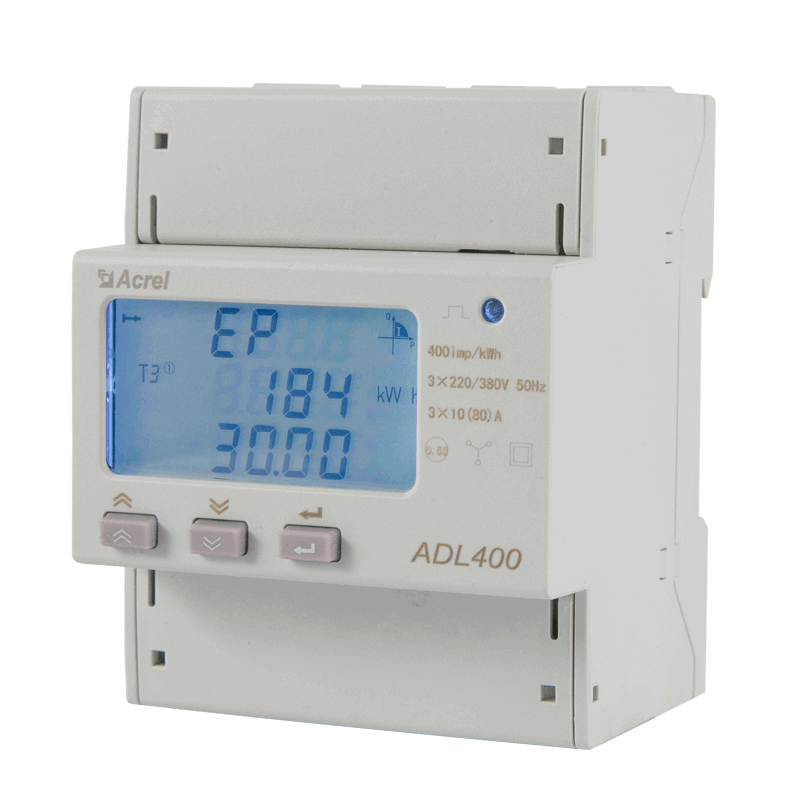

ADL400 Three-phase |
Diverse Electric Parameters Measurement
● kWh (3-phase positive Kilowatt-hours) ● kVarh (Kilovar-hours) ● Harmonic (2~31st voltage¤t)—Standard ● U (3-phase Voltage) ● I (3-phase Current) ● P (Power) ● Q (Reactive power) ● F (Frequency) ● S (Apparent power) ● PF (Power factor) |
|

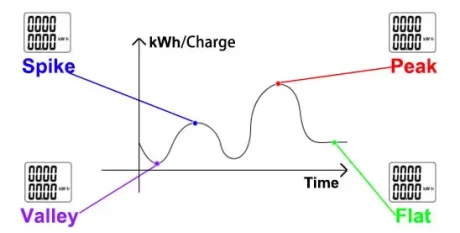

Economic 7 | Multi-rate/Flexible Tariff
● 4 Time zone ● 4 Tariff rate (Spike, Peak, Flat, Valley) ● 2 Time period list ● 14 Time period by day ● Data Frozen (last 48 months or last 90 days) ● Max demand and occurrence time |

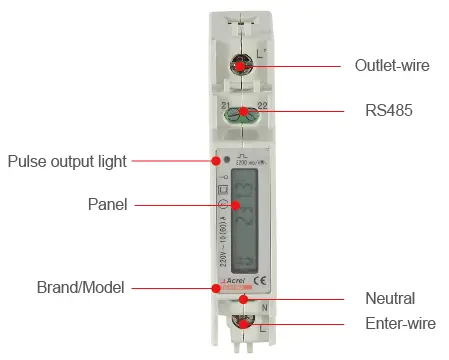

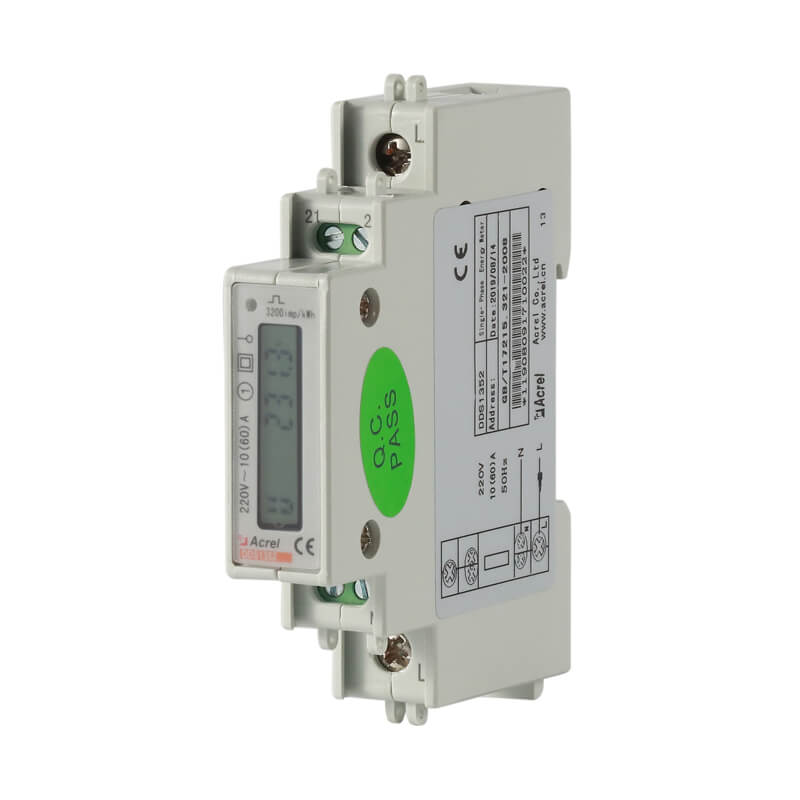

ADL10
