ASCB1
Standard Lead Time:
Sample: 2 days
Bulk: 1 month
6~63A
C & D Curve
Protection
WIFI 4G Ethernet RS485
What Do Our Customers Say?
My first contact with ACREL was through Mrs. Feeling Chang. He was extremely friendly, approachable and very helpful. It will be the beginning of a long partnership between Bikoelectronics and Acrel.
Vanessa
Portugal
“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "
Arnold
Philippines

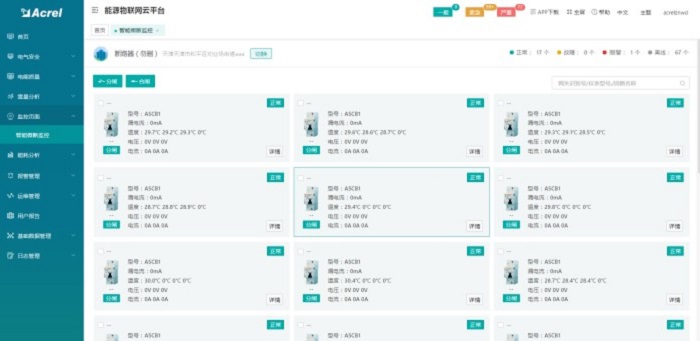

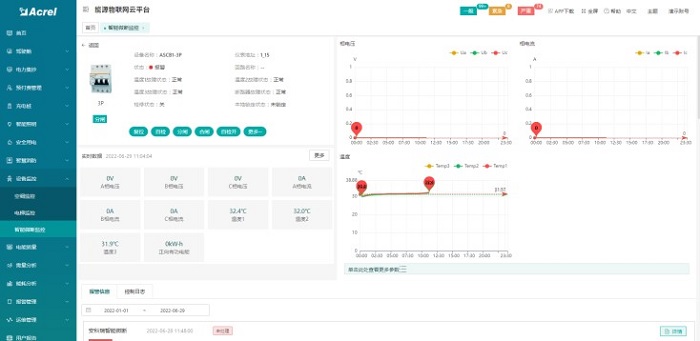

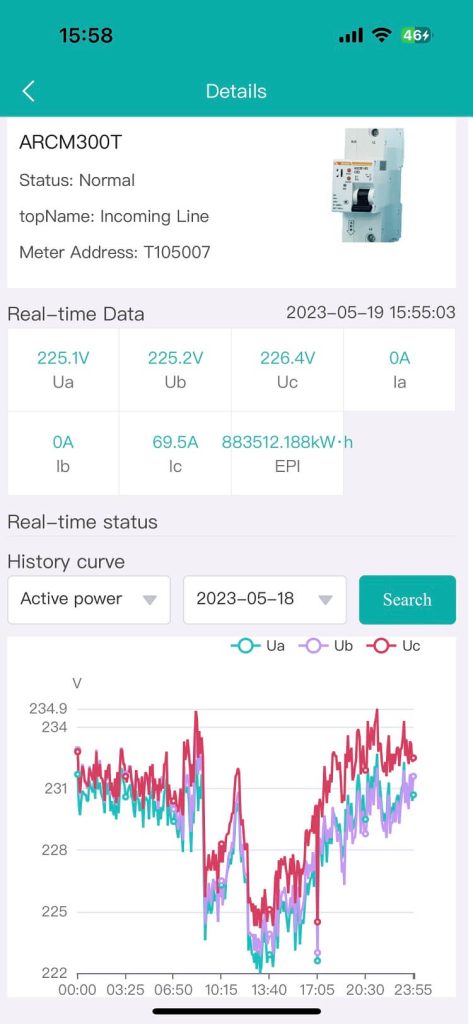

Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.
Tuan
Vietnam
What’s the Function of Acrel ASCB1 Series 63A Remote Control IoT-based Miniature Circuit Breaker?
ASCB1 series intelligent miniature circuit breaker is a new intelligent power consumption product launched by Acrel Electric Co., Ltd.

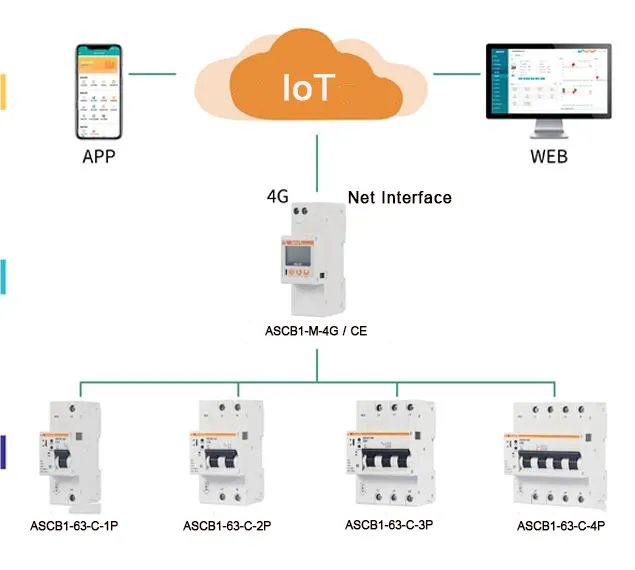

The product consists of two parts: intelligent miniature circuit breaker and intelligent gateway.
It can be used for real-time monitoring of key electrical factors of power lines, such as voltage, current, power, temperature, leakage, energy consumption, etc.

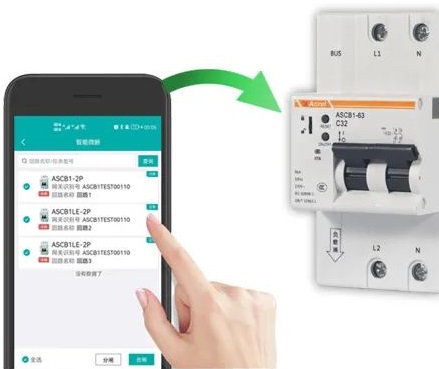

It has the functions of remote control, early warning protection, short circuit protection, electric energy metering statistics, fault location, etc.
It is applied to low-voltage terminal power distribution network in the fields of industrial, commercial, civil buildings and infrastructure in indoor buildings and similar places.
How does Acrel ASCB1 Series 63A Remote Control IoT-based Miniature Circuit Breaker?

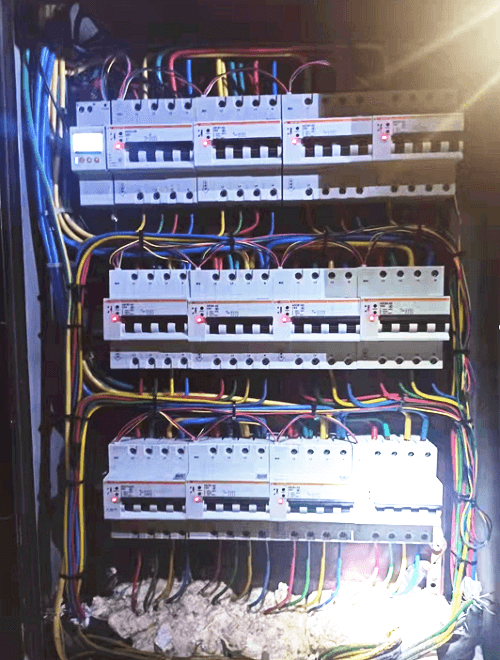

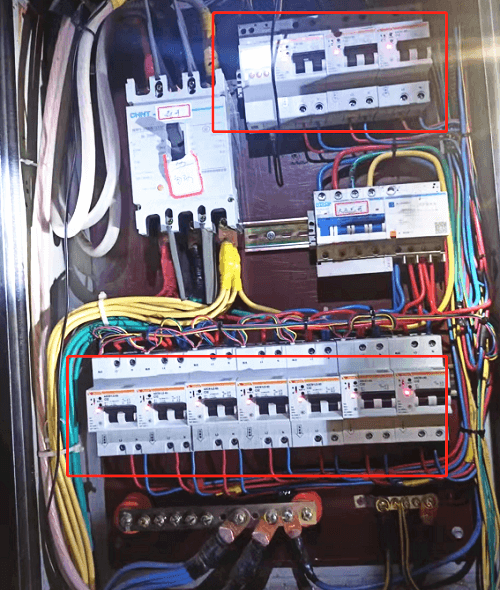

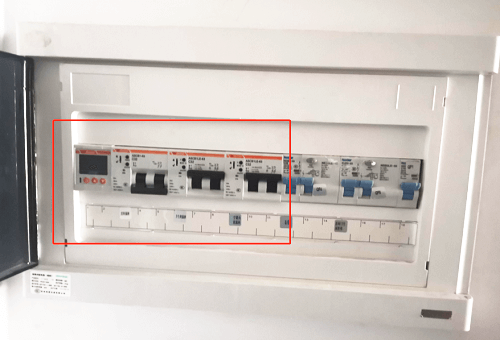

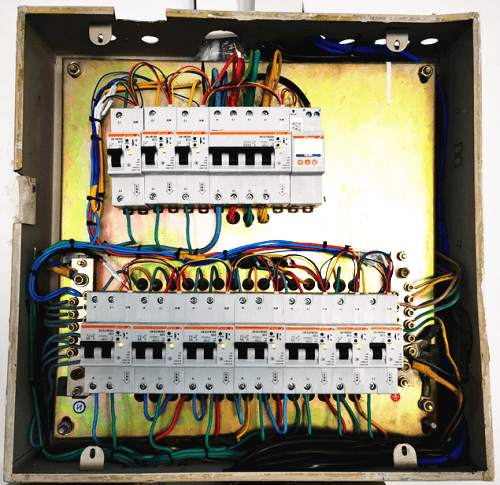

How to Install Acrel ASCB1 Series 63A Remote Control IoT-based Miniature Circuit Breaker?

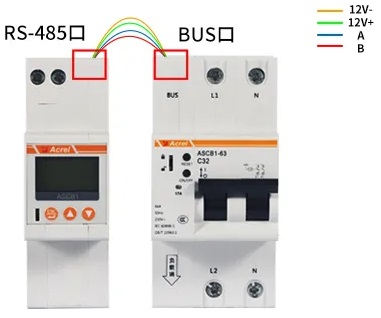

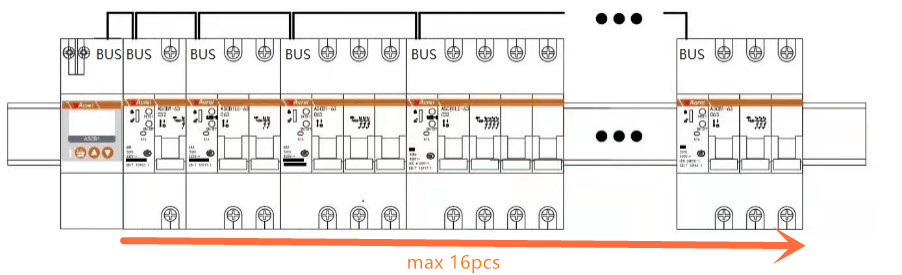

Step1: Connect the RS485 port on the gateway to the BUS port of the circuit breaker by using the communication cable provided by the gateway

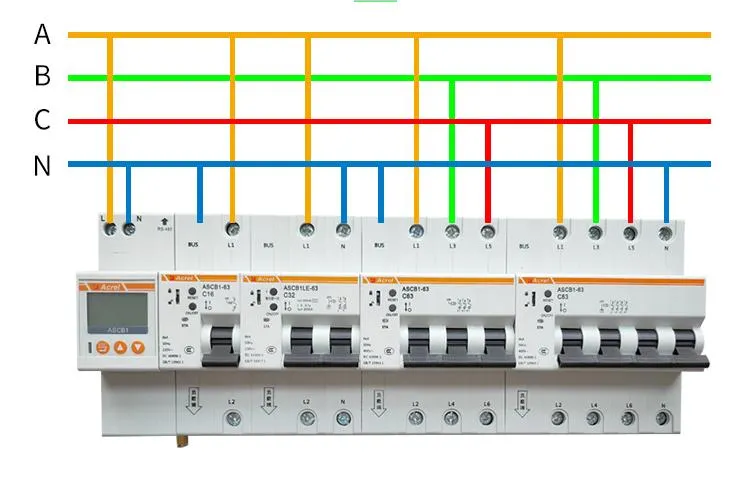

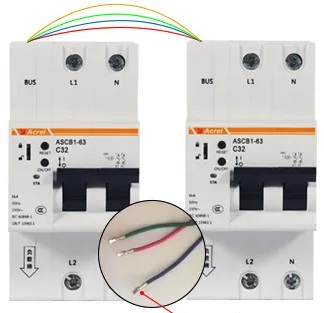

Step2: Insert the barbed side of the connecting wire of the circuit breaker into the external terminal of the previous circuit breaker toward the outside of the terminal, and the colors need to be matched one by one.
Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]
What’s the Function of Acrel ASCB1 Series 63A Remote Control IoT-based Miniature Circuit Breaker?
|
ASCB1 Series Intelligent MCB Function
|
||||
|

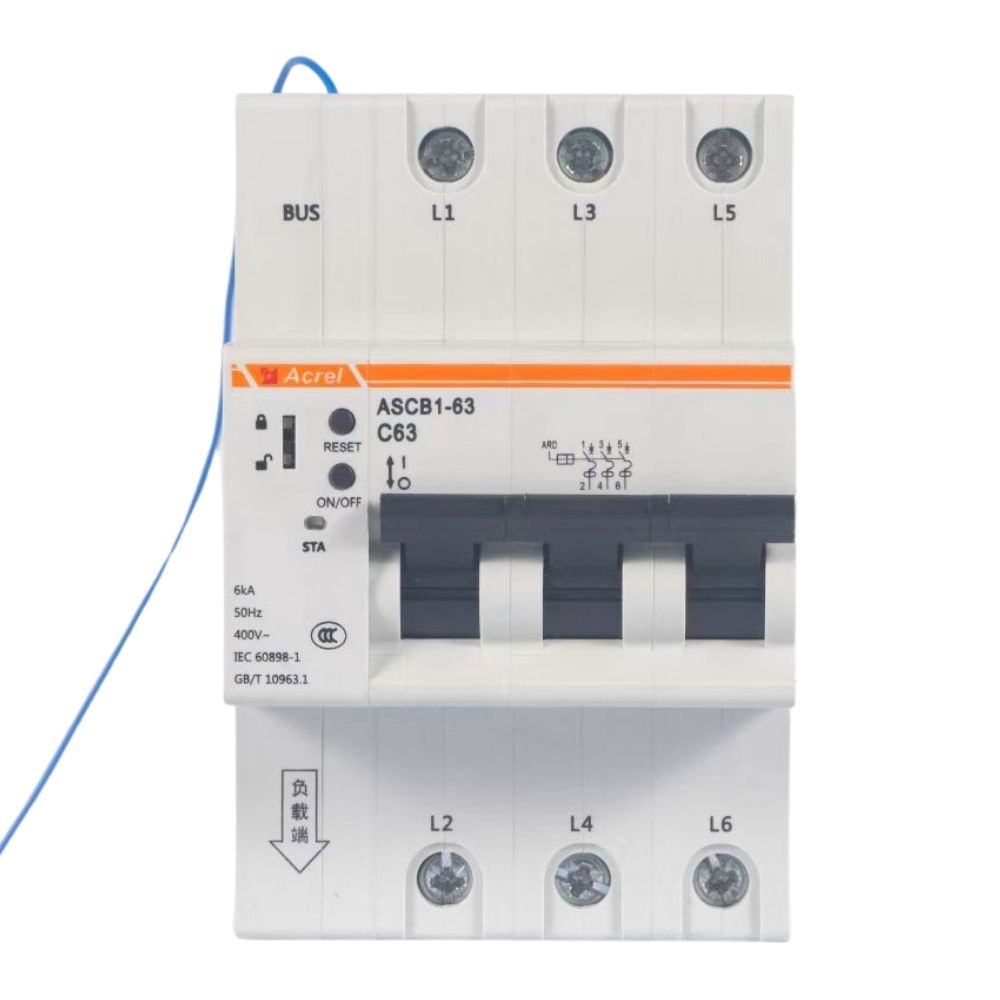

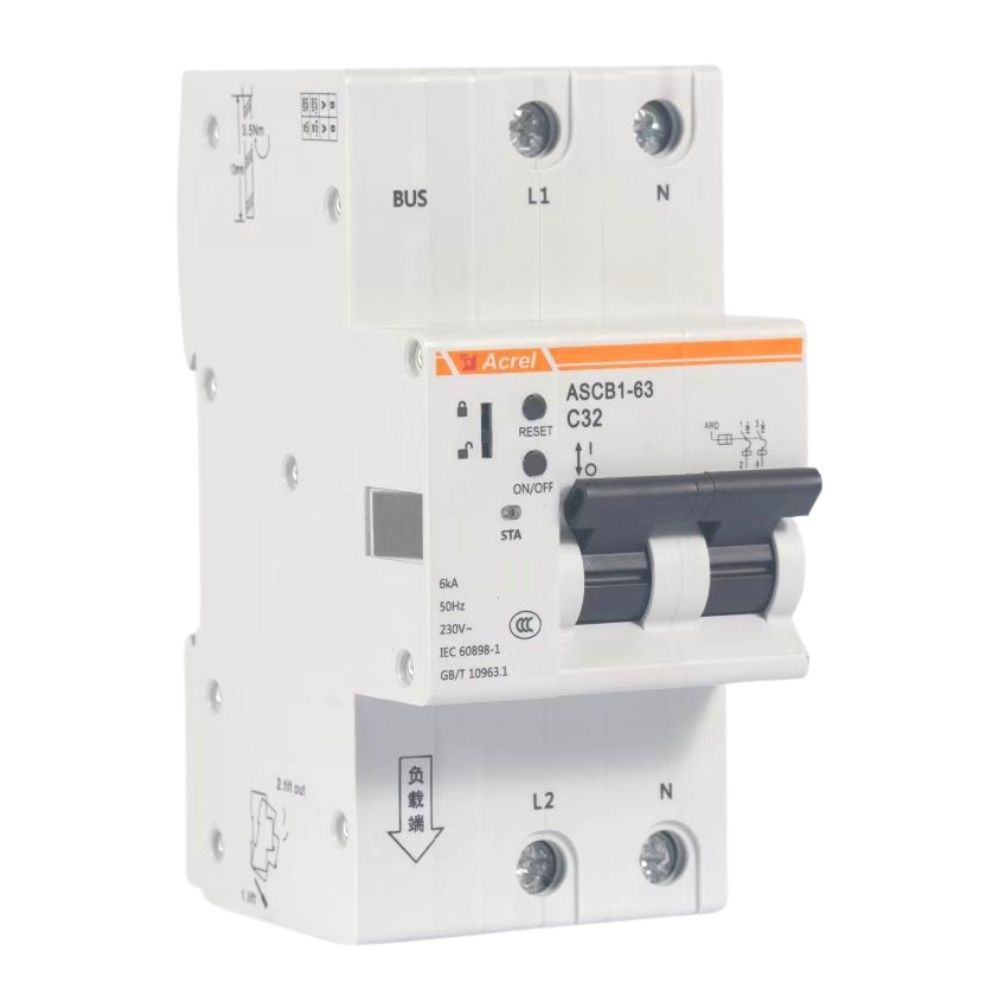

ASCB1-63
|
· Can monitor voltage, current, power, power and temperature in real time
· with overpressure, underpressure, overload, short circuit, overcurrent, and overtemperature and other protection functions · With local manual lever, local electric control, local lock, remote control, timing control and other control function · Guide rail type installation, optional pole number 1P / 2P / 3P / 4P · Standard RS-485 (MODBUS) communication; optional buckle curve type C / D |
|||
|

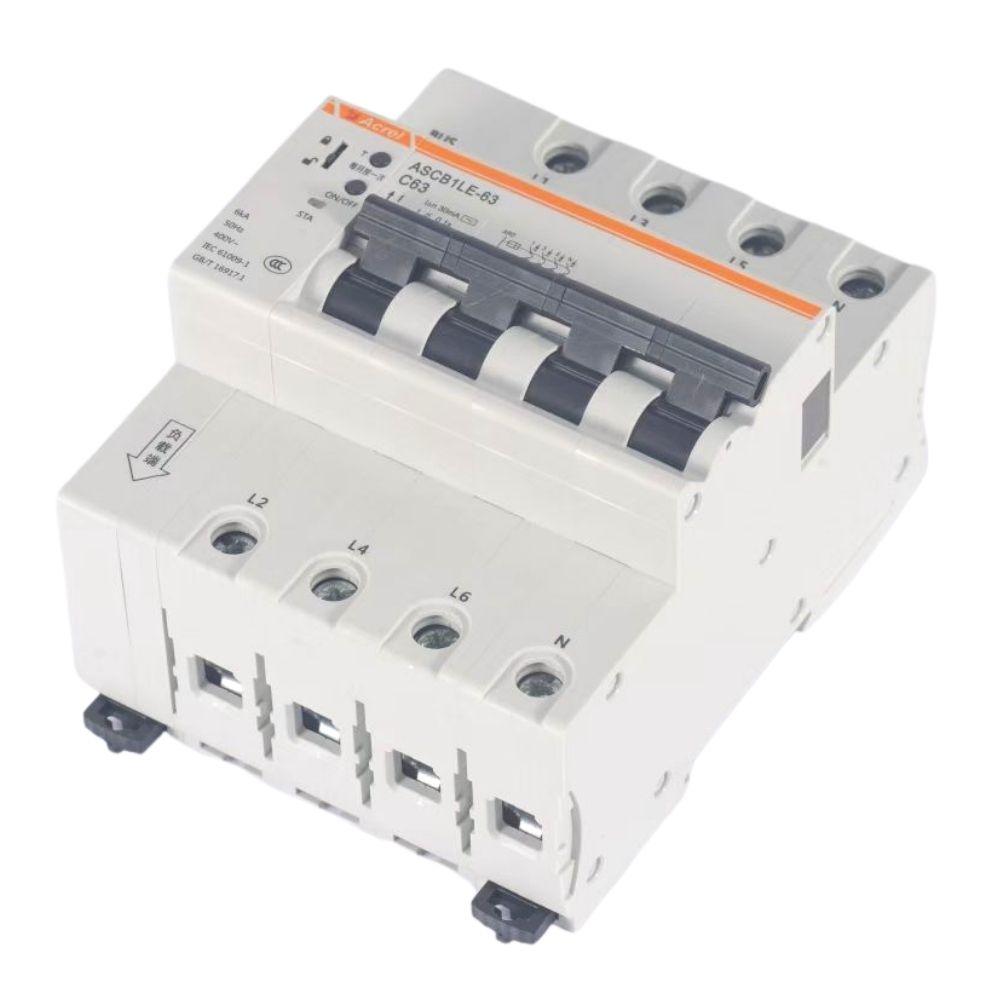

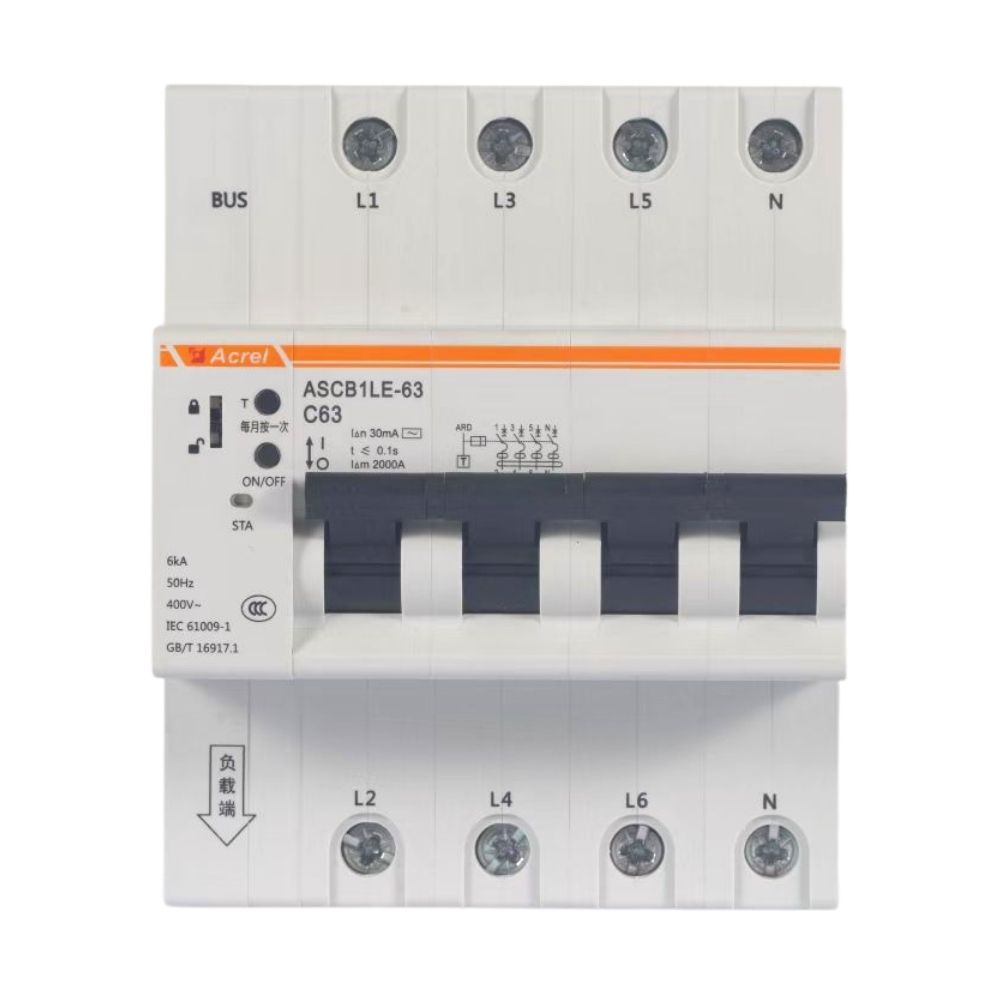

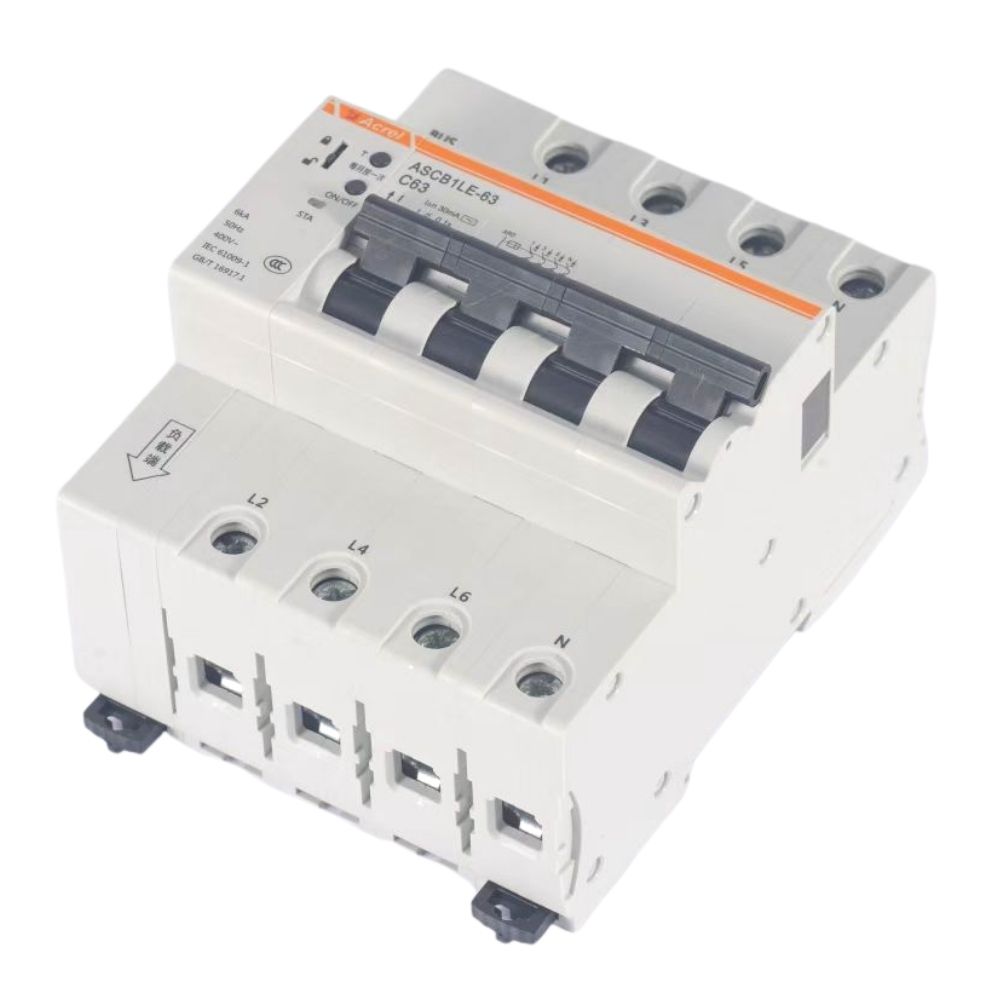

ASCB1LE-63
|
· Real-time monitoring of voltage, current, power, electric energy, temperature and leakage and other parameters
· With overvoltage, undervoltage, overload, short circuit, overcurrent, ultra-moderate leakage and other protection functions · With local manual lever, local electric control, local lock, remote control, timing control and other control functions ·Guide rail type installation, optional pole number 2P / 4P; standard RS-485 (MODBUS) communication; optional buckle curve type C /D type. |
|||

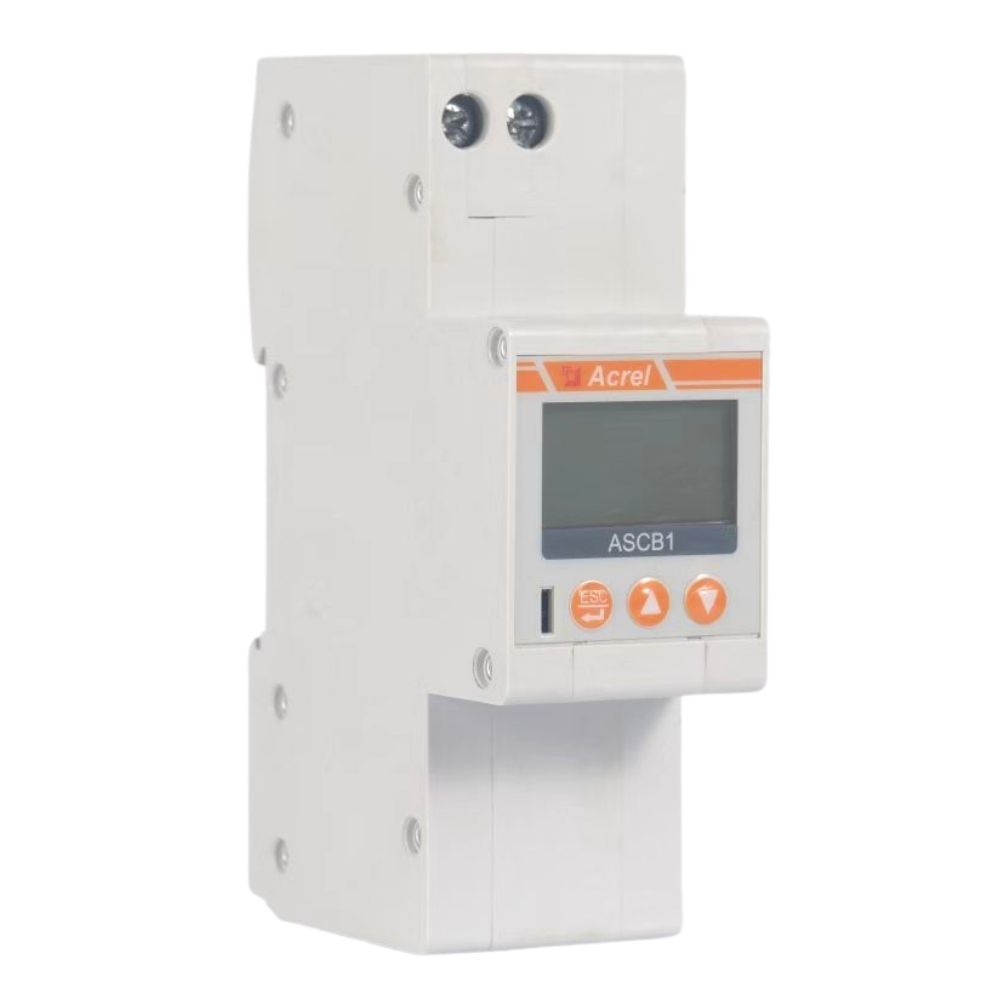

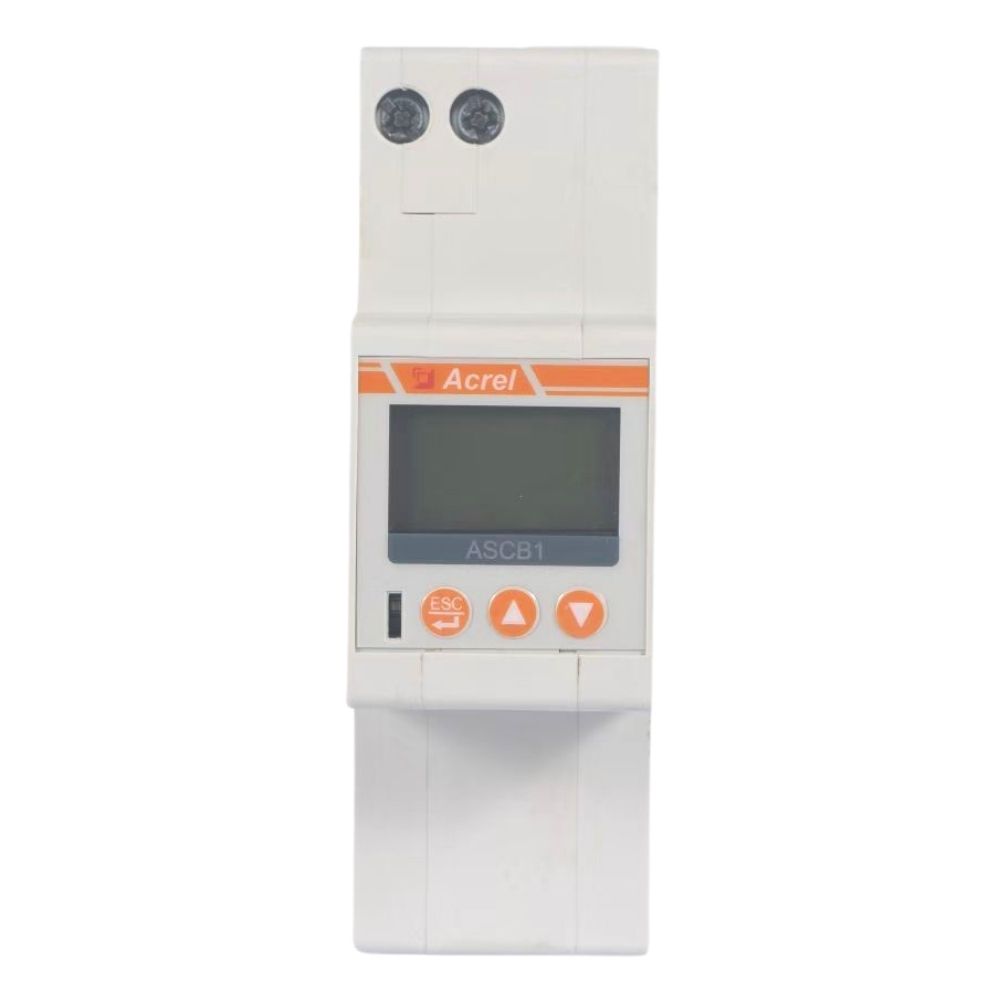

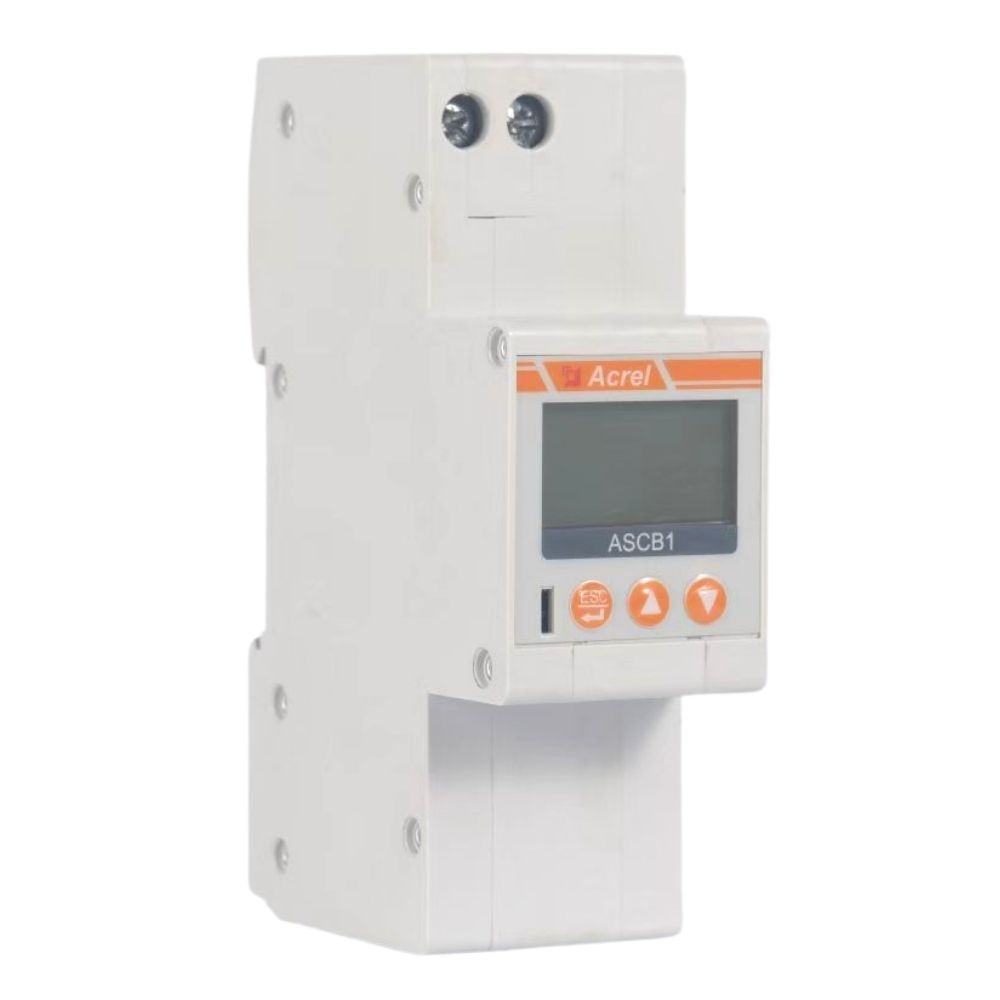

What’s the Function of Acrel ASCB1 Series Gateway?
|
ASCB1 Smart Gateway Function
|
||||
|
ASCB1-M-CE
|
· Can connect to up to 16 intelligent micro circuit breakers
· See, the real-time data of voltage, current, power, power, temperature and leakage of each intelligent micro circuit breaker · You can view the fault, alarm and separation status of each intelligent micro circuit breaker · It can set and control the parameters for each intelligent micro circuit breaker · Din rail type installation, LCD LCD display · Support event logging; support RS485 communication · Support for Ethernet communication. |
|||
|
ASCB1-M-4G
|
· It can connect to up to 16 smart micro circuit breakers
· Can see the real-time data of voltage, current, power, power, temperature and leakage of each intelligent micro circuit breaker · Can view the fault, alarm and separation status of each intelligent micro circuit breaker · It can set and control the parameters for each intelligent micro circuit breaker · Din rail type installation; LCD LCD display · Support event logging; support RS485 communication · Support for 4G network communication |
|||
What’s the Parameter of Acrel ASCB1 Series 63A Remote Control IoT-based Miniature Circuit Breaker?
|
Model
|
ASCB1-63
|
ASCB1LE-63
|
||
|
Pole
|
1P/2P/3P/4P
|
2P/4P
|
||
|
Grade of Shell
|
63A
|
|||
|
Rated Voltage
|
230V（1P/2P）、400V(3P/4P)
|
|||
|
Rated Current
|
6A,10A,16A,20A,25A,32A,40A,50A,63A
|
|||
|
Instantaneous Unbuckle Type
|
C/D
|
|||
|
Rated Short-circuit Breaking Capacity
|
6000A
|
|||
|
Protect
|
Over-current Protection
|
Default 100% rated current alert，
110% Rated current trip with adjustable threshold
|
||
|
Short-circuit Protection
|
5-10 Rated current for 0.04 seconds for circuit break protection
|
|||
|
Overload Protection
|
Default 100% rated power alert，110% Rated power trip with adjustable threshold
|
|||
|
Over-voltage Protection
|
Default 110% rated voltage alert，120% rated voltage trip with adjustable threshold
|
|||
|
Under-voltage Protection
|
Default 90% rated voltage alert，80% rated voltage trip with adjustable threshold
|
|||
|
Over-temperature Protection
|
Default 80℃ alert，100℃ trip, the threshold is adjustable
|
|||
|
Leakage Protection
|
No
|
Default 20mA alert, 30mA trip, the threshold is adjustable
|
||
|
Leakage self-Inspection
|
No
|
Manual button self-inspection
|
||
|
Mechanical Life
|
20000 times
|
|||
|
Electrical Life
|
6000 times
|
|||
|
Levels of Protection
|
IP20
|
|||
|
Connection Capacity
|
1-35mm²
|
|||
|
Elevation Requirements
|
2000m
|
|||
|
Ambient Temperature
|
-10℃～55℃，the average temperature at 24h was no higher than 40℃
|
|||
|
Environmental Requirements
|
No explosion hazard, no conductive dust, no sufficient corrosion of metal and damaged insulation, no significant vibration
|
|||
|
Relative Humidity
|
At + 40℃, the relative humidity of the air is 50% and can have high relative humidity at lower temperatures
|
|||
|
Storage Temperature
|
-20℃-70℃
|
|||
|
Class of Pollution
|
Ⅱ
|
|||
|
Installation Type
|
Ⅲ
|
|||
|
Way to Installation
|
Standard 35mm guide rail installation
|
|||
What’s the Parameter of Acrel ASCB1 Series Gateway?
|
Product Model
|
ASCB1-M-4G
|
ASCB1-M-CE
|
||
|
Power Supply
|
AC 220V
|
|||
|
Consumption
|
≤30W
|
|||
|
Communication
|
4G
|
Ethernet
|
||
|
Display
|
LCD dot-matrix
|
|||
|
Incident Record
|
Up to 20 alarm, fault and action records each
|
|||
|
Protocol
|
Modbus、MQTT and so on
|
|||
|
Elevation Requirements
|
2000m
|
|||
|
Ambient Temperature
|
-10℃-55℃，24h the average temperature is not higher than 40℃
|
|||
|
Environmental Requirements
|
No explosion hazard, no conductive dust, no sufficient corrosion of metal and damaged insulation, no significant vibration
|
|||
|
Relative Humidity
|
At + 40℃, the relative humidity of the air is 50% and can have high relative humidity at lower temperatures
|
|||
|
Storage Temperature
|
-20℃-70℃
|
|||
|
Levels of Protection
|
IP20
|
|||
|
Way to Installation
|
Standard 35mm guide rail installation
|
|||

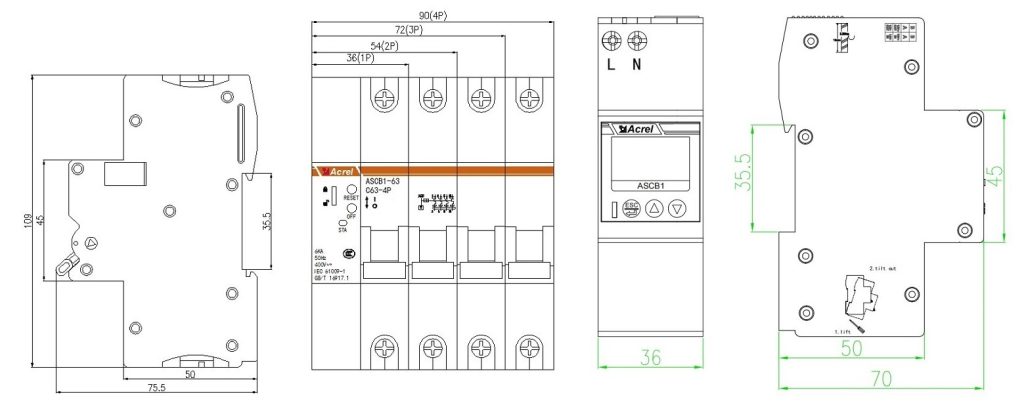

What’s the Specification of Acrel ASCB1 Series 63A Remote Control IoT-based Miniature Circuit Breaker?

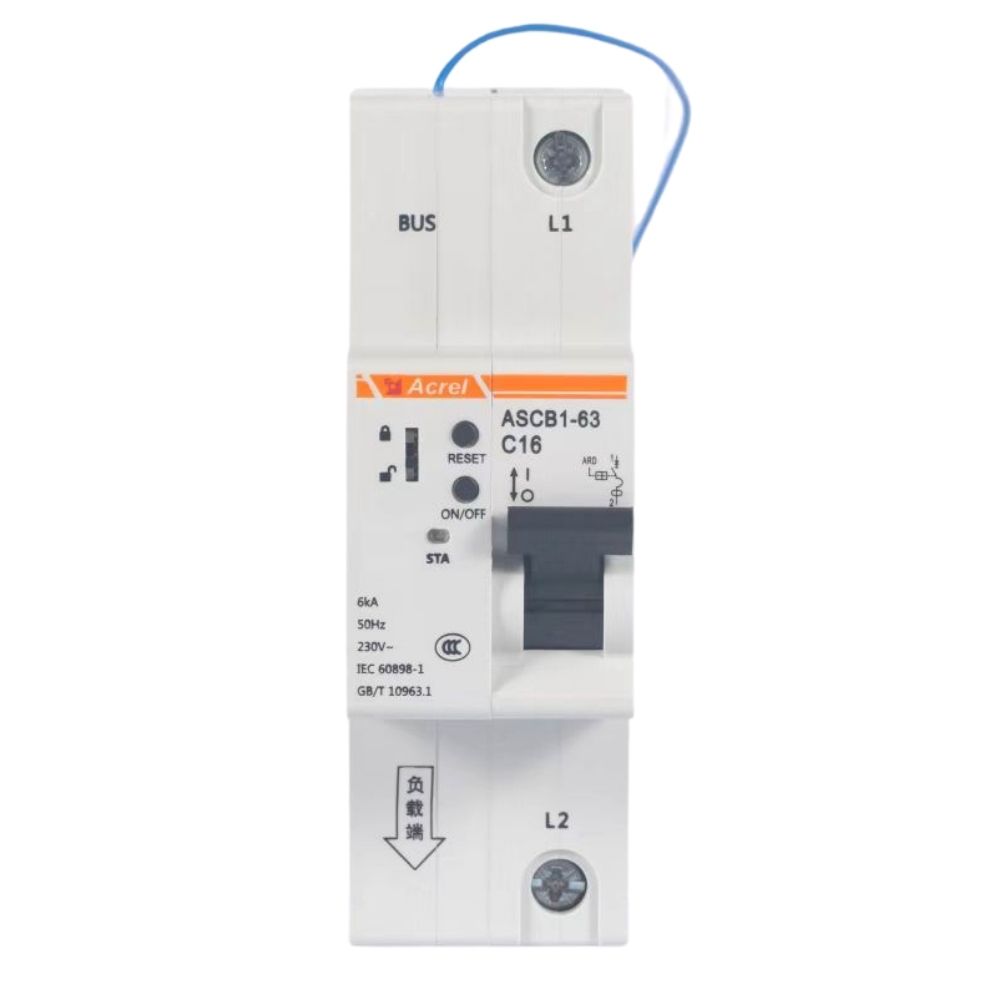

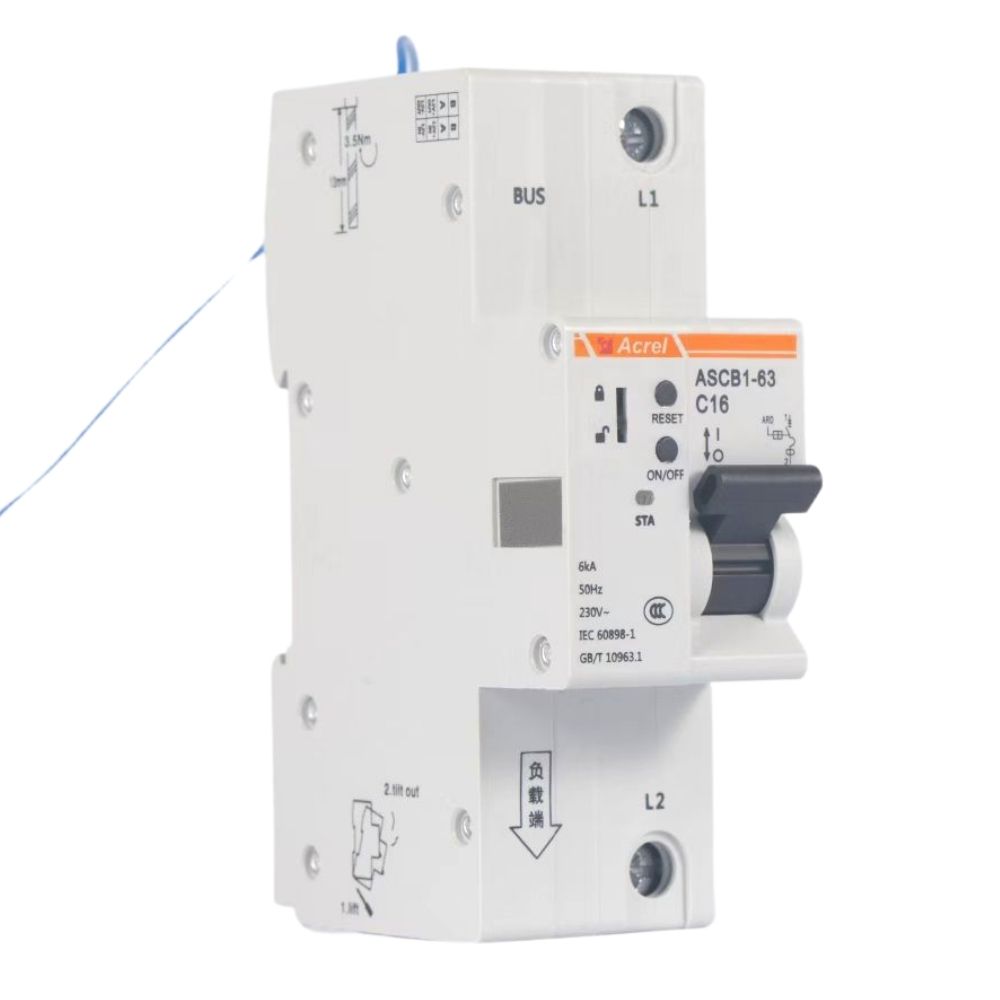

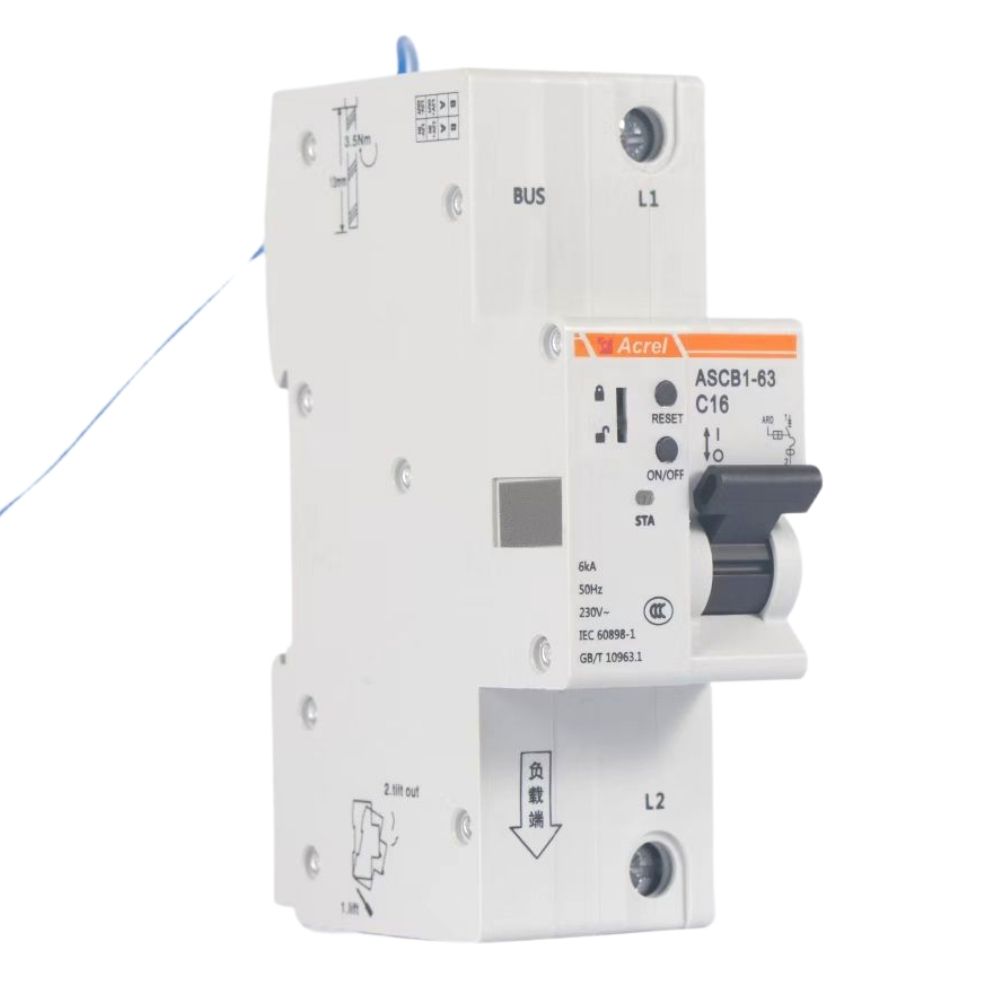

| ASCB1-63-C16-1P | Length | Width | Height | Pole | Phase | Wires |
| Parameter(mm) | 109 | 36 | 75.5 | 1 | single | 1 |

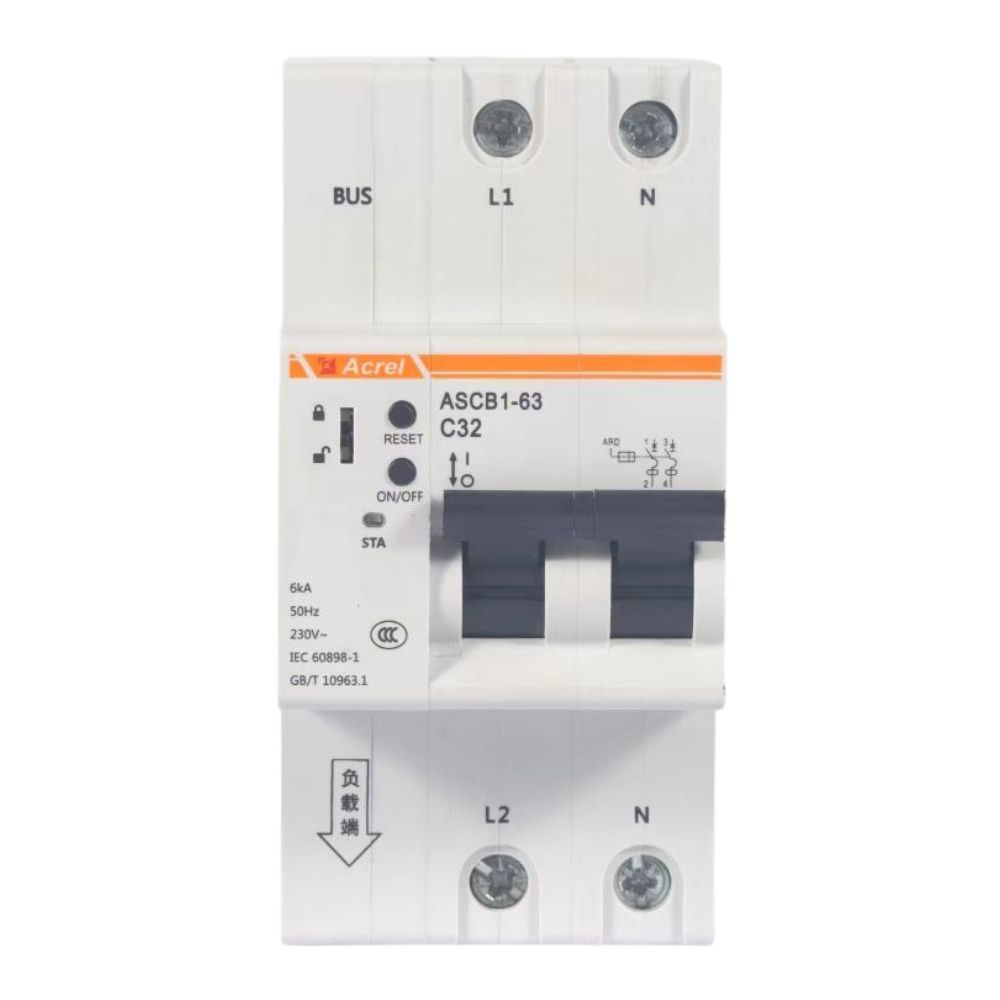

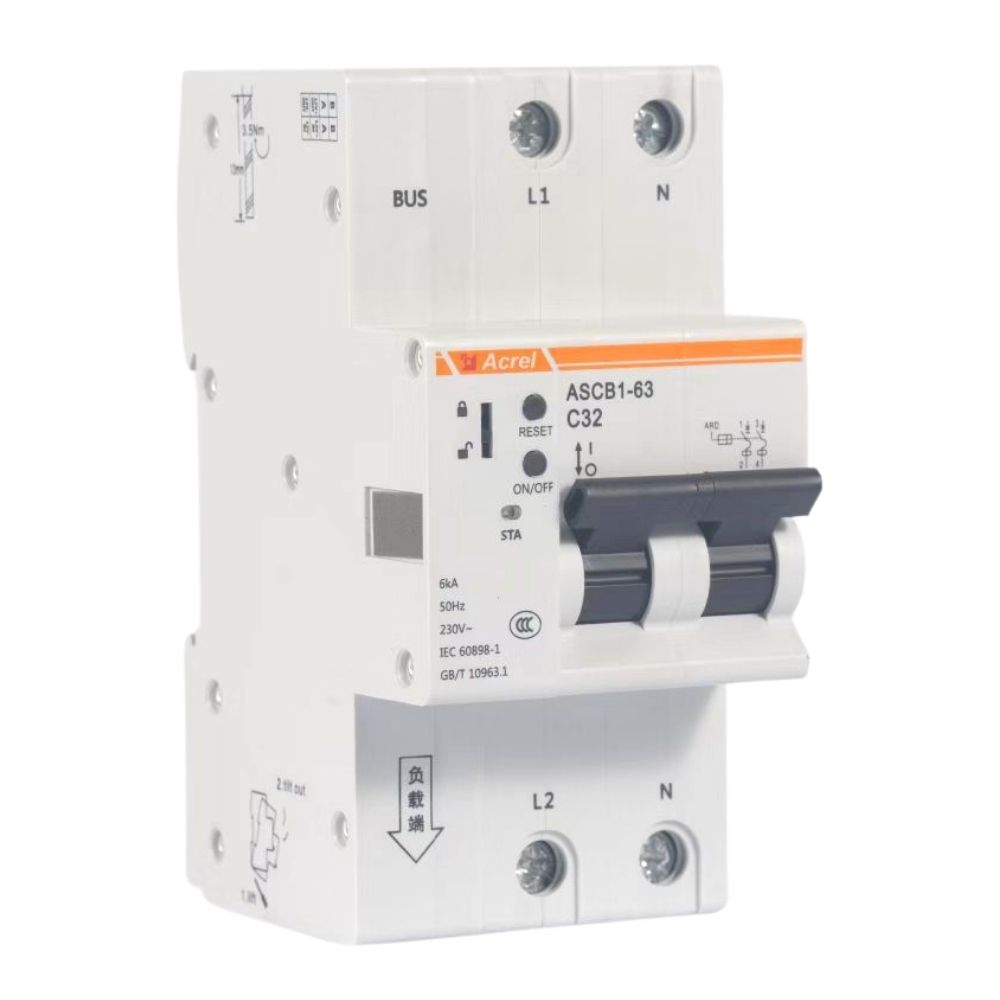

| ASCB1-63-C32-2P | Length | Width | Height | Pole | Phase | Wires |
| Parameter(mm) | 109 | 54 | 75.5 | 2 | single | 2 |

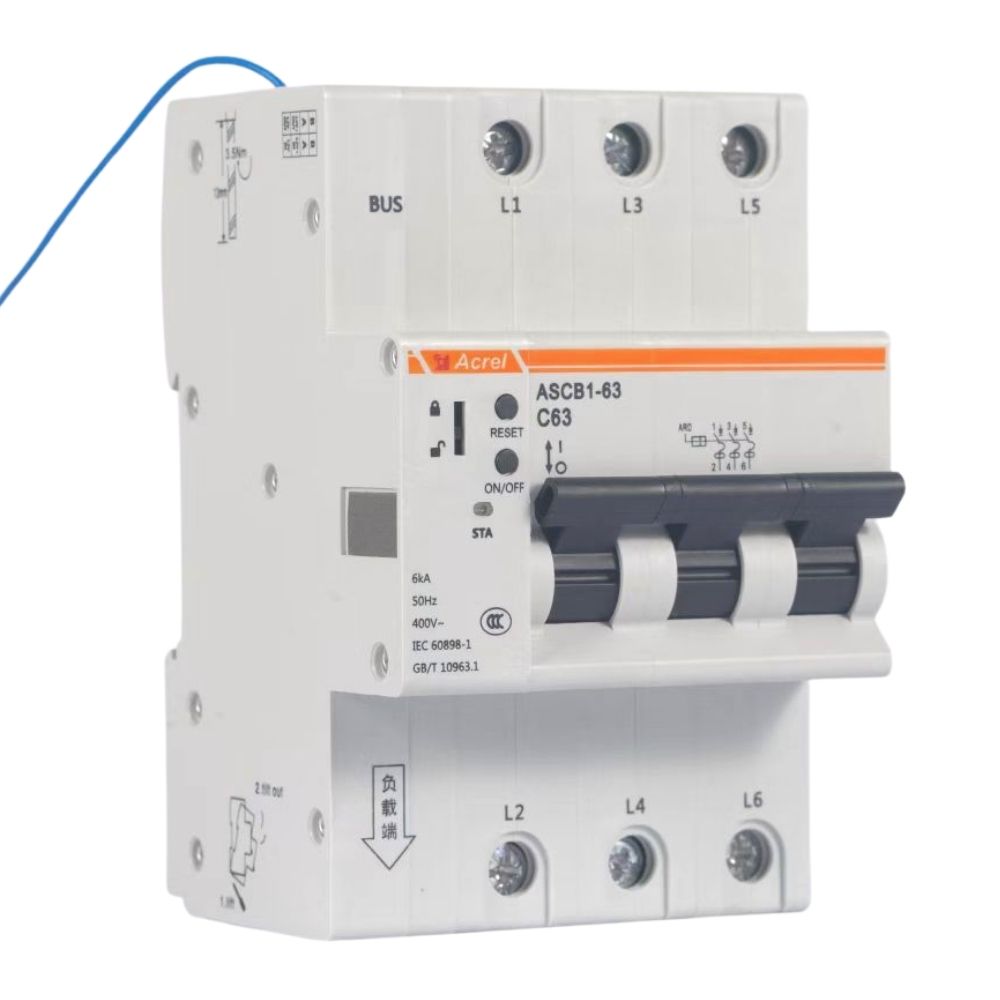

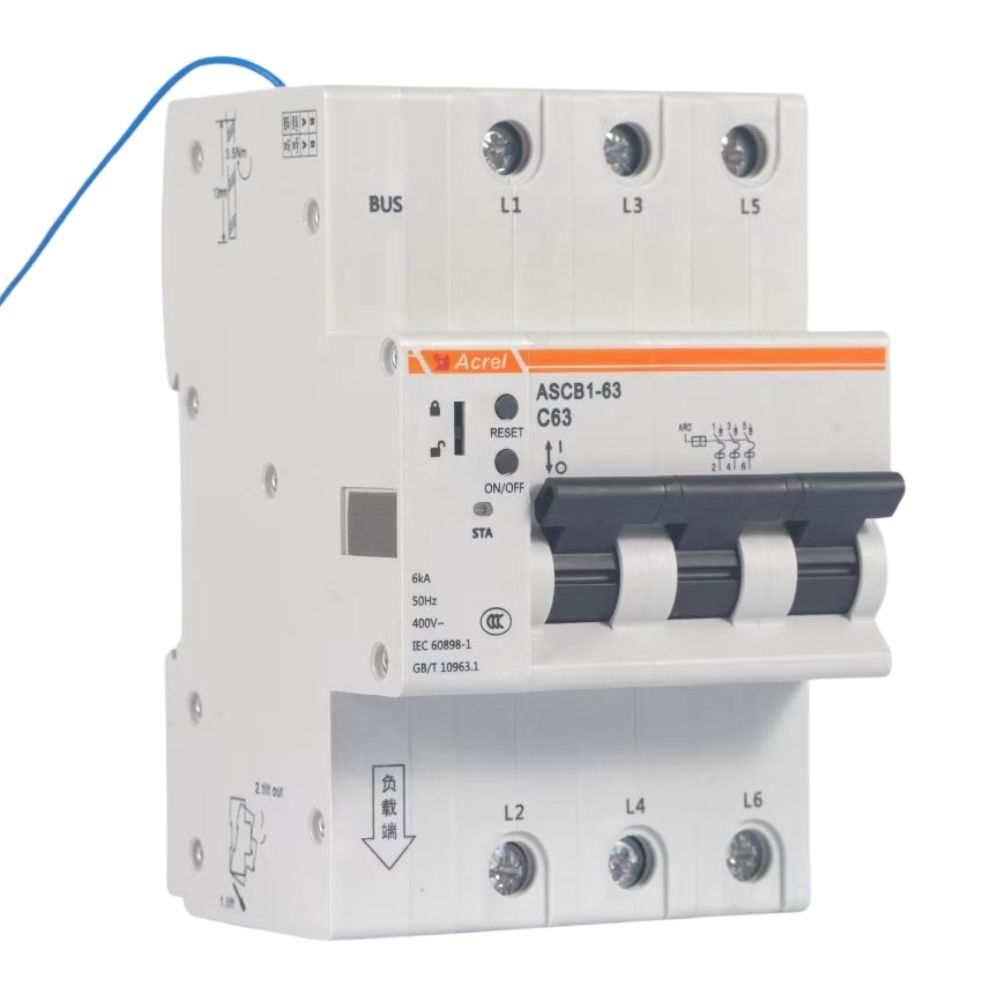

| ASCB1-63-C63-3P | Length | Width | Height | Pole | Phase | Wires |
| Parameter(mm) | 109 | 72 | 75.5 | 3 | three | 3 |

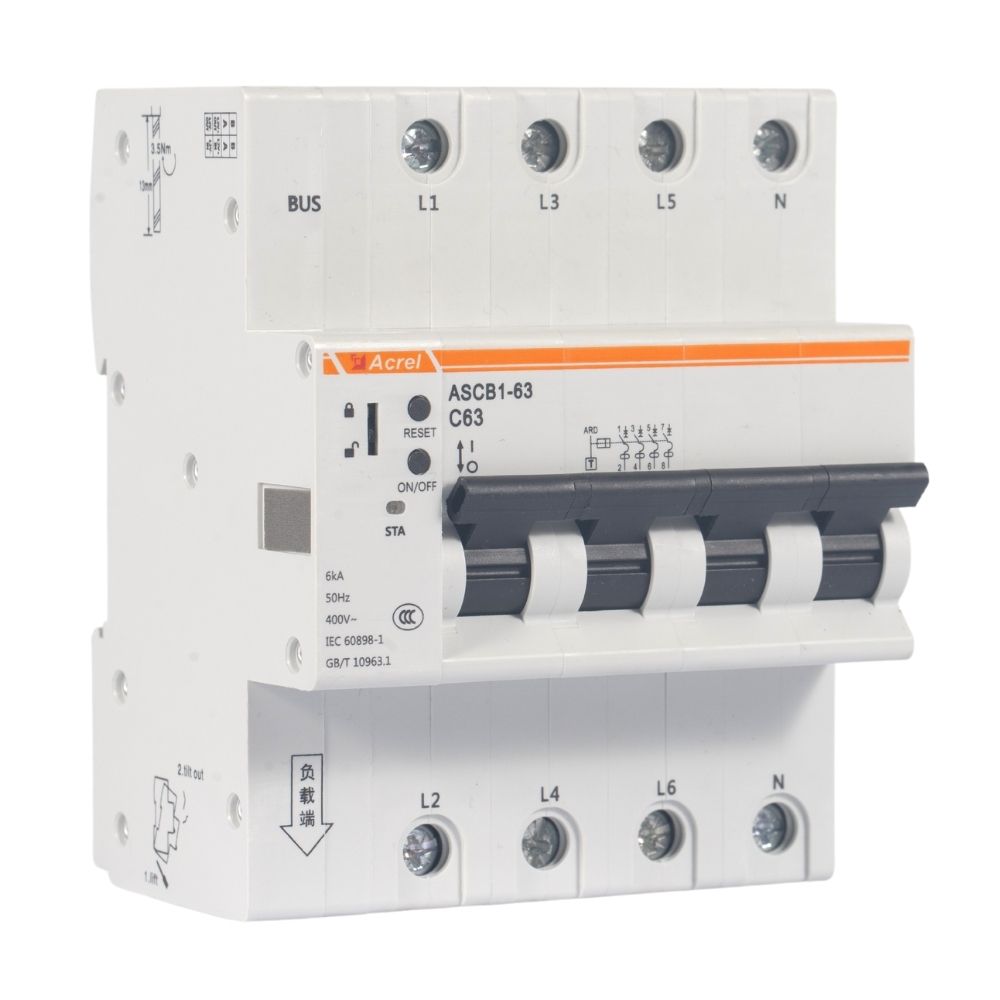

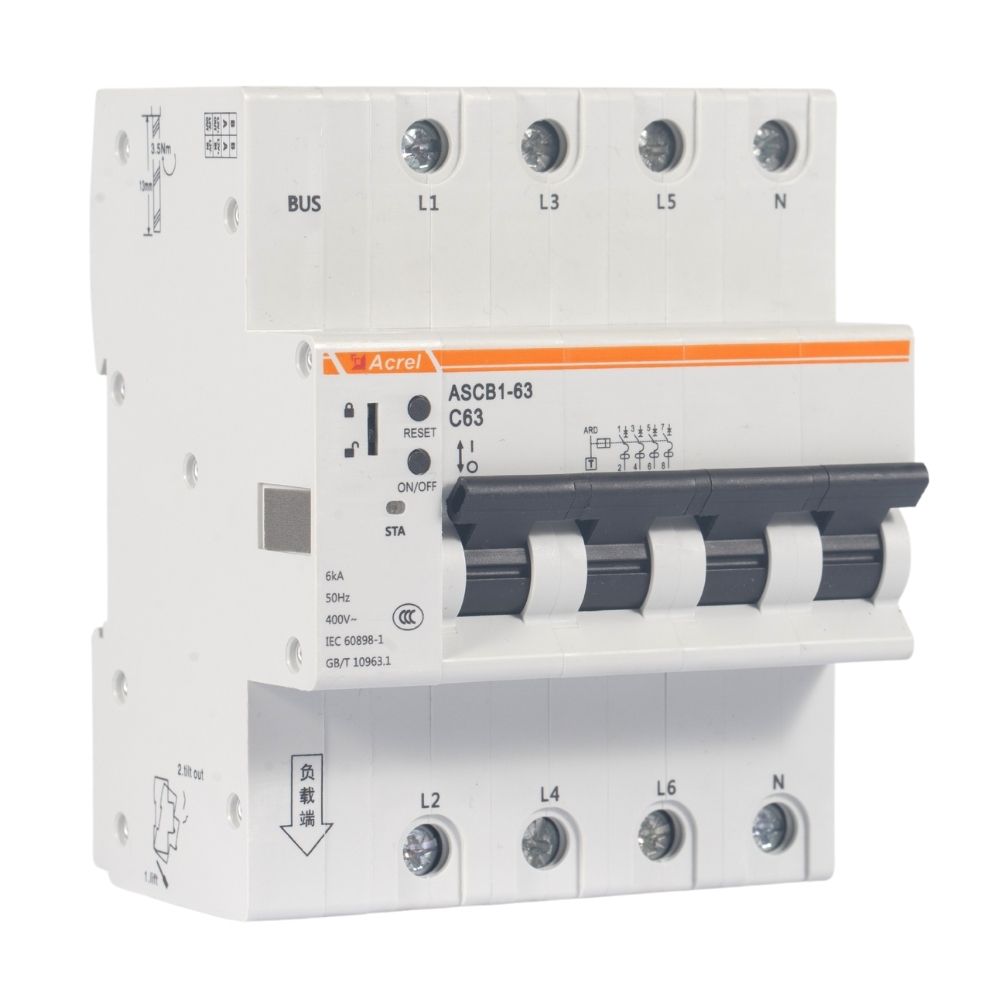

| ASCB1-63-C63-4P | Length | Width | Height | Pole | Phase | Wires |
| Parameter(mm) | 109 | 90 | 75.5 | 4 | three | 4 |

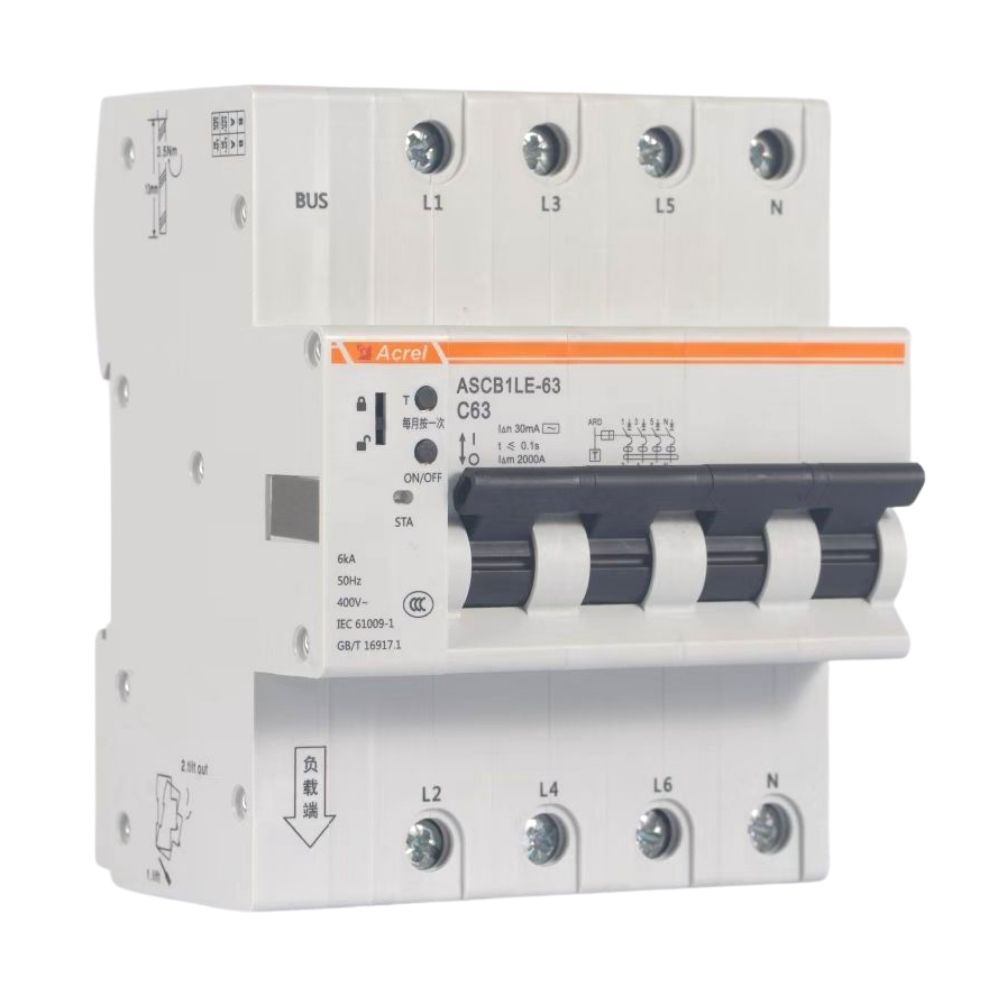

| ASCB1LE-63-C63 | Length | Width | Height | Pole | Phase | Wires |
| Parameter(mm) | 109 | 90 | 75.5 | 4 | three | 4 |
| ASCB1-M | Length | Width | Height |
| Parameter(mm) | 109 | 36 | 75.5 |
Got a Question? Get your Answer
The circuit breaker has its own RS485 communication interface, and it does not need to be equipped with an ASCB1-M gateway to access the customer system, but the customer needs to provide the circuit breaker with DC12V 12A auxiliary power supply
16 PCS
The gateway and the circuit breaker are connected by a 4pin cable, a set of DC12V auxiliary power supply, and a set of RS485 communication lines.
The connection between the circuit breaker and the circuit breaker is the same.
One-key addressing operation through the gateway
1. Internally integrate various sensor modules, including: current sensor, leakage transformer, temperature sensor, etc.;
2. The circuit breaker integrates the release function, which can realize remote opening and closing operations;
3. Configure the circuit breaker network cable
