Direct Access

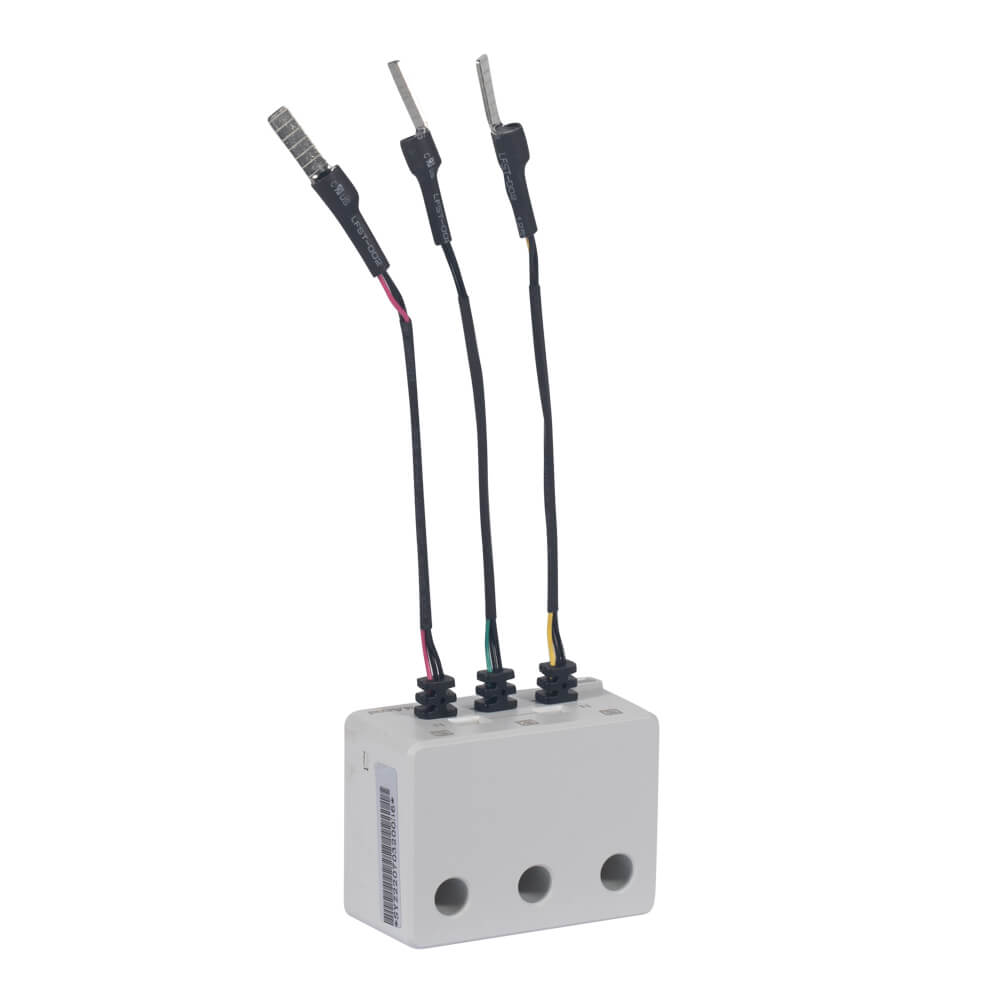

Lead Access

AESP100 series terminal multi-circuit intelligent power online monitoring device is applied to low-voltage terminal power distribution network in the fields of industrial, commercial, civil buildings and infrastructure in indoor buildings and similar places.
This device is used with a circuit breaker to monitor the key electrical factors of the power line in real time, such as voltage, current, power, temperature, energy consumption, etc., and has functions such as early warning and alarm, and energy metering and statistics.
This series of products is suitable for low-voltage power grid systems with single-phase, double live wire, three-phase three-wire, three-phase four-wire neutral point directly grounded (TT).

Highlight

What’s the Highlight of Acrel AESP PowerTag Wireless Energy Sensor?

Application

Cell Tower
EV Charger Station
Smart Building
Smart Street Lighting
Smart Factory
Smart Apartment

Communication

RS485 Modbus-RTU
Ethernet CE
4G
WIFI

Alarm

Over & Low Voltage
Over Current
Over Load
Over Temperature

Measure

Voltage, Current
Active Power, Reactive Power
Power Factor
Frequency
Active Energy, Reactive Energy
Temperature

Network

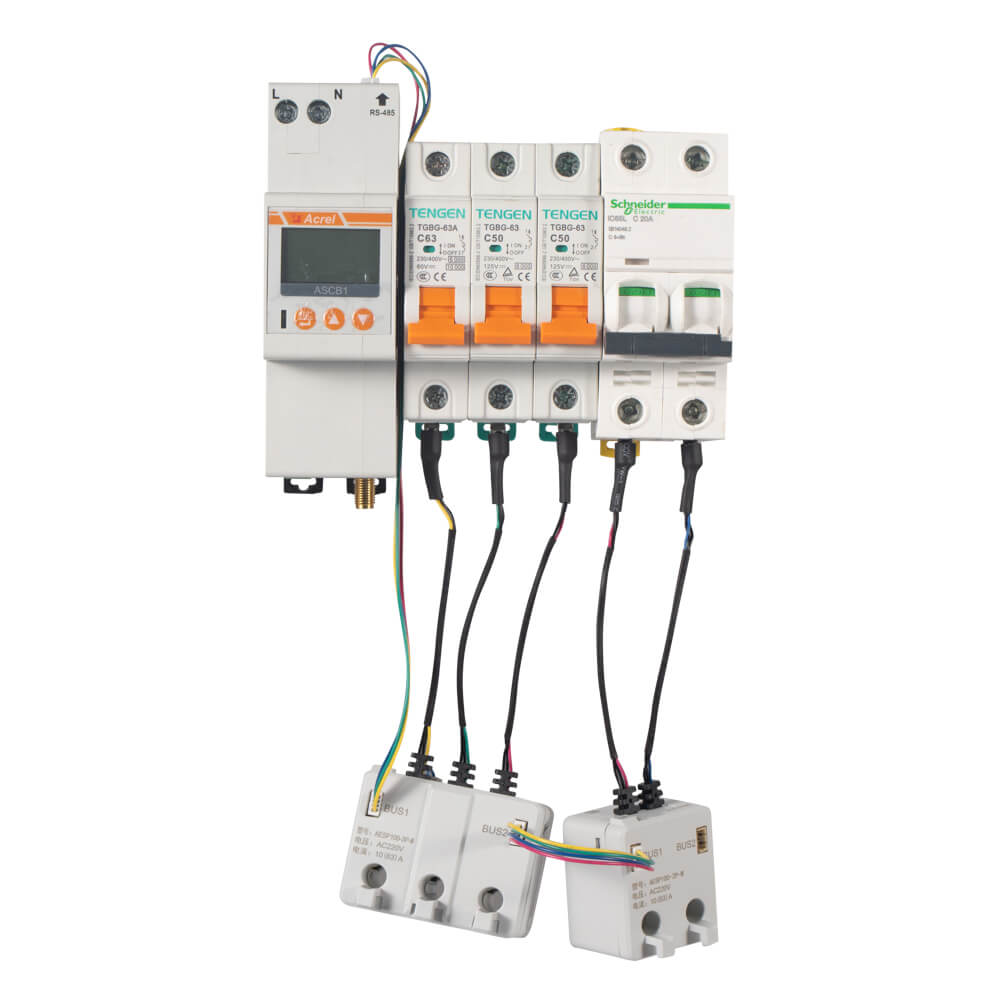

How does Acrel AESP PowerTag Wireless Energy Sensor work?

Telecom Tower

Smart Building

Smart Factory

Smart Apartment

Smart Street Lighting

EV Charging Station

Function

What’s the Function of Acrel AESP PowerTag Wireless Energy Sensor?

Item	Specification	Communication		Poles	Function
Powertag	AESP100-2P	RS485 MODBUS-RTU		2	Real-time monitoring of parameters such as voltage, current, power, electric energy and temperature; with various alarm functions such as overvoltage, undervoltage, overload, overcurrent, and overtemperature
	AESP100-3P			3

Item	Specification	Coomunication		Circuits	Function
		Uplink	Downlink
Gateway	AESP100-M-CE	CE	RS485 MODBUS-RTU	16	View real-time data of each circuit: voltage, current, power, energy, temperature and leakage; View the status of each circuit: fault, alarm and opening and closing; Parameter setting and control of each loop; Event record; Din rail installation, LCD display
	AESP100-M-4G	4G

Parameter

What’s the Parameter of Acrel AESP PowerTag Wireless Energy Sensor?

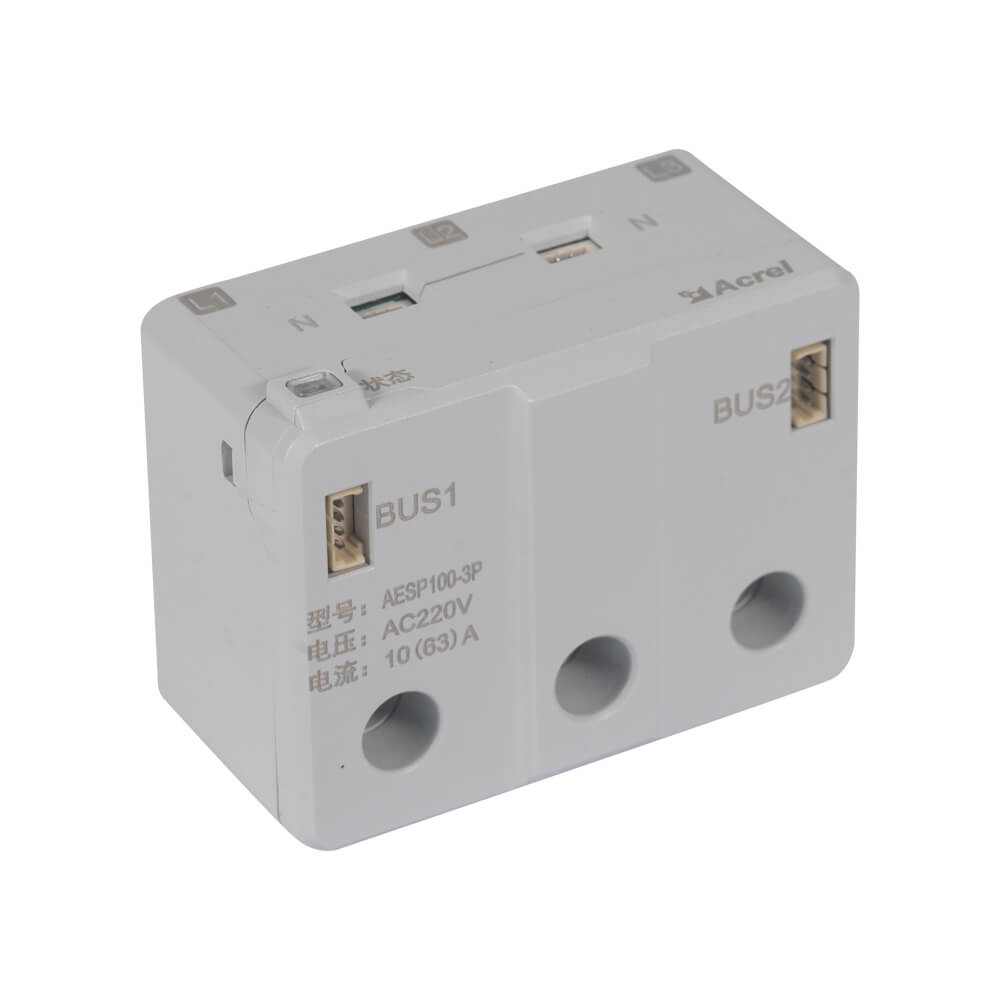

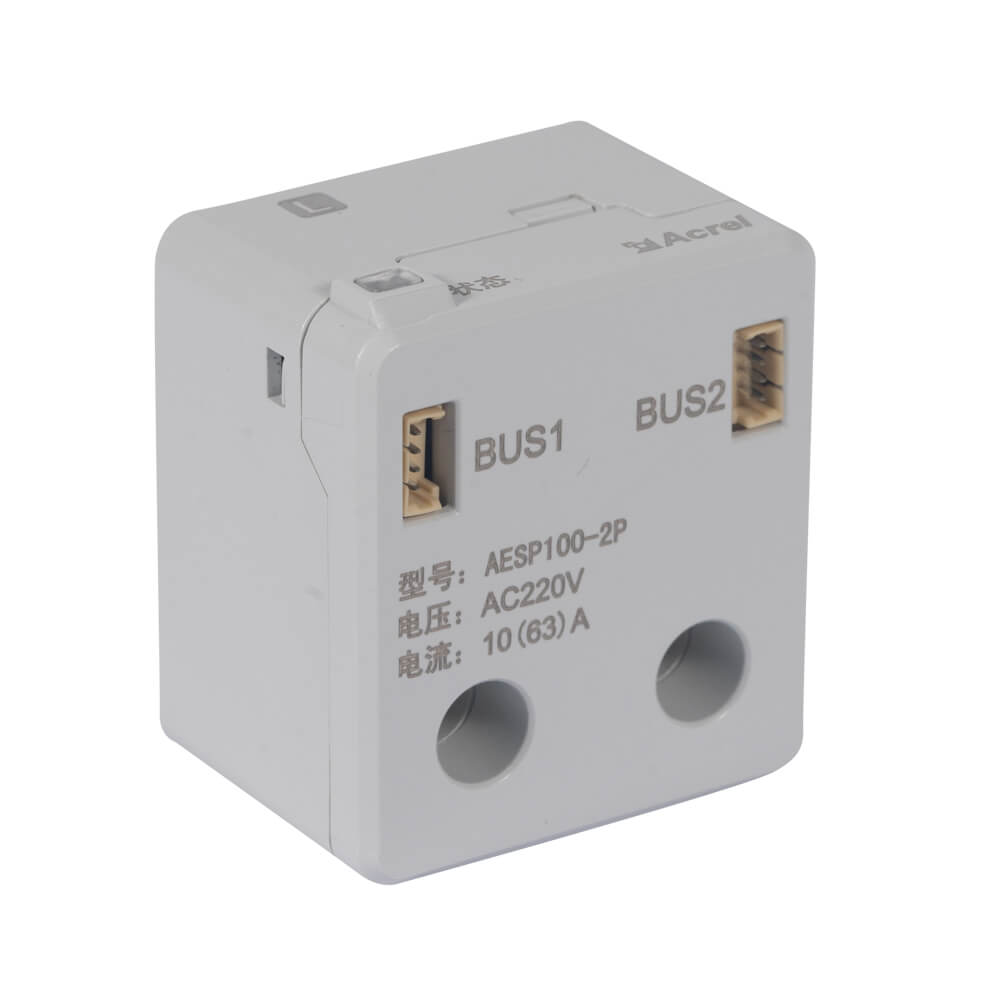

Type		AESP100-2P	AESP100-3P
Poles		2P	3P
Aperture		6.6mm
Number of loops		1 or 2 single-phase circuits	1 three-phase circuit or 3 single-phase circuits
Rated voltage		AC 220V
Rated current		10(63)A
Alarm Function	Over-current	Default 100% rated current warning, 110% rated current warning, adjustable threshold
	Over-load	Default 100% rated power warning, 110% rated power alarm, adjustable threshold
	Over-voltage	Default 110% rated voltage warning, 120% rated voltagewarning, adjustable threshold
	Under-voltage	Default 90% rated voltage warning, 80% rated voltage alarm, adjustable threshold
	Overt-emperature	Default 80℃ early warning,100℃ alarm, adjustable threshold
Protection class		IP30
Altitude requirements		2000m
ambient temperature		-10℃~55℃, 24h average temperature not higher than 40℃
Environmental requirements		No explosion hazard, no conductive dust, no enough to corrode metal and damage insulation,no significant vibration
Relative humidity		At +40°C, the relative humidity of the air is 50%, and it can have a higher relative humidity at lower temperatures
Storage temperature		-20℃-70℃
Installation method		Direct installation or lead wire installation with circuit breaker

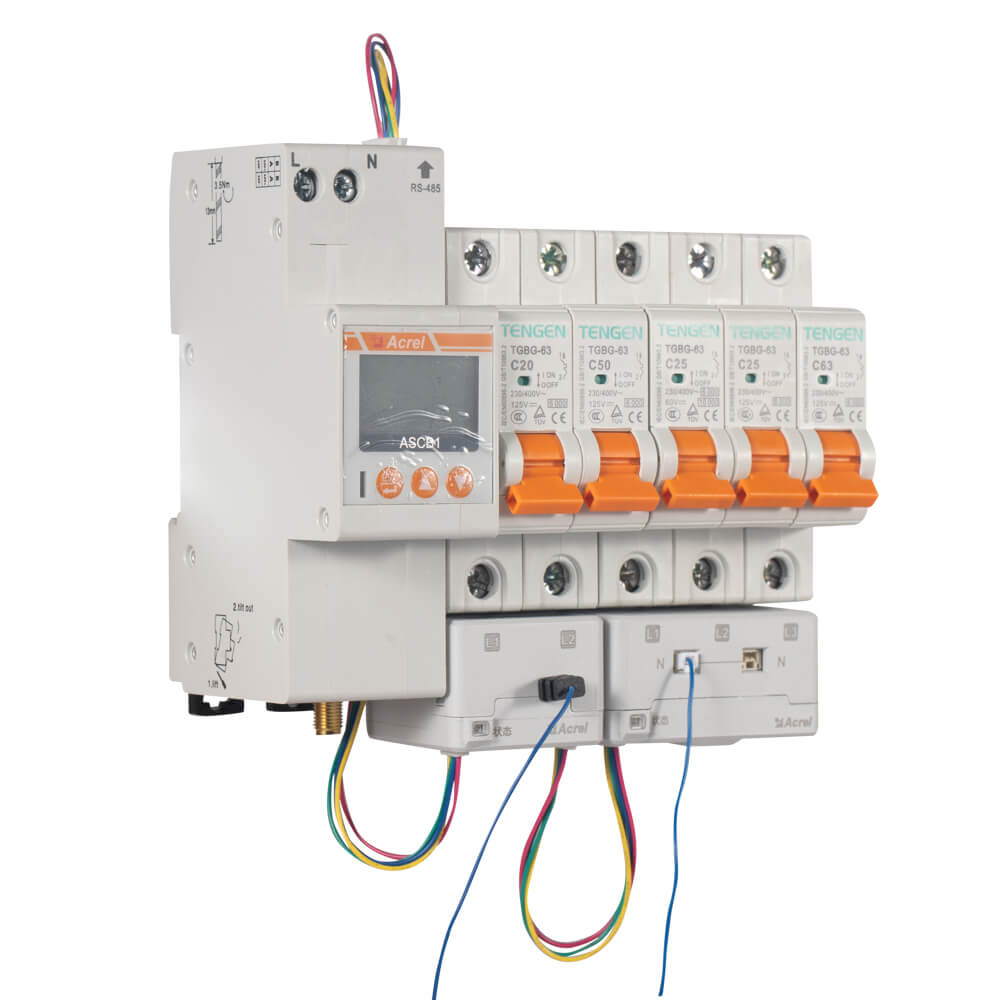

What’s the Parameter of Acrel AESP Power Tag Gateway?

Type	AESP100-M-4G	AESP100-M-CE
Power supply	AC 220V
Power consumption	≤30W
Communication	4G	Ethernet
Display	LCD display
Record	Alarm, fault and action records up to 20 records each
Protocol	Modbus、MQTT
Altitude requirements	2000m
Ambient temperature	-10℃-45℃,24h average temperature not higher than 35℃
Environmental requirements	No explosion hazard, no conductive dust, no enough to corrode metal and damage insulation, no significant vibration
Relative humidity	At +40°C, the relative humidity of the air is 50%, and it can have a higher relative humidity at lower temperatures
Storage temperature	-20℃-70℃
Protection class	IP20
Installation method	Standard 35mm Din rail installation

Terminal

The Terminal of Acrel AESP PowerTag Wireless Energy Sensor?

Wiring

How to Wire Acrel AESP PowerTag Wireless Energy Sensor?
